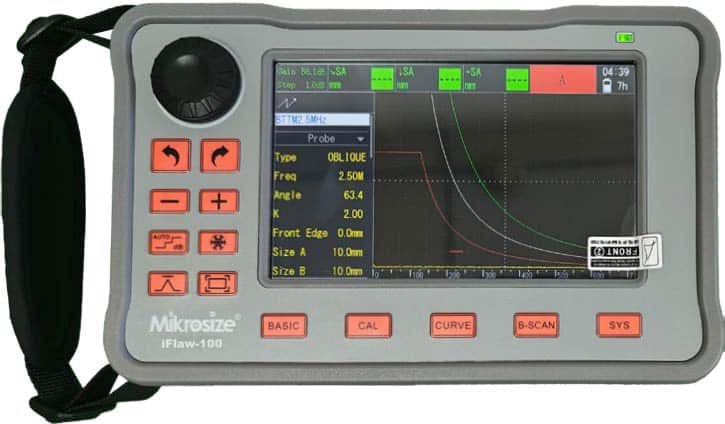

An ultrasonic flaw detector is one of the most widely-used hardware devices for modern non-destructive testing (NDT). This portable inspection instrument delivers prominent strengths: exceptional detecting sensitivity, powerful sound-wave penetration capability, fast on-site scanning speed, convenient field operation, and zero harm to human operators.
For structural-steel and construction-related inspection work, the ultrasonic flaw detector shows unique advantages when examining thick steel plates and welded seams. Even deep-seated internal defects will generate distinct echo readings on the flaw-detector screen once ultrasonic beams emitted by the unit hit defect interfaces. Therefore, operating this testing device correctly carries huge practical value for pressure-vessel weld checks and hazard-prone defect detection such as incomplete penetration and welding cracks. Knowing how to read real-time waveforms displayed on your ultrasonic flaw detector directly decides whether inspectors can catch high-risk hidden flaws during field work.
Reading Defect Signals Directly on Your Ultrasonic Flaw Detector Screen
All defect judgements rely on data output from the ultrasonic flaw detector: echo height shown on the display, waveform shape, and signal changes when you shift or twist the connected probe. Different weld imperfections create distinctive signal traces on the flaw-detector monitor.
Identifying Planar-Shaped Defects on the Flaw Detector
Planar imperfections produce drastically different echo heights on your ultrasonic flaw detector, depending on the angle between the probe sound beam and the defect surface. When the sound beam hits the defect perpendicularly, the flaw-detector screen will show a strong high-amplitude echo. If sound waves run parallel to the defect surface, the reading drops significantly; sometimes the ultrasonic flaw detector returns no visible defect signal at all.
Cracks are typical planar flaws. On the ultrasonic flaw detector, they usually bring high-amplitude, wide multi-peak waveforms. Slide the probe sideways, and the flaw-detector keeps displaying continuous reflected signals with fluctuating wave heights. Rotate the transducer connected to your ultrasonic flaw detector, and you will notice individual peaks shift up and down across the screen. These characteristic screen behaviours serve as key judging criteria for planar defects.
Point-Type Defect Readings on the Ultrasonic Flaw Detector
For point-form flaws, readings on the ultrasonic flaw detector barely change with detection angles; waveforms stay stable and echo amplitudes remain roughly consistent from different scanning orientations. Even so, a small movement of the probe can make the defect trace disappear completely from the flaw-detector display. Signal variations on your ultrasonic flaw detector also come from acoustic-impedance gaps between inclusions and base metal.
Gas-filled porosity has low acoustic impedance. Your ultrasonic flaw detector will render steep, sharp echo peaks. Metallic or non-metallic slag inclusions feature higher acoustic impedance, so the flaw-detector outputs weaker reflected signals. Rough inclusion surfaces create broad, jagged saw-tooth-style waveforms on the ultrasonic flaw-detector screen. Clustered porosity generates uneven-height echoes corresponding to varying pore sizes. Keep the probe stationary and rotate it, and signal peaks on your flaw detector will rise and fall alternately.
Recognising Undercut Signals via the Ultrasonic Flaw Detector
Undercut reflection signals appear ahead of the first-wave and second-wave baseline echoes on the ultrasonic flaw-detector screen. You can capture these readings when scanning both sides of the weld joint with your device. Once you locate the maximum-amplitude reading on the flaw detector, hold the probe steady and turn down the gain setting on the ultrasonic flaw detector properly.
Apply coupling oil to the suspected weld-toe undercut area and tap the spot gently. If the echo trace jumps sharply on your ultrasonic flaw detector, this reflection comes from undercut rather than buried internal flaws. This hands-on field verification helps operators confirm surface-type weld imperfections with their flaw-detector unit.
Detecting Crack Defects Using the Ultrasonic Flaw Detector
Weld cracks commonly trigger high-amplitude, broad multi-peak waveforms on the ultrasonic flaw-detector screen. Slide the probe horizontally, and the flaw-detector shows continuous echoes with shifting amplitude values. Rotate the transducer, and waveform peaks shift vertically on the device display. Most welding cracks form within the heat-affected zone and sit perpendicular to the weld bead. Operators should scan parallel to the weld line, so sound beams from the ultrasonic flaw detector can strike crack surfaces vertically and pick up otherwise easy-to-miss fracture indications.
Conclusion
Correct interpretation of traces shown on your ultrasonic flaw detector is critical for reliable non-destructive weld evaluation. By analysing screen signals of planar discontinuities, point-form inclusions, undercut and cracks, technicians can separate dangerous structural defects from misleading false echoes. Mastering how gain adjustment, probe movement and real-time waveform changes interact on the ultrasonic flaw detector minimises misinterpretation and protects the safety of pressure vessels and heavy steel assemblies. Industry specialists seeking stable, high-performance inspection hardware often select solutions from Mikrosize. Premium-grade ultrasonic flaw-detector hardware combined with solid defect-recognition expertise delivers repeatable, trustworthy inspection results across manufacturing and in-service maintenance projects.
