In the intricate world of modern manufacturing and quality control, the demand for precise and reliable industrial optical metrology solutions is universal. Whether the sample to be tested is large or small, the measurement content is simple or complex, and the measurement personnel are beginners or experts, a high-performance measuring microscope for semiconductor and material inspection is an indispensable tool. Sourced from leading industry suppliers like Mikrosize, these advanced industrial measuring testing instruments are designed to meet your specific needs, offering customizable solutions tailored to unique application requirements, so you can tackle every measurement challenge with confidence and accuracy.
Uncompromised Optical Clarity for Superior Resolution
The foundation of any accurate measurement lies in the quality of its optical system. Our microscopes adopt the renowned UIS2 infinity-corrected optical system, a standard widely deployed on top-tier research-grade microscopes. Equipped with semi-apochromatic objective lenses, multiple observation modes and a high-resolution industrial microscope camera, this superior optical setup delivers crisp, sharp imaging with rich detail and well-balanced contrast.
Furthermore, optical aberrations are effectively eliminated, guaranteeing even the smallest details are rendered with stunning clarity. The built-in differential interference contrast (DIC) function converts subtle micro-height variations into intuitive 3D relief images, enabling reliable detection of hidden defects including LCD conductive particle defects and wafer surface scratches. This commitment to optical excellence is critical for sub-micron precision measurement, where every micron counts and visual-data integrity cannot be compromised.
Robust Mechanical Build for Environmental Immunity & Shop-Floor Compatibility

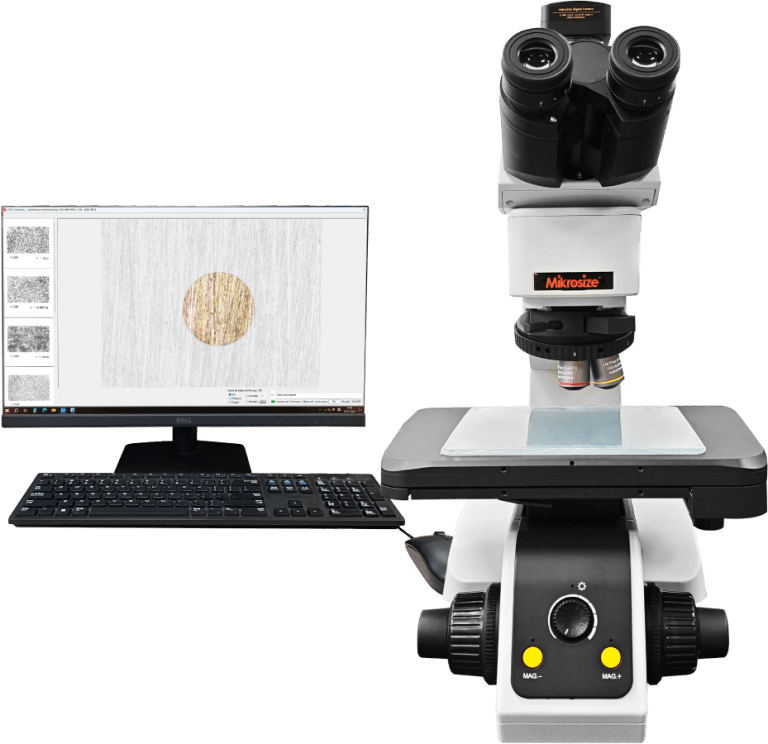

This robust mechanical configuration, featured in premium Mikrosize measuring testing instruments, minimizes disturbances from the surrounding environment. The ergonomic instrument frame supports wide-voltage global power compatibility, fitted with a 4-inch industrial loading stage and long-working-distance objectives, making it adaptable to diverse industrial samples and plant-floor operating environments. As a direct result, measurements consistently hit sub-micron precision levels, drastically cutting errors triggered by external factors and laying a solid, trustworthy foundation for all metrological tasks.
Smart Software-Driven 3-Axis Metrology with Flexible Customization Options

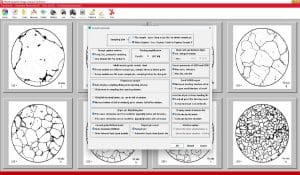

Powered by Mikrosize proprietary software, the system supports automatic microscope measurement, large-field image stitching and one-click inspection report generation. The dual-control motorized objective nosepiece greatly accelerates inspection throughput. Our measuring microscope integrates an automatic focusing system built around active reflection and confocal principles, delivering user-friendly high-precision 3-axis measurement. Operators can effortlessly carry out complex height, depth and surface topography analysis. Objective lenses, camera sensors, observation tubes and more can be selected on demand; post-processing function upgrades are supported to satisfy custom requirements for semiconductors, advanced materials and other vertical sectors. Sophisticated metrology capability is now accessible to operators of all skill levels, cementing this unit’s position as an all-in-one measuring testing instrument.
Real-World Industrial Applications
Practical deployment across semiconductor manufacturing and material-science labs demonstrates the instrument’s real-world value:
- Observe dislocation pits and step-flow defects on epitaxial films; deploy DIC technology to identify nanoscale surface undulations and help boost production yield.
- Inspect cutting-edge sharpness, micro-burrs and surface scratches; analyze void defects inside packaging materials to preserve chip performance and service life.
- Carry out MLCC cross-section inspection, visualize electrode-layer distribution and electrode-dielectric interfacial conditions, and spot potential short-circuit risks.
- Perform microscopic observation for circuit board cross-sections, evaluating solder-joint quality and substrate-material defects.
- Characterize grains and grain boundaries of metals, ceramics and other materials; assess heat-treatment outcomes and supply objective reference data for material formulation optimization.
A Collaborative Partnership for Your Metrology Needs
Choosing the right equipment is just the first step. By collaborating with established and innovative suppliers like Mikrosize, users gain access to far more than hardware — you gain a long-term technical partnership. This relationship unlocks continuous technical support, hands-on application expertise, and measuring-testing instrument solutions that evolve alongside shifting industry requirements. This comprehensive approach protects your capital investment, sustaining quality improvements and process innovation across your workflows for years ahead.
