MRocky-150D Rockwell Hardness Tester
Scan QR
Scan QR

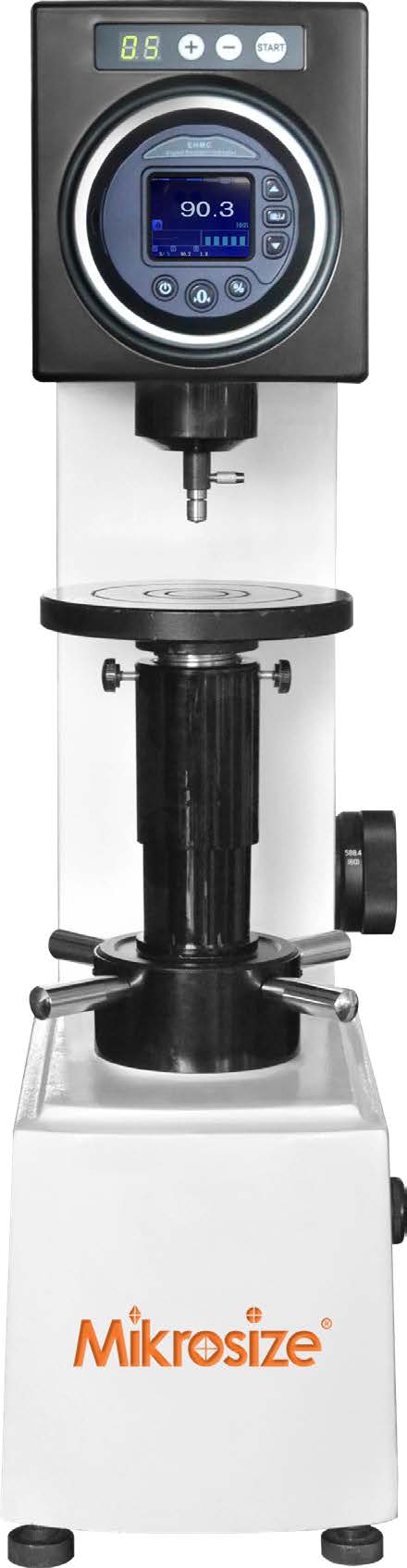

MRocky 150D（1）

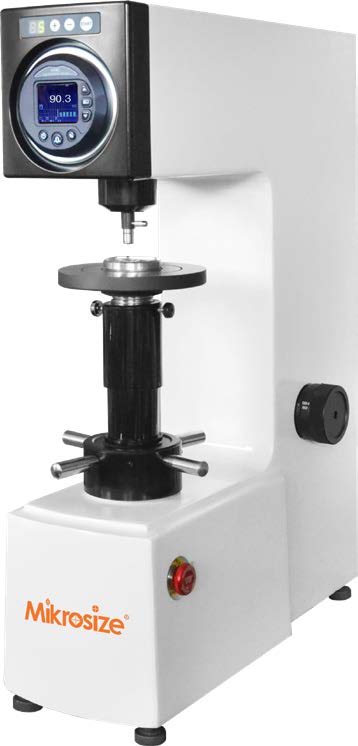

MRocky 150D（2）

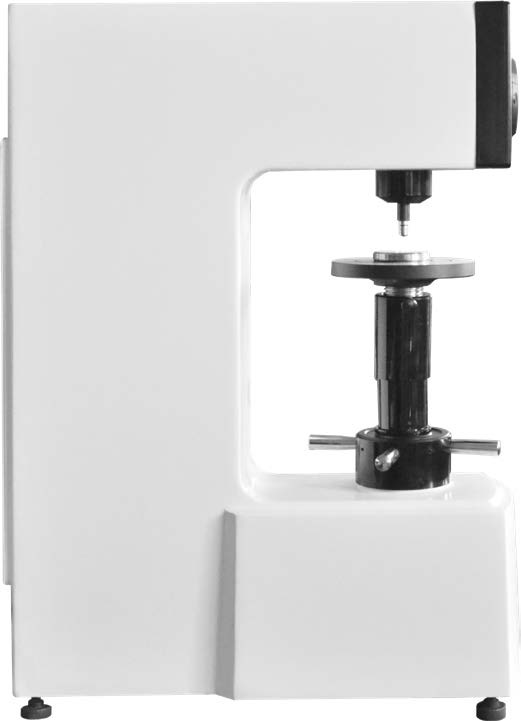

MRocky 150D（3）

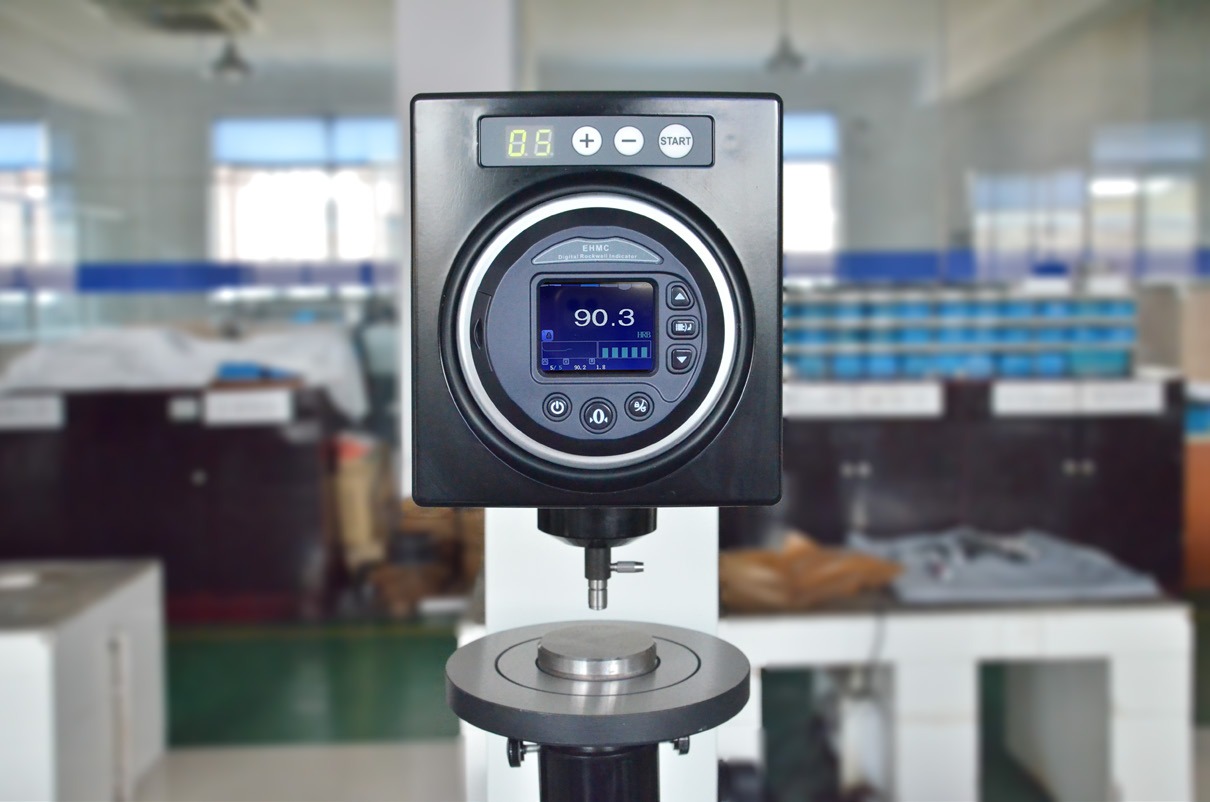

MRocky 150D（4）

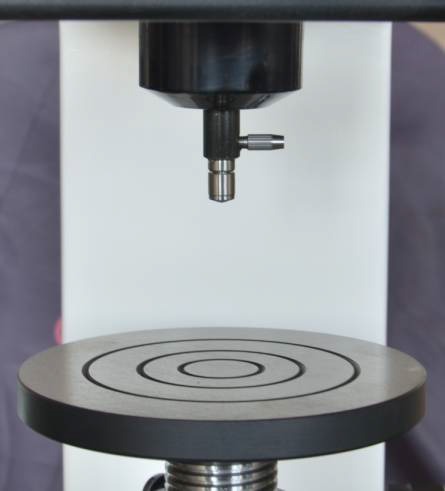

MRocky 150D（5）

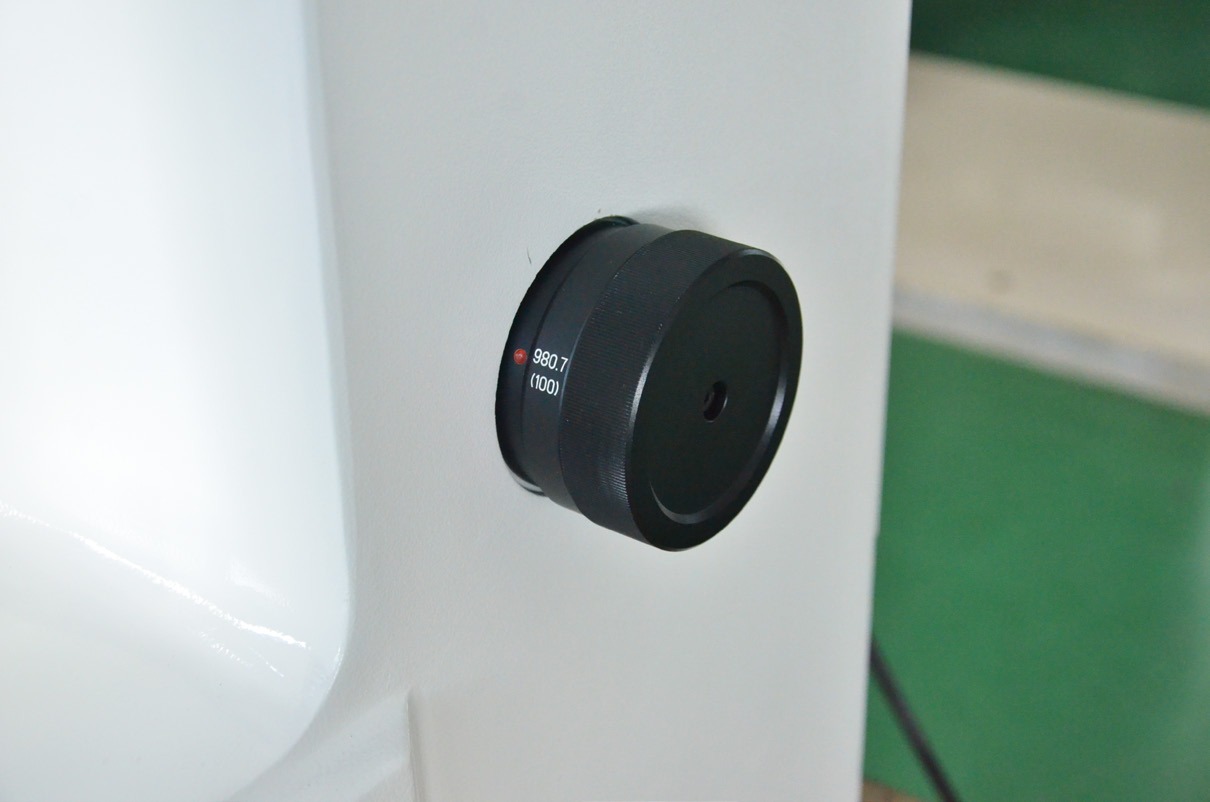

MRocky 150D（6）
Product Features & Applications
Product Features:
- Integrated cast iron structure provides 99% rigidity for the main body, minimizing deformation; the housing undergoes natural aging treatment for more than half a year, ensuring stable physical properties.
- The lifting screw is heat-treated to a hardness of 35–40 HRC, featuring stable structure and high wear resistance.；
- Weights and levers are manufactured and calibrated with classic processes, offering high precision and fine mechanical adjustment.
- High-precision EHMC digital Rockwell indicator supports all Rockwell hardness test scales and scale conversion in compliance with ISO/GB/ASTM standards.
- Supports upper and lower limit setting with out-of-tolerance alarm.
- Test results are saved in real time with automatic time recording; data can be exported via USB or wireless connection.
Product Applications:
- Suitable for hardness testing of quenched, tempered, annealed materials, hard castings, malleable castings, hard alloy steels, aluminum alloys, copper alloys, bearing steels, etc.
Technical Specifications
| Model | MRocky-150D |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Forces | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter Specifications | Diamond Rockwell indenter, 1.5875 mm tungsten carbide ball indenter |
| Test Force Application | Automatic (loading / dwell / unloading) |
| Hardness Reading | Automatic readout on LCD screen |
| Test Scales | HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV |
| Conversion Scales | Compliant with ISO/GB/ASTM standards |
| Data Storage | 500 records, with automatic test time recording |
| Data Output | USB port, wireless |
| Auxiliary Functions | Upper/lower limit setting, out-of-tolerance indication |
| Hardness Resolution | 0.1HR |
| Dwell Time | 2~60s |
| Max. Sample Height | 185mm |
| Distance from Indenter Center to Column | 165mm |
| Power Supply | AC220V，50Hz |
| Compliance Standards | GB/T 230，ISO 6508，ASTM E18，JIS Z2245 |
| Dimensions | 520×215×700mm |
| Net Weight | 78kg |
Standard Configuration
| Item | Qty |
| Main Unit | 1 pc |
| Accessory Case | 1 pc |
| Diamond Rockwell Indenter | 1 pc |
| 1.5875 mm Tungsten Carbide Ball Indenter | 1 pc |
| Φ150 mm Flat Anvil | 1 pc |
| Φ74 mm Flat Anvil | 1 pc |
| Φ40 mm V-Anvil | 1 pc |
| Hardness Block 60–70 HRC | 1 pc |
| Hardness Block 20–30 HRC | 1 pc |
| Hardness Block 80–100 HRBW | 1 pc |
| Weights A, B, C | 1 pc each |
| Spirit Level | 1 pc |
| Leveling Screws | 4 pcs |
| Power Cord | 1 pc |
| 2 A Fuse | 2 pcs |
| 3 mm Hex Key | 1 pc |
| 7 mm Open-end Wrench | 1 pc |
| Dust Cover | 1 pc |
| Operation Manual | 1 pc |
| Certificate of Conformity | 1 pc |
Optional Configuration
| Indenter |
| Hardness Block |
| Convex anvil (diamond insertable), V-anvil、V-anvil |
| Spherical workpiece anvil |
| Working table |
Latest Products
Our newest precision measurement solutions
- iCut-30P Low Speed Precision Cutting Machine
- iRocky-150M Manual Rockwell Hardness Tester
- eThick-1280 Electromagnetic Ultrasonic Thickness Gauge
- iStereo-205 Stereo Microscope
- SPM-200D Dual-probe Roughness and Profile Measuring Machine

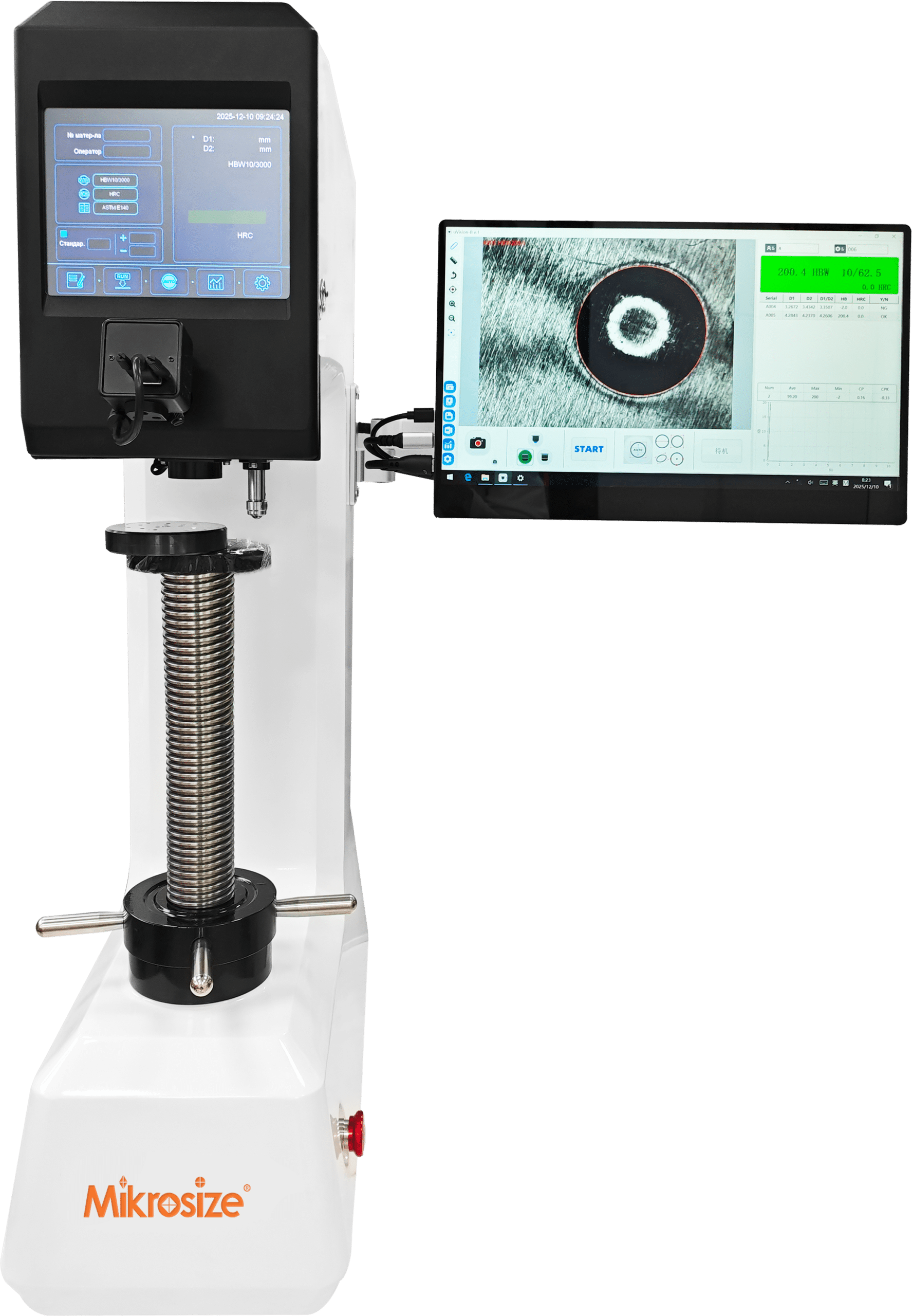

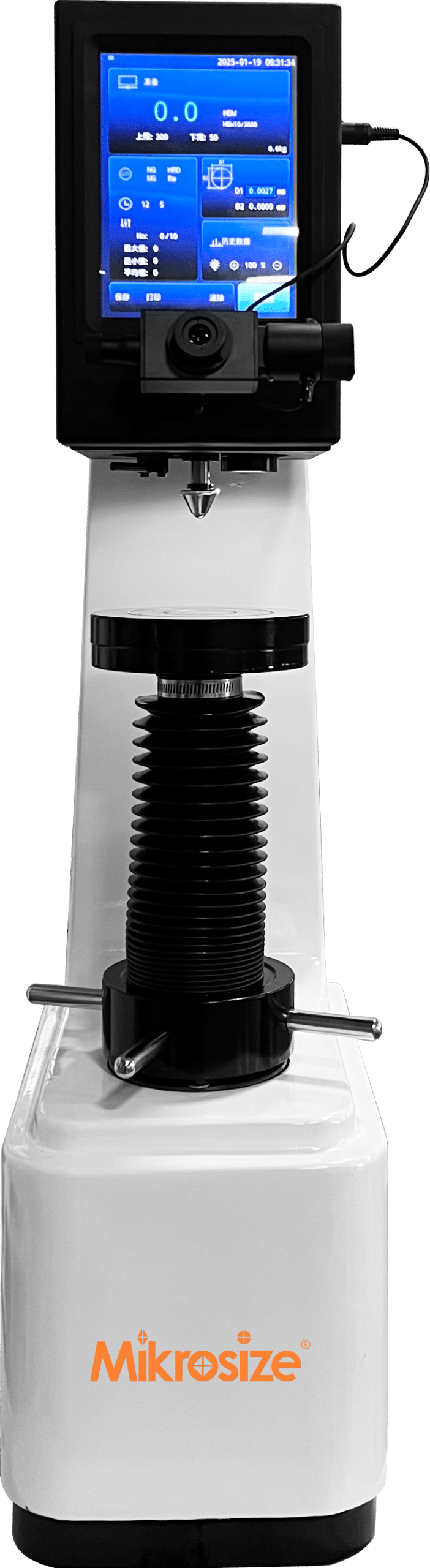

- iBrin-3000CL Digital Brinell Hardness Tester
