iBrin-3000CL Digital Brinell Hardness Tester
Scan QR
Scan QR

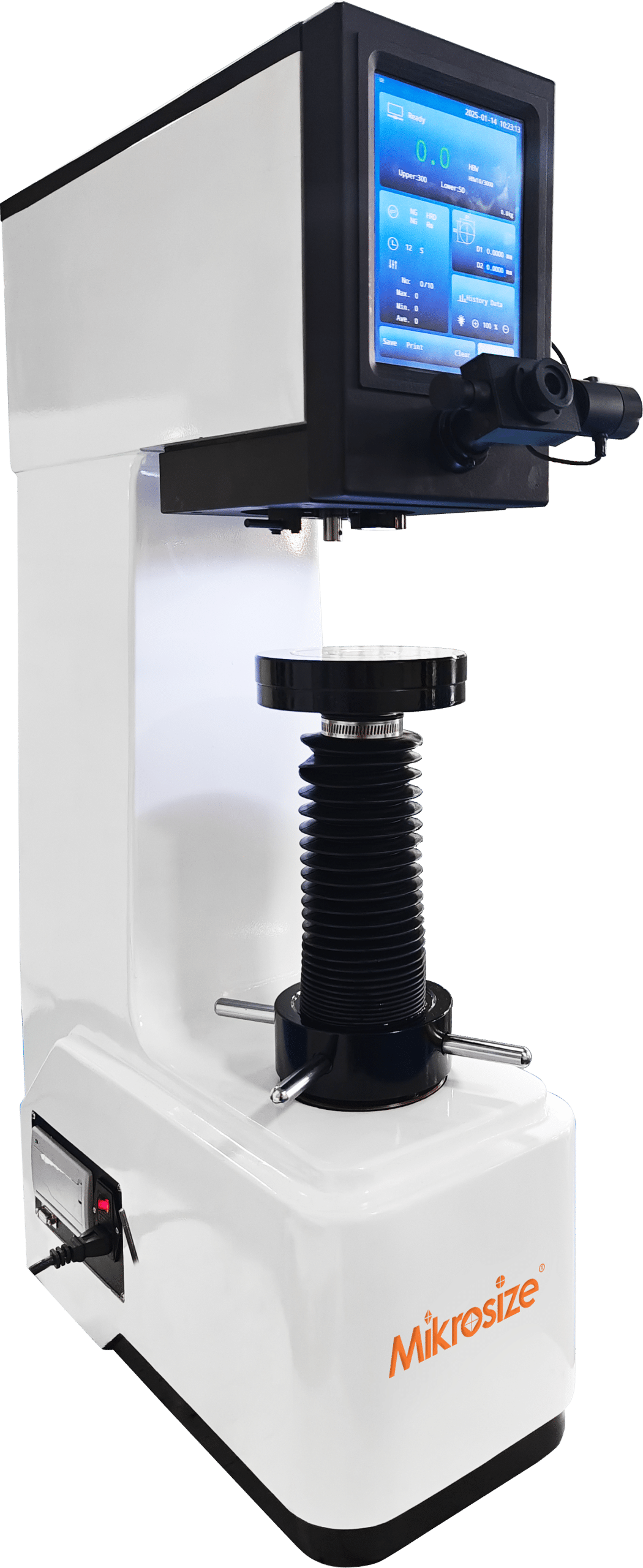

IBrin 3000CL图（1）
IBrin 3000CL图（2）
IBrin 3000CL图（3）

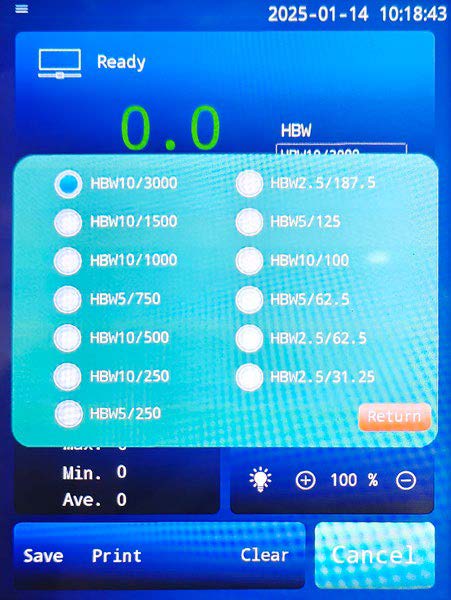

IBrin 3000CL图（4）

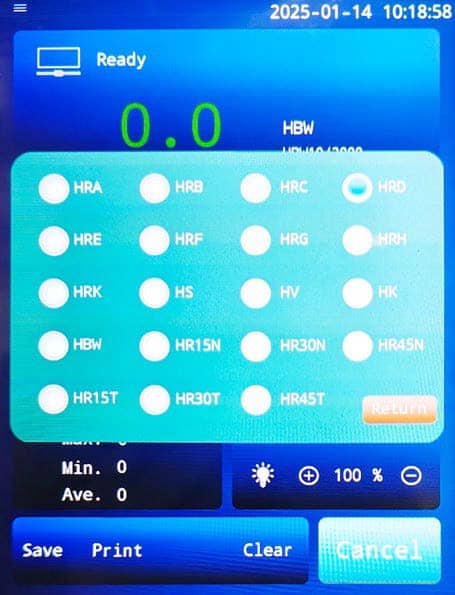

IBrin 3000CL图（5）

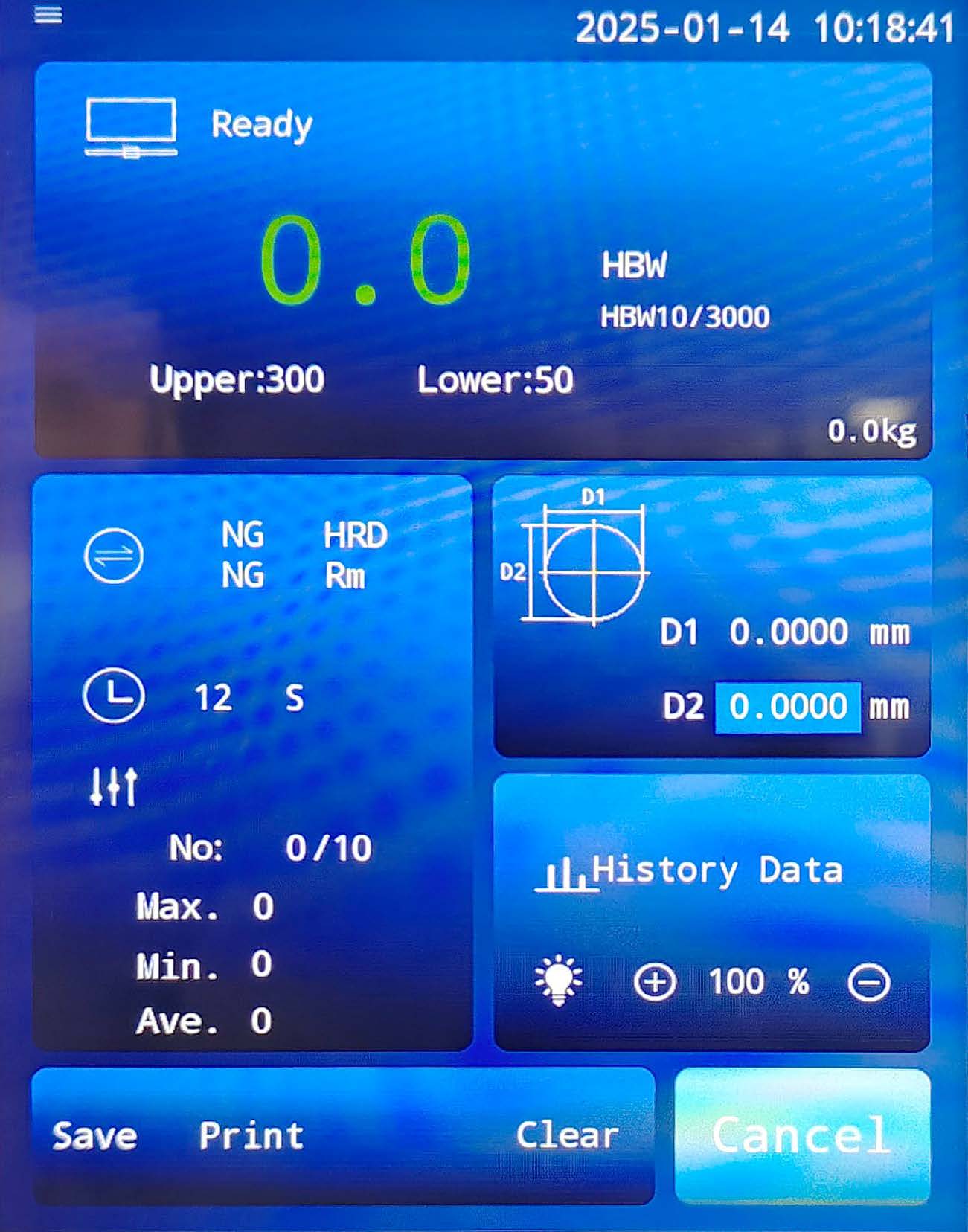

IBrin 3000CL图（6）
Product Features & Applications
Product Features：
- Adopt electronic loading test force instead of weight force, improve the accuracy of force value, the use of measurement value is more stable;
- Eight-inch touch screen operation and display, humanized operation interface, complete the instrument settings;
- By the stepping motor directly drive the ball screw to add force, strong anti-interference ability, stable performance;
- Reading mode: automatic/manual reading by indentation measuring system.
Product Applications：
- Suitable for hardness determination of cast iron, steel, non-ferrous metals and soft alloys and the determination of hardness of certain non-metallic materials;
- Wide range of applications, suitable for precision measurement of parallel planes, and the surface measurement is stable and reliable.
Technical Specifications
| Model | iBrin-3000CL |
| Test Force(N/kgf) | 612.9, 980.7, 1225.9, 1838.8, 2451.8, 4903.5, 7355.3, 9807, 14710.5, 29421N(62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf) |
| Test Range | 8-450HBS,8-650HBW |
| Conversion Scale | HV ,HR15N, HR3ON,HR45N, HR15T,HR3OT, HR45T |
| Dwelling Time | 0~60s |
| Test Height | 280mm |
| Test Throat | 175mm |
| Loading Method | Electronic Loading |
| Computer System | WIN10 |
| Machine Dimension | 860*680*1250mm |
| Power Supply | AC110/220V, 50Hz |
| Executive Standards | DIN EN ISO 6506-2, ASTM E10, GB/T231.2 |
| Weight | Net Weight:130kg Gross Weight:150kg |
Standard Configuration
| Name | Quantity |
| Machine Mainframe | 1 Set |
| Φ110mm Flat Anvil | 1 PC |
| Φ60mm Flat Anvil | 1 PC |
| Φ60mm V-Shaped Anvil | 1 PC |
| Reading Microscope 20X | 1 PC |
| Φ2.5mm Hard Ball Indenter | 1 PC |
| Φ5mm Hard Ball Indenter | 1 PC |
| Φ10mm Hard Ball Indenter | 1 PC |
| Brinell Hardness Standard Block | 2 PCS |
| Anti-dust Cover | 1 PC |
| Power Cord | 1 PC |
| Allen key | 1 PC |
| Computer, CCD Adapter and Software | 1 PC ea. |
| Instruction Manual | 1 Copy |
| Product Certificate, Warranty Card | 1 Copy ea. |
