In today’s highly competitive manufacturing landscape, industrial stereo inspection has become a core factor determining enterprise competitiveness. As critical equipment for micro-defect detection on production floors, why does your manufacturing line require a stereo microscope?
First of all, a stereo microscope delivers erect three-dimensional imagery, allowing operators to directly visualize surface morphology and spatial structures of test samples. In real-world production workflows, many barely-visible micro-flaws act as hidden yield-reduction culprits. These include cold-solder defects during PCB solder joint inspection, SMT component coplanarity analysis, surface cracks and burr identification on metallic mechanical parts.
Compared with conventional magnifiers, quality-control microscopy instruments such as Mikrosize iStereo-6745 deliver distinct advantages: long working distance and large depth of field. Even when examining heavily contoured surfaces, it maintains sharp, consistent imaging and greatly reduces missed-detection risks. The iStereo-6745 uses premium optical components with special-formula coatings to produce flat-field, high-contrast erect images. Peripheral-field views remain bright and sharp, supporting reliable observation across uneven sample surfaces.
Secondly, beyond basic flaw identification, a suitable stereo microscope can significantly boost production-line inspection efficiency and standardization levels. Models fitted with continuous-zoom objectives enable smooth transition from low to high magnification, swiftly locking onto target regions without time-consuming objective-lens swaps.
The Mikrosize iStereo-6745 is equipped with a 0.67X-4.5X continuous-zoom objective offering a 6.7:1 zoom ratio. When paired with WF10X eyepieces, it delivers standard magnification from 6.7X-45X. Auxiliary optional objectives further extend magnification coverage. The dual-side horizontally mounted zoom handwheels provide smooth operation and excellent zoom repeatability for repetitive quality-control tasks.
Certain configurations support digital camera integration, streaming live imagery onto external monitors to facilitate multi-operator collaborative inspection and quality-data archiving. Electronics manufacturing imposes strict requirements for instrument precision and reliability. Featuring intuitive operation and zero-sample-preparation requirements, the stereo microscope stands out as one of the preferred inline inspection tools. It empowers manufacturers to upgrade workflows from sporadic naked-eye sampling to organization-wide microscopic examination, systematically elevating overall quality-control performance.

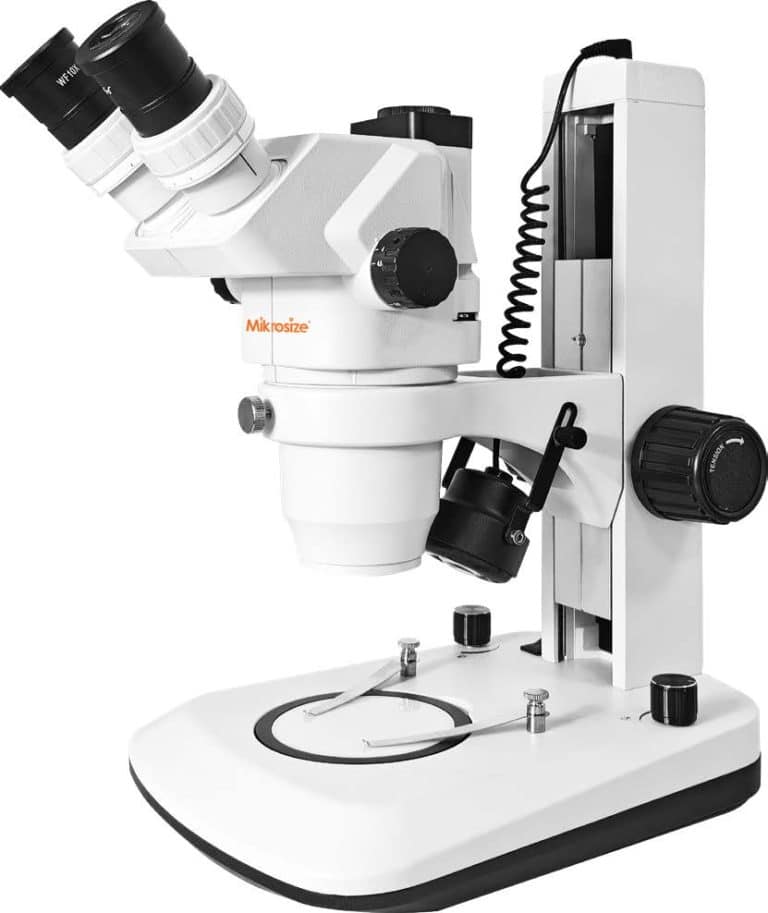

Once these practical benefits are acknowledged, the Mikrosize iStereo-6745 provides an ideal hardware solution for production-floor visual inspection. This purpose-built industrial stereo inspection unit targets electronics-industry assembly and verification work. Its standard effective working distance reaches 105 mm; by adding optional auxiliary objectives, working distance can expand from 26 mm up to 287 mm, delivering ample operating clearance. This long-working-distance capability effectively prevents physical collisions between optical assemblies and high-power electronic components, improving operational safety.
The 45°-tilted binocular viewing head includes diopter adjustment, accommodating operators with differing eyesight. Interpupillary distance ranges from 54 mm-75 mm, making it suitable for multi-operator shift-based workstations. For typical shop-floor tasks such as PCB solder joint inspection and electronic component surface verification, the iStereo-6745 performs reliably. For large-size circuit boards or immovable workpieces requiring non-destructive visual checks, compatible alternative stands and auxiliary objective accessories further expand equipment flexibility.
Conclusion
To conclude, investing in a stereo microscope empowers manufacturers to shift quality management from post-failure remediation toward proactive in-process prevention. Mikrosize iStereo-6745 leverages high-grade optical craftsmanship, crisp imaging performance and flexible working-distance configurations to deliver cost-effective upgrade solutions for production lines across electronics, precision machinery and material-testing sectors.
Whether deployed for routine on-site patrol checks or dedicated QC acceptance stations, a properly configured quality-control microscopy solution can improve product yield so significantly that equipment investment is often recovered within just a few months.
Mikrosize provides comprehensive industrial stereo inspection hardware together with technical support. We deliver well-rounded measurement and inspection solutions covering incoming-material checks, process monitoring and finished-goods validation. Our instruments serve QC workshops, university laboratories and research institutes, supporting micro-structure observation, defect screening and image-based data archiving for metals, plastics, PCBs and new-material specimens.
