In materials science and industrial quality control, the Charpy impact test remains the gold-standard laboratory method to evaluate metal material toughness and resistance against sudden dynamic loading. A reliable pendulum impact testing machine delivers critical test data for automotive, aerospace, structural construction and heavy-equipment manufacturing sectors. By simulating high-strain-rate sudden shock conditions, this equipment quantifies a material’s ductile-to-brittle transition behavior — a vital safety metric for components operating under harsh service environments.
Modern-day microcomputer-controlled Charpy impact testing machine such as the ITM-A300 / A450 / A750 series from trusted suppliers like Mikrosize are engineered to run standardized Charpy tests consistently. A precisely aligned notched metal specimen sits on the test fixture; a calibrated pendulum of known mass and length releases from a defined elevation. The pendulum rebound height after specimen fracture determines energy consumption. The potential-energy difference between initial release height and post-impact swing height directly calculates impact absorption energy, which quantifies material impact toughness. Such test outputs support material selection, product R&D and component failure analysis, ensuring only sufficiently tough alloys get deployed for safety-critical industrial parts.
Key Technical Advantages of ITM-A300/A450/A750 Charpy impact tester
Built for long-term lab stability, repeatability and operator safety, this model series integrates multiple well-thought-out mechanical, control and safety features preferred by material testing laboratories and quality-control departments.
- The mainframe and base adopt integrated one-piece casting and machining, delivering exceptional structural rigidity and vibration resistance. This rigid construction minimizes frame flexing during heavy-energy impacts and prevents test-result distortion.
- Pendulum circular hammer body optimized via 3-D CAD design for accurate center-of-gravity positioning. Circular geometry effectively cuts down air-resistance-caused energy loss throughout impact cycles.
- Impact blades use high-performance special alloy material: high hardness, minimal deformation and outstanding shock resistance. Two blade options (2 mm and 8 mm) are available; screw-clamp mounting enables quick blade replacement.
- Two-stage reduction motor serves as hammer-lifting power source: high torque, slip-free operation and low running noise. Imported electromagnetic clutch provides fast engagement / disengagement with zero slipping.
- Microcomputer automatic measurement & recording system governs full workflow: pendulum lifting, hooking and release are fully automated. Pendulum hooking position locks according to preset swing angles to keep constant initial impact energy.
- Pendulum-hooking assembly comes with hydraulic buffer mechanism. It achieves smooth, jitter-free pendulum capture and avoids mechanical shock damage to hook components. Electric-driven pendulum triggering eliminates human interference and preserves original impact energy and impact velocity. After specimen fracture, residual pendulum energy automatically re-hooks the pendulum to get ready for next specimen, ideal for batch Charpy impact testing.
- High-precision photoelectric encoder captures swing angles to greatly boost impact-energy test accuracy. Users can swap pendulum sets to adjust initial energy levels and widen the machine’s material-testing scope.
- Triple energy-readout channels: microcomputer software display, analog dial gauge and optional LCD touchscreen. Operators cross-validate results from three independent readouts to catch measurement discrepancies.

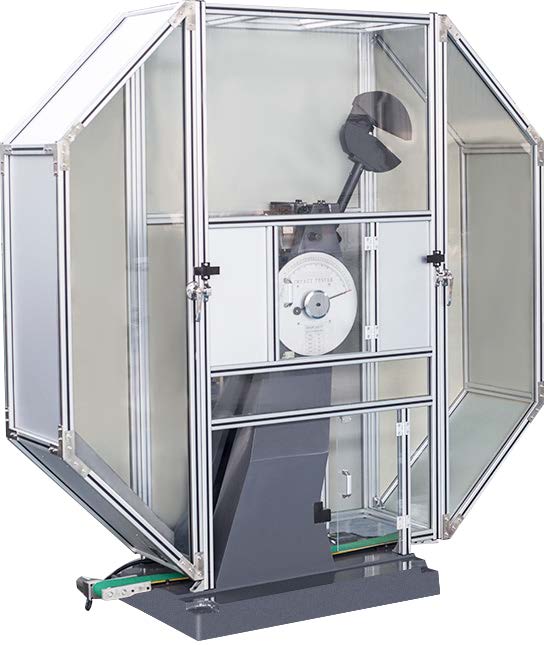

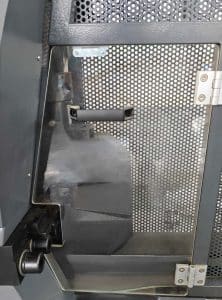

- Multi-layer safety architecture: safety pin pops out automatically once pendulum reaches working height to prevent accidental hammer fall. Fully-enclosed protective hood improves operator safety; door-interlock switch forbids test triggering unless protective cover is properly closed.
- Built-in software auto-calibration function compensates for energy losses caused by mechanical friction and air drag.
- Practical optional upgrades: sample recovery conveyor collects fractured test pieces; automatic specimen feeding module pushes samples right into test position for continuous-run testing.
Compliance with Global Test Standards
ITM-A300/A450/A750 complies with major international and national specifications:GB/T 2611, JB/T 7406.1, GB/T 3808, GB/T 229, JJG 145, ISO 148, ASTM E23, GB/T 18658, JB/T 6147.
Real-World Industrial Applications
What is Charpy impact testing used for in industry? This equipment validates fracture-resistance performance across multiple high-risk industries:
- Construction deformed rebar and bridge structural steel: verify fracture resistance under low-temperature environment or sudden shock loads.
- Automotive body frame steel and excavator bucket steel: test steel impact toughness to avoid brittle fracture under collision or heavy mechanical shock.
- Aero-engine titanium alloy blades: run impact assessment to confirm components survive high-speed airflow excitation without sudden failure during high-altitude flight.
Why Choose Professional-Grade impact testing equipment from qualified suppliers
High-performance metal impact toughness testing machine like ITM-A300/A450/A750 is supplied via specialized measuring-instrument distributors. Beyond equipment delivery, reputable partners deliver on-site calibration guidance, routine maintenance tips and technical troubleshooting support. End-to-end service keeps your tester consistently meeting specification benchmarks, making it indispensable gear for labs focused on reliable material characterization and safety-oriented quality verification.
Whether you run third-party inspection labs, in-house manufacturing QC or university material-science research projects, accurate Charpy impact data helps you mitigate material-failure risks and meet international compliance requirements.
