Mikrosize Insertion & Extraction Force Tester: The Gold Standard for Connector Mechanical Validation
In the precision-critical electronics manufacturing sector, the mechanical integrity of every single component is non-negotiable. Connectors serve as core transmission channels for power and data, and the mechanical reliability of these mating components directly dictates the performance, safety, and service life of the entire electronic assembly. To meet stringent quality control criteria, manufacturers require high-end testing equipment that delivers precise, repeatable, comprehensive test data. As a top-tier supplier of professional metrology instruments, Mikrosize’s Connector Insertion & Extraction Force Tester delivers a definitive testing solution to verify connector mechanical performance and meet global industry benchmarks.
Why Insertion & Withdrawal Force Testing Matters for Connectors
Throughout their service life, connectors undergo thousands of repeated mating and unmating cycles. The insertion and withdrawal forces are core performance indicators rather than trivial mechanical parameters:
- Excess insertion force may scratch or bend connector pins, deform plastic housings, complicate assembly and permanently damage finished products.
- Insufficient withdrawal force indicates poor contact retention, triggering intermittent signal loss or complete failure under vibration environments.
Accurate force measurement is indispensable for four core work scenarios:
- Mass Production Quality Assurance: Verify consistent compliance with design specifications across production batches.
- New Product Design Validation: Confirm mechanical performance of prototype connectors before mass manufacturing launch.
- Product Failure Root Cause Analysis: Diagnose mechanical defects on returned defective connectors.
- Lifecycle Durability Prediction: Quantify wear characteristics and service lifespan over thousands of cyclic mating tests.
Mikrosize: A Reliable Metrology Partner
With decades of technical accumulation in precision measurement hardware (including our market-leading hardness testers), Mikrosize has built a reputation for robust, accurate, user-friendly test equipment. Our R&D expertise in metrology is fully embedded into our full line of force testing instruments. We firmly believe precise measurement forms the foundation of reliable quality control, and our insertion & extraction force tester embodies this core philosophy. When you invest in Mikrosize measuring equipment, you acquire decades of precision engineering and consistent commitment to industrial testing excellence.
Unmatched Core Technical Advantages
Our tester is engineered to resolve common pain points in conventional connector testing and deliver fully trustworthy test data:
This patented module is the core guarantee of testing precision. Traditional fixtures easily cause angular misalignment between male and female UUTs, leading to unilateral stress on specimens and biased force measurement results, even damaging test samples. Our integrated self-centering structure perfectly aligns connector pairs along the axial direction, eliminating angular offset and delivering fully accurate, highly repeatable insertion & withdrawal force readings.
Though optimized for connector testing, this bench unit acts as an all-in-one workhorse for QA laboratories. It can be quickly reconfigured to run general tensile and compression tests on tiny components, raw materials and small assemblies, maximizing your lab equipment ROI.
Our dedicated Windows-based testing platform features a fully localized Chinese interface to streamline daily lab workflows. Operators can configure complex test parameters (insertion stroke, test speed, dwell pause time) with a few simple clicks. The real-time dashboard simultaneously displays peak insertion force and peak withdrawal values for instant data feedback.
In today’s data-driven manufacturing landscape, data capture, analysis and report generation are equally vital as the testing process itself. The software supports unlimited local data storage for full production traceability and batch statistical analysis. It automatically generates and prints complete test documents including force-displacement curves and life cycle trend charts. All test reports can be exported directly to editable Excel files, facilitating custom internal dashboards and customer compliance documentation.
In-Depth Software Analysis Functions
The full potential of our tester is unlocked by our proprietary measurement software, equipped with comprehensive analysis modules:
- Dual-language operation (Chinese / English) to cut operator training time and minimize human error.
- Centralized PC parameter setup: Uniformly configure stroke, speed and dwell parameters to ensure consistent test conditions across all batches.

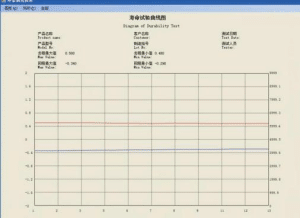

- Visual data output: Save, print and export force-displacement and life cycle curves for intuitive performance assessment.
- Unlimited local storage to support long-term big-data process optimization.
- Fully customizable report headers: Embed corporate logos, project IDs and internal standard codes to match your document management rules.
- Seamless Excel export for flexible secondary editing and cross-department statistical analysis.
Cross-Industry Application Scenarios
Thanks to its versatile testing capacity, Mikrosize insertion & extraction force tester is essential quality control equipment for multiple industrial sectors:
- Consumer Electronics Connector Testing: Mechanical testing for USB-C, HDMI and proprietary charging ports in smartphones, laptops and tablets.
- Automotive Wiring Connector Validation: Reliability validation for ECU, infotainment and ADAS wiring connectors.
- Aerospace & Defense Connector Testinge: Zero-failure testing for avionics and military-grade electrical connectors.
- Medical Device Signal Connector Inspection: Performance verification for life-critical medical equipment signal connectors.
- Telecom Hardware Connector Durability Test: Durability testing for fiber optic and network hardware connectors.
Final Verdict: Upgrade Your QC Workflow with Mikrosize
In a fiercely competitive global manufacturing market, cutting corners on connector quality control carries unacceptable operational risks. Mikrosize Insertion & Extraction Force Tester eliminates the long-standing fixture misalignment flaw via our patented self-centering design, paired with powerful, easy-to-operate analysis software to balance testing precision and lab efficiency. As a trusted premium metrology instrument supplier, Mikrosize empowers every quality assurance team with reliable, cost-effective testing hardware.
Invest in precision. Invest in long-term reliability. Choose Mikrosize Insertion & Extraction Force Tester for full, accurate connector mechanical performance validation.
