Many field inspectors, metallurgical technicians and geologists frequently raise practical questions: How does a handheld XRF spectrometer operate? What exactly is XRF technology? What types of elements can XRF detect? How reliable are its analytical results? How fast can it deliver test outputs? If you or your team members have these same doubts, this blog will walk you through the core principles behind portable XRF instrumentsBruker.
XRF stands for X-ray Fluorescence Spectrometry. This analytical phenomenon describes the process where electrons shift from their atomic orbital positions and release element-specific characteristic energy. An XRF detector captures this emitted energy, and the instrument sorts and categorizes signal energies corresponding to individual chemical elementsBruker.
Step-by-Step Working Mechanism of Hand-Held XRF Spectrometers
- An internal X-ray tube housed within the handheld XRF unit generates high-energy primary X-ray beams, which radiate outward from the bottom front end of the analyzer toward the sample surfaceBruker.
- When high-energy incident X-rays strike atomic shell structures on the sample surface, inner-shell electrons get dislodged. This electron displacement occurs when the energy of incoming X-ray photons exceeds the binding energy holding electrons within their atomic orbits. Every element retains unique binding-energy values and distinct gaps between electron orbital shells. For instance, potassium (K), gold (Au) and silver (Ag) feature dissimilar inter-shell spacing within their atomic structures. Once inner-shell electrons are knocked away, atomic vacancies emerge, putting atoms in an unstable excited state. To regain stable status, electrons from higher-energy outer shells migrate downward to fill these inner-shell gaps. This electron transition process generates X-ray fluorescence radiation.
- Electrons positioned further away from the atomic nucleus carry higher escape energy. When outer-shell electrons drop down to occupy vacancies closer to the nucleus, surplus energy gets released. The magnitude of this released energy equals the energy gap between the two involved electron orbitals. Since each chemical element possesses exclusive orbital-spacing features, the energy gap differs from element to element.
- Analysts identify target elements by measuring this unique fluorescence-energy signature. Each element produces distinctive fluorescent-photon energy fingerprints. The portable XRF spectrometer calculates the proportional intensity of each detected energy signal to quantify element concentrations in tested samples.
The whole fluorescence-generation process takes place instantaneously. Handheld XRF spectrometers can complete full analysis within mere seconds. Actual testing duration varies according to sample matrix properties and element concentration levels. High-content major-element testing only consumes several seconds, while trace-level ppm-range detection may require multiple minutes of acquisition time.

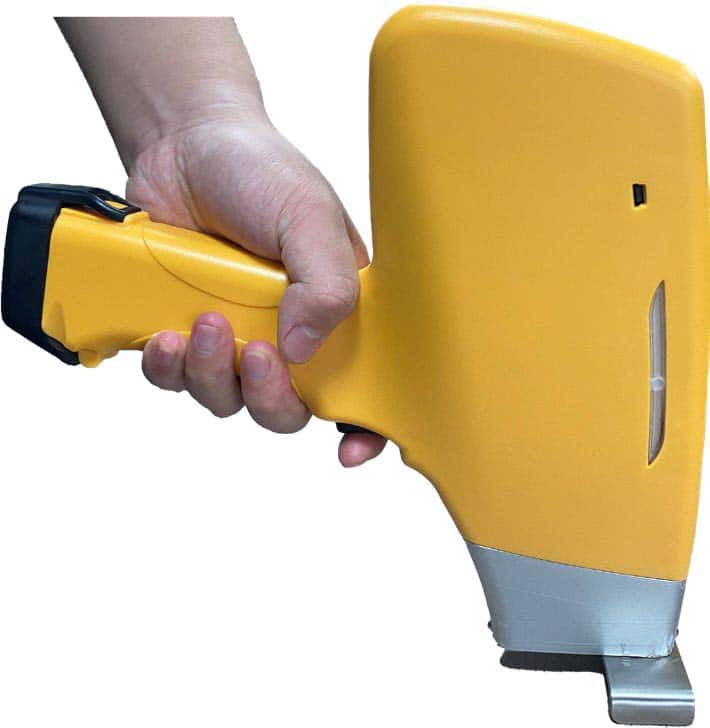

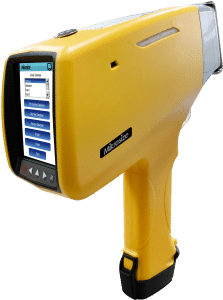

Product Spotlight: iSpectro-F5000 Portable XRF Spectrum Analyzer from Mikrosize
The iSpectro-F5000 Portable XRF Spectrum Analyzer is Mikrosize’s robust field-optimized X-ray fluorescence testing hardware. Built upon proven X-ray fluorescence spectrometry principles, this handheld spectral analyzer brings lab-standard analytical performance to on-site field-testing scenarios for diverse industrial verticals.
Product Features
- Lightweight, compact, rugged-built construction with exclusive ergonomic handle design for fatigue-free long-hour field operations.
- Operates based on mature X-ray fluorescence spectrometry analytical principle.
- Light-weight form factor: total weight ≤1.4 kg (approx. 1.46 kg with battery pack); multiple physical dimension variants available for selection.
- Adopts high-power, high-performance X-ray tube as excitation source; multiple target-material anode options are configurable.
- Supports 35 KV / 50 KV partially adjustable tube voltage; furnished with multiple optional filter sets plus automatic filter-adjustment functionality.
- Equipped with Si-pin / SDD semiconductor detector, featuring -35 °C cooling temperature and energy resolution ≤135 eV.
- High-performance onboard processor running Windows CE embedded operating system.
- Robust data-processing capability, paired with high-capacity memory card and multi-mode data transmission interfaces.
- Vivid color high-resolution TFT industrial touch-screen for intuitive field operation.
- Broad elemental coverage: capable of analyzing elements ranging from Magnesium (Mg) to Plutonium (Pu); more than 30 elements pre-configured in standard library.
- 0.5 mm non-contact detection gap protects the instrument’s test window from physical scratches and abrasion.
- Imported X-ray lamp module and sensing sensors; lamp service lifespan exceeds 2000 working hours, supporting over 720,000 cumulative detection cycles.
- Ultra-fast detection workflow, delivering actionable analytical readouts within seconds to boost overall site-work productivity.
- Simplified, user-friendly one-touch operation workflow, minimizing human-induced operational errors.
- Fully non-destructive testing methodology, preserving original sample integrity without physical damage.
- Superior detection accuracy, delivering measurement precision close to laboratory-bench analytical standards.
Product Application Scenarios
- Metal Recycling & On-Site Rapid Unknown-Material Classification: Finishes alloy-grade verification and compositional-content measurement within 1-3 seconds, with measurement accuracy up to 0.01%. It supports rapid metallic-material identification, helping operators judge material commercial value and define appropriate recycling-reuse schemes.
- Stainless Steel & Die Steel Verification: Swiftly distinguishes stainless-steel grades including food-grade 304 stainless steel, alongside various die-steel material grades. It displays critical metallic components and respective element percentages to validate whether raw materials satisfy production-process specifications.
- Mineral & Mine Exploration: Executes multi-element on-site rapid analysis, assisting geologists to track mineralization anomalies, broaden exploration scopes, and cut down expenses for sample-transportation and off-site lab-testing. Users can quickly assess ore deposit potential value and mining feasibility.
- Core-Sample Monitoring: Performs on-site elemental profiling for drill-core and other drilling-retrieved specimens, evaluates mineral reserve magnitudes, elevates mining operational efficiency, and furnishes precise raw-data backing for mining-site decision-making.
- Mining-Process Quality Control: Helps delineate ore-body boundaries, ascertain vein strike orientations, and realize precise mining-workflow governance, ensuring mining-site activities are carried out scientifically and efficiently.
Conclusion
Handheld X-ray fluorescence spectrometers unlock the capability to bring elemental-composition analysis out of stationary laboratories and directly to field-testing locations. Understanding the underlying XRF physical mechanism helps operators better interpret spectral outputs and avoid misjudgment of field-collected data.
Mikrosize’s iSpectro-F5000 Portable XRF Spectrum Analyzer merges lightweight ergonomic hardware design, high-end excitation-source & detector hardware, broad-range element-testing capacity, lab-comparable precision, and non-destructive fast-readout advantages. This versatile field-testing instrument reliably fulfills diverse practical requirements spanning metal scrap sorting, alloy material inspection, mineral prospecting, drill-core evaluation and whole-mine-site process monitoring, serving as a trustworthy on-site elemental-analysis solution for front-line industrial practitioners.
