A metallographic mounting press is indispensable sample-preparation equipment for material testing laboratories. It encapsulates test specimens inside specific resin media via hot compression, making samples easier to handle in subsequent grinding, polishing and microscopic metallographic analysis. This blog covers complete operating workflows for both manual metallographic mounting press and automatic metallographic mounting machine, together with practical safety and quality-control notes for metallography technicians.
1. Operating Steps for Manual Metallographic Mounting Press
Pre-Work Preparation
Confirm the quantity and dimension of your target test specimens and get samples ready. Place the metallographic mounting press on a stable workbench, connect the power supply and pre-heat the unit. Prepare required consumables including mounting powders and cutting blades.
Inspection and Cleaning
Switch on the power supply. Check whether bakelite powder residues stick to the edges of upper and lower dies. Clean residues promptly. You can use a woodworking saw blade or broken steel hacksaw blade for cleaning; avoid excessive force to prevent scratching die surfaces.
Adjustment and Specimen Placement
Turn the handwheel to align the lower die parallel to the lower platform. Place the specimen with its observation-facing side down at the center of the lower die. Rotate the handwheel counter-clockwise for 10-12 turns to sink the lower die and loaded sample. The sample height should generally not exceed 1 cm.
Fill Mounting Compounds and Pre-Compression
Add mounting filler such as mounting powder or resin granule until the filler reaches the same level as the lower platform. Set the upper die onto the filled material. Apply downward force on the upper die with one hand, meanwhile rotate the handwheel counter-clockwise with the other hand, until the top surface of the upper die sits below the upper platform.
Close Cover and Apply Pressure
Quickly close the protective cover. Turn the octagonal knob clockwise rapidly until its screw rod pushes against the upper die with moderate resistance.
Heat Preservation for Mounting Cycle
Once the heat-holding indicator lamp lights up, keep working under proper pressure and time the process for 3-5 minutes. Adjust duration according to specific equipment and resin types, and then the specimen mounting process finishes.
Pressure Release and Demolding
Rotate the handwheel counter-clockwise to release pressure until the pressure indicator goes off, then keep turning for another 3-5 rotations. Turn the octagonal knob clockwise to push down the upper die and complete demolding.
Retrieve Mounted Specimen
Rotate the handwheel clockwise to eject the upper die. When the lower edge of upper die reaches the same height as the lower platform, knock off the upper die gently using a wood block or wooden mallet. Raise the lower die to expose the mounted sample and take it out using the same soft-knocking method.

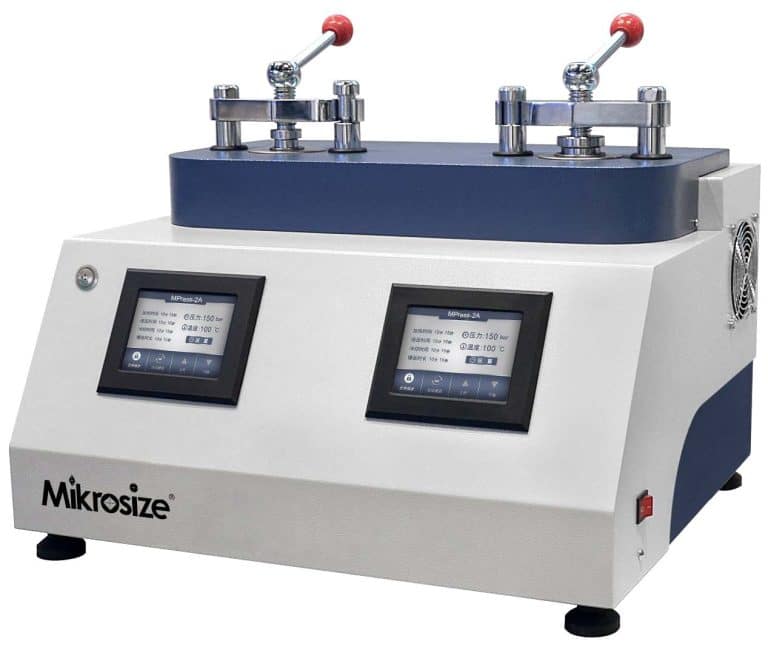

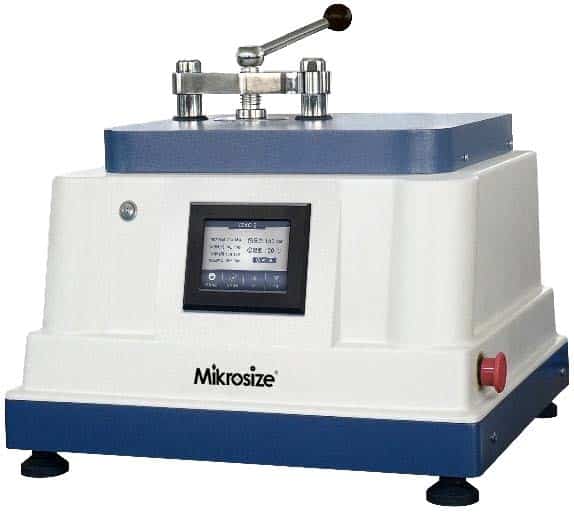

2. Operating Steps for Automatic Metallographic Mounting Machine
- Clean the equipment: Inspect the machine body and working chamber before operation. Clear away leftover debris to prevent interference during the metallographic hot mounting process.
- Prepare test specimens: Select target metallographic samples. Ensure sample surfaces are clean and free of oil contamination. Degrease specimens with alcohol or acetone and allow full air-drying.
- Select mounting consumables: Pick suitable mounting resin and hardener according to specimen material and experimental requirements.
- Select proper mold: Choose matched mounting molds based on sample size to guarantee full encapsulation of test pieces.
- Load specimens: Place metallographic specimens inside the mold, fix samples at the bottom center. When mounting multiple samples, reserve enough clearance between individual pieces to avoid contact.
- Pour mounting resin: Pour well-mixed resin compound into the mold to fully cover specimens. Tap or rotate the mold gently to achieve even resin distribution.
- Set process parameters: Configure temperature, pressure and holding time for the automatic metallographic mounting press. Typical parameters are heating temperature 130-150 °C, heating duration 10-20 minutes, and compression pressure 100-200 MPa.
- Start mounting cycle: Trigger the machine to run automatic heating and compression cycles. The unit heats resin under preset pressure for resin curing and full sample encapsulation.
- Cooling phase: After heating-pressing cycles complete, wait for natural machine cooling or activate auxiliary cooling systems to guarantee thorough resin solidification.
- Extract mounted samples: Open the mold once cooling finishes and retrieve fully mounted metallographic specimens.
- Inspect mounting quality: Examine finished mounts for manufacturing defects such as trapped air bubbles and surface cracks.
3. Critical Notes for Metallographic Mounting Work
- Clean edges of upper and lower dies both before and after every operation. Regular residue removal guarantees stable performance of your metallographic mounting press.
- Heating temperature, holding time and compression pressure, matched with mounting media, are decisive factors for high-quality mounted specimens. Always reach the thermosetting temperature and required dwell time for your resin; otherwise mounted samples may suffer deformation, warping or cracking failures.
- Wear adequate personal protective gear including safety goggles and heat-resistant gloves during operation to avoid thermal burns and splashing-material injuries.
- Keep the workbench level and stable to prevent machine shifting or vibration during hot-mounting cycles.
- Thoroughly clean equipment after each use, especially die-assembly residues, to avoid negative impacts on future batches of specimens.
- Always follow manufacturer-issued operation manuals and safety recommendations, and schedule routine equipment inspection and maintenance.
Conclusion
Standardized operation for manual and automatic metallographic mounting press lays a solid foundation for subsequent metallographic grinding-polishing and microstructure characterization. Improper parameter setup, unclean dies or ignored safety rules can lead to bubble-ridden, cracked or deformed mounts that ruin your lab testing workflow. Lab technicians should strictly follow mounting procedures and maintain regular equipment-cleaning habits. If you seek dependable metallographic sample-preparation instruments and matched mounting consumables for your material lab, Mikrosize delivers robust mounting presses and supporting supplies to boost your specimen-making repeatability and overall laboratory productivity.
