When engineers search for a reliable way to quantify the resistance of a metallic sample to permanent indentation, the Vickers hardness test remains one of the most versatile and universally accepted methods in modern materials science. Unlike Brinell or Rockwell scales, the Vickers hardness number (HV) uses a single, continuous scale—making it the preferred choice for laboratories that evaluate everything from annealed low-carbon steels to quenched tool steels, thin-walled components, and brittle engineering ceramics.
What Is the Vickers Hardness Principle and Why Does It Matter?
Introduced in 1924 and commercialized by Vickers-Armstrongs in 1925, the Vickers indentation method relies on a square-based diamond pyramid indenter with an included angle of 136°. Under a specified static test force F, the indenter creates a geometrically similar square indentation. After a controlled dwell time (typically 10–15 s for steels and ≥30 s for non-ferrous metals), the operator measures the two diagonal lengths d₁ and d₂. The hardness value is then derived from the ratio of applied force to indentation surface area.
Key notation examples you will see in inspection reports:
Indentation Notation | Meaning (Test Force / Dwell Time) |
300 HV 30 | 294.2 N (30 kgf), standard 10–15 s dwell |
450 HV 30/30 | 294.2 N (30 kgf), extended 30 s dwell |
Because indentation geometry stays self-similar across loads, a properly prepared homogeneous specimen yields the same HV value whether you run a macro, low-force, or micro test—this is the defining advantage over Rockwell testing.
Understanding Vickers Test Force Categories for QA Labs
Selecting the right instrument starts with classifying the applied load. International practice divides Vickers hardness testing into three bands:
- Macro Vickers hardness test – F ≥ 49.03 N (symbol HV 5 and above). Ideal for bulk metals, forgings, and deep case-hardened layers.
- Low-force Vickers hardness test – 1.961 N ≤ F < 49.03 N (HV 0.2 to <HV 5). Used for thin sheets, small machined parts, and coating-substrate systems without breaking through the layer.
- Micro Vickers / Vickers microhardness test – 0.09807 N ≤ F < 1.961 N (HV 0.01 to <HV 0.2). Essential for metallographic phase identification, weld heat-affected zones, IC lead frames, and foils as thin as tens of micrometres.
Specimen preparation tip: all Vickers and Knoop microhardness methods demand a polished, scratch-free surface. Roughness is the #1 source of diagonal-reading scatter in manual microhardness measurement.
Where Micro Vickers Hardness Testers Outperform Other Methods
A well-specified digital micro Vickers hardness tester solves inspection challenges that Brinell and Rockwell instruments simply cannot touch:
- Mapping the effective hardening depth of carburized, nitrided, and carbonitrided surfaces.
- Verifying plating and PVD/CVD coatings such as Cr, Ni, Zn, TiN, and DLC without substrate interference.
- Measuring thin-sheet metals, precious-metal contact springs (Be-Cu, phosphor bronze, Pt, Ag), and dental alloys.
- Determining the hardness of individual phases inside a metallographic microstructure—cementite, martensite, retained austenite, intermetallics.
- Testing brittle non-metals including technical ceramics, soda-lime glass, agate, and synthetic gemstones when fitted with a Knoop indenter (HK).

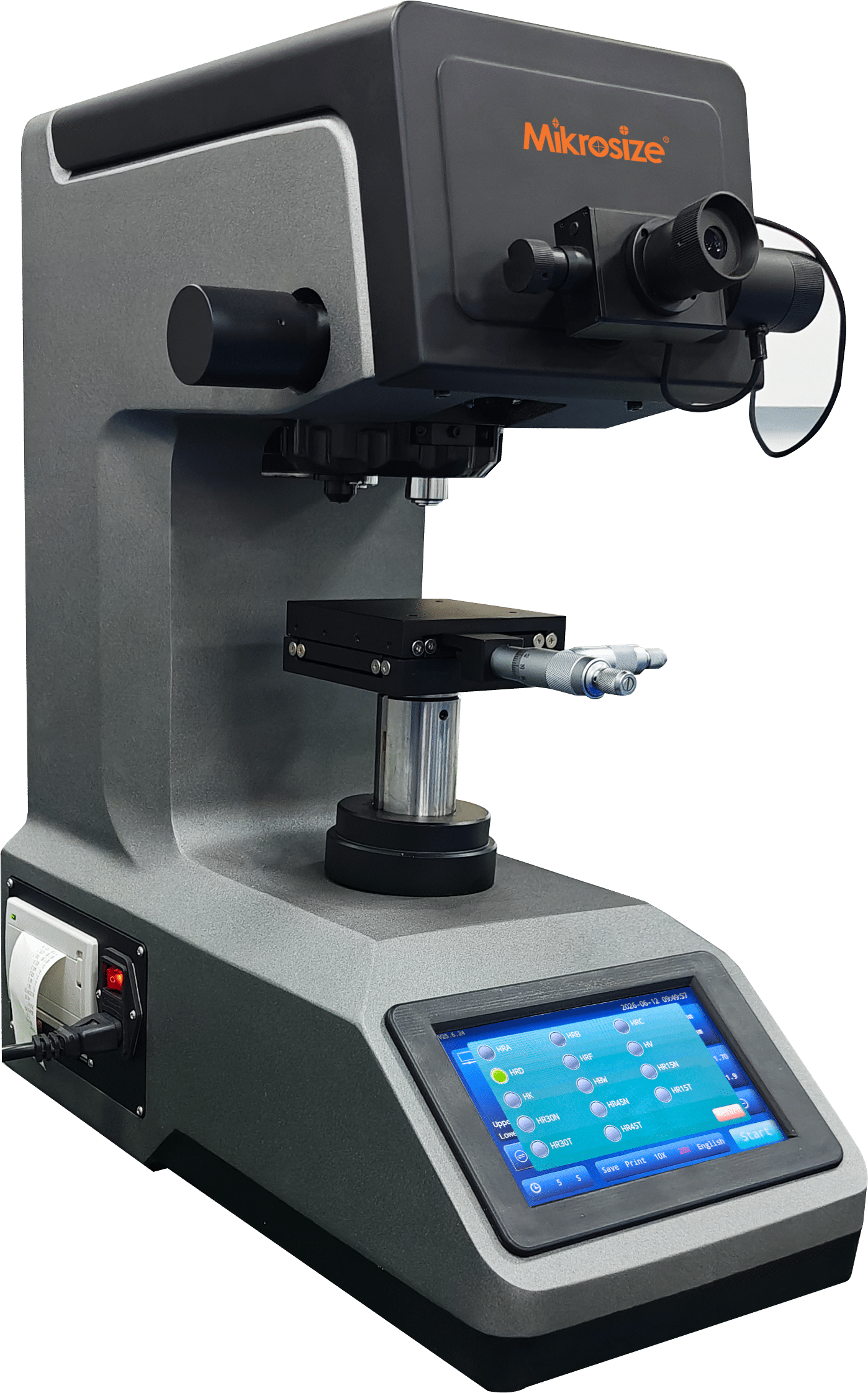

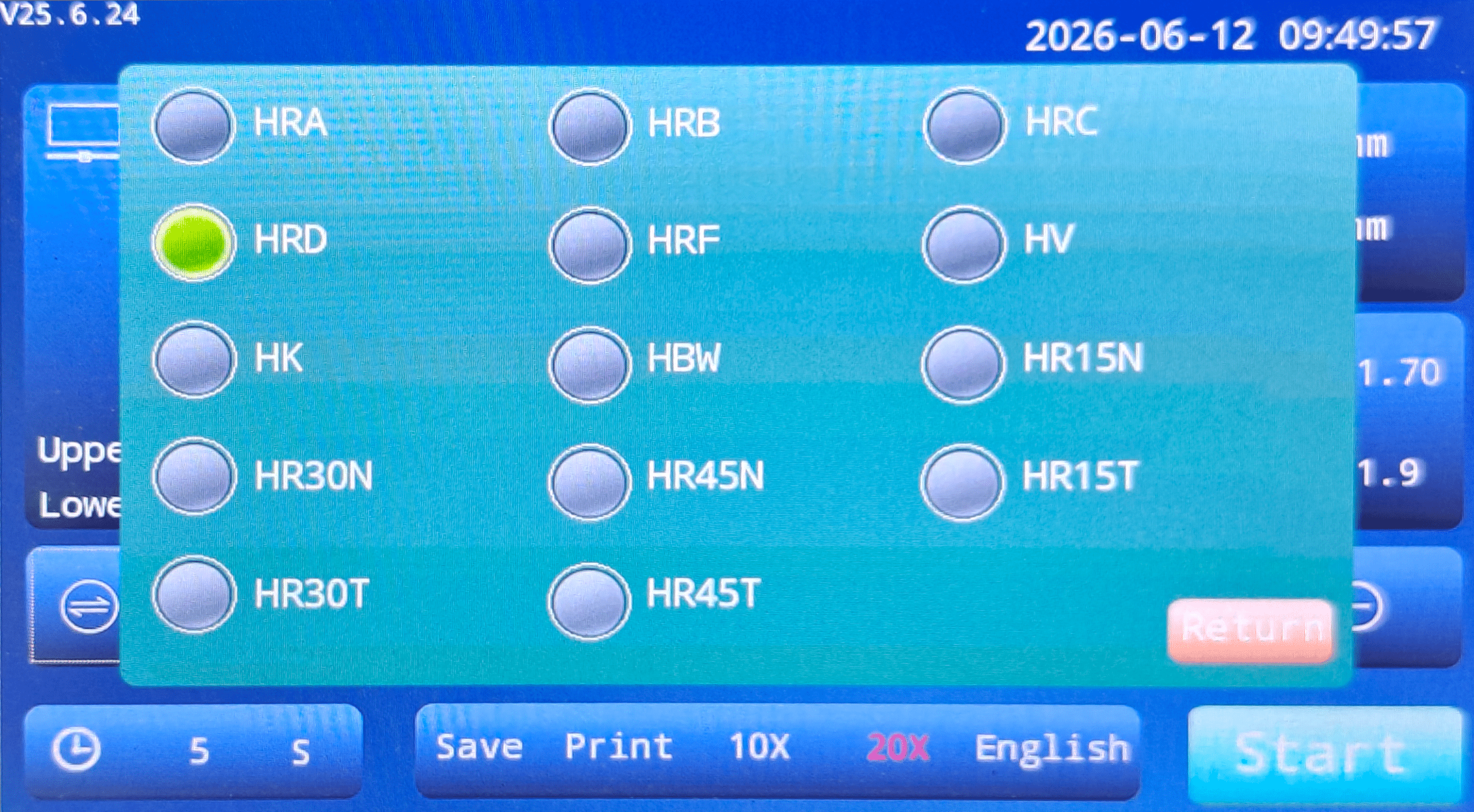

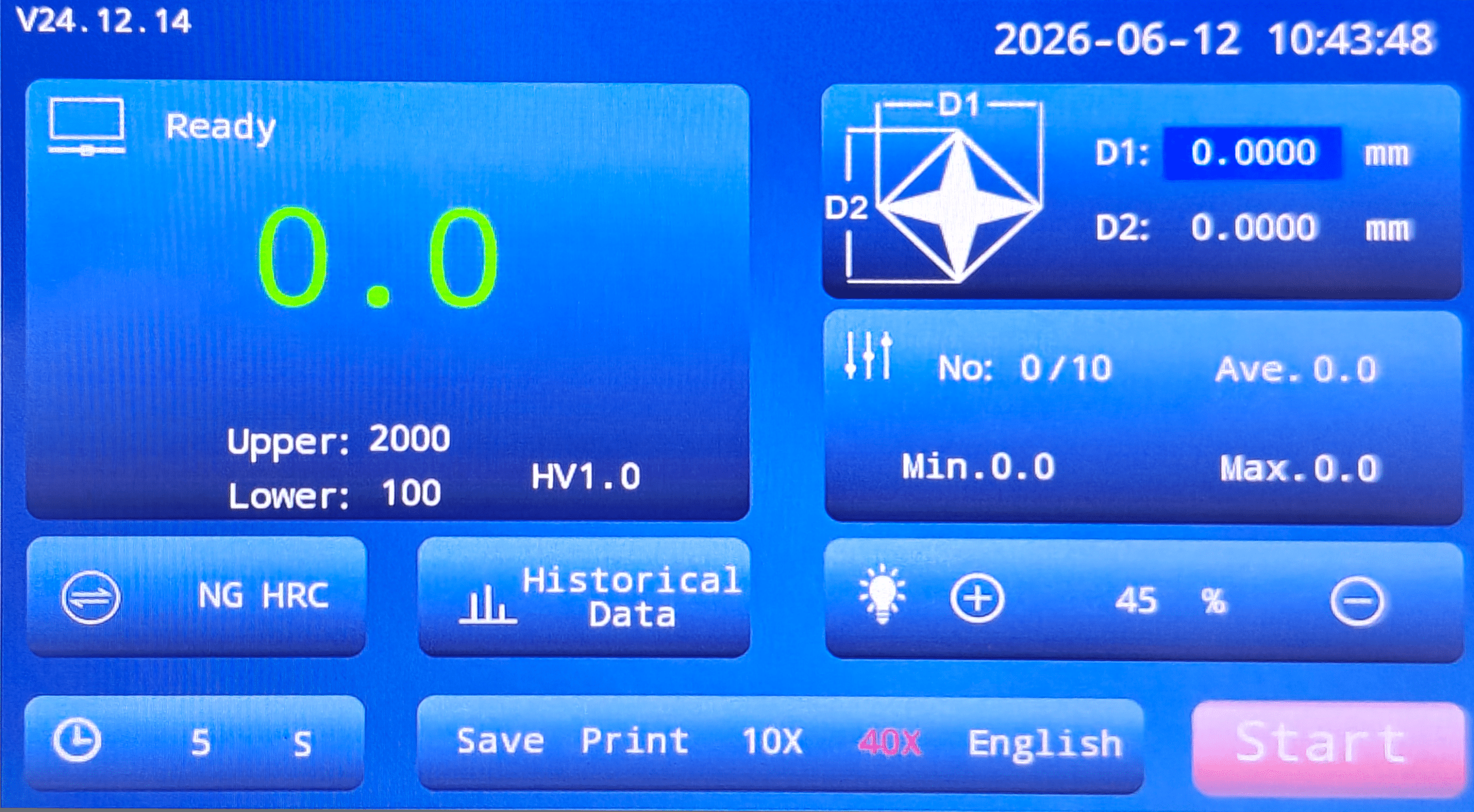

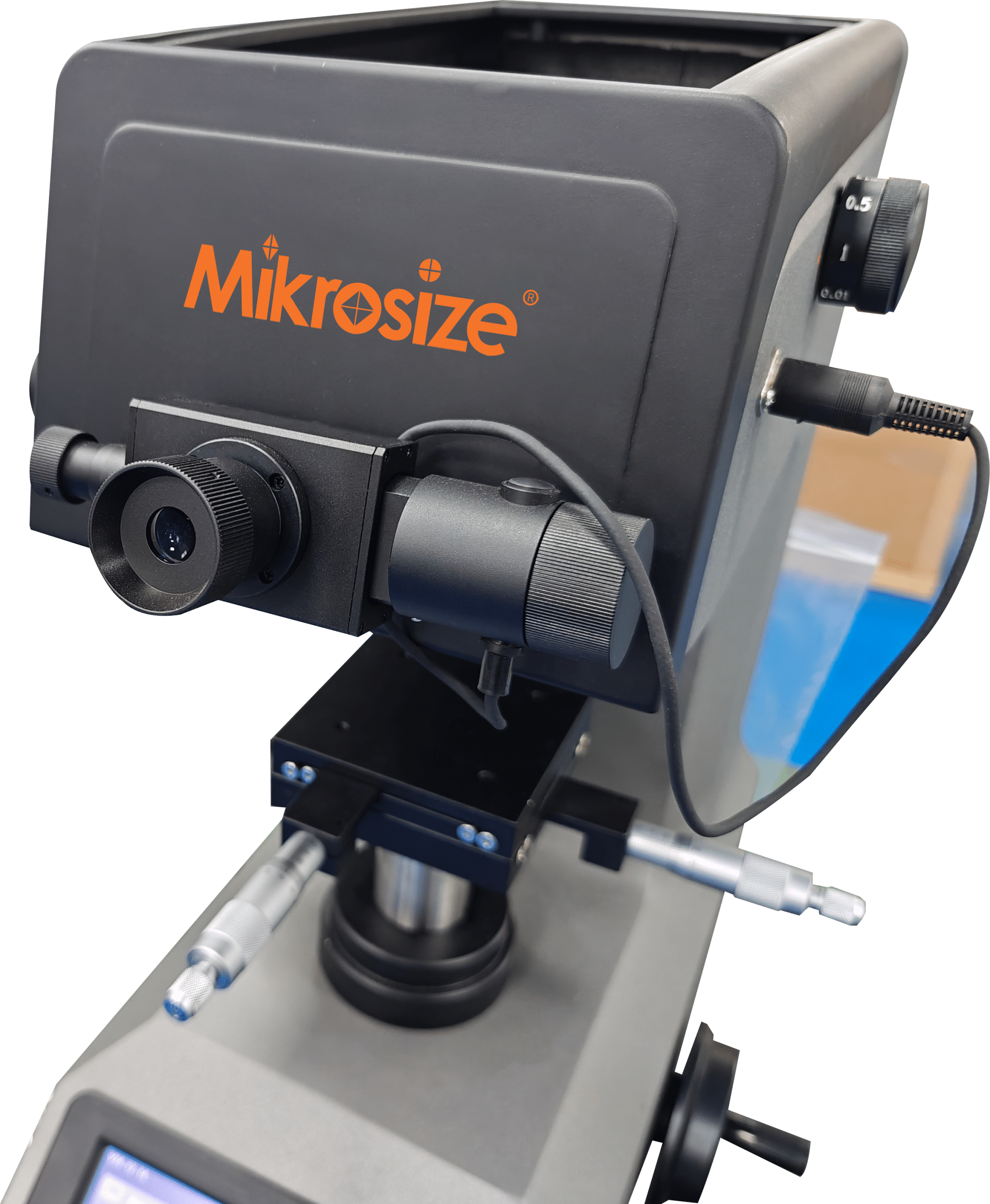

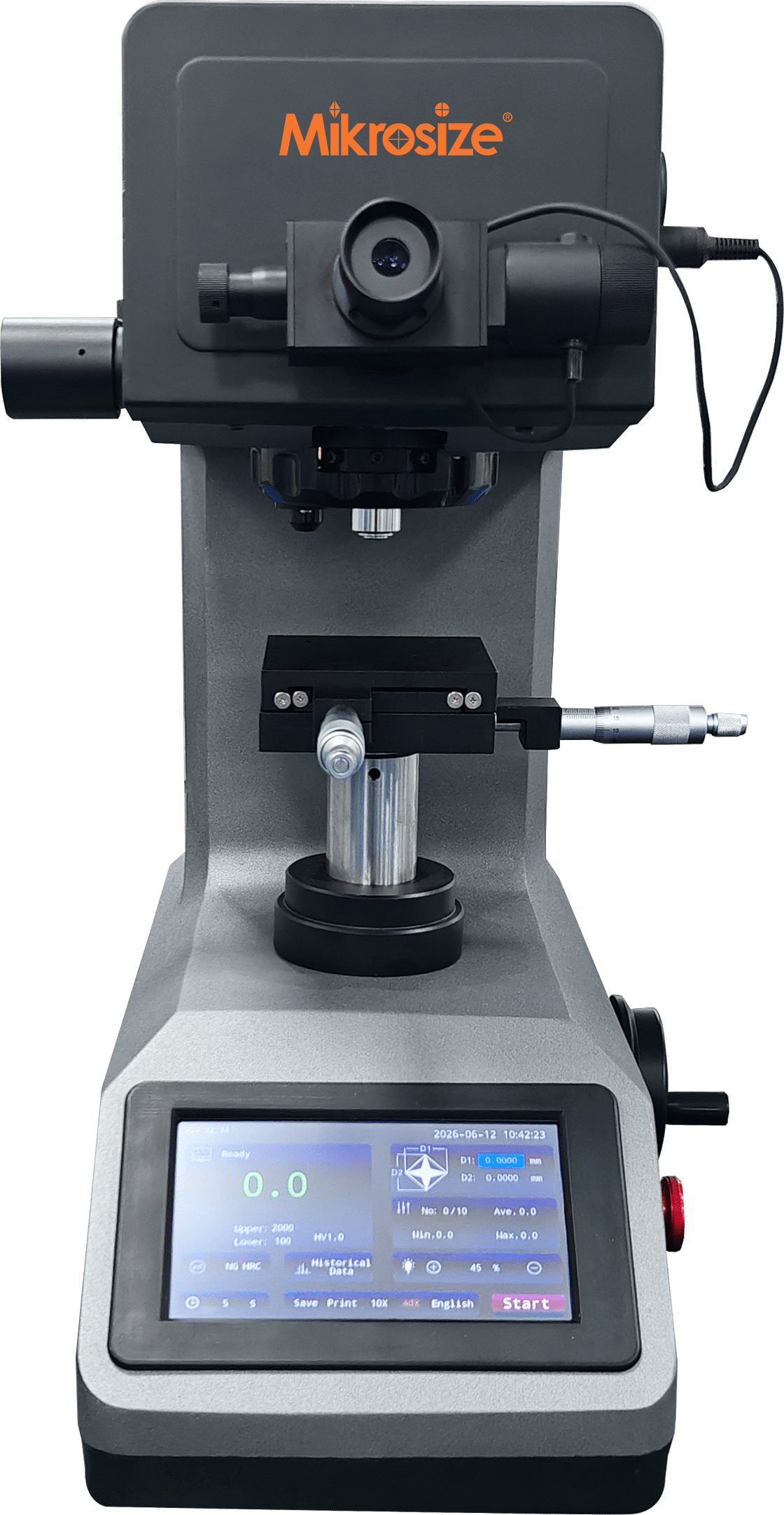

Modern automated platforms add genuine throughput gains: automatic turret switching between objective and indenter, CCD image capture, auto-diagonal detection, built-in hardness conversion to HRC, HRB, HRA, HBW, and exportable Excel/PDF certificates aligned with ISO 6507-2 / ASTM E92 / GB/T 4340.2.
Trade-Offs Every Lab Manager Should Budget For
Advantage | Limitation |
One unified scale from ~5 HV to 3000 HV | Slow cycle time versus Rockwell |
Tiny square indentations enable non-destructive hardness checking on finished parts | Strict surface-finishing requirement (mirror polish) |
Geometrically similar indentations at any load | Sensitive to vibration and manual reading error on entry-level benches |
Dual-scale readiness: Vickers + Knoop in one fixture | Higher capital cost for motorized/auto-measurement builds |
These constraints explain why automatic turret digital Vickers hardness testers with closed-loop force control and image-based measurement software have become the de facto upgrade path for third-party test houses and heat-treat shops alike.
Conclusion
Mastering the Vickers hardness test gives materials engineers, quality managers, and R&D teams a single, standards-compliant workflow to characterize metals, coatings, and brittle ceramics—from macro bulk sections down to micron-scale metallographic constituents. When specifying a new bench, prioritize instruments that combine a rigid mechanical frame, repeatable test-force application (loading–dwelling–unloading), high-resolution optics, and audit-ready data export. For laboratories and manufacturers evaluating their next purchase, Mikrosize—a professional measuring and testing instrument brand established in 2009 with distributors in more than 40 countries—offers an integrated portfolio spanning touch-screen micro Vickers hardness testers, low-force and macro Vickers platforms, Knoop-ready indenters, and optional CCD measurement software compliant with ISO 6507-2, ASTM E92, and GB/T 4340.2, making the company a practical partner for automotive, aerospace, electronics, and metallurgical QC labs that require traceable, high-repeatability hardness data.
