Selecting a reliable dry-film thickness tester for shipyard inspection involves far more than checking whether it can simply read paint film thickness. When performing field checks on ship hull plates, deck structures, enclosed cabin compartments, ballast tanks, and offshore steel fabrications, inspectors must deal with mixed base substrates, multi-layer protective coating systems, and strict project acceptance requirements. Picking an unsuitable handheld thickness meter or applying incorrect measuring routines may deliver fast on-site readings, yet generate ambiguous, hard-to-justify data for formal inspection records.
First critical question: Which coating layer are you actually measuring?
Marine protective paint systems often adopt multi-pass spray applications with primer, intermediate coat, and topcoat or heavy-duty anti-corrosion overlays. Portable magnetic-eddy current combined coating thickness gauges such as the Mikrosize iCoat-200 Coating Thickness Gauge normally capture total dry-film thickness above the substrate surface. This type of non-destructive testing tool cannot individually isolate each single paint layer, nor directly judge full coating curing status, adhesion performance, or surface salt contamination levels. Treating a coating thickness gauge as an all-in-one acceptance-testing solution remains one of the most widespread misunderstandings among ship-site coating surveyors.
For inspection assignments requiring thickness verification right after every single coating pass, technicians need to capture readings once each coat reaches a measurable cured state, and log results promptly, rather than attempting retroactive layer checks after full multi-layer finishing. For repair and touch-up paint zones, surveyors should differentiate retained old paint films, partial abrasive blast areas, supplementary recoating sequences, and transition zones between old and fresh coatings. Different readings collected on identical structural members may not signal coating defects; they may merely reflect varied construction and touch-up histories.
Understand your base substrate: Ferrous steel and non-ferrous metals follow different measuring principles
Carbon-steel ship hull sections, ballast tank bulkheads, and offshore steel frameworks are best suited for magnetic-induction measurement targeting non-magnetic overlay coatings. For aluminium alloy hull attachments and non-ferrous metal components covered with non-conductive paint films, the eddy-current measuring principle delivers trustworthy outcomes. Ship repair yards frequently handle retrofitted assemblies, refurbished spare parts, and mixed-material outsourced components. If your coating thickness instrument lacks automatic or manual substrate-switching functionality, and field operators skip preliminary substrate identification, measurement deviations will be directly imported into formal inspection datasets.
|
Selection Factors |
Core Considerations |
Common Field Pitfalls to Avoid |
|
Dual ferrous / non–ferrous measuring capability |
Whether you test both steel hull structures and aluminium ship fittings |
Mixed–material workstations, refurbished repair assemblies, third–party component re–verification |
|
Probe configuration choice |
Integrated handheld unit versus detachable external probe |
Confined tank voids, tubular steel sections, hard–to–reach corner geometries |
|
Probe wear–resistance performance |
Durability under frequent spot checks and rough blasted coating surfaces |
Abrasive blast profiles, heavy–duty anti–corrosion coating routine patrol inspections |
|
Reading stability & calibration traceability |
Zero adjustment, repeat–test consistency, valid metrological certification status |
Last–minute spot re–checks prior to acceptance, multi–operator shift inspection hand–overs |

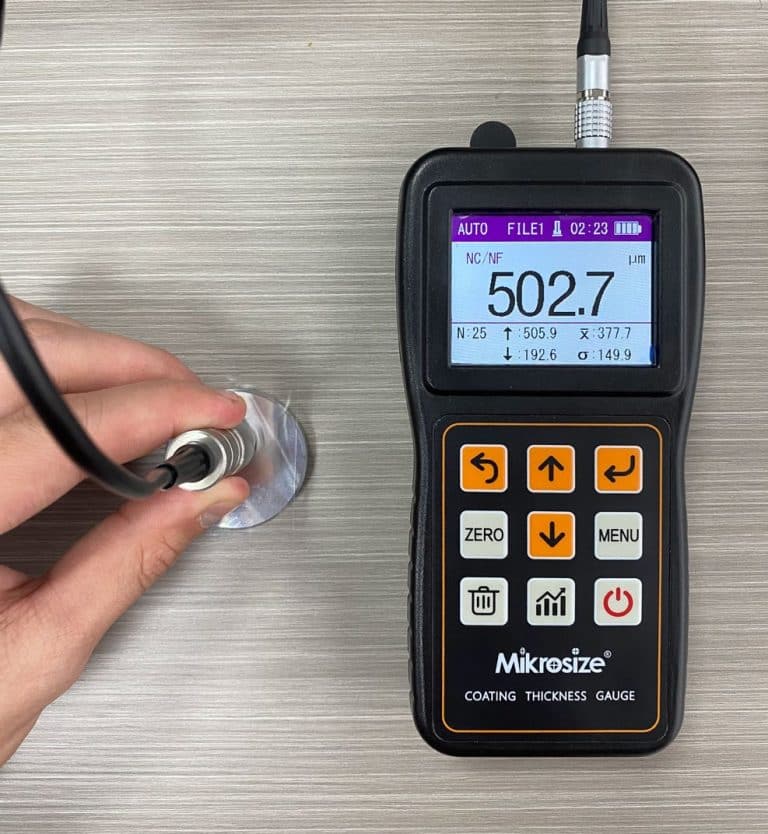

The Mikrosize iCoat-200 Coating Thickness Gauge integrates both magnetic and eddy-current thickness measurement technologies. It accurately measures non-magnetic coatings laid over magnetic metal substrates and non-conductive films applied to non-ferrous metal substrates, covering mixed-substrate scenarios frequently encountered within shipyards and heavy-industry workshops.
Even heavy-duty wear-resistant probe tips require proper field operation practices Frequent spot-check workflows at shipyards inevitably lead to probe tip abrasion. Wear-hardened probe tips extend service life for high-volume patrol inspection tasks across outer hull panels, deck fittings, and offshore steel components. Nevertheless, enhanced wear resistance never authorizes dragging probes sideways across rough coating surfaces. Operators must maintain vertical probe contact, apply steady contact pressure, and lift away the probe after completing each reading — this operational discipline gains extra importance on blasted profiles and sharp corner zones.
The Mikrosize iCoat-200 Coating Thickness Gauge supports two practical measuring modes: single-shot measurement and continuous scanning measurement. Operators select single-point capture for formal record-keeping spot checks, while continuous real-time scanning works well for rapid large-area surface patrol surveys. It further delivers three dedicated measuring modes:
- High-precision measuring mode: averages multiple discrete readings and automatically filters out anomalous suspicious data points to deliver stabilized, trustworthy measurement outputs.
- Fast-response measuring mode: enables real-time scanning functionality for quick surface screening.
- Built-in real-time temperature compensation: leading-edge automatic compensation offsets measurement drift triggered by shifting ambient temperature and probe temperature fluctuations, improving overall field-measurement accuracy.
Valid acceptance workflows: Explainable measurement data counts more than raw speed
No matter how fast your portable coating thickness gauge operates, valid quality assurance relies on standardized inspection documentation. Inspection logs should clearly record inspection locations, sampling-point quantities, computed average values, flagged anomalous readings, notes for repeated verification, instrument serial number, and responsible inspector identity. Surveyors need to define priority re-check items for ballast tank interiors, weld-dense zones, refurbished repair sections, and high-abrasion deck surfaces.
When conducting formal acceptance audits, dry-film thickness datasets should be cross-referenced against project specification documents, prevailing industry standards, sampling protocols, original coating application records, and valid instrument metrological calibration certificates. Rapid on-site screening assists engineers in detecting coating-thickness deviations at an early phase, yet quick spot readings alone cannot serve as definitive acceptance conclusions.

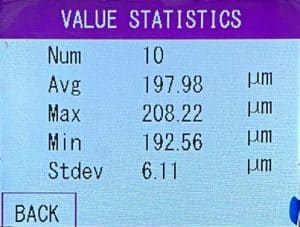

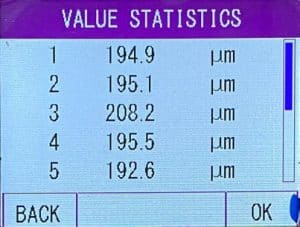

The Mikrosize iCoat-200 Coating Thickness Gauge outputs five core statistical readouts: Mean (MEAN), Maximum (MAX), Minimum (MIN), Number of Tests (NO.), and Standard Deviation (S.DEV). These built-in statistical outputs simplify on-site QA analysis for inspectors working on metal component plating jobs and coating-thickness verification on chemical-process-equipment surfaces.
For calibration workflows, the unit supports zero-point calibration, single-point calibration, and two-point calibration routines. Additionally, basic calibration and temperature-coefficient calibration workflows correct systematic probe-level measurement errors, helping maintain measurement traceability through long-term heavy-duty industrial use.
Smart instrument selection, standardized on-site measuring operations, and complete traceable documentation work together to deliver robust corrosion-protection coating management for marine and heavy-industrial assets.
Conclusion
Selecting the appropriate coating thickness gauge is a critical step for reliable marine and industrial coating inspection, and instrument performance must match real-world substrate conditions, field-testing environments, and formal project acceptance requirements. Mis-matched measuring hardware or non-standard operating habits can produce seemingly fast field readings but create untraceable, unexplainable datasets that risk invalidating the whole coating-quality assessment.
As a robust industrial-grade testing instrument, the Mikrosize iCoat-200 Coating Thickness Gauge addresses many common pain-points encountered in shipyards, offshore sites and chemical-equipment inspection workflows. Thanks to its dual magnetic-eddy-current measuring principle, multi-mode measurement options, real-time temperature compensation, rich statistical output and flexible multi-level calibration functions, this thickness-testing tool adapts to mixed-material components, confined narrow spaces and high-frequency on-site spot-check scenarios.
Even with well-built hardware from Mikrosize, inspectors should keep in mind that a coating thickness gauge is only one part of the full quality-control chain. Accurate measurement results still depend on correct probe handling, rational sampling strategies, complete test documentation and cross-checking against project specifications and industry standards. When hardware capability and standardized field-acceptance procedures work hand-in-hand, teams can achieve traceable, repeatable coating-thickness evaluation for marine hulls, ballast tanks, offshore steel structures and industrial metal-plated workpieces.
