Metallography lab technicians frequently run into frustrating issues with their metallographic hot mounting press: poorly-fitted replacement parts, and difficulty sourcing compatible spare components after original parts wear out. This practical blog clarifies critical points for mounting press accessory selection and highlights typical mistakes during part replacement, helping material-analysis labs avoid unnecessary expenses and spoiled specimen batches.
Core Guidelines for Selecting Metallographic Mounting Press Spare Parts
Hot mounting dies and cold mounting dies are not interchangeable. Never mix these two sets of tooling. Before ordering replacement dies, physically measure the inner diameter of your existing mold with calipers. The most widespread standard sizes are 32 mm and 35 mm, each matched to specific cross-section specimen dimensions.
When preparing low-hardness polymer specimens, opt for rubber mounting molds. Steel dies are intended exclusively for metallic samples. Using the wrong mold material will lead to permanent mold deformation. Repair costs for deformed molds often exceed the price of purchasing brand-new replacement units.
Heating blocks belong to the category of high-frequency wearing components for hot mounting presses. Always cross-check the temperature rating against your original equipment specifications. If your mounting press is rated for 190 °C but you install a third-party heating block that only reaches 170 °C, epoxy mounting resin will fail to fully cure. White speck defects will spread across cross-section surfaces, and an entire batch of specimens will be rendered unusable.
Step-by-Step Guide for Replacing Mounting Press Wear Parts
Replacing Aged Sealing Rings (Hydraulic Oil Leak Fix)
Oil seepage under pressurised operation is the most typical symptom of degraded sealing-ring components.
- Remove the old sealing ring completely.
- Thoroughly wipe and clean the ring groove surface using ethanol.
- Apply a thin uniform layer of matching-specification lubricating grease over the new sealing ring before seating it.
- Fit the new ring carefully into position.
Important warning: Do not pull or stretch rubber sealing rings by brute manual force. Over-stretching causes rubber cracking and immediate component failure.
Troubleshooting Sticky or Jammed Pressure Ram
Most pressure-ram sticking issues originate from insufficient lubrication on guide rails.
- Dismount the pressure ram assembly.
- Gently polish away surface rust spots with fine-grit sandpaper.
- Apply two drops of dedicated guide-rail oil, then reassemble. The press will normally resume smooth operation.
If jamming recurs repeatedly after maintenance, your guide rails have reached the end of service life and require full replacement. Continuing to operate worn-out rails will introduce major mechanical precision deviations. All subsequent sectioning and metallographic test data will lose reliability.
Conclusion
Correct spare-part selection and proper installation procedures for your metallographic hot mounting press prevent mold deformation, hydraulic leaks, uncured resin defects, and measurement inaccuracies that can waste lab materials and valuable testing time. Always verify mold inner dimensions, temperature specifications for heating blocks, and material compatibility between dies and your specimen type before buying replacements. Never force-fit rubber seals or keep using heavily worn guide rails.

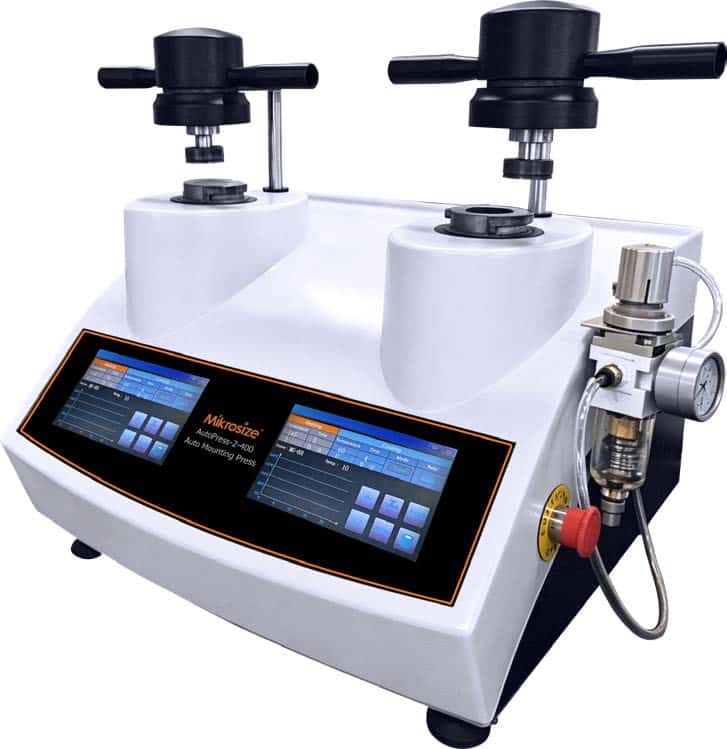

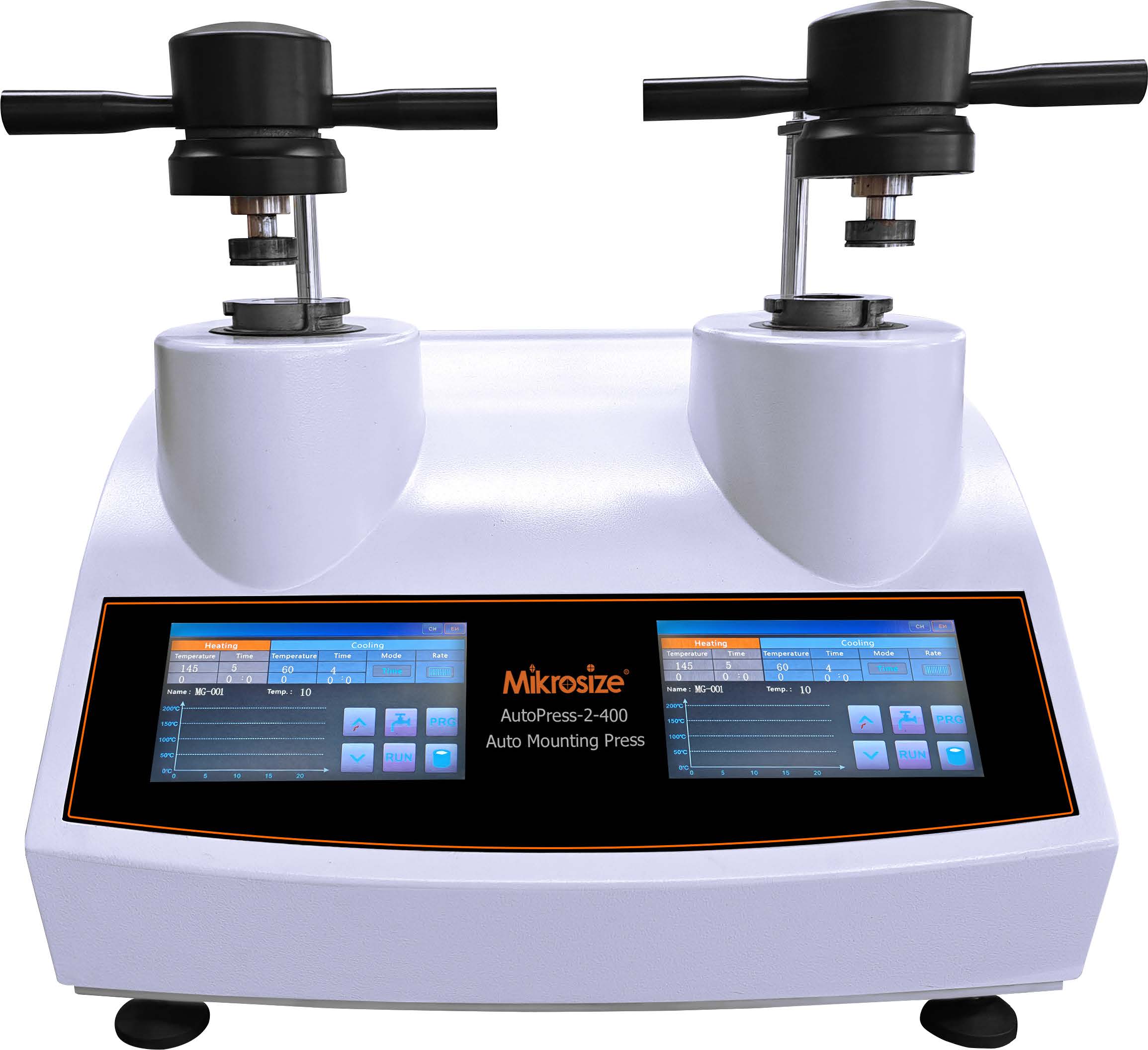

Equipment from Mikrosize comes with clearly documented spare-part parameters for hot mounting dies, heating blocks, and sealing assemblies, lowering the risk of ordering mismatched accessories. Even with well-built instruments, following official part specifications and standard replacement workflows remains essential to guarantee consistent metallographic specimen quality and trustworthy material-analysis outcomes.
