iBM-330C Inverted Biological Microscope

Scan QR

×
Scan QR Code

https://mikrosize.com/product/ibm-330c-inverted-biological-microscope/

Product Features & Applications

Product Feature：

Equipped with the self-developed infinite-distance optical system, it is equipped with four standard collimated ob- jective lenses. The optical imaging is clear. Phase con- trast observation only requires a single ring plate, elimi- nating the need for repeated switching. The operation is more convenient.
Equipped with 10W wide-spectrum LED intelligent light- ing, the light intensity can automatically adapt to the ob- jective lens magnification. The color temperature is stable and the color rendering is excellent. The service life is up to 50,000 hours, and the maintenance cost is low.

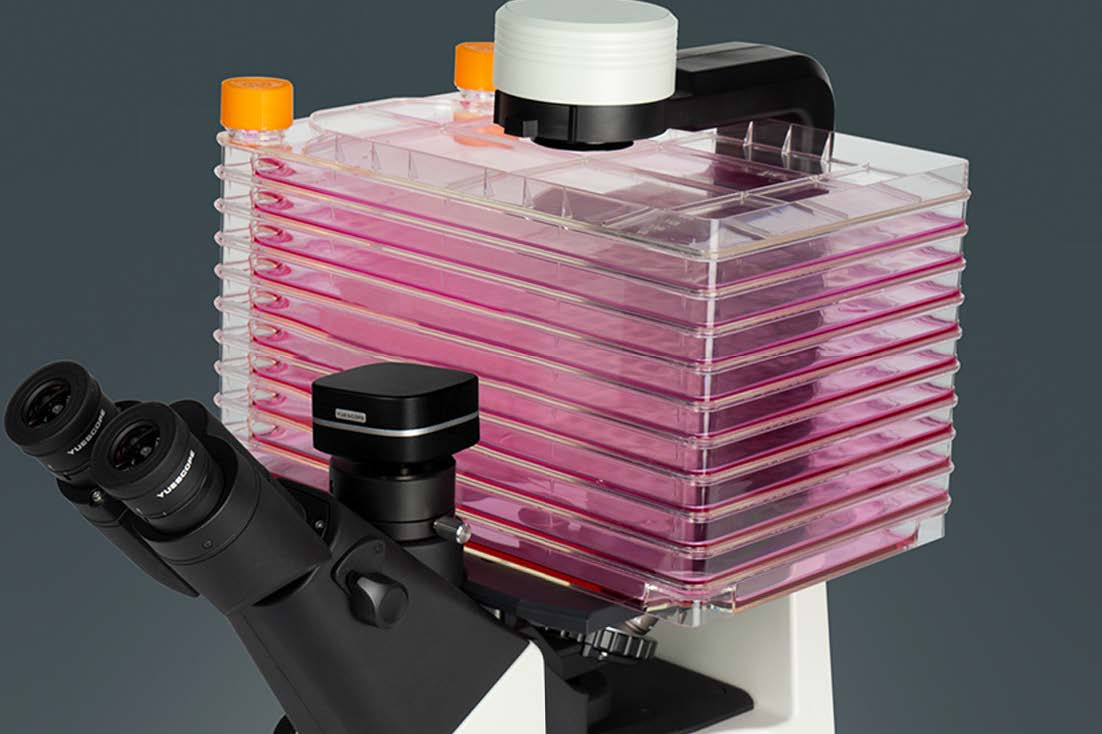

The load-bearing platform adopts a toothless-barrel structure for wire transmission. It is compatible with vari- ous-sized petri dishes, slides and experimental plates. The movement is smooth and scratch-resistant, meeting the placement needs of diverse experimental samples.
The focusing system is coaxial and adjustable in tight- ness, with a precise micro-adjustment value of 1 μm. It enables precise focusing of the sample and allows for easy capture of the sample’s fine structures and changes. The imaging software features panoramic stitching and depth-of-field fusion capabilities. It can store a vast amount of experimental parameters and also has the ability to open ports for connecting with third-party soft- ware, making it suitable for various experimental re- search needs.

Product Application：

Suitable for cell biology research, it enables clear observation of the morphology, prolifera- tion and movement status of living cells, and is compatible with various cell culture carriers such as petri dishes and multi-well plates.
Applied in microbiological testing, it enables high-power observation and precise analysis of the morphological structure and growth characteristics of microorganisms such as bacteria and fungi.
Suitable for biology teaching in universities, meeting the observation teaching needs of bio- logical experiments such as cells and microorganisms, and adaptable to various sample ob- servation scenarios in teaching.

Technical Specifications

Observation Mode	Including contrasted and bright-field observations
Optical system	Infinite distance optical system
Observation tube	Hinged three-mirror observation tube, can be connected to the imaging system, 30° inclined, interpupillary distance 48-86mm, eye point adjustable, spectral ratio 100:0, 0:10

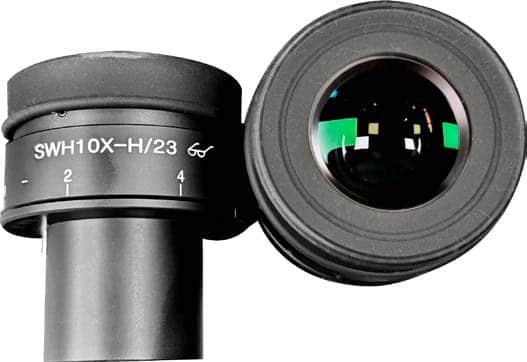

Eyepiece	Ultra-wide field of view eyepiece 10X (field of view Ф23mm), with high eye point and adjustable diopter.

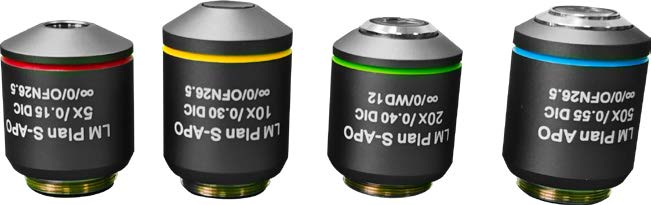

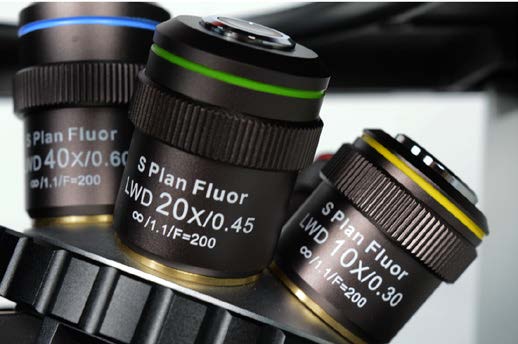

Objective lens	Infinite-focus half-complex phase condenser objective 4X, with numerical aperture ≥ 0.15 and working distance ≥ 16mm
	Infinity-focal semi-complex condenser objective 10X, with numerical aperture ≥ 0.3 and working distance ≥ 14.8mm
	Infinite-focus bicomatic objective lens 20X, with numerical aperture ≥ 0.45 and working distance ≥ 8.6mm
Objective lens	Infinite-focus bicomatic objective lens 40X, with numeriucal-aperture.≥ 0.6-and.workingdistance ≥ 4.9mm.
Objective lens converter	Five-hole encoded objective.lens converter, USB data transmission.
Transmitted lighting system	Pre-aligned phase.ring.plates.are.used.for.all.objectives,and a single phase ring is employed for all, eliminating.the need .for.repeated.switching.
Transmitted lighting system	Intelligent adaptive adjustment of light intensity, 10W wide-spectrum.LED.light-emitting.chip, 50,000-hour.
Focus adjustment system	Coaxial·with coarse and fine adjustment, adjustable tightness, .fine adjustment resolution of 1 um.
Workbench	Flat.worktable 260200mm, wire-driven-moving scale ;travel.≥:11075mm.
Intelligent Management	When changing the magnification of the objective lens, the control circuit will automatically adjust the light intensity to the most suitable.level.
