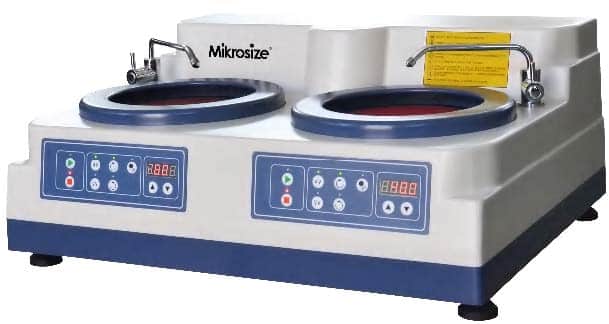

MPoli-230M Metallographic Manual Grinder Polisher (Grinding Polishing Disc Diameter:230mm)
Scan QR
Video Demonstration
Product Features & Applications
Product Feature:
- Single-chip microcomputer controlled grinding and polishing machine.
- ABS material shell is beautiful in appearance, anti-corrosion and durable.
- Strong large support chassis design ensures the precision rotary balance.
- Stepless speed or four speeds control and rota- tional direction changeable.
- DC brushless motor has long service life, low noise and powerful motor brings strong power for efficient grinding polishing experience.
- Spindle leak-proof design ensures the bearing without damage.

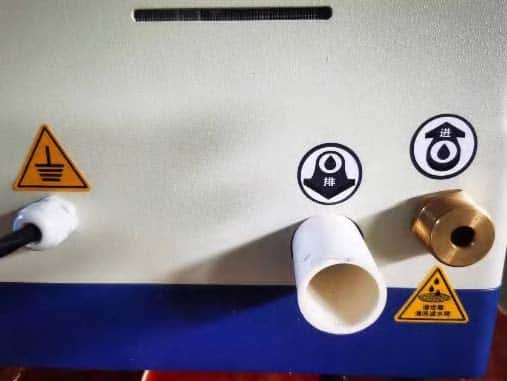

- With cooling water, adjustable tube direction for wet grinding.
- With washing function at the bottom of the grind- ing disc to prevent the accumulation and precipita- tion of grinding materials.
- Only need to change the abrasive paper and pol- ishing cloth, it can complete various sample grind- ing, fine grinding and polishing process.
Technical Specifications
|
Model |
MPoli-1-230M |
MPoli-2-230M |
|
Disc Diameter |
230mm |
230mm |
|
Abrasive Paper Diameter |
230mm |
230mm |
|
Speed |
Stepless Speed 50~1400r/min, or Four Speeds 300, 600, 900, 1400r/min |
|
|
Rotational Direction |
Clockwise or Counter-clockwise |
|
|
Electromotor |
DC Brushless Motor, 220V, 600W |
|
|
Control and Display |

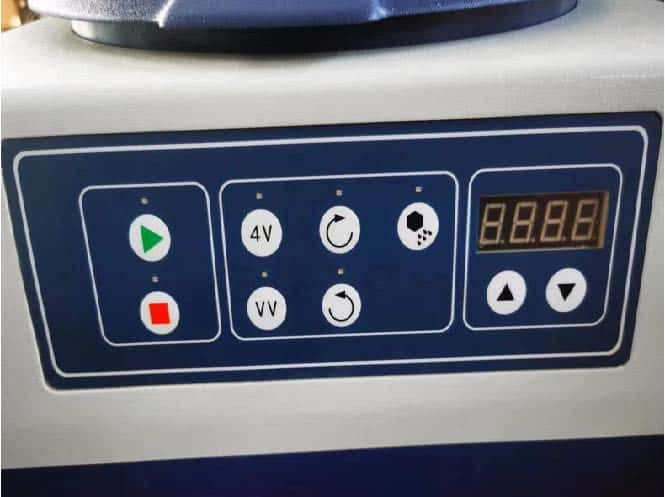

Keyboard Operation , LED Display, With washing function |
|
|
Power Supply |
220V, 50Hz, 6A |
220V, 50Hz, 8A |
|
Machine Dimensions |
420×660×330mm |
757×660×330mm |
|
Net Weight |
30kg |
57kg |
Standard Configuration
|
Name |
Specification |
Qty |
|
Machine Mainframe |
/ |
1 set |
|
Grinding and Polishing Disc |
230mm |
2 pcs |
|
Grinding Disc Cover |
/ |
2 pcs |
|
Abrasive Paper |
230mm |
6 pcs |
|
Adhesive Polishing Cloth |
230mm |
1 pc |
|
Water Inlet Pipe |
/ |
1 pc |
|
Water Outlet Pipe |
Φ32mm |
1 pc |
|
Water Inlet Filter |
/ |
1 pc |
|
Usage Instruction Manual |
/ |
1 copy |
