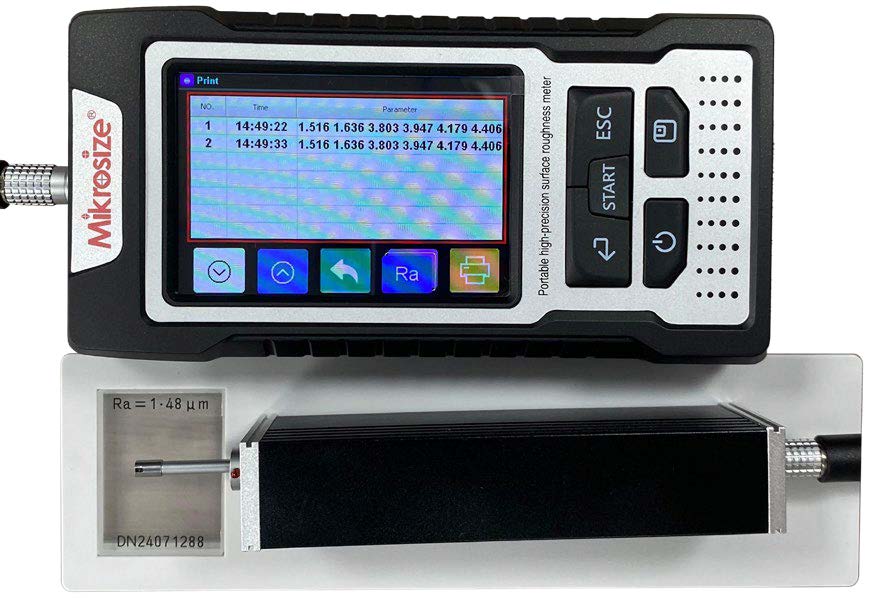

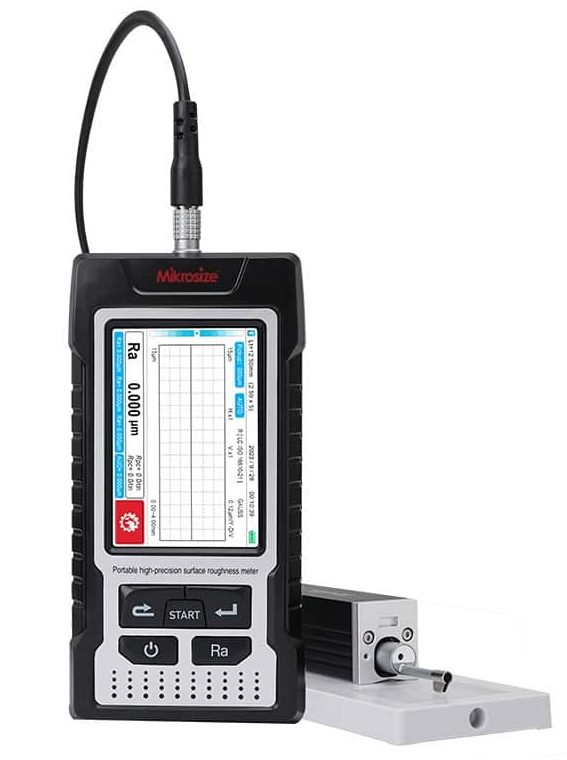

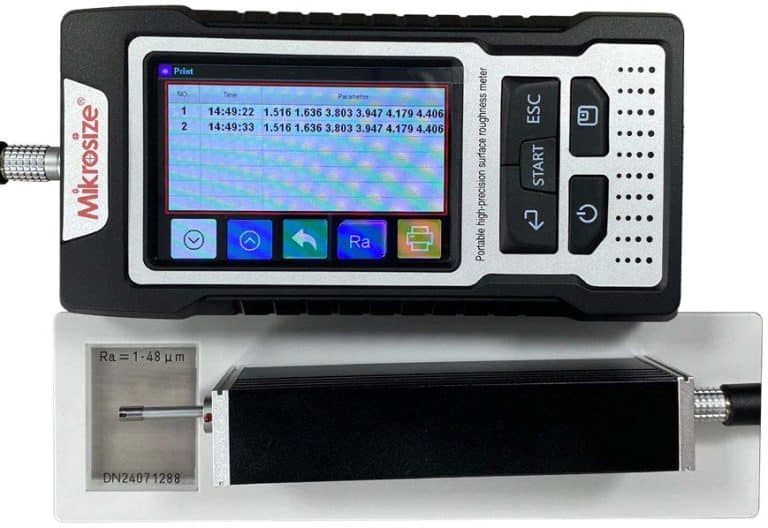

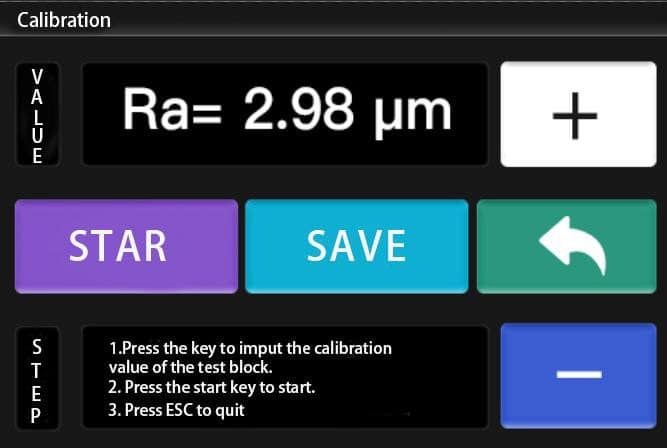

A surface roughness tester (also known as surface texture meter / roughness gauge) is an intelligent metrology tool built for quantifying micro-geometric surface features on machined workpieces. This compact measuring unit integrates cutting-edge microprocessor hardware and high-precision sensor technology. Adopting advanced micro-controller chips and highly-integrated circuit layouts, the tester delivers miniaturized system architecture matching modern metrology trends. It can capture, process, and visualize all key surface-roughness parameters for quality-control workshops and inspection labs.
Many lab technicians and manufacturing engineers feel confused about fundamental roughness concepts while dealing with instrument glitches. Below we walk through core definitions, root formation mechanisms, practical part impacts, and critical measurement terminologies.
1.What is Surface Roughness?
Surface roughness refers to micro-geometric irregularities made of densely spaced peaks and valleys across machined components. It represents micro-scale geometric deviation left after machining. A surface roughness tester is the dedicated metrology device designed to quantify this micro-form error.
2.How Does Surface Roughness Occur on Machined Parts?
After cutting, grinding or other subtractive-manufacturing operations, workpiece surfaces inevitably exhibit micro geometric imperfections. These flaws mainly stem from material plastic deformation, machine-tool vibration, mechanical friction between cutting tools and blanks, and other dynamic manufacturing factors.
3.What Impacts Does Surface Roughness Bring to Mechanical Components?
Surface texture quality exerts decisive influettnces on multiple core component performances:
- Friction and wear resistance of mating surfaces
- Fatigue strength under cyclic mechanical loads
- Corrosion resistance against harsh operating environments – Geometric fitting performance for assembled mechanical pairs
Poor surface finish will shorten component service life and compromise overall equipment reliability.
4.What Is he Actual Profile (Primary Profile)?
The actual profile corresponds to contour traces generated from the intersection plane and real physical curved surface of the workpiece. Depending on intercept orientations, it can be categorized into horizontal actual contour lines and longitudinal actual contour lines.
For standard surface-roughness assessment and measurement, inspectors generally adopt the horizontal actual profile as the benchmark unless specified otherwise. This trace comes from cross-sections perpendicular to the direction of machining lay / tool marks.
5.What Does Sampling Length (Cut-off Length) Mean?
Sampling length (lr / cut-off value) denotes the reference segment length used to define characteristic reference lines for surface-roughness evaluation.
- Rougher workpiece surfaces require a larger sampling-length setting.
- The sampling-length parameter works to suppress and mitigate measurement bias introduced by other macro geometric deviations.
- Within one valid sampling length, operators should capture no fewer than five complete profile peaks and profile valleys to guarantee statistically meaningful measurement outcomes.
Conclusion
Understanding foundational metrology concepts including surface-roughness definition, actual primary profile, and sampling-length setup forms the first step toward minimizing misleading readings from your surface roughness tester. Most recurring instrument malfunctions and inconsistent measurement outputs trace back to misunderstanding these core terminologies, improper cut-off configuration, or failure to recognize how machining conditions shape surface texture. Correct parameter configuration, standardized sample placement, and regular equipment maintenance will drastically boost repeatability and accuracy for your surface-finish inspection workflow.
