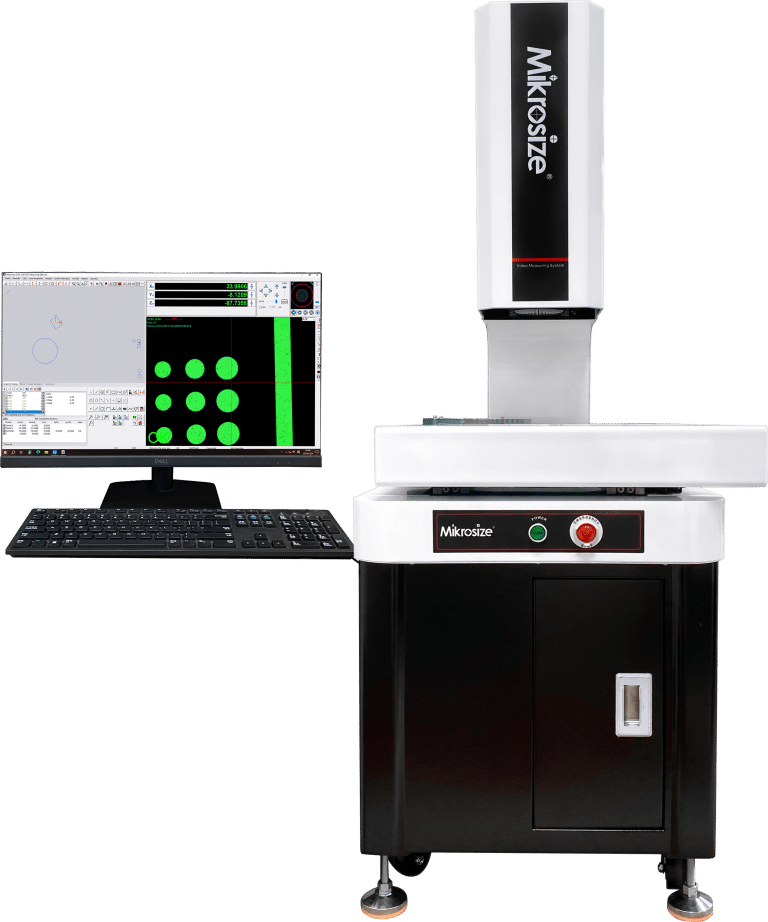

VMC-Series CNC Video Measuring System: Precision Dimensional Metrology for Modern Manufacturing
In today’s high-stakes manufacturing environment, precision is not merely a goal—it is a fundamental requirement. The Mikrosize VMC-Series CNC Video Measuring System represents a significant advancement in the field of dimensional metrology, offering a comprehensive solution for quality assurance professionals seeking to maintain the highest standards of accuracy and efficiency. As a sophisticated CNC video measuring system, this instrument integrates high-resolution imaging, precision mechanics, and intelligent software to deliver reliable measurement results across a diverse range of industrial applications.
Built on a Foundation of Granite Stability
At the core of every VMC-Series CNC video measuring machine lies a meticulously crafted worktable and column constructed from high-precision “00” grade blue granite. This premium material is renowned for its exceptional dimensional stability, minimal thermal expansion, and superior vibration-damping properties. The granite structure ensures that the entire system remains stable and reliable over extended periods of use, immune to subtle environmental fluctuations that can compromise the accuracy of lesser instruments. This robust foundation is the first critical step in guaranteeing that every measurement is performed on a truly unshakeable reference plane, providing the stability essential for high-precision dimensional inspection.
Engineering Excellence in Motion Control
The movement system of the VMC-Series is engineered for uncompromising precision. The transmission employs precision linear guide rails and grinding-grade ball screws, ensuring the accuracy and smoothness of the motion system. This precision mechanical design is coupled with a self-patented CNC servo motion control system that enables X, Y, Z three-axis fully automatic precise control. The result is exceptional positioning accuracy and high repeatability, allowing the system to execute complex measurement routines with minimal operator intervention. The fast response capability of the servo system enables rapid switching between measurement positions, significantly improving inspection throughput in production environments.
Advanced Optical Systems for Unrivaled Clarity
The imaging capabilities of the VMC-Series are powered by a high-resolution CCD color camera paired with a 0.7~4.5X manual zoom lens, delivering a total video magnification of 23.5~148X. This wide range of image magnification enables the instrument to adapt to various measurement tasks and workpiece sizes—from large mechanical parts to tiny electronic components. The optical system incorporates imported high-quality components with multiple layers of optical coatings, minimizing optical attenuation and ensuring clear, distortion-free image quality. As an industrial-grade camera, it offers high stability and durability, performing reliably in harsh industrial environments.
Intelligent Illumination for Optimal Contrast
The illumination system plays a critical role in achieving accurate measurements. The VMC-Series features a programmable 5-ring 8-zone LED surface light source and a parallel LED contour light source, intelligently delivering 256-level brightness adjustment. The surface light provides omni-directional and highly uniform illumination for the measured object, while the contour light clearly outlines the object’s profile. Compared with traditional light sources, LED technology offers longer service life, lower energy consumption, and higher stability, reducing measurement errors caused by light source variations.
Powerful Software: The Intelligent Brain
The hardware of the fully automatic imaging system is complemented by the independently developed Mikrosize measurement software. This comprehensive software suite supports the measurement of multiple geometric elements, including points, lines, circles, arcs, ellipses, and rectangles, with various measurement methods such as overall edge finding, segmental edge finding, and multiple point collection. The software provides both mechanical and workpiece coordinate systems, allowing users to freely establish and switch between them as needed. It offers multiple motion control methods, a powerful map navigation function, and various pixel correction methods. With features like element translation array measurement, CAD graphic import measurement, and scanning functions, the software significantly improves measurement efficiency and application range.
Diverse Applications Across Critical Industries
The VMC-Series CNC Video Measuring System finds extensive application across numerous precision industries. In electronic manufacturing, it measures electronic component dimensions with high precision and detects PCB board quality. In mechanical processing, it accurately detects complex part dimensions and cutting tool conditions. In mold manufacturing, it comprehensively inspects mold cavities, providing data for repair and improvement. In automobile manufacturing, it precisely measures automotive parts and body appearance. The system is also invaluable in scientific research and teaching, meeting the needs of precise measurement while serving as an effective educational tool.
Comprehensive Accessories and Data Management
The VMC-Series includes a comprehensive set of accessories to support diverse measurement needs. A control handle allows users to control the worktable and Z-axis, with the ability to lock individual axes for single-direction control. The system supports the integration of triggering probes and optical probes, extending its capabilities to measure height and flatness, thereby achieving comprehensive 3D spatial measurement. It accommodates external data inputs from devices like digital calipers and height gauges, facilitating centralized data management. The software automatically outputs detailed SPC analysis reports and supports data transmission compatible with Q-DAS software.
The Mikrosize VMC-Series delivers the precision, reliability, and intelligence required to ensure quality and operational excellence in today’s competitive manufacturing landscape.
