Metallographic hot compression mounting is a critical pre-processing step for metallographic sample grinding, polishing and microstructure observation. Many lab technicians frequently run into frustrating defects when operating automatic metallographic mounting press, including uneven mounting compound distribution, specimen falling off, heating failure, unstable pressure, mounted sample cracking, interfacial gaps between resin and specimen, and difficult demolding. These typical issues ruin sample quality, waste mounting resin consumables, and delay material analysis workflows. In this blog post, we break down each frequent fault, root causes, and practical corrective solutions for troubleshooting metallographic mounting press errors in material testing laboratories.
Uneven distribution of mounting compound
Causes: insufficient working pressure from the hydraulic system or non-uniform heating performance across the heating chamber of the mounting press. Poor material homogeneity leads to soft spots, void areas and inconsistent hardness inside the mounted puck, which negatively impacts subsequent grinding-polishing consistency.
Solutions: Inspect and calibrate the pressure system to guarantee stable and adequate compression force during hot mounting. Check heating cartridges and temperature control unit to eliminate hot/cold zones and achieve even thermal distribution throughout the mold cavity.
Specimen falling off from the mounted puck
Causes: incompatibility between metallographic specimen and selected mounting resin, or inadequate applied pressure during the compression mounting cycle. Weak interfacial bonding makes samples detach during grinding or handling procedures.
Solutions: Pick suitable mounting compounds chemically compatible with your test specimen. Verify pressure output of the mounting press, resolve hydraulic leakage or mechanical wear to maintain enough compaction pressure for reliable encapsulation.
Abnormal heating failure of metallographic mounting press
Causes: Burn-out heating elements or malfunctions in the digital temperature-controller. Without correct heating, thermoset mounting resin cannot melt and complete cross-link curing, resulting in soft, unformed mounting samples.

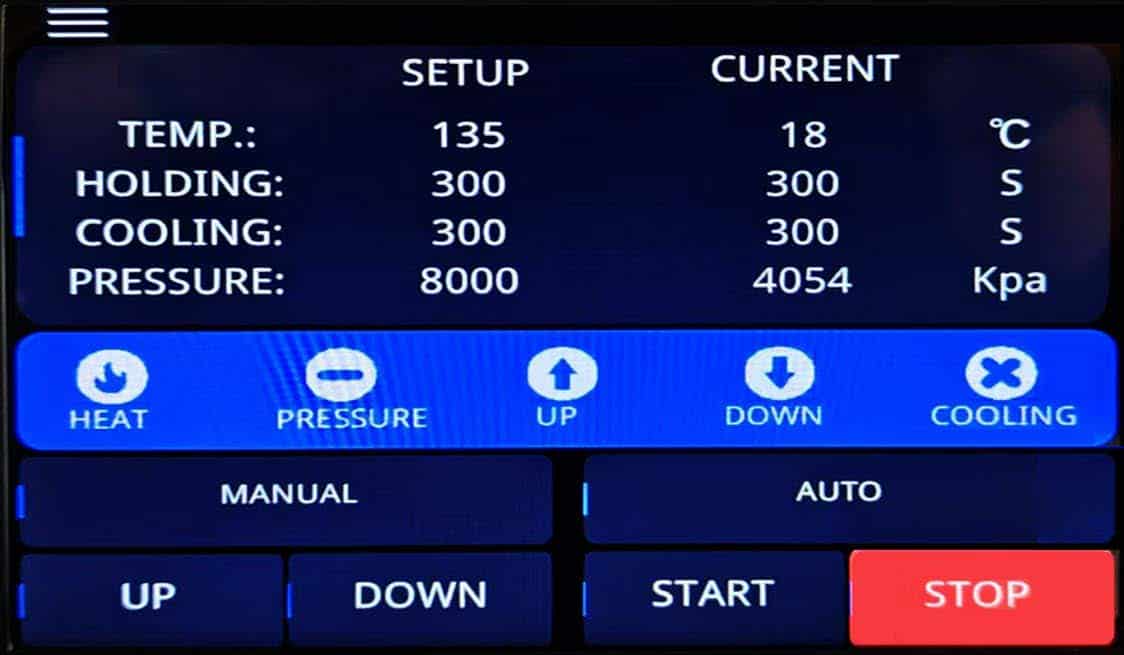

Solutions: Perform regular preventive maintenance; replace damaged heating components promptly. Run functional tests for the whole temperature control circuit to ensure accurate temperature setpoint execution for hot mounting process parameters.
Unstable working pressure
Causes: Hydraulic system faults or worn mechanical transmission parts. Pressure fluctuation creates inconsistent puck density, random voids and unpredictable mounting quality batch-to-batch.
Solutions: Check seals, hydraulic oil and pressure-sensing modules of the pressure system. Replace heavily worn mechanical components to keep steady pressure output for repeatable metallographic mounting results.
Cracks appearing on the surface of mounted specimens
Causes: Excessively fast cooling rate, insufficient pressure leading to low resin density, and large mismatch of coefficient of thermal expansion between specimen and mounting resin. Thermal stress builds up and generates visible cracks on the mounting puck surface or around sample edges.
Solutions: Slow down the cooling procedure by extending air-cooling holding time. Appropriately raise hot-press pressure to compact resin. Apply a thin layer of silane coupling agent on specimen surfaces to enhance interfacial adhesion and mitigate thermal expansion mismatch stress.
Interfacial gaps between mounting resin and metallographic sample
Causes: Dirty or contaminated specimen surface before mounting; insufficient hot-press temperature resulting in incomplete resin curing; insufficient compression force. These micro-gaps trap abrasive particles in polishing steps and distort metallurgical microscopic inspection outcomes.
Solutions: Thoroughly clean and degrease specimen surfaces prior to loading into molds. Increase hot-press temperature within the resin’s rated temperature range. Boost mounting pressure moderately and extend curing holding time for full resin polymerization to eliminate interfacial voids.
Difficult demolding after hot mounting
Causes: Cured resin residues sticking to mold inner walls; demolding performed at excessively high temperature; missing application of mold release agent before sample run. Sticking pucks risk damage to both finished specimen and mounting press mold assembly during forced ejection.
Solutions: Fully clean residual hardened resin from mold inner surfaces after each batch. Wait until mold temperature drops below 60 °C before starting demolding operation. Apply a thin uniform coating of mold release agent on mold interior before new mounting cycles; avoid over-spraying release agent to prevent specimen surface contamination.
Conclusion
Mastering the troubleshooting of common metallographic hot mounting press defects greatly improves lab efficiency, lowers consumable waste, and delivers high-quality defect-free pucks for reliable metallurgical microstructure analysis. Most mounting failures stem from incorrect parameter settings, poor specimen pre-treatment, or neglected equipment preventive maintenance. By following standardized operating workflows and performing periodic hardware inspections, you can avoid uneven compound distribution, sample detachment, cracking, interfacial gaps and demolding issues. If you are seeking durable, high-performance metallographic sample preparation instruments and matching technical support for your material laboratory, Mikrosize provides reliable metallographic mounting presses, grinding-polishing machines and professional application guidance to help your team achieve consistent, repeatable metallographic sample-prep results.
