Can a standard ultrasonic thickness gauge deliver stable, repeatable readings for thin-wall aluminum extrusions? Many procurement managers and quality inspectors from curtain wall, solar bracket, radiator and aluminum profile manufacturing factories mistakenly assume all aluminum workpieces can be tested via ultrasonic thickness measurement. In reality, thin aluminum sections can only be reliably inspected with a qualified portable thickness meter when six core preconditions are fully satisfied. Relying solely on product datasheet minimum thickness ranges will lead to unstable readings, inconsistent test data and invalid inspection reports. Before purchasing an ultrasonic thickness tester for thin aluminum components, verify the six key judgment criteria below with actual production samples rather than technical parameter sheets alone.
This purchasing pain point frequently appears in factory procurement of ultrasonic thickness gauge for thin-wall aluminum profile inspection. Most manufacturers intend to conduct one-sided non-destructive thickness verification on closed hollow cavities, yet encounter unstable measurement after receiving equipment—narrow rib surfaces, oversized radii and inconsistent repeatability at identical test spots are the most common issues. We break down all field validation standards and model selection metrics in operational order for industrial buyers.
1. Verify If Target Wall Thickness Falls Within Valid Measuring Range
All digital ultrasonic thickness gauge devices feature a theoretical thickness measurement window determined by probe frequency, crystal size, material acoustic attenuation and echo processing algorithm. The minimum thickness marked on official spec sheets is tested under ideal conditions: flat standard steel blocks, matched dedicated probes and stable ambient temperature. Aluminum alloys carry unique acoustic velocity, internal grain structure and cross-section designs that differ drastically from calibration reference blocks, so the nominal minimum thickness value cannot guarantee valid thin-wall measurement for aluminum extrusions.

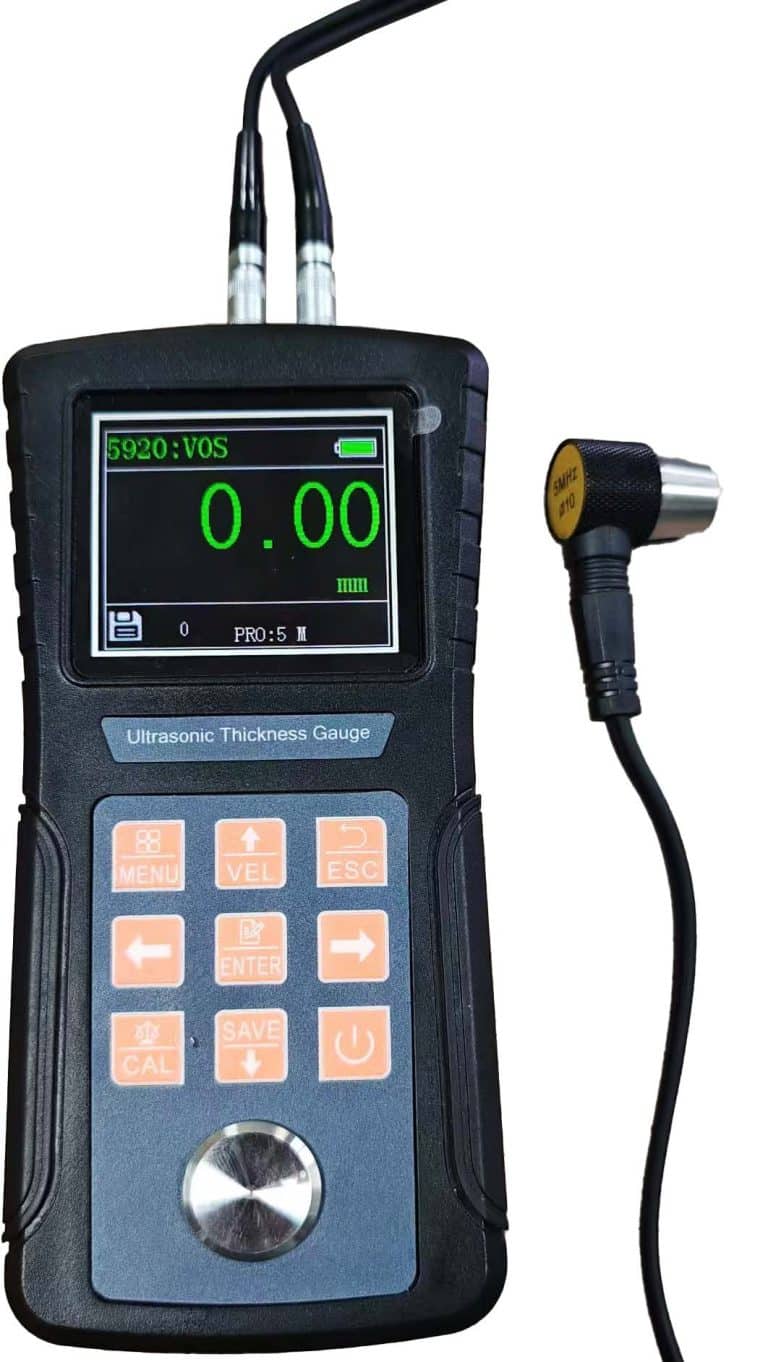

For reliable pre-purchase validation, prepare test samples matching your actual production wall thickness. If your core inspection targets narrow thin reinforcing ribs, avoid calibrating only with thick aluminum plates. Test multiple reference workpieces with known standard thickness values to check reading consistency after repeated coupling reattachment. The iThick-220 Ultrasonic Thickness Gauge supports a measuring range of 0.75–600mm (adjustable by interchangeable probes), with a minimum capture capacity perfectly suited for ultra-thin aluminum ribs; its 0.01mm high resolution delivers precise differentiation for slim aluminum section wall thickness variations.
2. Confirm The Probe Achieves Full Contact With Test Points
Unstable thin-wall aluminum measurement rarely stems from overly thin material, but insufficient flat contact area for the probe. Common problematic positions on aluminum extrusions include curtain wall groove edges, radiator fin gaps, T-slot bottoms and miniature machined components—these spots only provide limited flat surface, causing partial probe suspension or contact across curved radii. Uneven coupling layers deflect ultrasonic beams and generate erratic thickness data.
When selecting equipment, prioritize probe contact dimensions instead of only evaluating the main unit body. Bring real aluminum profile samples to inspect whether all critical inspection locations offer adequate flat contact surfaces. If you regularly test narrow groove ribs, select the iThick-220 Ultrasonic Thickness Gauge, which supports swappable dual-crystal probes with varying frequencies and crystal sizes. The optional 7Mhz miniature contact probe fits narrow aluminum groove bottoms, eliminating suspended probe contact and stabilizing ultrasonic signal transmission on slim aluminum structures.
3. Ensure Back Surface Forms Clear Reflected Echoes
Ultrasonic thickness measurement relies on complete ultrasonic wave reflection from the workpiece back wall. Stable repeatable readings are easiest to obtain when front and back surfaces run parallel to each other. If the reverse side features slopes, large radii, internal grooves or reinforcing rib junctions, reflected sound waves will deflect away from the probe receiver. The ultrasonic thickness gauge may display jumping numbers, blank readings or false thickness values that do not reflect actual substrate wall thickness.
For complex aluminum extrusions, cross-reference component cross-section drawings to map valid test positions. Do not assume flat external surfaces equate to parallel inner back walls; machined cutouts, lightweight reduction structures and bent curved sections require additional sample verification. When backside geometry cannot be visually confirmed, combine ultrasonic screening with physical cross-section sampling to validate data authenticity. The built-in coupling status indicator on the iThick-220 visually alerts operators to poor contact or distorted echo signals on irregular aluminum back surfaces, helping filter invalid readings instantly.
4. Validate Acoustic Velocity Calibration For Aluminum Alloy Material
All portable ultrasonic thickness meter units calculate wall thickness based on sound wave round-trip travel time and preset material acoustic velocity. Aluminum is not a uniform single material; different alloy grades, heat treatment states and operating temperatures create distinct acoustic transmission speeds. While factory preloaded aluminum sound velocity parameters support preliminary trial testing, formal quality acceptance requires calibration using reference blocks manufactured from identical alloy and heat-treated aluminum with certified standard thickness.
Incorrect sound velocity settings create uniform systemic deviation across all measured points—if mechanical caliper readings differ proportionally from ultrasonic results on multiple aluminum samples, recalibrate sound velocity rather than adjusting single-point readings. Re-calibration is mandatory when switching aluminum alloy suppliers, production batches or heat treatment processes. The iThick-220 Ultrasonic Thickness Gauge features dual-point calibration and probe zero calibration functions, allowing technicians to calibrate acoustic velocity with matching aluminum reference blocks to eliminate systematic thickness measurement error on thin aluminum profiles. Its adjustable sound speed range of 1000–9999 m/s covers all common industrial aluminum alloy grades.
5. Maintain Stable Coupling Between Probe And Aluminum Surface
Coupling agent eliminates air gaps between the probe and aluminum workpiece to enable ultrasonic wave penetration. Excessively rough surfaces, wrinkled protective films, deep scratches, anodizing, electrophoresis and powder coating layers all disrupt consistent coupling film formation. Users must clarify whether measurement results reflect pure aluminum substrate thickness or include surface coating layers when testing finished coated aluminum extrusions.
Coupling agent dosage requires precise control: apply just enough to form a continuous thin film without probe sliding during testing. Clean coated aluminum workpieces thoroughly post-inspection to avoid surface contamination or damage to decorative finished profiles. The iThick-220’s real-time coupling status indicator monitors coupling layer integrity on rough anodized aluminum surfaces, reducing false readings caused by uneven coupling agent distribution on thin-wall aluminum sections. Its wide operating temperature range (-10℃ ~ 60℃) adapts to factory workshop and outdoor aluminum component inspection environments.
6. Judge Measurement Validity Through Reading Repeatability
Stable fixed-probe numerical values alone cannot confirm valid thin-wall aluminum thickness data. The critical verification standard is repeatability after full probe lifting, reapplication of coupling agent and repositioning on the identical test spot. Only consistent results across multiple independent re-measurements confirm stable coupling, accurate positioning and reliable ultrasonic echo recognition.

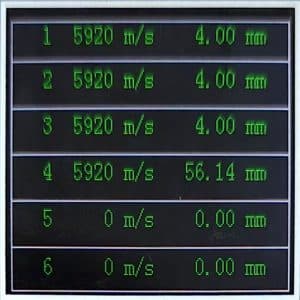

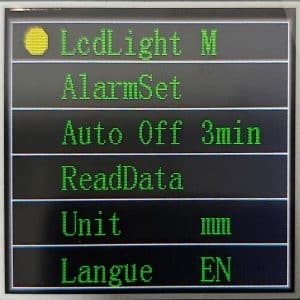

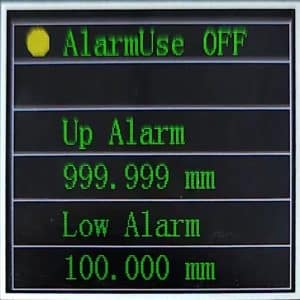

If valid readings only appear during one single test cycle, mark this spot as pending confirmation. Supplement surrounding test points, rotate probe orientation or switch alternative probes to retest. If data still fluctuates drastically, avoid submitting ultrasonic figures as official acceptance records—switch to mechanical calipers, cross-section sampling or optical measurement tools for final validation. The iThick-220 scanning mode supports 20 measurements per second to rapidly locate thin wall defects, while its 3000-group built-in data storage archives all repeated test values for traceable repeatability verification on aluminum extrusions.
Key Probe Selection Parameters For Thin-Wall Aluminum Profile | Comparison Table
Scenarios Where Ultrasonic Thickness Gauge Cannot Be Used As Sole Inspection Standard
- Industry standards or procurement contracts explicitly mandate alternative thickness testing methodologies
- Probe cannot fully attach to workpiece surfaces with unsatisfactory measurement repeatability
- Unclear internal backside geometry or severely sloped reflective surfaces on aluminum extrusions
- Acoustic velocity calibration not completed with matching aluminum alloy reference samples
- Test positions include sharp corners, groove openings, weld heat-affected zones or complex machined cutouts
- Test data will be used for third-party arbitration or formal inspection reports without standardized testing procedures and certified operators
Even under these circumstances, the digital ultrasonic thickness tester remains viable for preliminary screening to locate abnormal thin-wall areas on aluminum profiles; final acceptance results must be cross-verified with mechanical measuring tools, cross-section sampling or optical inspection equipment.
Practical Pre-Purchase Selection Recommendations
Source your most challenging production samples first: ultra-thin ribs, narrow flat contact zones, large curved surfaces and rough coated aluminum workpieces—avoid conducting validation only on flat thick aluminum plates. Prepare certified reference blocks with known standard thickness values, then perform testing on flat base surfaces, critical reinforcing ribs and curved pipe sections separately. Archive all calibration records, probe models and repeat measurement results to distinguish stable measurable positions from locations requiring alternative inspection tools.
The applicability of ultrasonic thickness gauge for thin-wall aluminum profile inspection cannot be simplified into a yes/no answer. When material specifications, cross-section geometry, probe configuration and calibration standards are fully matched, the iThick-220 Ultrasonic Thickness Gauge delivers efficient one-sided non-destructive thickness testing for aluminum extrusions. If core testing preconditions fail to meet standards, treat ultrasonic equipment as an auxiliary screening tool instead of relying solely on its data for full dimensional acceptance judgments.
Conclusion
Selecting a suitable Mikrosize portable ultrasonic thickness meter for thin-wall aluminum profile inspection requires systematic validation of six core conditions: effective thickness measuring range, full probe contact, clear back wall echo reflection, alloy-matched sound velocity calibration, stable coupling conditions and reliable reading repeatability. Prioritize sample-based field testing over datasheet parameter screening during procurement. The Mikrosize iThick-220 Ultrasonic Thickness Gauge integrates interchangeable dual-crystal probes, high-precision 0.01mm resolution, complete calibration functions, real-time coupling prompts and large-capacity data storage, fully meeting the non-destructive thickness inspection demands of aluminum curtain walls, solar support frames, radiators and industrial extrusion manufacturers. Beyond thin-wall aluminum profile detection, this Mikrosize ultrasonic thickness tester supports thickness measurement for steel, cast iron, copper, plastic, ceramic and glass fiber materials with good ultrasonic conductivity. It is widely deployed in petroleum, chemical, metallurgy, shipbuilding, aerospace and pressure vessel maintenance to monitor wall thinning caused by long-term pipeline corrosion. Equipped with a USB data communication interface, backlit low-light display, upper/lower limit audio-visual alarm and 250-hour continuous battery runtime, the compact 245g Mikrosize iThick-220 withstands vibration, impact and electromagnetic interference for stable operation in harsh industrial workshop environments.
