Digital multimeters rank among the most essential electrical testing instruments, widely deployed for new-energy vehicle testing, circuit debugging, lab calibration, factory production-line inspection, electronic repair and household electrical fault diagnosis. Even though they look straightforward, improper selection often brings inaccurate readings, missed defects and wasted engineering hours. This blog breaks down real-world application scenarios and core selection criteria for digital multimeters, especially for engineers working on new-energy automobile projects.
Five Key Application Scenarios for Digital Multimeters
1. Voltage & Current Calibration and Validation
This is one of the core jobs for a precision digital multimeter. Tasks including On-Board Charger (OBC) output calibration, DC-DC converter performance verification and BMS (Battery Management System) sampling-accuracy validation all require a reliable multimeter as a reference standard.
If your DMM accuracy is inferior to the device-under-test specification, measurement results lose practical value. For instance, if an OBC requires ±0.1 % voltage accuracy, using a basic 3½-digit multimeter with ±2 % error makes it impossible to distinguish whether deviations stem from the OBC itself or from the test tool.
2. Resistance-Loop Measurement & Detection
During circuit debugging, technicians frequently measure precision divider resistors and current-sampling resistors. Ordinary 3½-digit multimeters deliver roughly ±1 % resistance accuracy, insufficient to validate 0.1 % high-precision resistors.
Contact resistance creates another major pain point. In 2-wire measurement mode, probe contact resistance may range from tens to hundreds of milliohms. When testing low-resistance milliohm-level sampling resistors, contact error can overwhelm the actual measured value and generate meaningless data.
3. Diode Test & Continuity Check
Production-line testing heavily relies on multimeter diode and continuity modes to measure diode forward voltage drop, verify relay-contact status and check wire-harness connectivity.
One commonly overlooked detail: different digital multimeters use different diode test currents, varying from 1 mA up to 10 mA. For current-sensitive components such as LEDs or optocouplers, inconsistent test-current settings produce divergent forward-drop readings. This causes frequent false pass-or-fail judgements on manufacturing lines.
4. Temperature Measurement with Thermocouple / RTD Sensors
For battery-pack temperature rise testing and motor thermal monitoring, multimeters paired with thermocouple or RTD sensors capture thermal data. Cold-junction compensation directly determines temperature-reading quality. Entry-level handheld multimeters may lack proper cold-junction compensation, generating temperature deviations of several degrees Celsius.
In high-stakes thermal-runaway evaluation for new-energy battery packs, multi-degree measurement errors can completely reverse safety judgements.
5. Data Logging & Trend-Tracking Analysis
Long-duration aging tests and temperature-drift characterization need data-logging multimeters equipped with PC communication ports (GPIB / LAN / USB) to continuously record voltage and current changes over time.
Reading speed (readings per second) becomes critical here. Basic multimeters may only deliver 2-3 readings per second and fail to capture transient signal spikes. High-performance bench-top DMM units can exceed 10 000 readings per second, supporting trend analysis and basic low-speed waveform capture. Cheap models for data logging smooth away transient anomalies, hiding real-world faults that briefly appear and disappear.
Four Critical Parameters for Multimeter Selection
1. Digits of Resolution and Measurement Accuracy
Digit count defines display resolution, while accuracy represents real-world measurement error — resolution digits ≠ measurement accuracyTektronix.
- 3½-digit (3.5-digit): maximum display reading 1 999; resolution ~0.1 %; fits continuity checks and rough field-side measurements.
- 4½-digit (4.5-digit): maximum display reading 19 999; resolution ~0.005 %; ideal for general-purpose engineering measurement.
- 6½-digit (6.5-digit): maximum display reading 1 999 999; resolution ~0.00005 %; suited for calibration work and high-precision testing.
- 7½-digit (7.5-digit): maximum display reading 19 999 999; resolution ~0.000001 %; reserved for metrology-grade calibration laboratories.
Even two 6.5-digit benchtop multimeters can differ greatly: typical DC voltage accuracy reaches ±0.003 %, yet low-cost variants may drop to ±0.01 %. Always verify formal accuracy specifications rather than only comparing digit counts.
2. Measurement Range: Auto-Ranging vs Manual-Ranging
Auto-ranging digital multimeters automatically match signal magnitude, simplifying operation for users unaware of signal levels. However, auto-range switching introduces latency from dozens to hundreds of milliseconds. During continuous high-speed data logging, this delay triggers unstable readings or lost data points.
Manual-range mode eliminates switching latency but requires prior knowledge of expected signal amplitude.
Selection tip: handheld multimeters mostly use auto-range for convenience; bench-top DMM for automated data acquisition should support manual-range or allow auto-range function to be disabled.
3. Measurement Reading Speed
Measuring speed is quantified in readings / second. There exists an inherent trade-off: higher-accuracy integration cycles reduce reading speed. For a 6.5-digit DMM, users can toggle measurement-mode settings: choose high-accuracy low-speed modes for calibration validation, and lower-accuracy high-speed modes for trend-logging. Many engineers leave instruments locked in maximum-digit mode, resulting in insufficient sampling speed and missed transient events.
4. Communication Interfaces for System Integration
Interface options determine how the multimeter integrates into automated test systems:
- LAN: recommended for modern ATE systems; flexible networking, long transmission distance, one PC can simultaneously manage multiple instruments.
- GPIB: legacy interface, widely-compatible with older automatic-test equipment.
- USB: convenient for temporary single-unit connection; not recommended for long-term unattended automated testing.

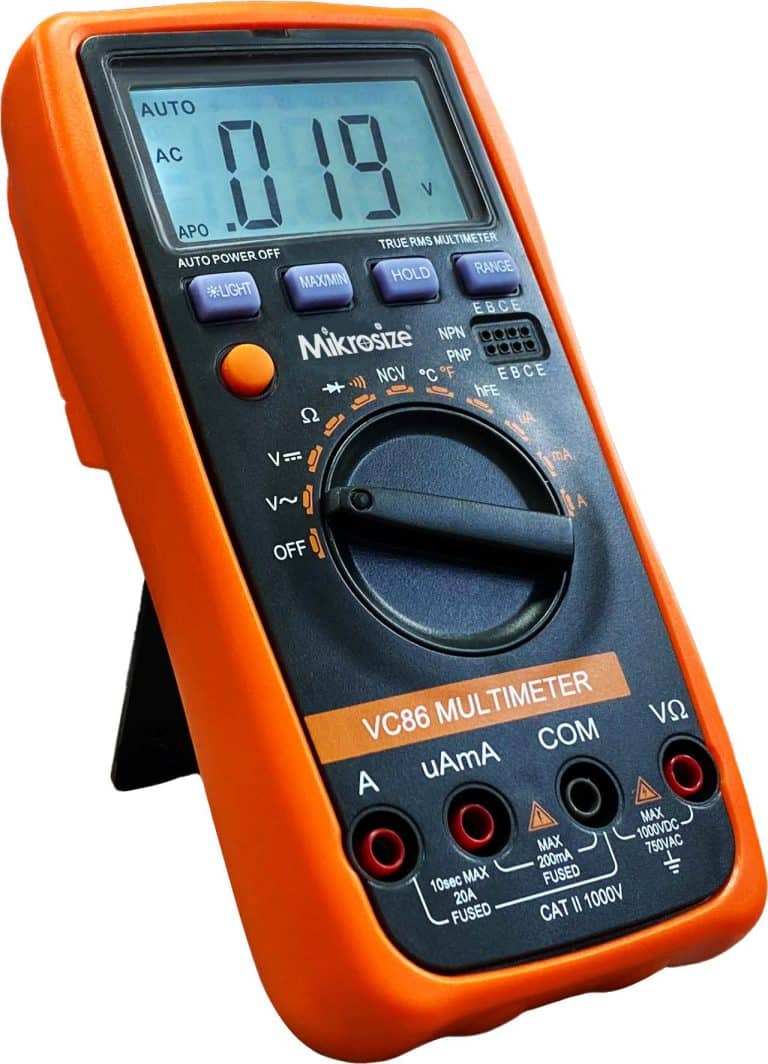

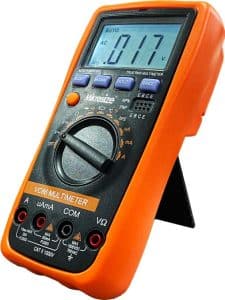

Product Spotlight: Mikrosize MS-86 Digital Multimeter
The MS-86 Digital Multimeter from Mikrosize serves as a reliable 3½-digit handheld electrical testing meter for multi-scene electrical measurement work.
Product Features
Boasting comprehensive measurement capabilities, the unit can test AC / DC voltage, AC / DC current, and resistance, plus practical auxiliary functions including unit indication and data hold. Built around an 8-bit microcontroller and dual-integration A/D conversion circuit, it delivers solid measurement accuracy, stable and consistent field performance.
It features a large 22 mm high LCD screen with crisp 3½-digit readout, supporting automatic-polarity display and unit indication. Both auto-range and manual-range conversion are available alongside an auto-power-off function for simple daily operation. Additional practical functions cover maximum-/minimum-value display and alarm alerts to satisfy diverse measurement requirements.
Safety-oriented hardware includes full overload-protection design, complying with IEC1010 safety standards for enhanced operational safety and reliability.
Product Applications
- Laboratory environment: accurately captures multiple electrical parameters to support experimental data acquisition and analysis.
- Factory production workshops: tests circuit-component performance, assists equipment fault-diagnosis and guarantees normal equipment operation.
- Electronics & radio hobbyists: supports circuit debugging, component-parameter testing and aids electronic-device assembly and repair.
- Household maintenance: checks household-appliance voltage and current, diagnoses basic circuit faults for daily electrical-equipment upkeep.
- Temperature-measurement use case: works cooperatively with thermocouple sensors to monitor temperature across diverse objects and environments.
Frequently Asked Questions (QA)
Q1: Is higher digit count always better when buying a digital multimeter?
A: Not necessarily. Digits indicate display resolution rather than real-world accuracy. Match your selection to application requirements. Hobby-level or simple field maintenance tasks can work well with a qualified 3½-digit handheld DMM, while calibration and new-energy vehicle R&D scenarios demand higher-resolution bench-top instruments.
Q2: What risks does auto-ranging bring for automated data-logging work?
A: Auto-range switching produces measurable time delay. When collecting fast-changing signals, range-switch latency may skip critical data points. For automated test sequences, turn-off auto-ranging and apply fixed manual ranges whenever possible.
Q3: Why do identical diodes show different forward-drop values on different multimeters?
A: This arises from differing built-in test currents for the diode test function. Sensitive semiconductor components respond to test-current magnitude, so keep instrument-model consistency on production test stations.
Q4: Can general-purpose handheld multimeters complete new-energy-vehicle BMS precision-calibration tasks?
A: Ordinary consumer-grade handheld multimeters usually lack sufficient accuracy reference levels. For formal BMS-sampling-accuracy validation, select high-precision bench-top digital multimeters. Hand-held devices fit field troubleshooting rather than metrological-level calibration.
Conclusion
Choosing a suitable digital multimeter / DMM hinges on clarifying real-world application scenarios, target accuracy requirements, reading-speed expectations and system-integration needs. Mis-matched instruments generate misleading data and create costly engineering mistakes, especially within new-energy vehicle testing, electronic manufacturing and laboratory-calibration workflows. Mikrosize delivers one-stop precision-measurement solutions, supplying practical, safety-compliant electrical-testing instruments such as the MS-86 Digital Multimeter. Whether for lab research, factory-floor quality-control, electronic-repair workshops or household electrical inspection, Mikrosize offers robust measurement hardware matched to diversified end-user demands.
