A metallographic grinding-polishing machine is core lab hardware for metallographic specimen preparation, performing grinding and polishing steps to produce scratch-free flat surfaces for subsequent metallographic microscope inspection, grain-size evaluation, coating cross-section analysis, and material failure analysis. Consistent machine performance directly determines metallographic sample quality, repeatability of test results, and lab workflow efficiency. Unexpected breakdowns, improper daily care or wrong pneumatic setup often trigger equipment downtime, bad specimen surfaces, and costly production delays.
This blog compiles practical metallographic grinder-polisher troubleshooting solutions, step-by-step daily maintenance routines, and must-follow operational notes, helping material-testing labs, QC departments and research teams resolve common faults quickly and extend machine service life.
Common Fault-Diagnosis & Troubleshooting Table
Below lists frequent failure symptoms, root causes and actionable fixes for automatic metallographic grinding-polishing equipment:
Fault Phenomenon | Possible Causes | Recommended Solutions |

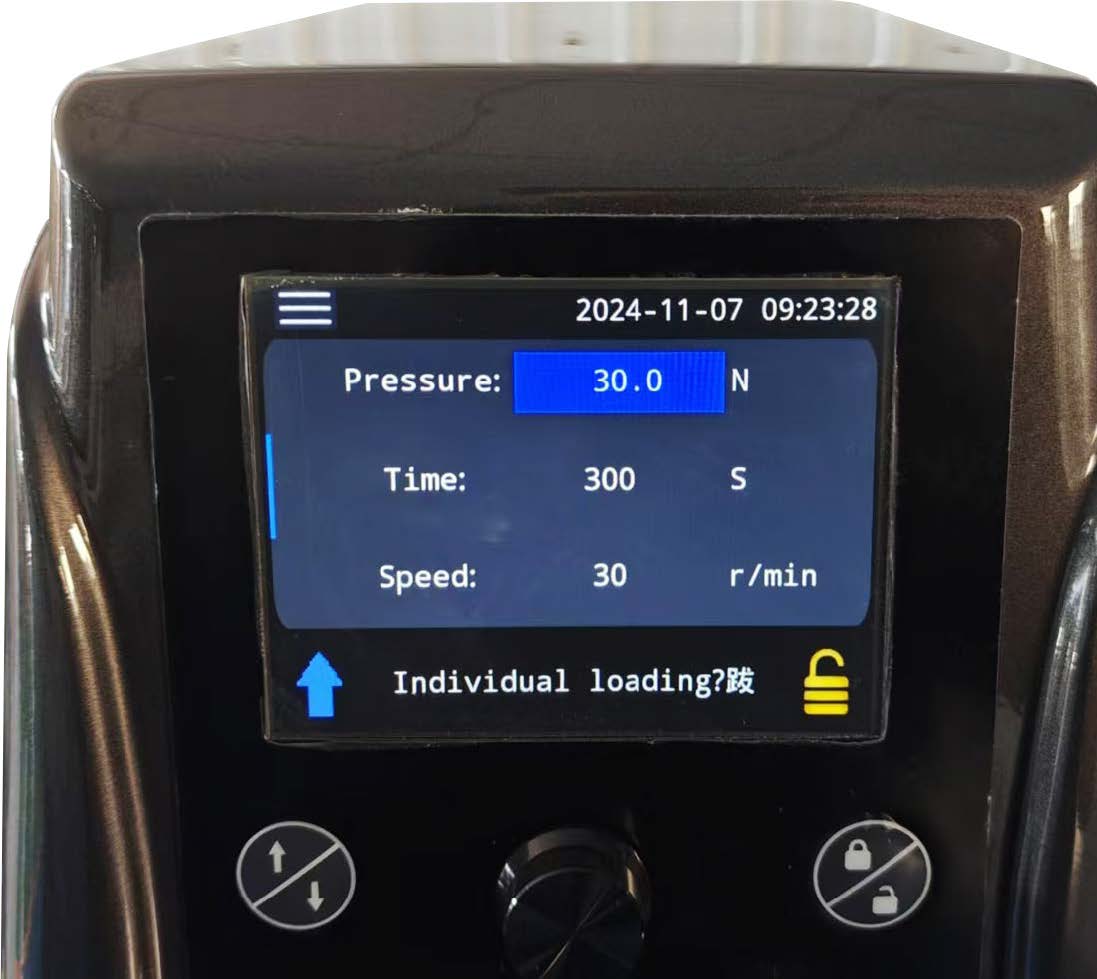

Unresponsive touch–screen operation | Communication failure, loose connectors, defective circuit board, damaged touch panel | Re–secure all connection plugs; replace defective circuit board or touch screen |
Motor will not run | Drive module failure | Replace the motor driver unit |
No response from pressure–head air cylinder | Solenoid valve fault, defective circuit board | Replace solenoid valve or circuit–board assembly |
Machine head fails to rise | Damaged solenoid valve, circuit–board malfunction | Replace solenoid valve or circuit–board assembly |
Malfunctioning pressure adjustment | Defective regulating valve, circuit–board issue | Replace regulating valve or relevant circuit–board parts |
No water flow output | Water tap turned–off, defective water valve | Open water tap or replace faulty water valve |
Water valve cannot close | Water–valve damage, internal debris clogging | Replace water valve or clear trapped contaminants |
Blank display screen | Blown fuse, defective power supply unit | Replace fuse or faulty power source |
No power to the whole unit | Blown fuse, damaged emergency stop power switch | Replace fuse or repair emergency stop switch |
Daily Routine Maintenance Guidelines for Metallographic Sample Grinding-Polishing Machine
Proactive daily maintenance is essential to reduce unexpected breakdowns and guarantee reproducible metallographic sample preparation results.
- Do not apply excessive pressure on specimens during grinding-polishing cycles. Over-pressure will overload the drive motor and cause permanent motor damage.

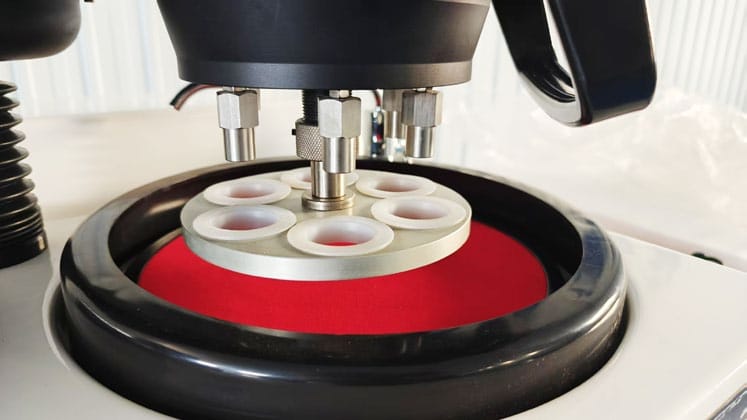

- Never operate the machine with torn or damaged polishing cloth. Worn fabric ruins polishing quality and creates potential safety hazards.
- Complete thorough cleaning after every working day. Remove grinding debris and sediment inside the waste-water tray and drain pipeline to keep drainage unobstructed. Cover the machine with the plastic protective cover during idle periods, preventing foreign particles from falling into the platen chamber and contaminating future sample-prep runs.
- After long-term continuous operation, replenish or replace lubricating grease inside motor bearings every 12 months, following the manufacturer’s service manual.
- The built-in air filter is a mechanical auto-drain filter valve. Install it strictly as instructed and clean filter cartridges periodically, to avoid premature pneumatic-component failure.
Critical Operational Precautions
Improper pneumatic settings, wrong shutdown sequence and motor stall are top sources of avoidable equipment damage. Please strictly comply with these rules:
- When facing motor stall conditions: for example pressing start button with stationary motor, or spinning platen suddenly locked by heavy resistance. Turn off main power, wait 60 seconds before powering-on again to reset the control system. Investigate and eliminate stall triggers. Note that brushless-motor phase loss or loose / broken Hall-sensor wiring can also result in motor refusal to rotate.
- Never install an oil mist unit at the air-inlet port. Adjust working air pressure before power-on. If you plan to shut down the air supply after finishing work: reduce output air pressure to zero first, cut electrical power supply, and only then close the air source valve. Violating this shutdown sequence will produce loud popping noise and shorten the service life of electrical and pneumatic components.
- The incoming compressed air must be free of corrosive gas and chemical contaminants. Excessive condensed moisture in air supply leads to erratic machine movements. Install condensers, air dryers and condensate collectors upstream of the machine inlet. Fit a 5 μm precision air filter valve (included with equipment). Set working pressure to 0.55 MPa before starting operations.
- Connect one end of drainage hose to machine waste outlet; route the other end to sewage processor or building sewer. Avoid sharp bends that block water flow. Ensure the drainage outlet sits below the grinder-polisher water reservoir level to prevent backflow and water accumulation inside the unit.
Conclusion
Well-executed fault handling and systematic preventive maintenance are key factors to maximize uptime for your metallographic grinding-polishing machine, maintain stable metallographic specimen-preparation quality, and lower long-term lab operating costs. Most common operational failures originate from loose connections, clogged water-air pipelines, incorrect pneumatic-pressure settings, or lack of regular daily cleaning. Following standardized troubleshooting workflows and maintenance checklists helps your quality-control lab avoid unnecessary downtime and bad metallographic test outputs.
