In precision material science and industrial QC labs, sample preparation lays the groundwork for credible microscopy and hardness testing results. To expose intact microstructures before any inspection, lab technicians need standardized, easy-to-handle test blocks—and that’s where the fully automatic hydraulic metallographic mounting press takes center stage. As a trusted supplier of lab measuring & testing equipment, Mikrosize delivers high-performance multi-function metallographic mounting equipment built to streamline your entire metallography workflow.
Core Working Principle of Thermal Mounting for Metallographic Specimens
All Mikrosize automatic metallographic hot mounting machines run on thermal embedding technology, combining programmable heat and hydraulic pressure to bubble-free, defect-free specimen encapsulation.
- Place irregular metal fragments, coated parts or brittle ceramic samples into precision molds;
- Fill mold cavities with thermosetting media: phenolic Bakelite powder or transparent epoxy resin;
- Close the cycle: built-in heating elements melt embedding media into low-viscosity fluid that fills every sample crevice;
- Activate hydraulic control system: customized cylinder structure applies stable pressure from 0–10 MPa to squeeze out trapped air and eliminate voids;
- Hold heat & pressure for curing, then trigger integrated water cooling for fast solidification. The unit will auto shut down once mounting finishes, producing uniform cylindrical or rectangular test blocks ready for grinding and polishing.
4 Core High-Precision Modules of Automatic Hot Mounting Press for Metallurgy
Our iPress series metallographic hydraulic mounting machines integrate four coordinated precision modules for repeatable lab results:
1. Heating Module – Stable Wide-Range Temperature Control
High-power surround cartridge heaters deliver 360° even heating without cold zones. Equipped with K-type thermocouples and PID closed-loop temperature adjustment, the heating range spans 35~300°C with ±1°C accuracy to avoid resin thermal degradation.Heater power varies by mold size: 1600W for Φ22mm/Φ30mm molds, and 2000W for large Φ45mm mounting dies.
2. Hydraulic Pressure Module – Special Craft Cylinder Design
The proprietary processed hydraulic cylinder enables smooth, stepless pressure regulation between 0–10 MPa. Real-time pressure sensors form a closed-loop control circuit to prevent overpressure sample damage or incomplete filling under low force—an essential upgrade over old manual mounting presses.
3. Water Cooling Module – Fast Cycle Turnaround
Standard water cooling design accelerates mold heat dissipation drastically. Premium models support external circulating chillers for consistent low-temperature cooling, cutting total sample prep time significantly. Standard mounting cycles finish in roughly 5–6 minutes; note transparent acrylic embedding requires extended processing time.
4. Intelligent HMI Control System – Dual-Language Parameter Storage
Every lab metallographic mounting equipment features a switchable Chinese & English touchscreen interface ideal for global factories and research labs.
- Real-time display & editable adjustment of all core parameters: heating temp, holding time, mounting pressure, cooling duration;
- Onboard storage for up to 10 sets of custom process recipes for aluminum, steel, porous ceramics and other diverse workpieces;
- One-click program startup; full auto-operation: auto heating, auto pressurization, auto water cooling, auto shutdown post molding.
Key Advantages of Mikrosize iPress Series Automatic Metallographic Specimen Mounting Machine
1.Superior Consistency & Repeatability
Automation removes human operation errors, outputting identical standard mounts batch after batch—critical for quantitative metallography and hardness tester matching analysis.
2.Outstanding Lab Efficiency

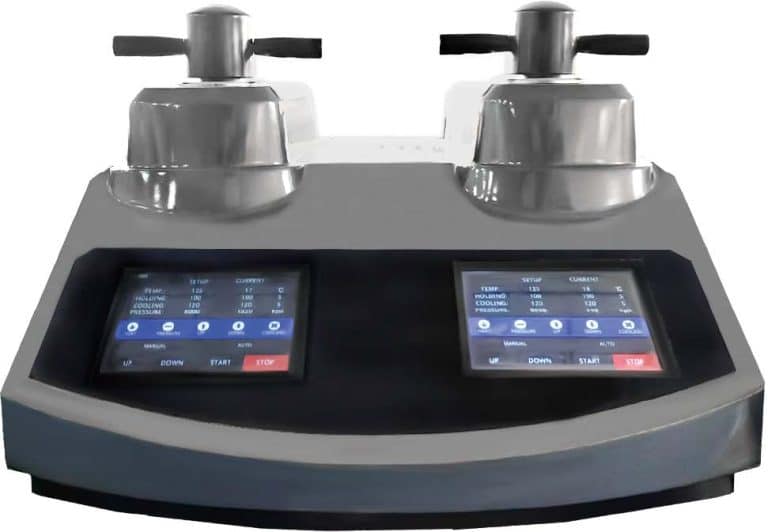

One operator loads samples, launches the program, and attends to polishing or failure analysis tasks while the machine runs independently. Continuous batch processing boosts daily lab throughput. Single-head iPress-2HA processes 2 specimens per cycle; dual-head iPress-4HA mounts 4 samples simultaneously. Standard cycle takes around 6 minutes (transparent acrylic excluded).
3.Full Specimen Protection
Programmable mild-to-high hydraulic pressure safeguards fragile, thin and porous samples against cracking or edge rounding, retaining original surface microstructures for accurate microhardness testing. Three interchangeable mold diameters available: Φ22mm, Φ30mm, Φ45mm.
4.Enhanced Workplace Safety
Fully enclosed working chamber isolates high-temperature molds, molten resin and harmful fumes, minimizing scald and chemical injury risks compared to semi-automatic or manual mounting gear.
5.Seamless Hardness Testing Workflow
Flat, stable embedded blocks fit all mainstream hardness testers perfectly. Pair Mikrosize fully automatic hydraulic metallographic mounting press with our hardness measurement instruments to build an end-to-end high-precision material testing pipeline.
Final Verdict: Must-Have Gear for Modern Metallography Labs
A premium multi-function automatic hot mounting machine for metallographic sample preparation is far more than a simple mold press—it’s an irreplaceable core asset for metallurgical research, product failure analysis and industrial quality control workshops. Integrating precision thermal control, stable hydraulic drive, rapid water cooling and intelligent dual-language recipe storage, Mikrosize iPress series automatic metallographic thermal embedding equipment standardizes your front-end sample preparation stage. Reliable mounting blocks directly improve data accuracy for all downstream measuring instruments, supporting consistent, high-quality R&D and production inspection results.
