Spring tension-compression testing machines, also known as spring force testers, spring load measuring devices, and spring stiffness analyzers, serve as indispensable quality-control metrology gear across automotive component workshops, engine-parts production lines, heavy-equipment manufacturing plants, and general industrial fabrication facilities. Engineers and QC technicians rely on these spring performance test instruments to validate critical spring metrics: initial tension, compression stiffness, ultimate breaking load, deflection characteristics, and fatigue-related load attenuation for coil springs, clutch springs, valve springs, and mining-equipment suspension springs.
Uncalibrated or poorly adjusted spring pull-push test equipment yields skewed measurement readings. Erroneous test data may trigger defective spring batches entering assembly lines, leading to gear-shifting malfunctions, spring fracture risks under high-frequency vibration, or premature failure of heavy-duty industrial machinery. Regular, standardized calibration safeguards measurement traceability, guarantees repeatable test outputs, and aligns test results with domestic and international compliance benchmarks. In the sections below, we break down practical calibration workflows, introduce the feature-rich Mikrosize MST-2000 Spring Tension and Compression Tester, and cover real-world industrial use-cases for spring-load inspection.
Why Calibration Matters for Spring Tension-Compression Test Equipment
Periodic calibration is non-negotiable for spring force-measurement test benches. Long-term continuous operation, mechanical wear of moving crosshead assemblies, environmental vibration, and frequent sample loading can introduce drift for speed, force-readout, and displacement sensors. Without scheduled verification:
- Test-speed deviations will distort spring rate and dynamic load-deflection test outcomes;
- Force-reading offset generates incorrect stiffness and ultimate-load figures;
- Displacement drift brings errors to free-length and spring-deformation assessment.
Well-executed calibration keeps your spring load tester within permissible error tolerances, supports ISO-compliant quality documentation, and reduces reject rates for finished spring components.
Step-by-Step Calibration Procedures for Spring Tension-Compression Testing Machines
1. Test Speed Calibration for Crosshead Travel
Speed calibration verifies whether the actual moving velocity of the machine crosshead matches the set test speed, a key procedure for spring constant measurement equipment.
- Record the original starting position of the machine crosshead before initiating calibration.
- Input target speed values from the control panel; deploy a certified standard straight steel ruler to physically measure crosshead travel distance.
- Trigger machine movement while starting an electronic stopwatch for a one-minute timing cycle; hit the machine stop button immediately once the stopwatch hits 60 seconds.
- Document the measured crosshead travel value to calculate real-world rate in mm/min. Compare actual travel against readings on the standard steel ruler, work out crosshead travel deviation. The permissible error must not exceed ±1%.
2. Force-Value Calibration for Spring Load Readings
Force calibration validates the load-sensing system, the core of any spring tension-compression force gauge.
- Navigate to the tester’s main operation interface and launch the dedicated calibration program. Gently hang certified standard-weight calibration weights onto the upper fixture connecting seat.
- Initiate a test cycle, log the force value displayed by the system, and compute the deviation between displayed force and known standard weight value.
- Run multiple repeated test cycles and adopt average measured values to minimize random measurement noise. The allowable force reading error should stay within ±1%.
3. Displacement Calibration for Spring-Deformation Readouts
Displacement calibration corrects drift for spring-deflection measuring sensors:
- Execute displacement zero-reset for the equipment to clear accumulated offset.
- Enter the correction / calibration interface. If the screen shows residual moving-distance values, perform full reset to zero the displacement channel.
Product Overview: Mikrosize MST-2000 Spring Tension and Compression Tester

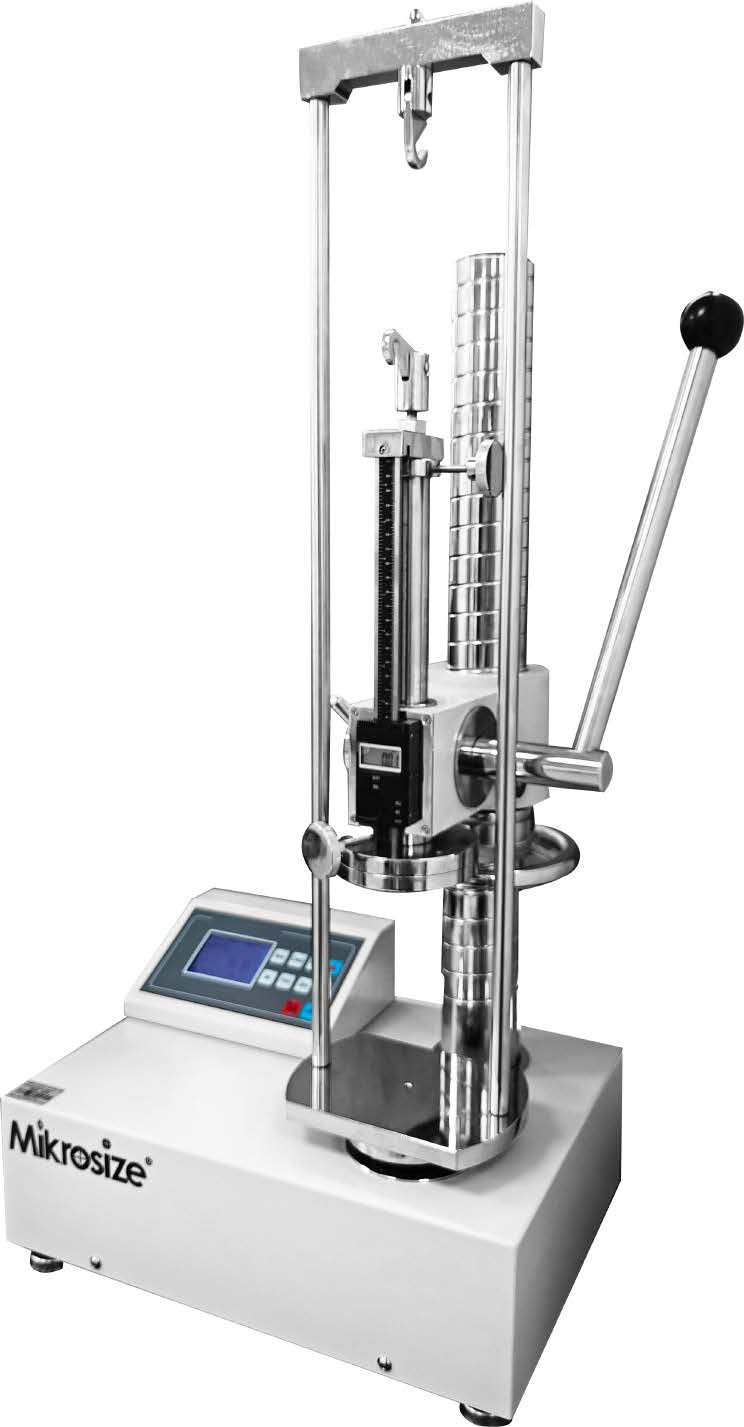

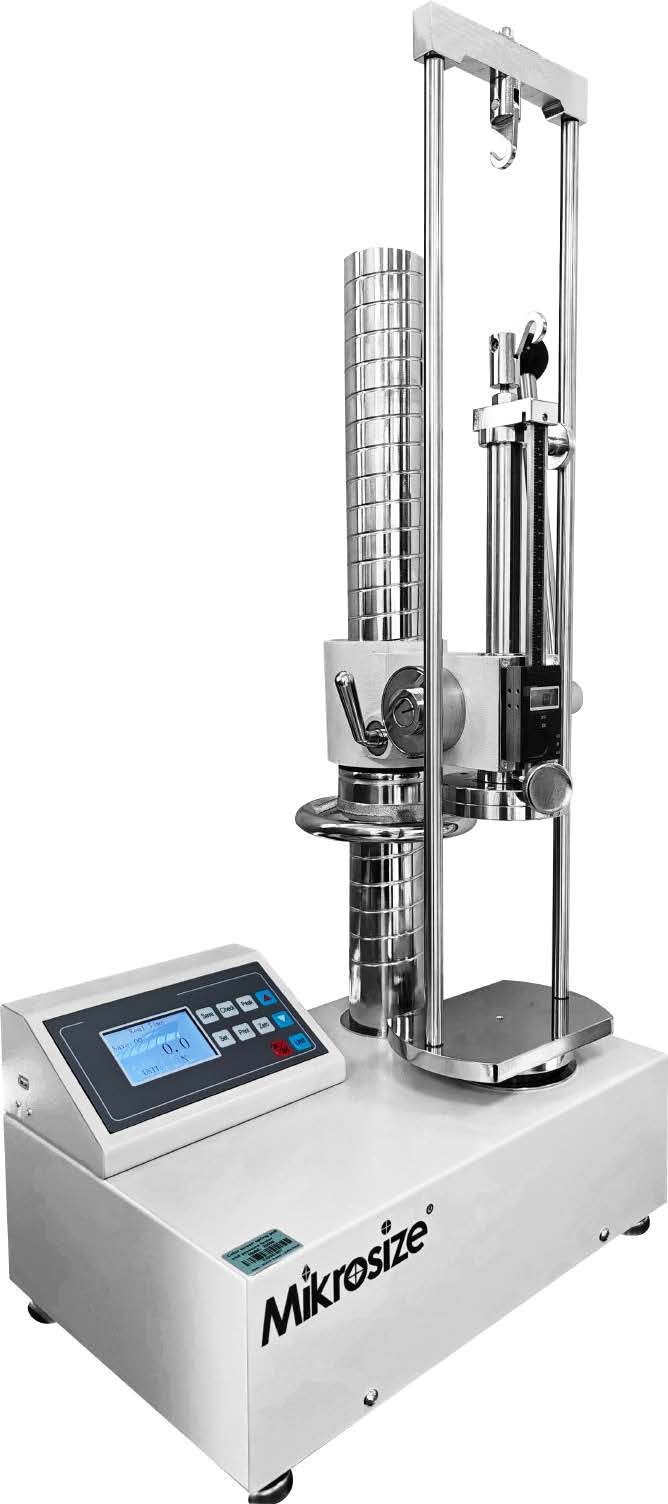

The Mikrosize MST-2000 Spring Tension and Compression Tester is a high-performance digital spring testing instrument built for shop-floor QC and laboratory spring performance validation, complying with JB/T 7796 and ISO 7500-1:2018 executive standardsISO. This robust spring pull-compression tester covers versatile real-world test scenarios, with comprehensive hardware and software capabilities:
Core Product Features
- Intuitive color-screen display with audible beep feedback for every key press operation;
- Dual-function hardware supporting both spring tension testing and spring compression testing;
- Maximum measurable spring free length reaches 200 mm, pressure plate diameter: 108 mm;
- Three practical measurement modes: Real-time measurement mode, Peak measurement mode, Auto Peak mode;
- Configurable upper-limit and lower-limit thresholds; built-in buzzer triggers audible alarm whenever test outputs go beyond preset boundaries;
- Adjustable minimum save threshold: measurement data falling below this value will not be stored to device memory;
- Customizable auto-power-off function, adjustable within a range of 1-99 minutes;
- Integrated digital scale for spring-deformation readout; dual display units: mm and inch;
- Superior precision & resolution: minimum force resolution of 0.1 N;
- Three freely-swappable force-measurement units: N, KG, Lb;
- User-configurable gravity-acceleration setting to upgrade force-conversion and measuring precision;
- On-board memory stores up to 99 groups of test datasets, supporting local review, saving, and direct deletion on the tester unit;
- On-device print capability for saved test records, outputting maximum value, minimum value, and calculated average value;
- USB PC-link interface enables synchronous PC testing; real-time force-vs-deflection curve and force-measurement logs are rendered synchronously on connected computers.
Typical Product Applications
- Assess fatigue resistance of suspension springs, measuring load attenuation caused by long-term continuous vibration;
- Validate compression stiffness and ultimate load rating for clutch springs, securing stable, smooth gear-shift performance;
- Analyze fatigue service life for engine valve springs under high-frequency vibration to mitigate unexpected component fracture hazards;
- General-purpose quality-check tasks for machinery manufacturing and industrial equipment sectors;
- Verify load accuracy of compression springs post-setting-treatment, guaranteeing precise mold-closing operation;
- Measure initial tension and ultimate tensile strength for tension springs, preventing spring detachment during industrial-equipment runtime;
- Evaluate impact-resistance characteristics for heavy-duty machinery springs including dynamic-load response testing for mine vibrating-screen springs.
Conclusion
Consistent calibration of your spring tension-compression testing machine covers three major dimensions: test-speed verification, force-value calibration, and displacement sensor reset. Adhering to standard calibration workflows keeps measurement error within permissible ±1% tolerances, eliminates misleading test results, and prevents defective spring assemblies from entering downstream production.
For manufacturers searching for reliable, standards-compliant spring force-testing hardware to carry out tension-compression spring inspection, the Mikrosize MST-2000 Spring Tension and Compression Tester combines high-resolution sensing, multi-mode measurement, flexible data management, PC curve-visualization functions, and full compliance with JB/T 7796 and ISO 7500-1:2018. Mikrosize delivers robust metrology solutions for automotive, heavy-machinery, and general manufacturing quality-control workflows, helping labs and production sites acquire accurate, repeatable spring-performance test data.
