Standard operating specifications directly determine the quality of test samples in material analysis. Proper operation of metallographic cutting machine can deliver smooth, damage-free cutting surfaces, protect the original metallographic microstructure of specimens, and extend the overall service life of the equipment. Combined with practical lab and workshop experience, this guide divides all core operating points into two major sections: pre-cut preparation and formal cutting operation & safety management, with built-in functional advantages of Mikrosize iCut-40P precision metallographic cutter naturally integrated into all operation steps.
1. Pre-Cutting Preparation Steps
Before starting the metallographic cutter, two core inspections must be completed: coolant liquid level and cut-off wheel condition. Insufficient coolant will lead to overheating of test samples and irreversible destruction of internal metallographic structures; severely worn cut-off wheels will generate rough burrs on cutting surfaces and interfere with subsequent microscopic observation. After replacing any new cut-off wheel, operators are required to conduct trial cutting with waste material to verify stable clamping and wheel assembly tightness. The Mikrosize iCut-40P metallographic precision cutting machine supports Φ2000.932mm standard cut-off wheels, with a wide adjustable rotation speed range of 500–3000r/min, which effectively reduces abnormal wheel abrasion during trial cutting.
Specimen clamping is a frequently overlooked but critical detail. Place the test piece at the center of the fixture, and fasten fixing screws with even force to prevent specimen tilting during cutting. For irregularly shaped workpieces, auxiliary fixture gaskets are required to realize stable fixation. Mikrosize iCut-40P precision metallographic cutter is equipped with multi-specification matched fixtures, with a maximum table clamping length of 425mm and maximum clamping width of 200mm, which perfectly adapts to ultra-thin small sheets and large irregular raw parts from mechanical manufacturing, medical device and architectural model industries.
Cutting parameter configuration must be adjusted according to workpiece hardness:
- Ordinary steel: set medium rotation speed, low and stable feed speed
- Soft alloys such as aluminum alloy: raise rotation speed while maintaining steady feed movement
- Oversized specimens: adopt segmented cutting instead of one-time full penetration for safer processing
Many novice operators rush to complete cutting in one pass, resulting in chipped specimen edges and repeated rework. Mikrosize iCut-40P metallographic cutting machine provides preset automatic feed speed ranging from 0.01–3mm/s and manual feed speed from 0.01–15mm/s, with 10 groups of storable custom cutting parameter modes; users can save dedicated parameter schemes for steel, aluminum alloy and large-size samples respectively to avoid repeated manual adjustment and reduce specimen edge damage risks.
2. Formal Cutting Operation & Standard Safety Protocols
Switch on the power supply first, then run the equipment idle for several seconds to listen for abnormal motor noise. Hold the operation handle stably with both hands during cutting, apply downward pressure at an even constant speed, and never push the cutting wheel violently. When hard impurity points or sand holes are visible on the workpiece, the cut-off wheel will emit sharp squeaking sounds. At this moment, slightly lift the cutting wheel to allow sufficient coolant to flush the contact area, then resume cutting after the cooling cycle finishes.
Continuous coolant spraying at the cutting contact point is mandatory during full equipment operation. Mikrosize iCut-40P precision metallographic cutter features a built-in circulating cooling system, yet operators still need to observe coolant flow coverage on the cutting zone in real time:
- Over-slippery cut-off wheel surface = excessive coolant flow
- Blue discoloration on cutting cross-section = insufficient cooling, increase coolant flow immediately
Uniform automatic cutting performance is a core advantage of the iCut-40P sample cutting equipment: its automatic cutting mode eliminates uneven manual pressure, guarantees consistent flatness on all specimen cutting surfaces, and matches the 0.1–2mm adjustable impact cutting distance to avoid local overheating from long-duration friction. The machine is fitted with a large transparent cutting protective cover with safety interlock switch; the equipment will automatically stop cutting once the protective cover is opened accidentally to prevent splashing debris injuries.

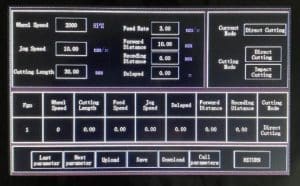

Regular cleaning and maintenance directly determine long-term equipment precision. After every cutting task, clear all metal debris and residual coolant liquid, and inspect cut-off wheels for surface cracks. The guide rails and lead screw of Mikrosize iCut-40P metallographic cutter need periodic lubrication to prevent skew cutting defects caused by mechanical jamming. Upon finishing all daily operations, cut off the main power supply and unplug the power cord as the non-negotiable safety baseline. The 5-inch integrated touch control display of iCut-40P simplifies all maintenance parameter checks and operation setup, supporting intuitive one-click parameter adjustment without complex mechanical knob operation.
3. Post-Operation Maintenance & Equipment Service Tips
Every single procedure from specimen clamping to cutting completion directly affects the final metallographic observation result. Mikrosize acts as a full-line supplier of precision metallographic cutter and supporting consumables including cut-off wheels, cooling fluid and fixture gaskets, providing one-stop technical support for the first step of all metallographic analysis workflows.
The Mikrosize iCut-40P metallographic precision cutting machine covers multi-industry sample preparation scenarios:
- Industrial machinery manufacturing: Precision cutting of flat mechanical parts, accurate control of cutting depth and angle to meet high-standard metallographic testing requirements
- Architectural model production: Stable dimension cutting to realize precise proportional model processing
- Medical device manufacturing: Delicate cutting of raw materials for surgical instruments, avoiding micro-deformation of tiny precision test specimens

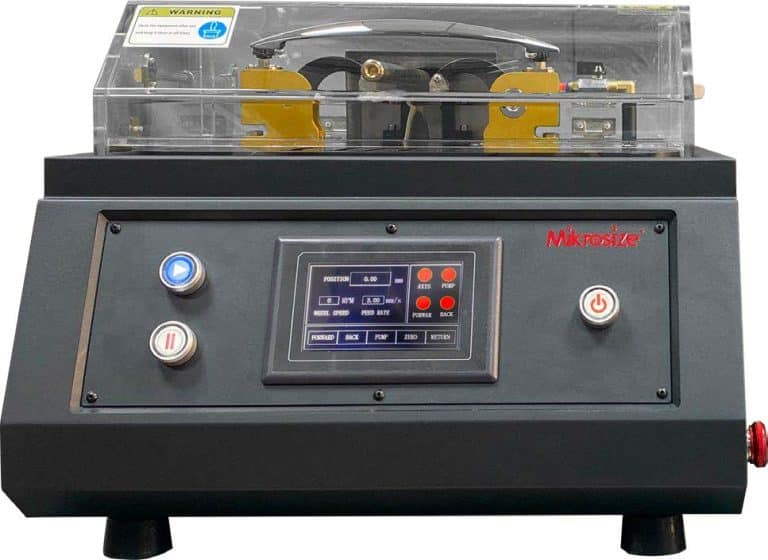

Core Parameter Reference Table of Mikrosize iCut-40P Metallographic Precision Cutting Machine
Item | Specific Specification |
Model | iCut-40P |
Full Name | Metallographic Precision Cutting Machine |
Y-axis Travel | 200mm |
Cutting Mode | Straight Line, Pulse Cutting |
Matching Cut-off Wheel | Φ2000.932mm |
Rotation Speed | 500–3000r/min, customizable |
Automatic Feed Speed | 0.01–3mm/s |
Manual Feed Speed | 0.01–15mm/s |
Impact Cutting Stroke | 0.1–2mm |
Max Cutting Thickness | 40mm |
Max Table Clamping Length | 425mm |
Max Table Clamping Width | 200mm |
Control Panel | 5-inch Touch All-in-one Display |
Preset Parameter Groups | 10 optional storage modes |
Workbench Size | 425*435mm |
Motor Power | 600W |
Power Input | Single Phase 220V |
Overall Machine Dimension | 530600410mm |
Net Weight | 85KG |
Gross Shipping Weight | 101KG |
Conclusion
All operation links of metallographic cutting machine cannot be ignored, as each clamping, parameter setting and cooling control step shapes the quality of metallographic test samples. Mikrosize iCut-40P metallographic precision cutting machine integrates high positioning accuracy, powerful cutting capacity, full-cycle automatic cooling and touch intelligent control, which standardizes manual cutting workflows and stabilizes specimen flatness consistency. It is widely applicable to metallographic sample preparation for industrial manufacturing, architectural model and medical industries, providing reliable hardware support for laboratory material microstructure analysis.
