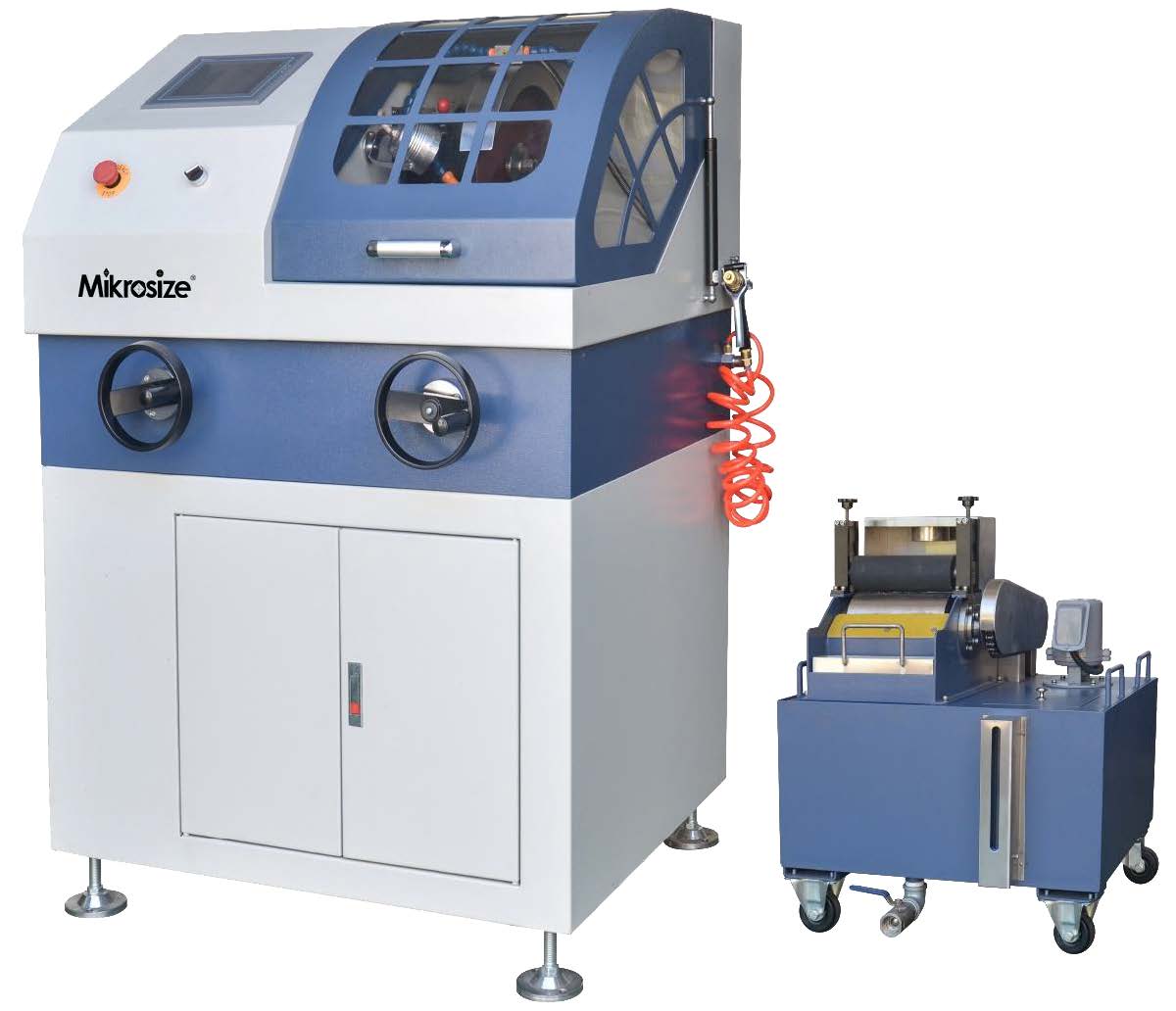

For labs performing metallographic specimen preparation, picking a robust manual-auto abrasive cut-off saw directly impacts sample integrity and downstream microscopy results. The MCut-90A is built to balance hands-on manual operation and automated precision workflows, making it a practical option for users who need flexible precision metallographic cutting for mixed-hardness materials within a 90 mm maximum cutting capacity.
Mechanical Axis Design for Flexible Lab Workflows
This dual-mode manual automatic metallographic cutter features independent axis configuration to adapt to diverse sample sizes and cutting tasks.
- The Z-axis adopts manual adjustment, which supports installation of various specifications of metallographic cut-off wheels and effectively improves abrasive wheel service-life utilization rate.
- Both Y-axis and X-axis support precise manual & automatic dual control modes, giving operators full flexibility to switch between hands-on fine-tuning and programmed automatic sectioning.
- The Y-axis intelligent automatic feed delivers adaptive feed-rate regulation: cutting speed adjusts automatically according to workpiece material hardness, preventing wheel jamming and reducing thermal damage risk during abrasive metallographic sectioning.
- The motor-driven automatic X-axis worktable enables continuous thin-slice sample cutting, ideal for batch preparation of serial specimens without repeated re-clamping.
- Built with heavy-gauge thick sheet metal frame construction, the unit guarantees stable rigidity during high-load cutting and minimizes machine vibration that may distort specimen cross-sections.
Safety & Observation Features for Day-to-Day Laboratory Use
Safety is non-negotiable for lab metallographic cutting equipment with high-speed abrasive wheels. MCut-90A integrates multi-layer safety protections:

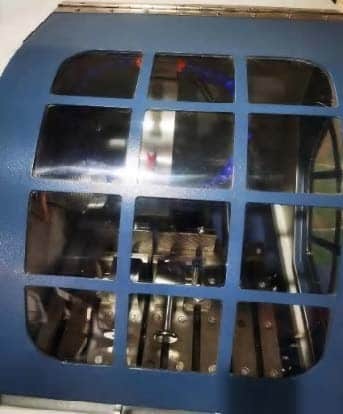

- Explosion-proof transparent viewing window plus lid-interlock safety protection stops operation once the cover opens.
- A high-power exhaust fan clears cutting mist and swarf particles, keeping the viewing window clean for real-time cutting-process monitoring.
- Adjustable LED work lamp supplies uniform illumination across the full cutting chamber for clear sample observation.
- Electromechanical separation layout isolates electric components from cutting fluid splash; this structure enhances electrical safety and simplifies routine machine maintenance.
- Gas-spring assisted cover support, travel limit switches and physical emergency-stop button form a complete safety chain for operator protection.
Clamping, Cooling & Human-Centered Operation
Poor clamping or insufficient cooling are two common causes of sample burn and unsatisfactory metallographic specimen quality. MCut-90A addresses these pain-points with well-thought-out hardware:

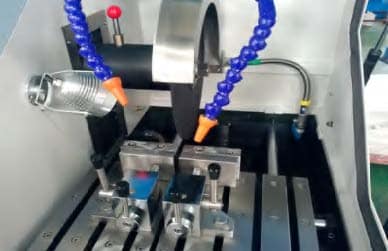

- Fitted with double-sided quick-action clamping vise and T-slot cutting table. The T-slot platform accepts custom fixtures for irregular-shape work-pieces.
- Three adjustable flexible cooling nozzles deliver targeted coolant flow to cutting zones, greatly lowering heat buildup to avoid specimen thermal burning.

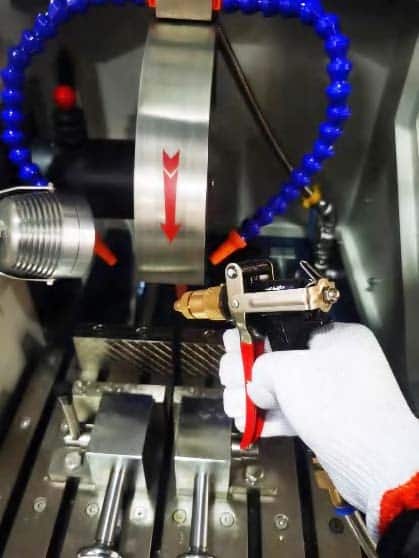

- Independent handheld cleaning water gun helps operators rinse cutting chamber and remove metal swarf after each test run.

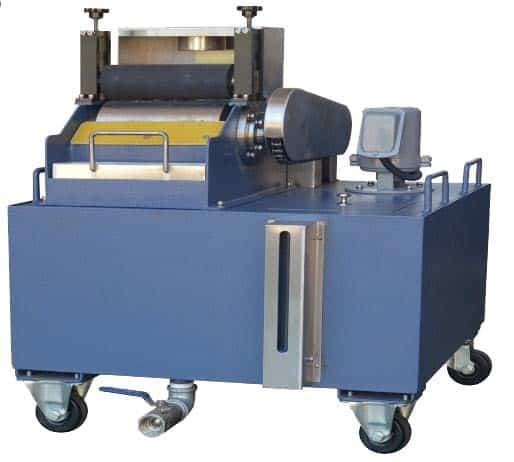

- Mobile magnetic recirculating cooling-water tank comes with efficient filtration function. It captures metal chips, extends coolant service time and further prevents sample burn during long-run abrasive cutting of metal samples.
- All cutting parameters are managed via a 10-inch high-definition color touch-screen HMI. Visualized graphic interface displays feed speed, travel distance and machine status, enabling intuitive parameter setup for new and experienced lab technicians.
Who Should Consider MCut-90A?
This 90 mm capacity manual-automatic metallographic abrasive cutter fits well for:
- Industrial QC labs for ferrous & non-ferrous metal material inspection
- University material-science teaching labs for metallographic sample preparation experiments
- Small-batch failure-analysis work that requires switching between manual fine cutting and automatic serial sectioning
If you are searching for a cost-effective dual-mode cut-off machine that delivers both manual control freedom and automatic repeatable cutting performance, MCut-90A is worth your evaluation.
