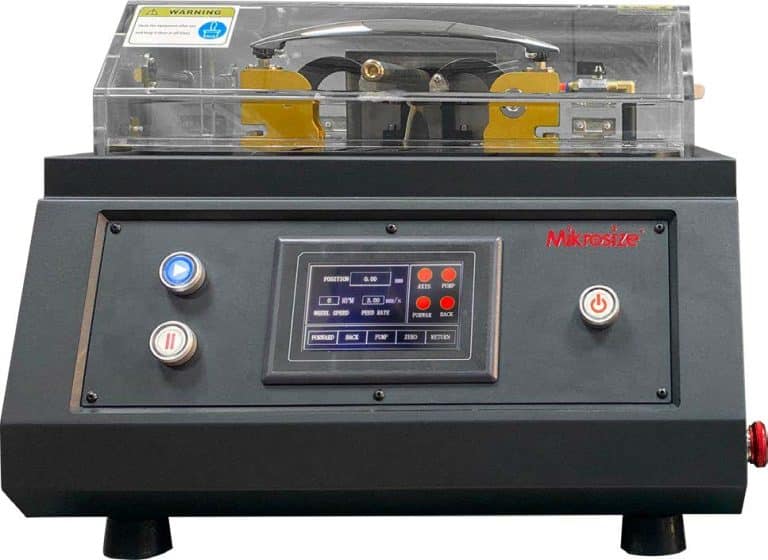

In metallographic sample preparation, cutting is the first and most critical step. The quality of the cut directly affects all subsequent processes—grinding, polishing, and microscopic analysis. The iCut-40P Metallographic Precision Cutting Machine from Mikrosize is a desktop precision cutter designed to deliver consistent, low-damage cuts for a wide range of materials. With its touch screen control, built-in cooling system, and robust safety features, this machine provides an efficient solution for industrial manufacturing, architectural modeling, and medical device production.
Key Features for Precision Cutting
The iCut-40P offers high positioning accuracy and a wide speed range, enabling precise cutting of flat materials with controlled angle and depth. Its strong cutting capacity handles various specimens, while the built-in circulating cooling system prevents thermal damage during cutting. The preset feed speed and automatic cutting function ensure uniform cutting consistency on the sample surface—a critical requirement for reproducible metallographic analysis. The large, bright cutting guard with a safety switch protects the operator and allows clear observation of the cutting process.
Intuitive Touch Screen Control
Operation is centered on a touch screen display that provides easy control and monitoring. After power-on, the system enters a catalog interface with four main sections: Working Interface, Setting Interface, Alarm Interface, and Language Switching. The Working Interface displays real-time status of the spindle, feed axis, and water pump, along with spindle speed and cutting speed. Users can drive the feed axis forward or backward, activate the pump, reset the current position, or return to the catalog.

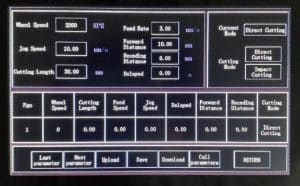

The Setting Interface allows users to configure wheel speed, jog speed, cutting length, feed rate, forward distance, receding distance, and delay time. Two cutting modes are available: Direct Cutting and Impact Cutting. Up to 10 sets of cutting parameters can be saved and recalled for later use, streamlining repetitive tasks. The Alarm Interface records alarm events with time and content, helping users troubleshoot issues such as door open or rear limit. Language switching between Chinese and English is also supported.
Safety and Clamping Systems
Safety is integral to the iCut-40P design. The transparent protective cover prevents cooling water and cutting waste from splashing while allowing observation. A closed-door detection system ensures the machine cannot start unless the cover is closed; if the cover is opened during cutting, the machine stops immediately. An emergency stop button provides additional protection.

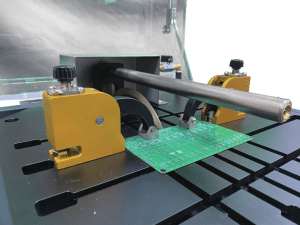

The double-sided quick clamps secure specimens rapidly and firmly. The diamond sintered cutting disc offers high hardness and wear resistance, ensuring long service life and consistent cut quality. A cooling water valve and nozzle deliver adjustable coolant flow to the cutting zone, further reducing heat buildup.
Applications Across Industries
The iCut-40P is suitable for industrial manufacturing, where it enables precise cutting of mechanical parts and flat materials to meet high-precision requirements. In the architectural model industry, it ensures accurate proportions and dimensions. In the medical industry, it supports the production of surgical instruments and equipment requiring delicate operations. The machine is also valuable in metallographic laboratories for preparing specimens for microstructure analysis, quality control, and defect detection.
With its combination of precision, automation, and safety, the iCut-40P Metallographic Precision Cutting Machine from Mikrosize delivers reliable performance for demanding sample preparation tasks.
