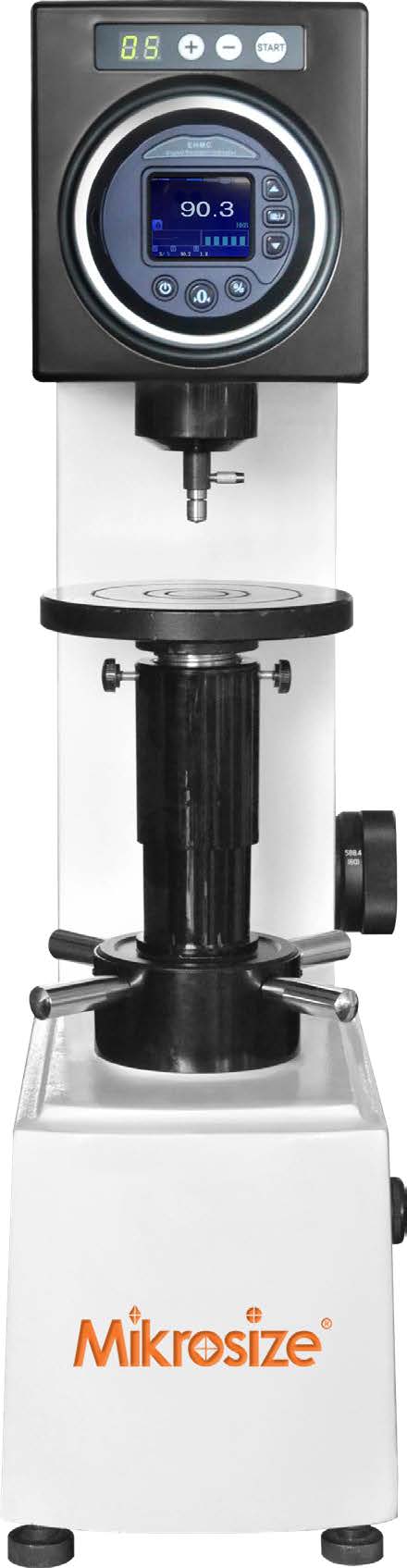

In material quality control and metallurgical analysis, the Digital Rockwell Hardness Tester plays a vital role in evaluating the hardness of metals and alloys. The MRocky-150D from Mikrosize is a high-precision instrument equipped with an EHMC digital Rockwell indicator, combining a weight-loading mechanism with automated testing for reliable, repeatable results.
Key Features and Design
The MRocky-150D adopts a weight-loading mechanism that requires only manual preloading until a beep sounds; pressing the Start button then triggers automatic loading, dwell, unloading, and hardness value display. This design ensures easy operation and intuitive reading.
The instrument features an integrated cast iron structure, providing 99% rigidity to the main body and minimising deformation. The housing undergoes natural aging treatment for more than half a year, ensuring stable physical properties. The lifting screw is heat-treated to a hardness of 35–40 HRC, offering a stable structure and high wear resistance. Weights and levers are manufactured and calibrated using classic processes, delivering high precision and fine mechanical adjustment.

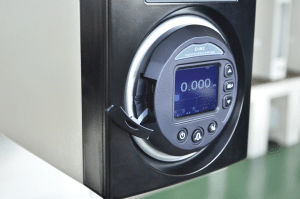

A high-precision EHMC digital Rockwell indicator supports all Rockwell hardness test scales and scale conversion in compliance with ISO, GB, and ASTM standards. The tester also supports upper and lower limit settings with an out-of-tolerance alarm, and test results are saved in real time with automatic time recording. Data can be exported via USB wireless data output.
Technical Specifications
Initial test force: 10 kgf (98.07 N)
Total test force: 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N)
Indenter: Diamond Rockwell indenter, Φ1.5875 mm ball indenter
Loading method: Automatic (loading / dwell / unloading)
Hardness reading: LCD display
Test scales: HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV
Conversion scale: ISO / GB / ASTM standards
Data statistics: 500 pcs, auto-record testing time
Data output: USB, wireless
Hardness resolution: 0.1 HR
Dwell time: 2–60 s
Max. sample height: 185 mm
Throat depth: 165 mm
Power supply: AC 220 V, 50 Hz
Execute standard: GB/T 230, ISO 6508, ASTM E18, JIS Z2245
Dimension: 520 × 215 × 700 mm
Weight: 78 kg
Applications
The MRocky-150D is suitable for hardness testing of quenched, tempered, and annealed materials, hard castings, malleable castings, hard alloy steels, aluminium alloys, copper alloys, and bearing steels. Its accurate scale conversion and tolerance alarm make it ideal for production quality control and incoming material inspection.
Standards Compliance
The instrument complies with major international standards, including GB/T 230, ISO 6508, ASTM E18, and JIS Z2245, ensuring global recognition of test results.
With its robust construction, automated testing cycle, and comprehensive data management, the Mikrosize MRocky-150D Digital Rockwell Hardness Tester delivers dependable performance for laboratories and manufacturing environments.
