1. Introduction: Why Precision Prep Matters
In metallurgy, failure analysis, and materials science, flawless specimen preparation is the foundation of accurate microstructural analysis and hardness testing.

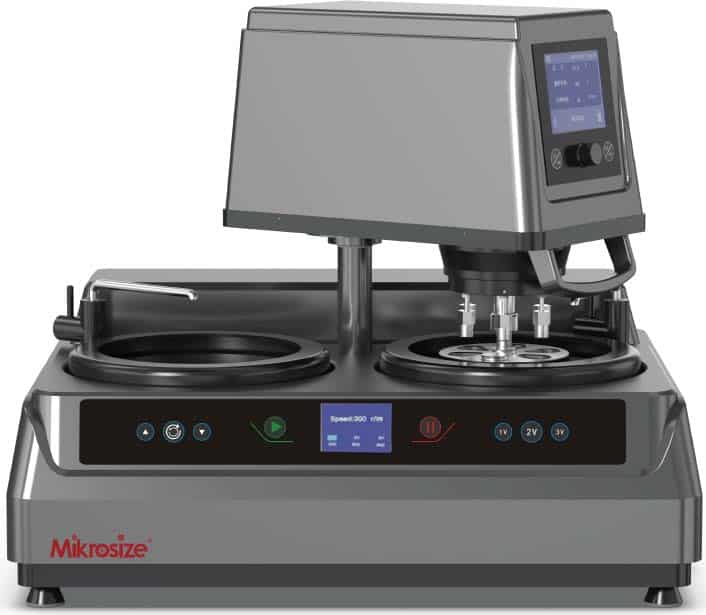

The Mikrosize iPoli-SC-250A Automatic Metallographic Grinding and Polishing Machine is a heavy-duty, desktop platform engineered for laboratories in enterprises, research institutes, and universities. It bridges high-throughput automation with ultra-precise pressure control to deliver deformation-free, mirror-like sample surfaces.
2.Key Product Highlights & Engineering Advantages
| Feature Category | Core Specification / Technology | Key Benefit to Your Lab |
| System Configuration | Single / Dual Disc Desktop Design | Flexible space-saving layout for sequential grinding and polishing. |
| Pressure Control | Electronic Proportional Valve (Stepless) | Direct, smooth pressure adjustment without fixed steps for delicate samples. |
| Specimen Clamping | Pneumatic Central & Single-Force Multi-Clamp | Batch processing versatility for multiple samples simultaneously. |
| Build & Durability | Casting Aluminum Base + FRP Shell | Low noise, high rotation stability, and superior anti-rust/anti-corrosion life. |
| Process Protection | Integrated Water Cooling System | Prevents thermal damage to microstructure and flushes abrasive debris away. |
3.Full-Process Automated Workflow
The iPoli-SC-250A handles the entire metallographic sample preparation chain on a single integrated station:
Step 1: Rapid Abrasive Surface Preparation
- Quick-Change Media: Fast swapping between grinding discs and sandpapers.
- Smart Speed & Direction: Advanced microprocessor control allows adjustable grinding speeds and selectable disc rotation directions for optimal stock removal.
Step 2: High-Precision Surface Refinement
- Pneumatic Precision Loading: The pneumatic force system applies consistent, uniform pressure across all clamped specimens, preventing edge rounding.
- Thermal Protection: Continuous water cooling maintains sample structural integrity during fine polishing with specialized cloths.
4. Key Industry Applications
The Mikrosize iPoli-SC-250A is engineered for high-demand quality control and R&D workflows:
- Aerospace & Automotive: Cross-sectional inspection of heat-treated alloy parts, welds, and engine components.
- Metallurgy & Foundries: Grain size determination, non-metallic inclusion analysis, and phase identification.
- Failure Analysis Labs: Rapid, distortion-free preparation of brittle or multi-material composite cross-sections.
- Micro-Hardness Testing: Producing pristine, scratch-free surfaces required for accurate Vickers/Knoop indentations.
5.Frequently Asked Questions
Q1: How does the electronic proportional valve improve sample quality?
A1: Unlike traditional manual or stepped mechanical loading, the electronic proportional valve allows stepless, digital adjustment of grinding pressure, ensuring exact force application without shocking or deforming sensitive materials.
Q2: Is the iPoli-SC-250A easy to clean and maintain in a corrosive chemical environment?
A2: Yes. It is constructed with a Fiberglass Reinforced Plastic (FRP) protective shell and stainless steel standard parts, providing exceptional resistance to water, rust, and acidic polishing suspensions.
Q3: Can this machine handle both batch samples and individual single samples?
A3: Absolutely. Equipped with a pneumatic central and single-force multi-sample clamp, it allows operators to process a full batch of samples or focus on individual specimens with equal precision.
6.Conclusion
The Mikrosize iPoli-SC-250A Metallographic Grinding and Polishing Machine turns complex sample preparation into a repeatable, automated science. By replacing manual guesswork with precision pneumatic controls, it guarantees higher lab productivity and consistent specimen quality.
