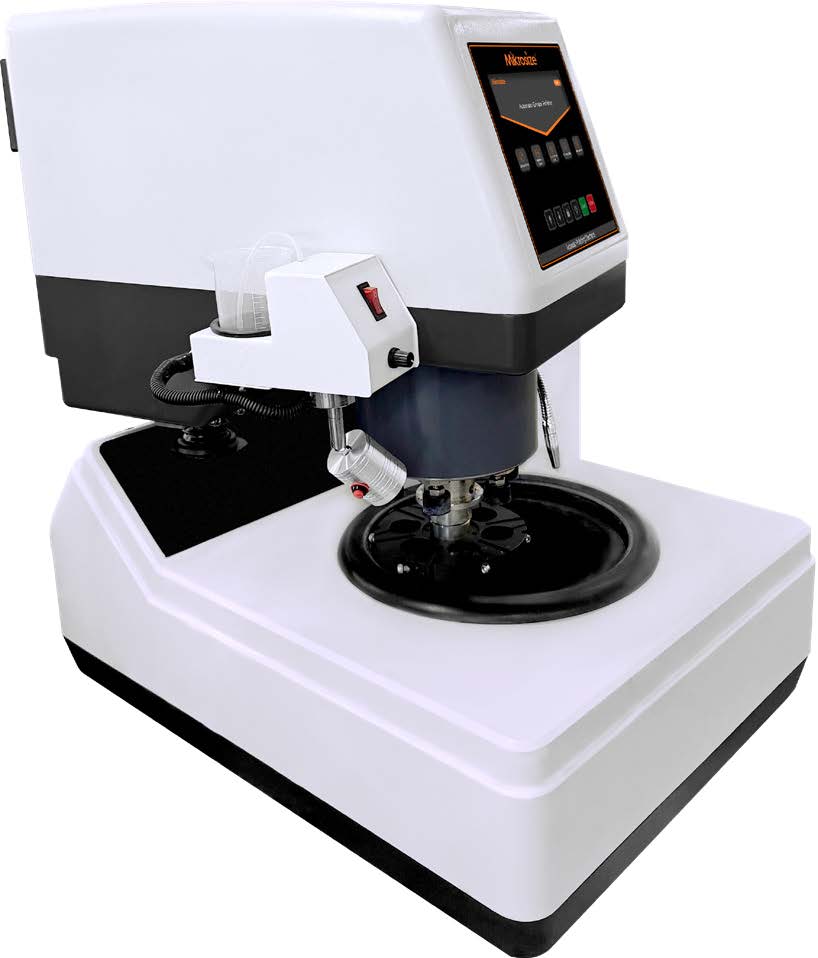

Auto Poli-250 Touch Screen Single-Plate Automatic Grinding Polishing Machine

Scan QR

×

Scan QR Code

https://mikrosize.com/product/auto-poli-250-touch-screen-single-plate-automatic-grinding-polishing-machine/

Product Features:

• Equipped with 7-inch high-definition color touch screen for intuitive parameter display.
• Physical buttons for frequent operations to facilitate manipulation.
• Servo motor driven design featuring low noise, high energy efficiency and stable operation.
• All-in-one equipment for coarse grinding, fine grinding, rough polishing and final polishing of test specimens.

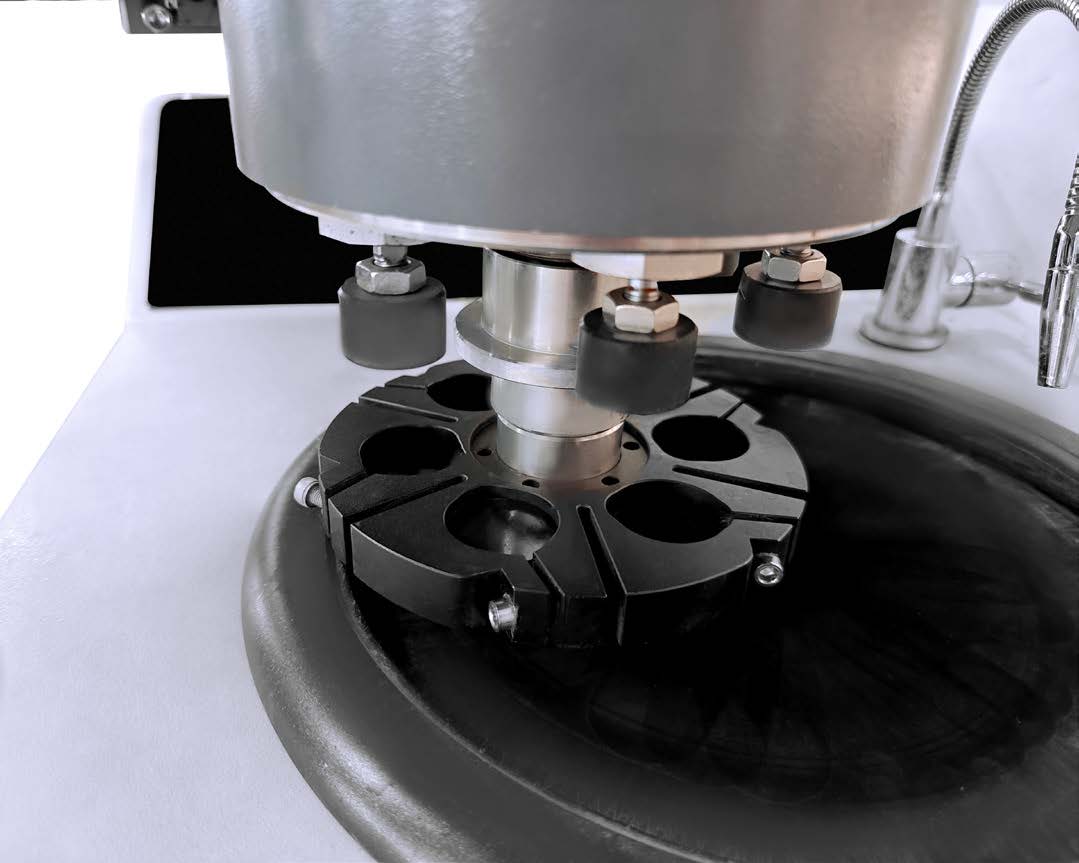

• Two compression loading modes: single-force pneumatic loading & central force loading.
• Standard platen dimension: 254 mm; optional size: 304 mm.
• Magnetic platen design enabling rapid abrasive disc replacement.
• The grinding platen undergoes grinding and surface treatment to ensure a perfectly planar specimen surface.
• Electromagnetic locking for grinding head with manual/automatic dual locking, safe and convenient.
• Supports fully automatic grinding or independent manual operation of the polishing platen.
• Soft start-stop control with progressive load rise/fall to avoid specimen damage.
• Equipped with a precise quantitative grinding function.
• User-defined storage for 20 sets of custom grinding & polishing process recipes.

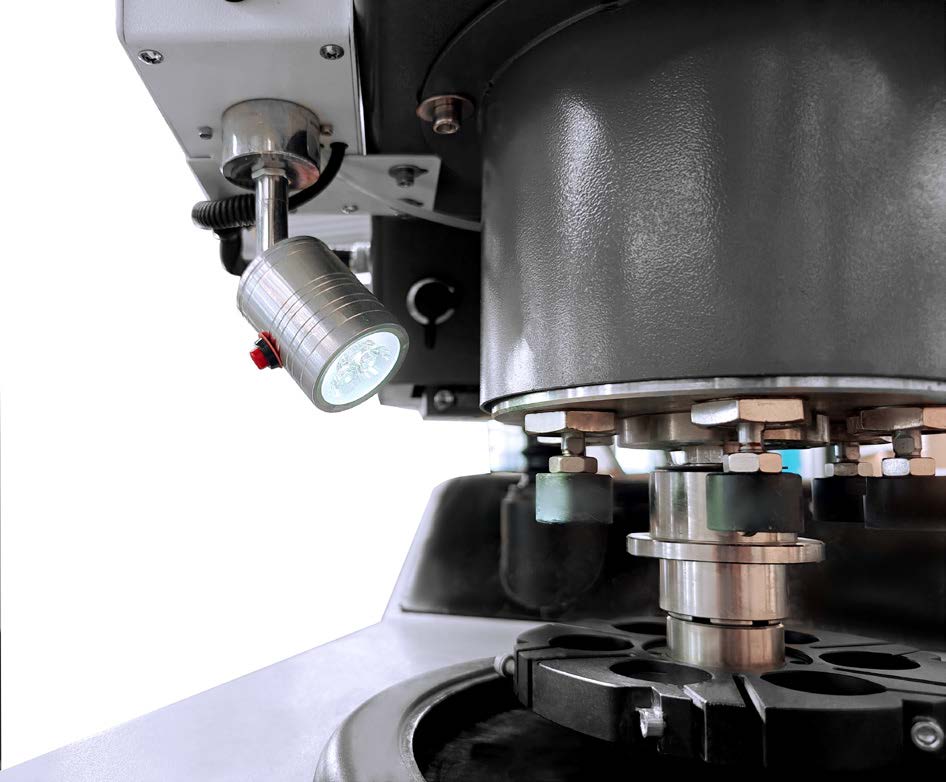

• Adjustable-angle LED illumination for real-time specimen observation.

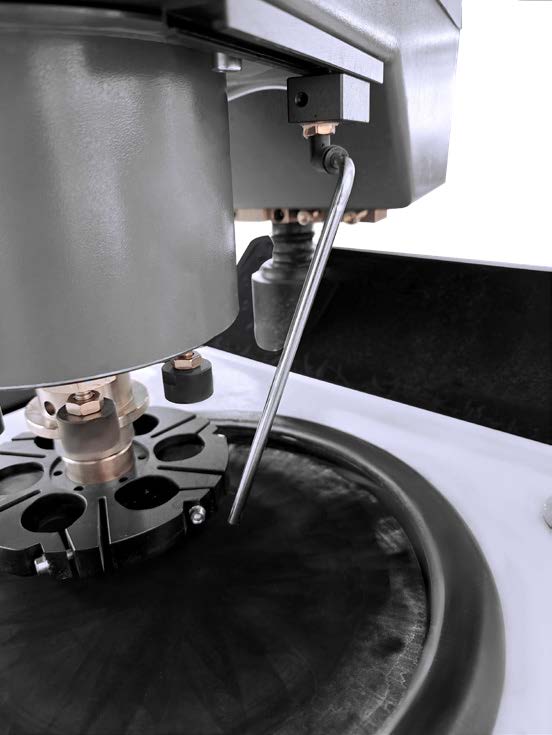

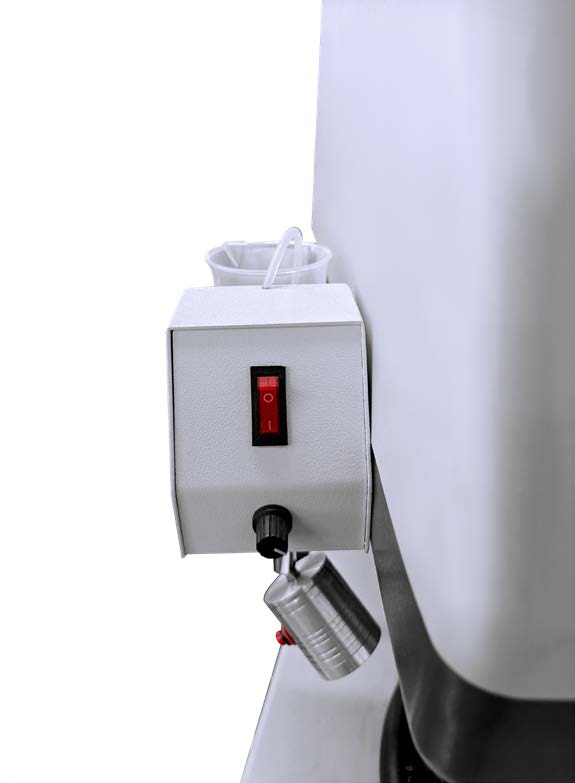

• Optional automatic dispensing system with 4~6 different abrasive grain size fluid.
• Compliant with standards: ASTM E3; ISO/TR 20580; ISO 6507.

Product Applications:

• Metallographic analysis & component failure analysis testing.
• Semiconductor industry: wafer thinning & surface polishing.
• Mold machining & surface process optimization.
• Precision surface treatment for mechanical metal components.
