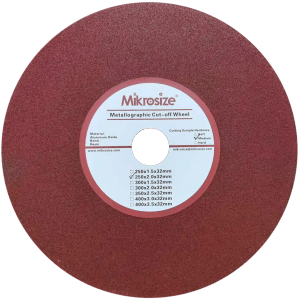

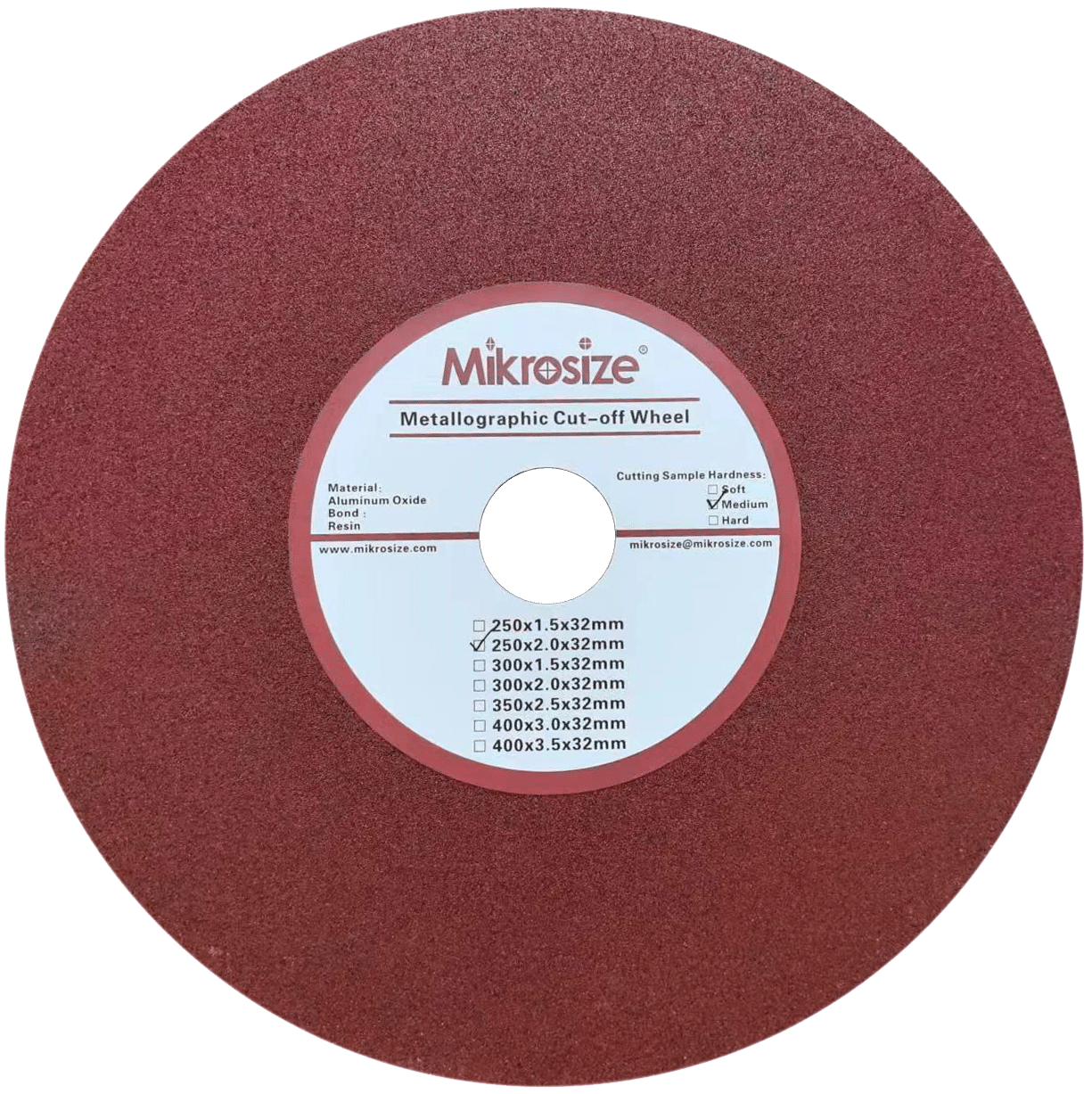

AO60 Aluminum Oxide Cut Off Wheels

Application: For cutting extremely hard ferrous metals(HRC>50), like special ductile cast iron, bearing steel, alloy structural steel, high-speed steel, high vanadium high-speed steel, stainless steel, alloy steel, carbon steel, and high hardness easy sintering workpiece.

AO50 Aluminum Oxide Cut Off Wheels

Application: For cutting Medium hard ferrous metals(HRC 38~50), like ductile cast iron, malleable cast iron, high phosphorus cast iron, alloy cast iron, bronze and unhardened steel, etc.

AO30 Aluminum Oxide Cut Off Wheels

Application: For cutting soft ferrous metals(HRC<38), like soft metal parts copper, aluminum and alloy.

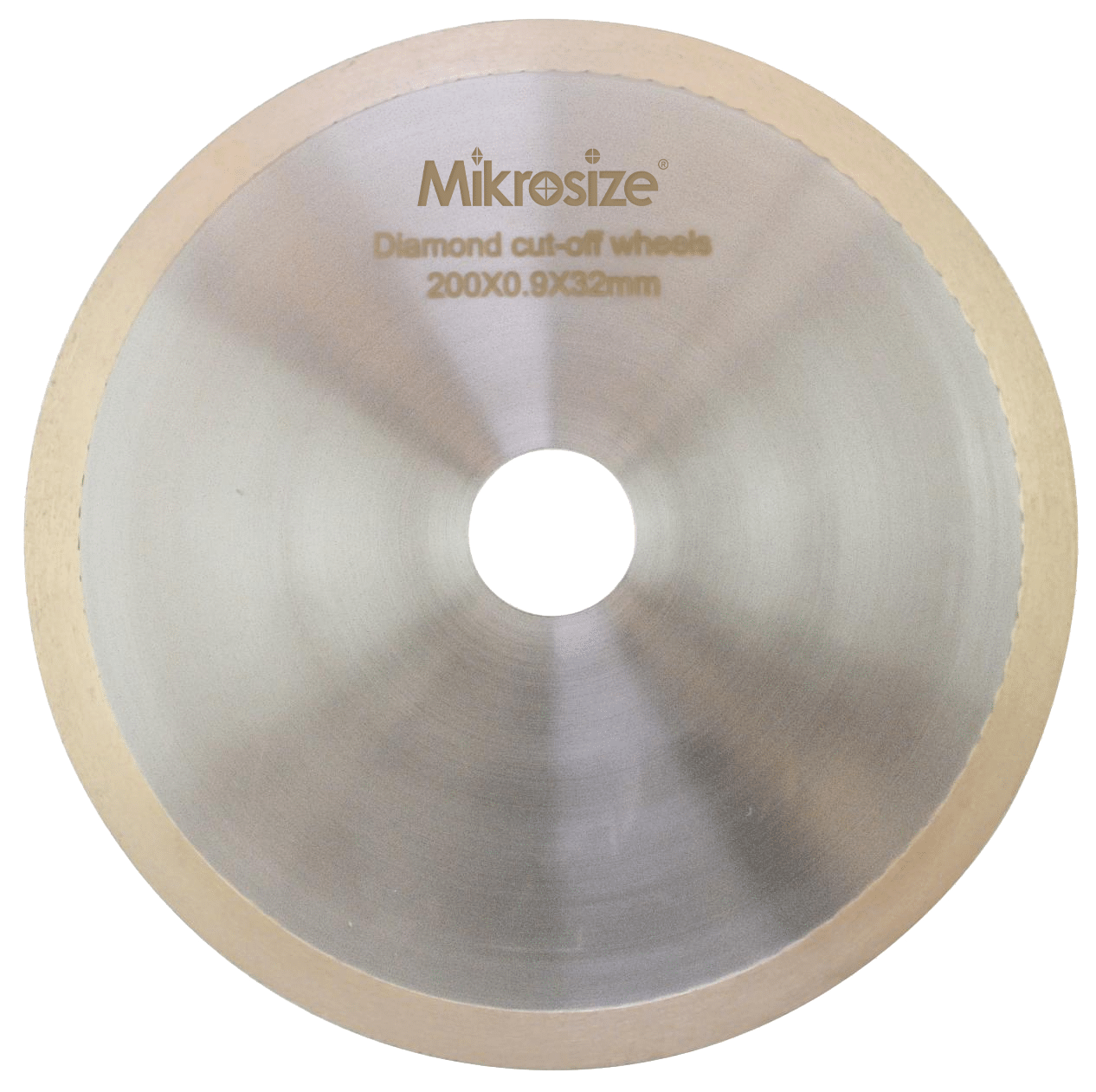

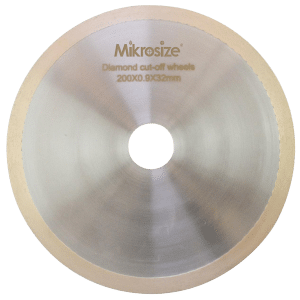

DM Diamond Wafering

Application: For very hard or brittle materials, glass ceramics, stone. This series of cutting precision is relatively high, diamond cutting blades can cut ultra-hard materials such as cemented carbide, ceramics and so on.
Features: The saw blade is made of edge sintering technology, with high accuracy and long blade life.

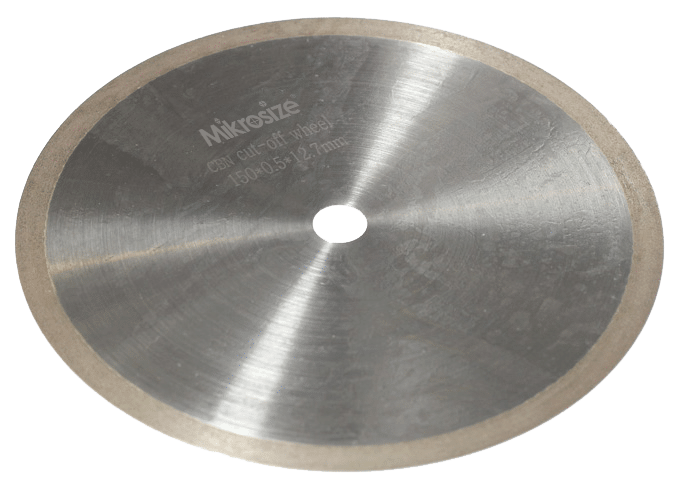

CBN Wafering Blades

Application: Used for cutting samples of extremely hard metals and hard alloys, non-metallic minerals, glass, ceramics, brittle and brittle materials, etc.
Features: The saw blade is made of edge sintering technology, with high accuracy and long blade life.

Choosing the right cut off wheels can ensure the quality of sampling reduce time and cost, find the sample of the Y-axis, and choose the Wheels. When the hardness value is unknown, you can select the cutting blade according to the material description on the left in the table below.
