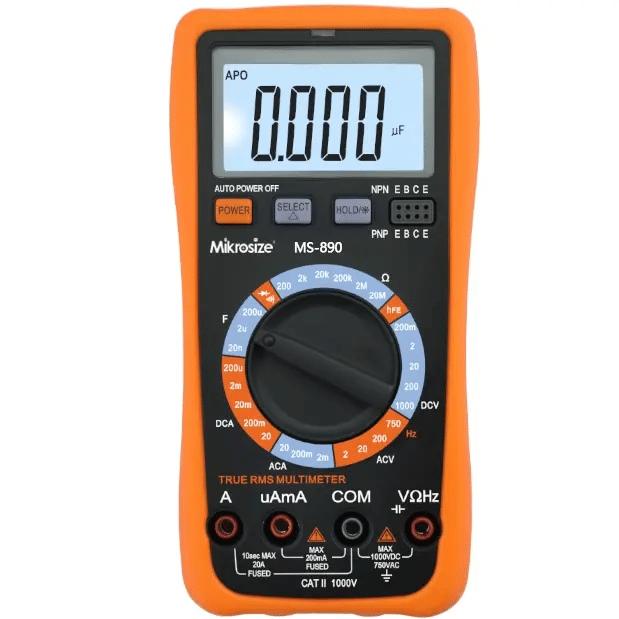

MS-890 2000 counts manual range digital multimeter
Scan QR
Scan QR
Product Features & Applications
Product Features：
Data hold, backlight display.
Full functions protection.
Auto power off when there is no measurement in 15 minutes.
Strong anti-magnetic and anti-interferential performance.
Unit symbol display, easy to read.
Large LCD display makes reading clear.
New type holster, streamlined design, comfortable handle.
Technical Specifications
| Basic Function | Range | Accuracy |
| DCV | 200mV/2V/20V/200V/1000V | ± (0.5%+4) |
| ACV | 2V/20V/200V/750V | ± (0.8%+5) |
| DCA | 200uA/2mA/20mA/200mA /20A | ± (1.0%+5) |
| ACA | 20mA/200mA /20A | ± (1.5%+5) |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ± (0.8%+1) |
| Capacitance | 20nF/2uF/200uF | ± (3.5%+8) |
| Frequency | 200kHz | ± (0.5%+4) |
| T-RMS Test | √ |
| Diode/hFE Test | √ |
| Continuity Alarm | Less than 50Ω |
| Low Battery Indication | Approx less than 2.4 V |
| Backlight Display | √ |
| Data Hold | √ |
| Auto Power Off | Approx . 15 minutes |
| Function Protection | √ |
| Input Impedance | 10MΩ |
| Sampling Rate | 3 times/second |
| AC Frequency Response | 40-400Hz |
| Operation Method | Manual range |
| Max Display | 1999 |
| LCD Size | 54x30mm |
| Battery | 3V (1.5V AAA×2) |
| Power Consumption | Quiescent current approx.2mA |
| Meter Weight | 290g(including battery) |
| Meter Size |
170×86×35mm |
Standard Configuration
|
Items |
||
|
Standard Configurations |
Test leads |
|
|
Battery |
||
|
Manual |
||
|
Packaging Information |
Standard Packing |
Gift box |
|
Standard Qty Per Carton |
40pcs |
|
|
Carton Size |
38.5*30.5*46.5CM |
|
|
G.W. Per Carton |
17.6KG |
|
