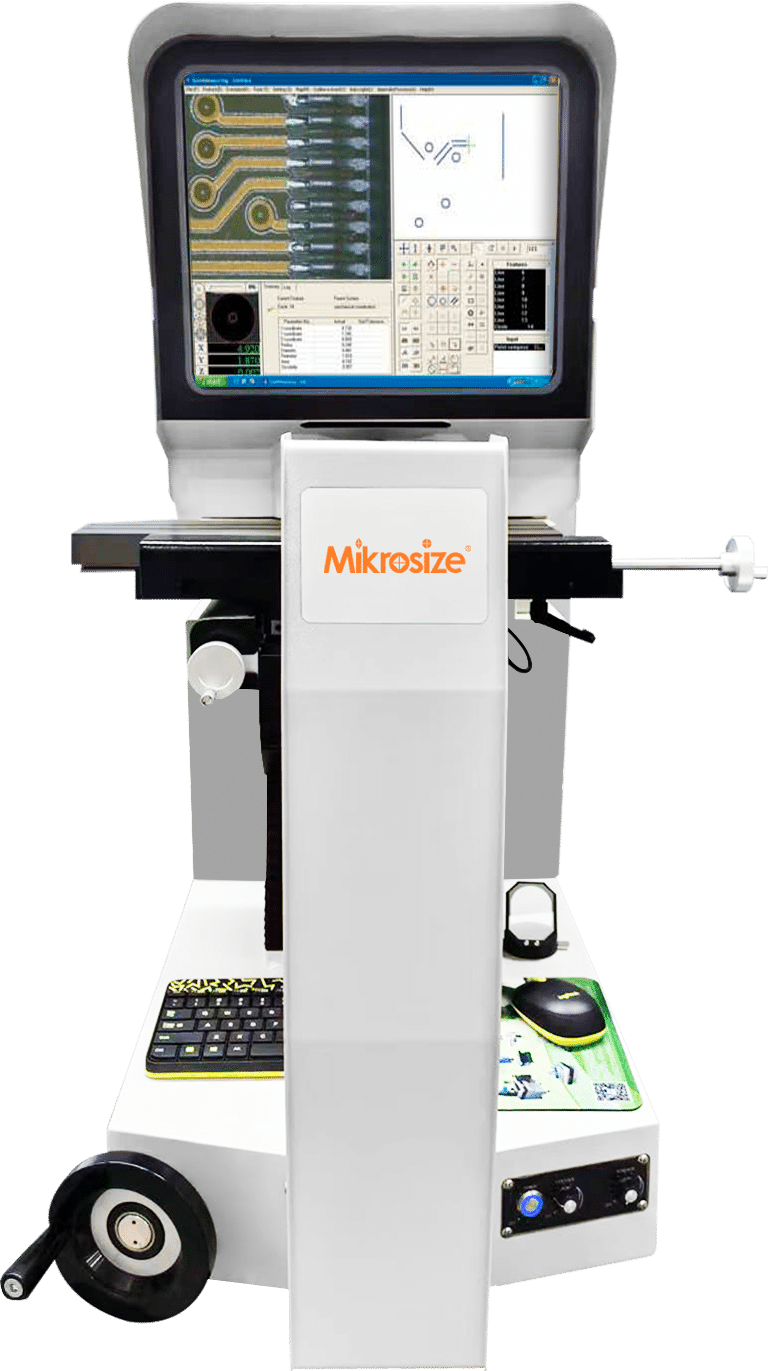

HVP-3015 Horizontal Video Projector
Scan QR
Product Features & Applications
Product Feature：
- Solid framework,large lcd touch screen and advanced software.
- High quality optics for crisp and clear images.
- Excellent repeatibilty.
- Adjustable led illumination.
- High resolution industrial ccd camera.
- Lens changeable within the range of 20-120x magnification.
- Easy to operate user interface.
- Accuracy 0.005mm.
- Advanced functionallity such as quick measuring of correlative.
- Parameters of gear tapers.
- Extended function of priniting,saving and exporting data.
- Excel or txt report output,dxf input or output.
Product Application：
- Video measuring machines,measuring microscopes and other vision measuring systems,etc.
Technical Specifications
|
Technical Specification |
HMV-3015 |
HMV-3020 |
|
(XY/Z)Measuring range(mm) |
300x150x150 |
300x125×200 |
|
Machine dimension(mm) |
650x800x1600 |
|
|
Operation mode |
Manual |
|
|
Magnification |
20-120X |
|
|
Screen dimension |
19"monitor(HV)or 19"touch-type LED monitor (HTV) |
|
|
Lens work range |
95mm |
|
|
X,Y-axis resolution |
1um |
|
|
Accuracy |
≤(3+L/200)um |
|
|
Repeatability |
5um |
|
|
Measuring software |
Quick Measuring 2.0 |
|
|
Color CCD Camera |
430,000pixel |
|
|
Suitable environment |
Workshop and Metrology room |
|
|
Stage load capacity |
15Kg |
|
Standard Configuration
|
Name |
Qty |
|
Measuring Software |
1 set |
|
Color CCD Camera (MC1 (430,000 Pixels)) |
1 pc |
|
Zoom Lens General Zoom Lens (0.7~4.5x) |
1 pc |
|
Vision Capture Card 7130 (VC1) |
1 pc |
|
Basic Adjustable LED Light Source |
1 pc |
Optional Configuration
|
Accessory Category |
Model/Specification |
|
Camera Upgrade |
MC2 (480TVL, 0.1Lux/F1.2) |
|
MC3 (480TVL, S/N Ratio 57dB) |
|
|
Zoom Lens Upgrade |
Navitar Click Zoom Lens (0.7~4.5x) |
|
Coaxial Zoom Lens (0.7~4.5x) |
|
|
Motorized Zoom Lens (0.7~4.5x) |
|
|
Lens Accessories |
0.5x Adjustable Objective |
|
2x Adjustable Objective |
|
|
0.5x CCD Adapter |
|
|
2x CCD Adapter |
|
|
Ultrazoom Objective (5x/10x/20x/50x) |
|
|
Light Source Upgrade |
4-Division LED Light Source |
|
40-Division LED Light Source |
|
|
Point Fiber Light Source |
|
|
Mechanical Accessory |
Working Cupboard ST04 |
|
Precision Accessory |
Renishaw MCP Touch Probe (K1/K2, 1-2mm) |
