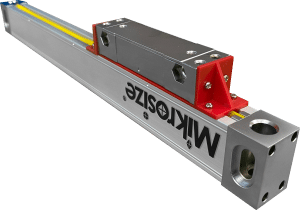

Linear Scale
Scan QR
×
Scan QR Code
https://mikrosize.com/product/linear-scale/

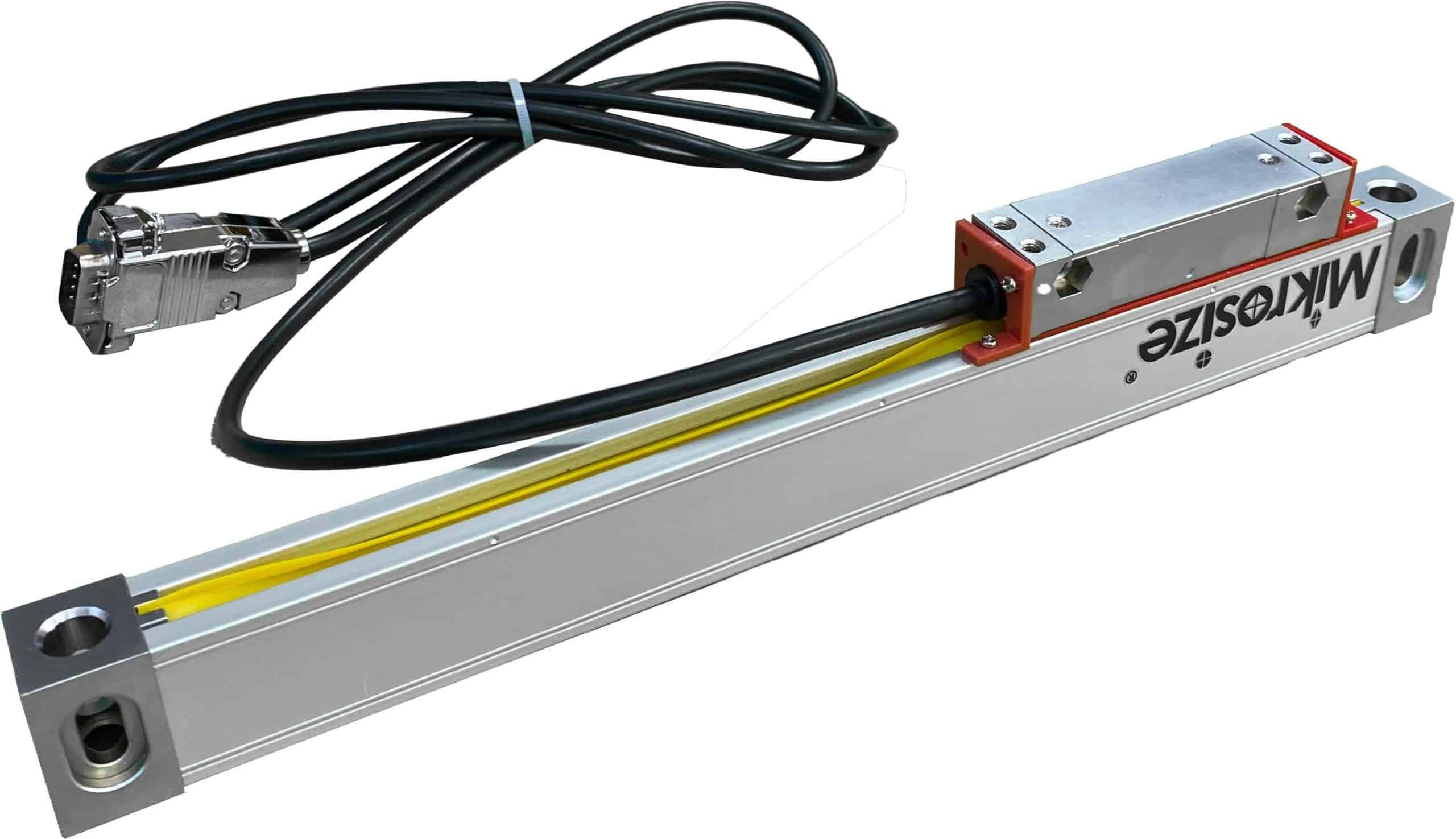

Linear Scale图1 scaled

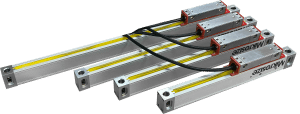

Linear Scale图2

Linear Scale图1 scaled

Linear Scale图1 scaled

Linear Scale图2

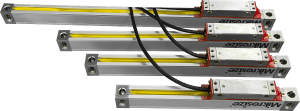

Technical Specifications

Model	MLS-400 MLS-600		MLS-1000		MLS-3100
Optional Grating Pitch	20um(0.020mm),10um(0.010mm)
Optional Grating Measurement System	Transmission infrared optical measurement system; infrared wave length:880nm;
Numerical Reading Head Rolling System	Vertical five bearing roller system				45°five bearing roller system
Resolution	1um	5um	1um	5um	1um	5um
Effective Range	50~600mm 50~400mm(MLS-400)		50~1000mm		50~3100mm
Repeatability Accuracy	±1um	±5um	±1um	±5um	±1um	±5um
Maximum Working Speed	20m/min(1um);60m/min(5um)
Output Signal	TTL;RS422;~1VPP
Power Supply	5V±5%DC
Environment	Temperature:-10~45°C;Humidity≤90%

Milling machines, drilling machines, lathes, grinders, CNC machines, injection molding machines, machining centers, electrical discharge machining machines

MLS-400

Model	Resolution	Effective range	Maximum working speed	Accuracy
Model	Resolution	Effective range	Maximum working speed	Standard	High-Precision
MLS-4001	1um	50~400mm	20m/min	±5um	±3um
MLS-4005	5um	50~400mm	60m/min	±5um	±3um

MLS-600

Model	Reso- lution	Effective range	Maximum working speed	Accuracy
				50~500mm		510~600mm
				Standard	High-Precision	Standard	High-Precision
MLS-6001	1um	50~600mm	20m/min	±5um	±3um	±8um	±5um
MLS-6002	2um	50~600mm	60m/min	±5um	±3um	±8um	±5um
MLS-6001	0.5um	50~600mm	10m/min	±5um	±3um	±8um	±5um
MLS-60002	0.2um	50~600mm	10m/min	±5um	±3um	±8um	±5um
MLS-60001	0.1um	50~600mm	10m/min	±5um	±3um	±8um	±5um

MLS-1000

Model	Reso- lution	Effective range	Maximum working speed	Accuracy
				50~500mm		510~1000mm
				Standard	High-Precision	Standard	High-Precision
MLS-10001	1um	50~1000mm	20m/min	±5um	±3um	±8um	±5um
MLS-10002	2um	50~1000mm	60m/min	±5um	±3um	±8um	±5um
MLS-100005	0.5um	50~1000mm	10m/min	±5um	±3um	±8um	±5um
MLS-100002	0.2um	50~1000mm	10m/min	±5um	±3um	±8um	±5um
MLS-100001	0.1um	50~1000mm	10m/min	±5um	±3um	±8um	±5um

MLS-3100

Model	Reso- lution	Effective range	Maximum working speed	Accuracy
				50~500mm		510~1000mm		1010~2000mm		510~1000mm
				Standard	High Precision	Standard	High- Precision	Standard	High- Precision	Standard	High- Precision
MLS-31001	1um	50~3100mm	20m/min	±5um	±3um	±8um	±5um	±30um	±20um	±50um±	34um
MLS-31005	5um	50~3100mm	60m/min	±5um	±3um	±8um	±5um	±30um	±20um	±50um±	34um
