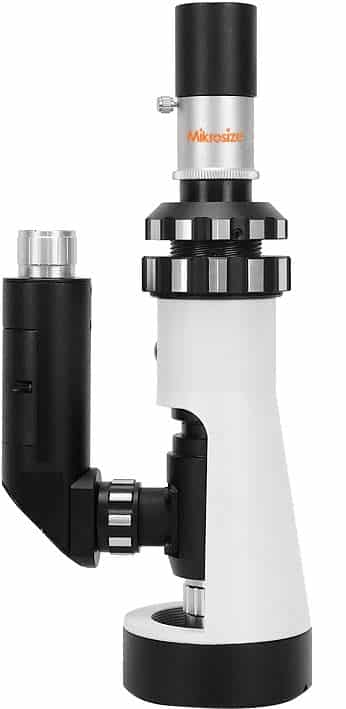

iMetal-100/400 Portable Metallographic Microscope
Scan QR
Scan QR
Imetal 100 400 portable metallographic microscope（1）
Imetal 100 400 portable metallographic microscope（2）
Imetal 100 400 portable metallographic microscope（3）
Imetal 100 400 portable metallographic microscope（4）
Imetal 100 400 portable metallographic microscope（5）
Imetal 100 400 portable metallographic microscope（6）
Video Demonstration
Product Features & Applications
Product Feature：
- With built-in vertical lighting source, coaxial LED lighting, adjustable brightness, can work continuously for 48 hours.
- Magnetic two-dimensional moving and self-rotating 360° workbench, convenient for on-site sampling.
- It can be used with camera and metallographic analysis software.
- With coarse and fine focusing hand wheel, more precise focusing.
- Light weight, easy to carry and use.
Product Application：
- Used for casting quality appraisal, raw material inspection, research and analysis of metallographic structure after material processing, etc.
- Observe antique gemstones and their surfaces in detail.
- After selecting a digital camera system, computer and metallographic analysis software, the computer can process, edit, save and output images.
Technical Specifications

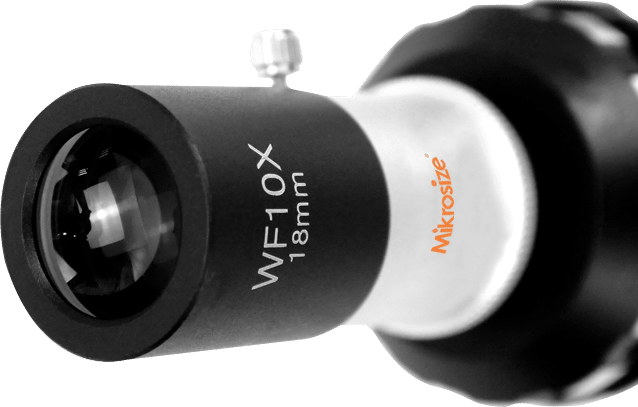

| Eyepiece | Plan Eyepiece 10X Φ18mm |
| Objective | Achromatic objective 10X NA0.25 WD7.3mm |
| Metallographic objective 40X NA0.65 WD0.5mm | |
| Magnification | 100X、400X |
| Focusing Range | Coarse handwheel focusing range：23mm
Fine handwheel focusing range：1.5mm |
| Machine Dimension | 320*240*110mm |
| Packing Dimension | 380*300*150mm |
| Net Weight | 3kg |
| Gross Weight | 4.5kg |
| Light Source | LED coaxial light source |
| Voltage | 220V 50/60Hz |
| Packing Box | Aluminium box |
Standard Configuration
| Name | Quity | Photo |

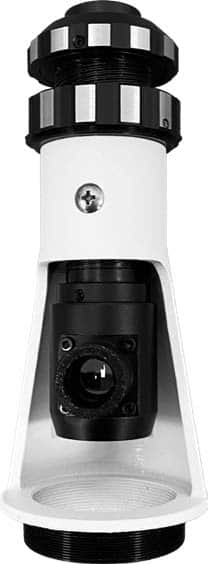

| Machine Mainframe | 1 set |  |

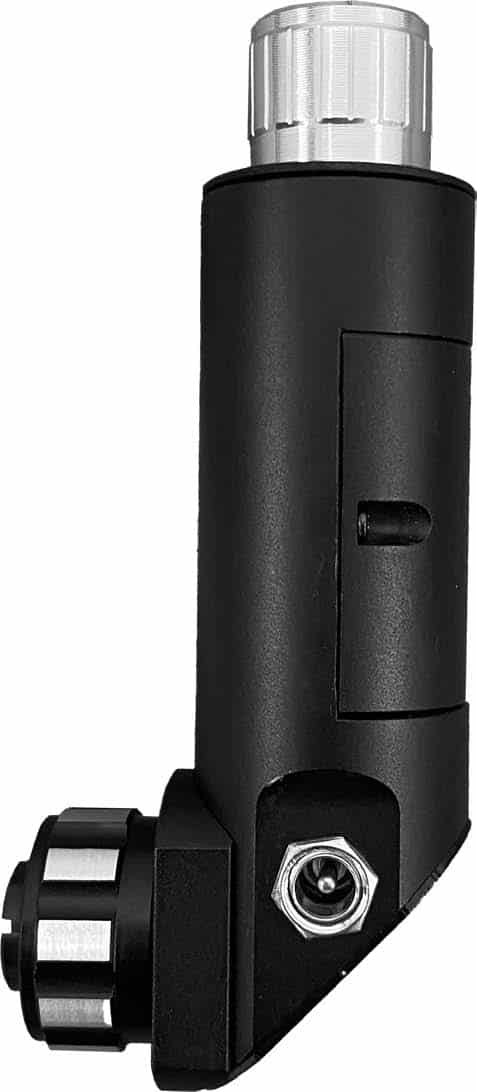

| LED Coaxial Light Sources | 1 pc |  |
| 10X, 40X Objective | Each 1 pc |   |
| 10X Eyepiece | 1 pc |  |
| Charger | 1 pc |  |
| Aluminum Packaging Box | 1 pc |  |
Optional Configuration
| CCD Camera | MS-C100 |
| CCD Adapter | MS-CCD |
| Branded Computer | Dell |
| Metallographic Analysis Software | MS-MGP-AS |
