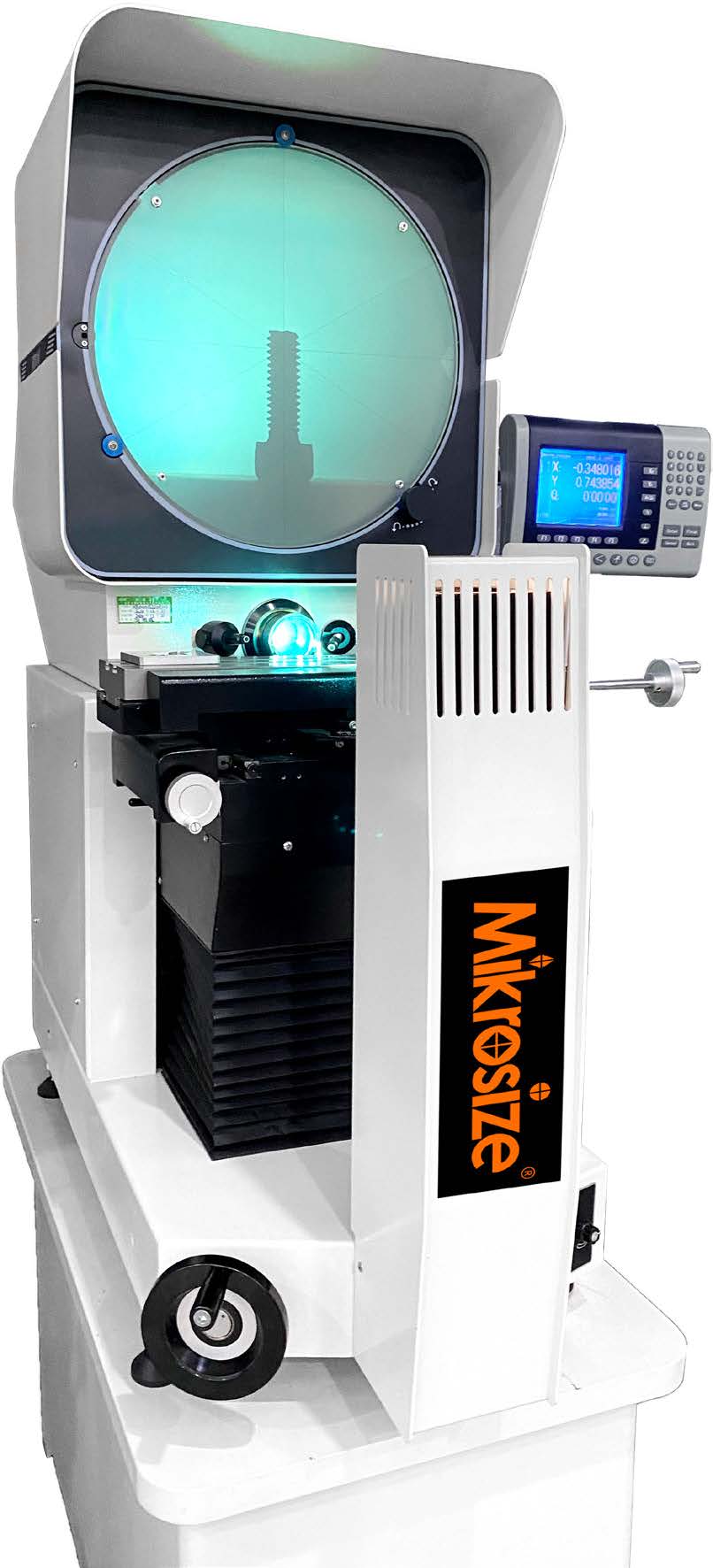

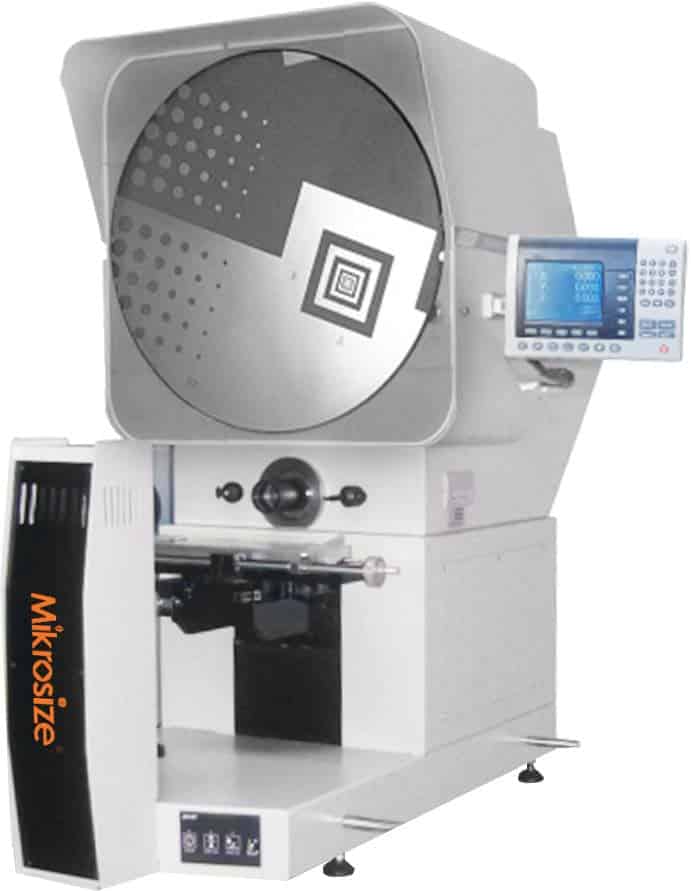

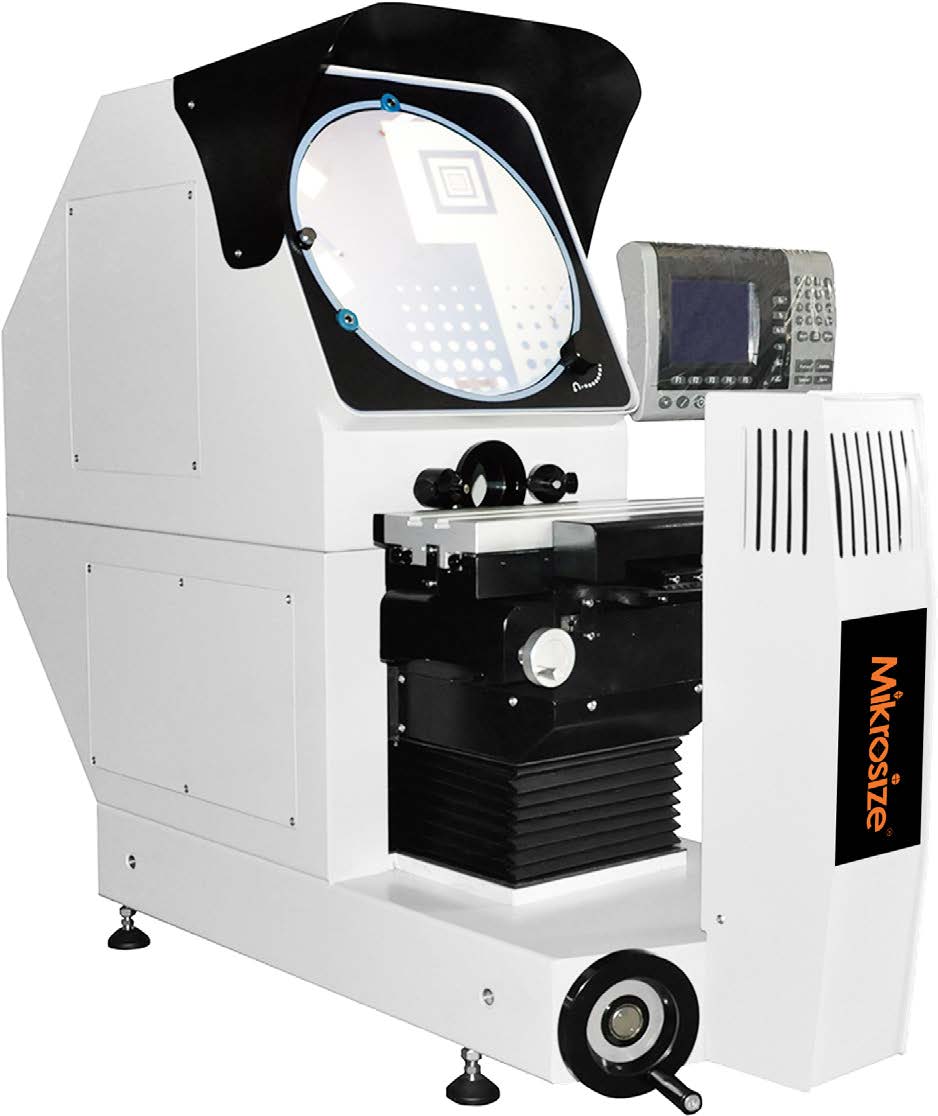

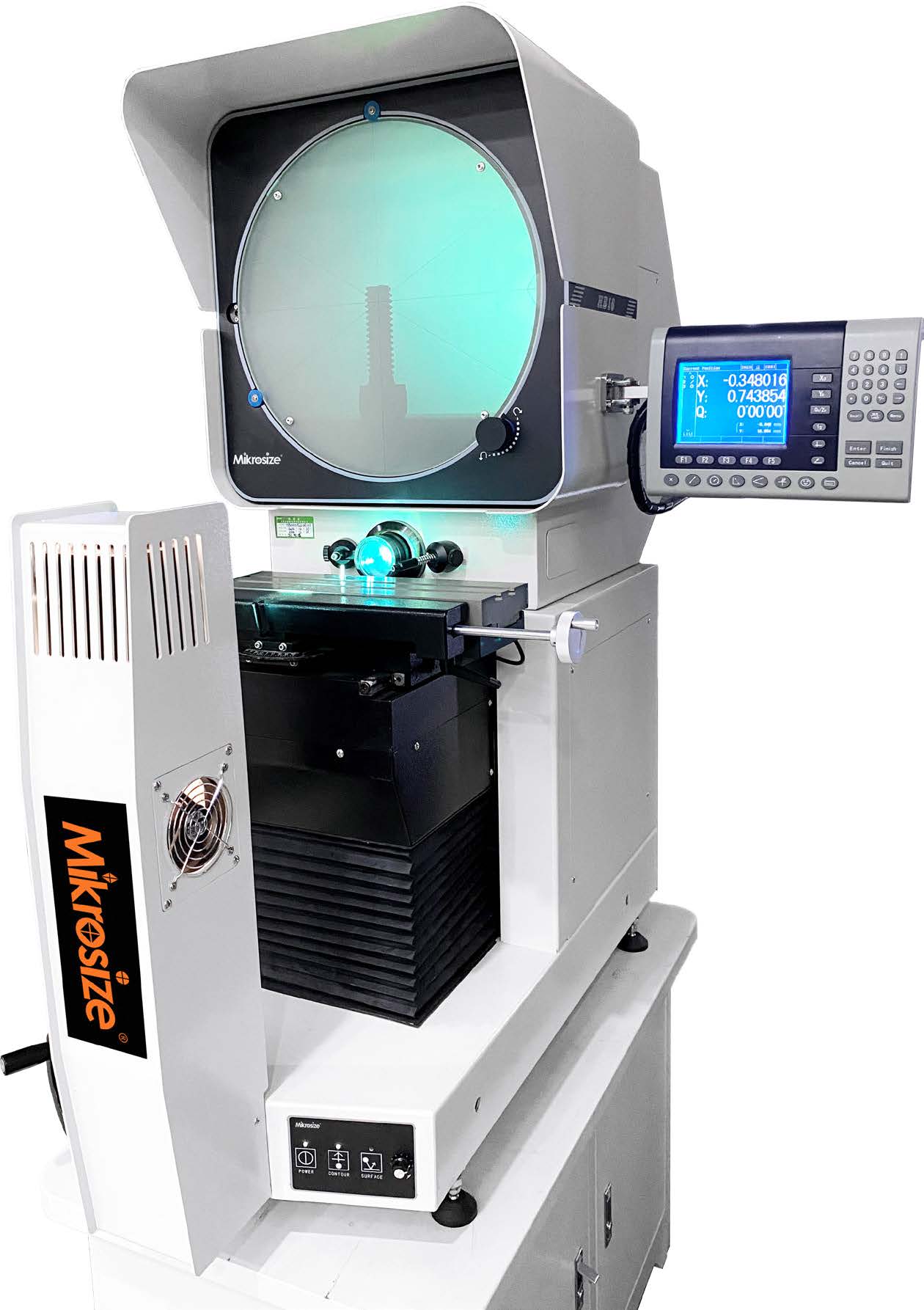

iProjec-H12/H16/H24 Horizontal Measuring Profile Projector

Scan QR

×
Scan QR Code

https://mikrosize.com/product/iprojec-h12-h16-h24-horizontal-measuring-profile-projector/

Product Feature：

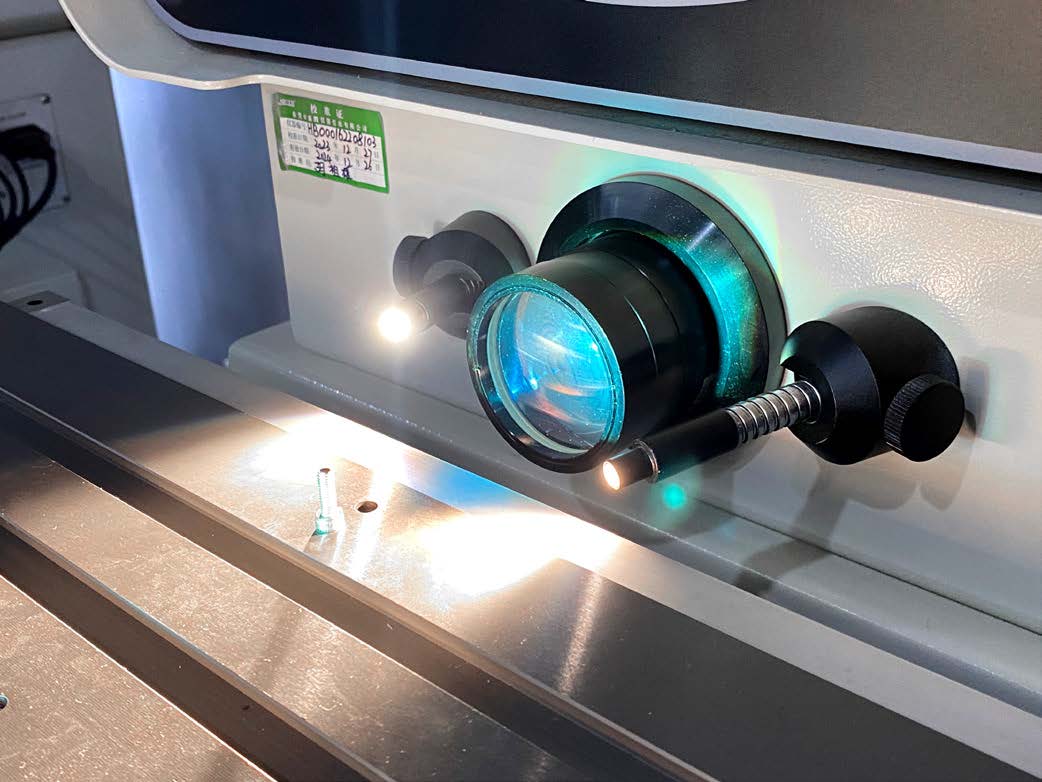

High-precision optical system: Equipped with high-quality objective lenses, it can produce sharp and clear images, and the magnification ratio is accurate, ensuring the accuracy of dimensional measurement and meeting the requirements of precise measurement.
Precision worktable: Processed from aviation aluminum alloy, it has a large measurement range and is lightweight. The digital display resolution of the X and Y coordinates reaches 0.0005mm, and the positioning accuracy is extremely high.
Stable guide rail transmission: The lifting transmission of the worktable adopts imported V-shaped linear guide rails, which run smoothly, reduce vibration deviation, and ensure the stability and accuracy during the measurement process.
Sturdy and durable structure: The overall structure has strong versatility, a reasonable design, and high-quality materials. It is resistant to interference and wear, and can maintain high precision even after long-term use.
Advanced digital display system: The coordinate indication value error is ≤3+L/200. Equipped with an advanced digital display system, the readings are intuitive and accurate, effectively improving the measurement accuracy and efficiency.

Product Application：

Mechanical manufacturing: It can accurately measure complex mechanical parts, such as the contours of cams and gears, ensuring the machining accuracy and assembly quality.
Electronic industry: It can accurately detect the dimensions of tiny electronic components, facilitating the miniaturization and high-precision production of electronic products.
Instrument production: It can measure the components of instruments efficiently, ensuring the stable and reliable assembly and performance of the instruments.
Mold processing: It is used for the measurement of key parts such as mold cavities, improving the precision of mold manufacturing.
Metrological verification: It provides a high – precision measurement basis for metrological departments, ensuring the accurate transfer of measurement values.

Technical Specifications

Model	iProjec-H12	iProjec-H16	iProjec-H24
X,Z-axis Travel(mm)	200*100	300*150	300*150
Y-axis Travel(mm)	75(Focusing)	125(Focusing)	125(Focusing)
Precision	X/Y-axis≤3+L/200(um)

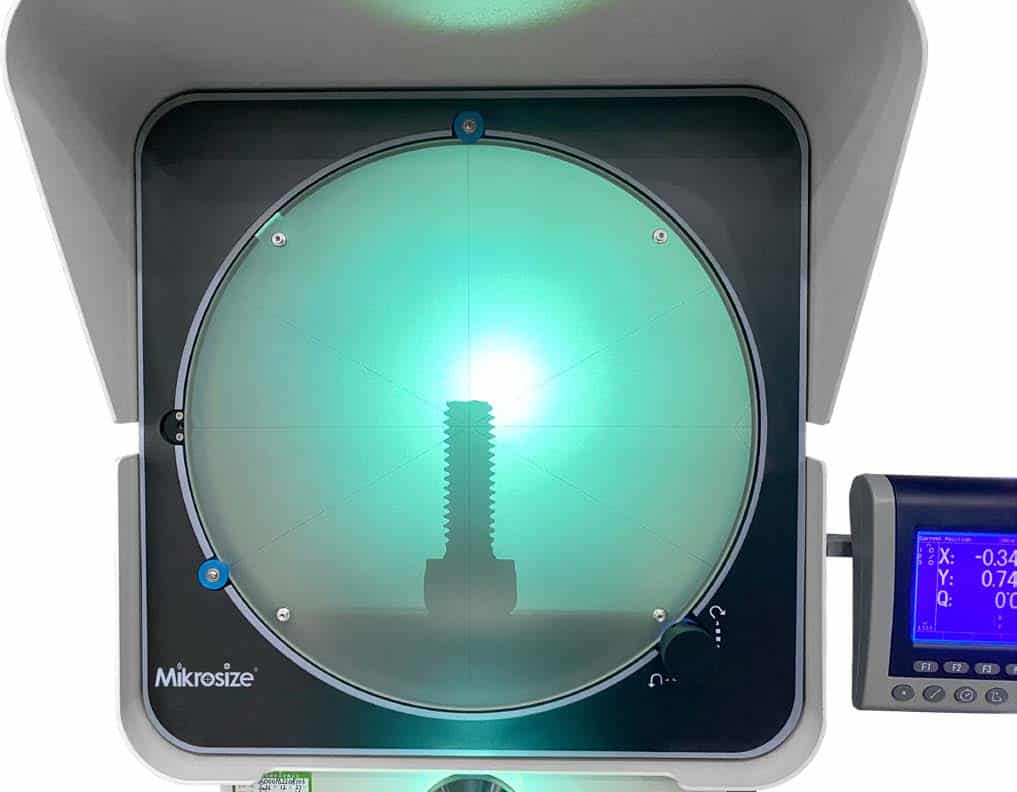

Projector Screen Size(mm)	Φ330	Φ425	Φ615

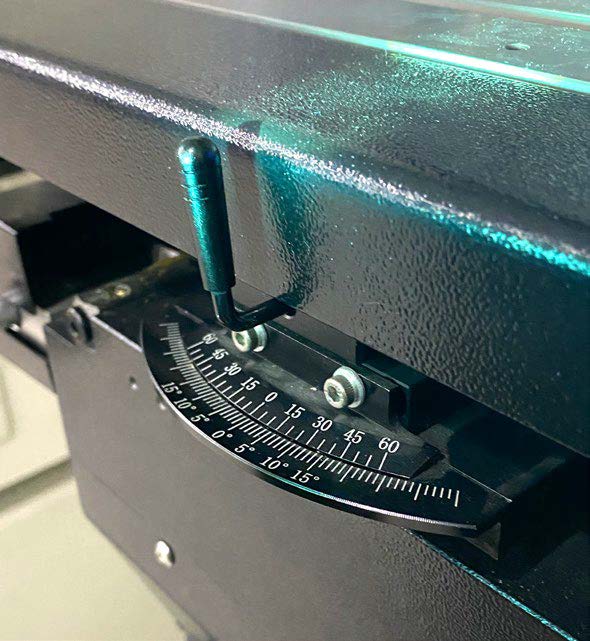

Projector Screen Rotation Range	0-360°
Rotation Angle Resolution	1’ or 0.01°
Magnification	10X(Standard),20X、50X、100X(Optional)
Power Source	110V/220V (AC),50/60HZ,Total 400W

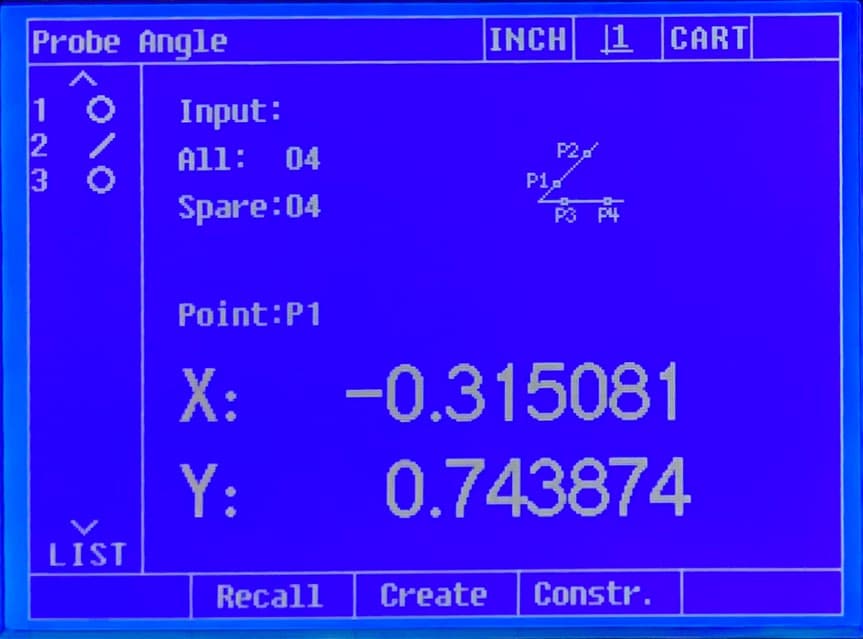

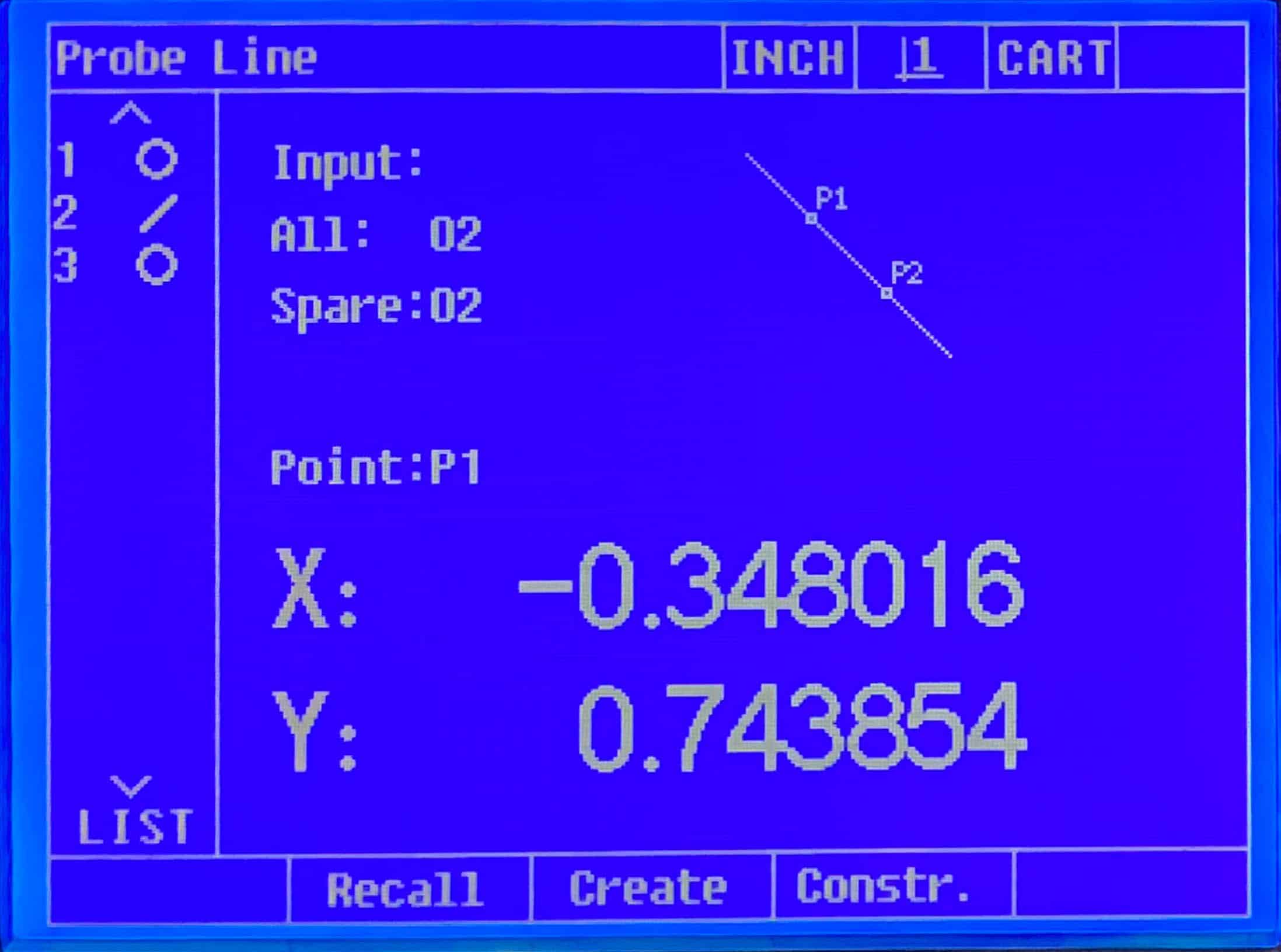

Digital Readout	Supports English, can be used for measuring and collecting two-dimensional data such as points, lines, circles, angles, distances, etc., and is easy to operate
Cooling Method	Forced air cooling (3-axis fan)
Illumination	Transmission and reflection lighting: 24V/150W halogen lamp
Machine Size(mm)	11147569964	13605801170	16117611409
Instrument Accessory	Mini-printer(Standard),Measuring Software(Optional)
