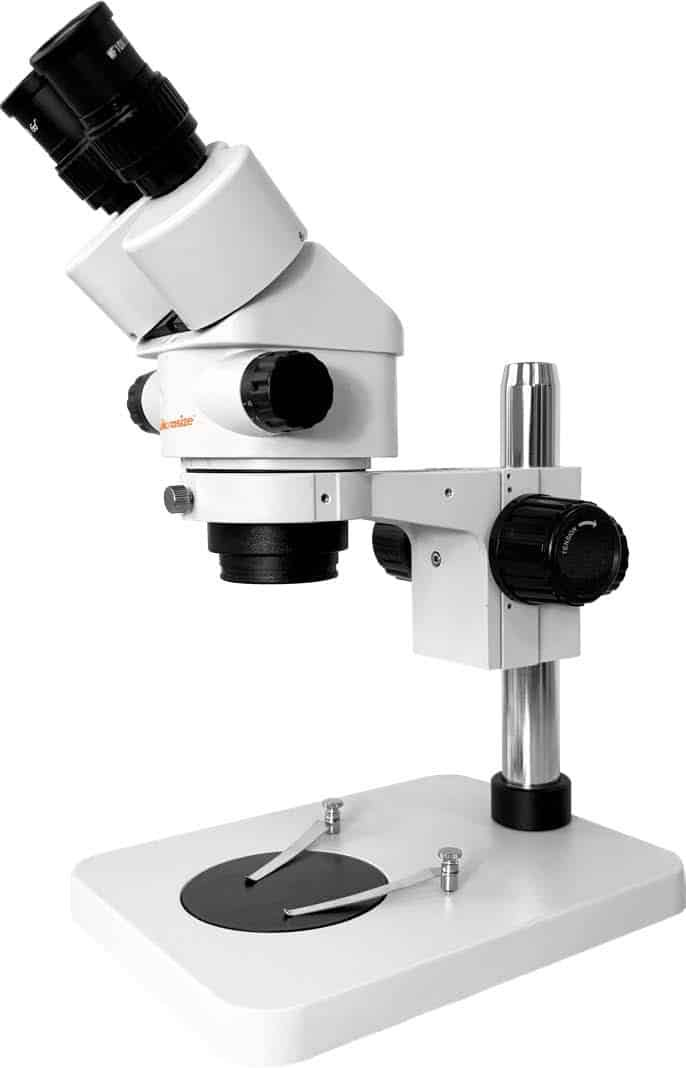

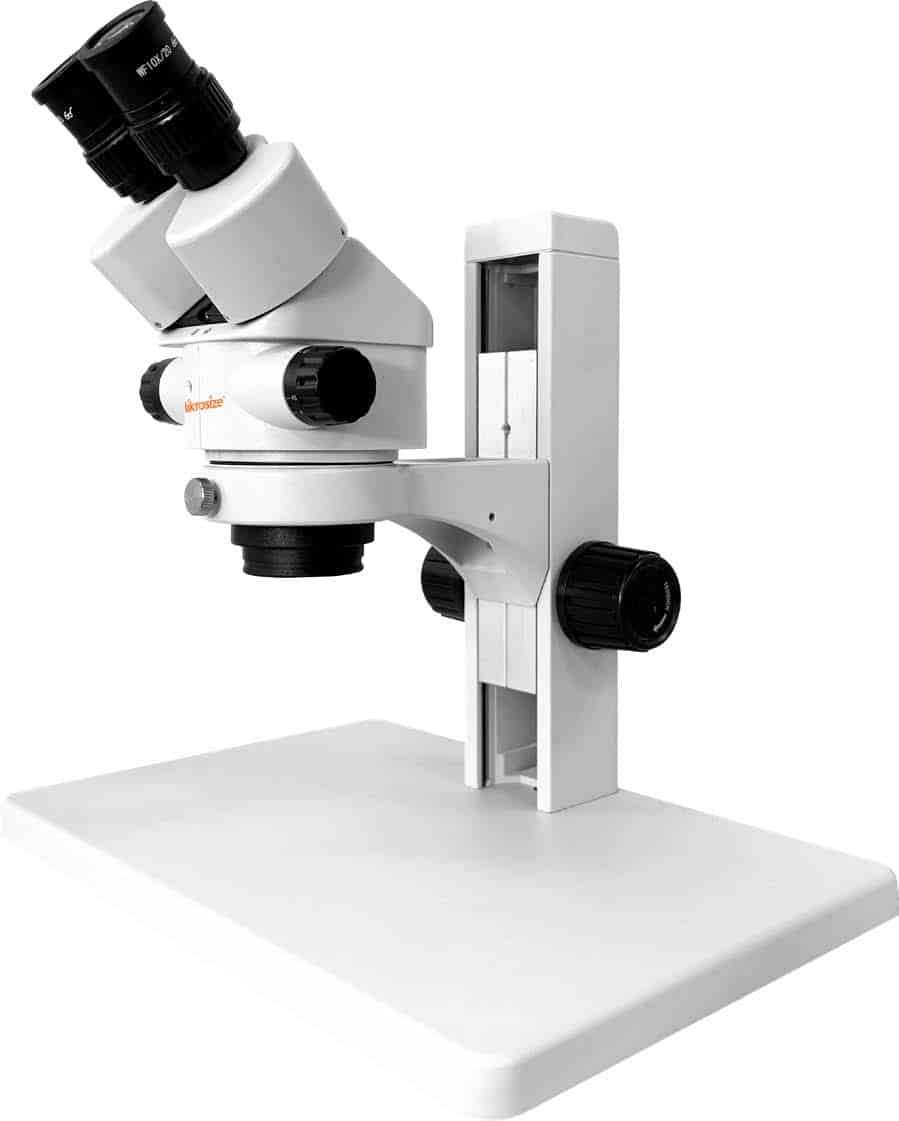

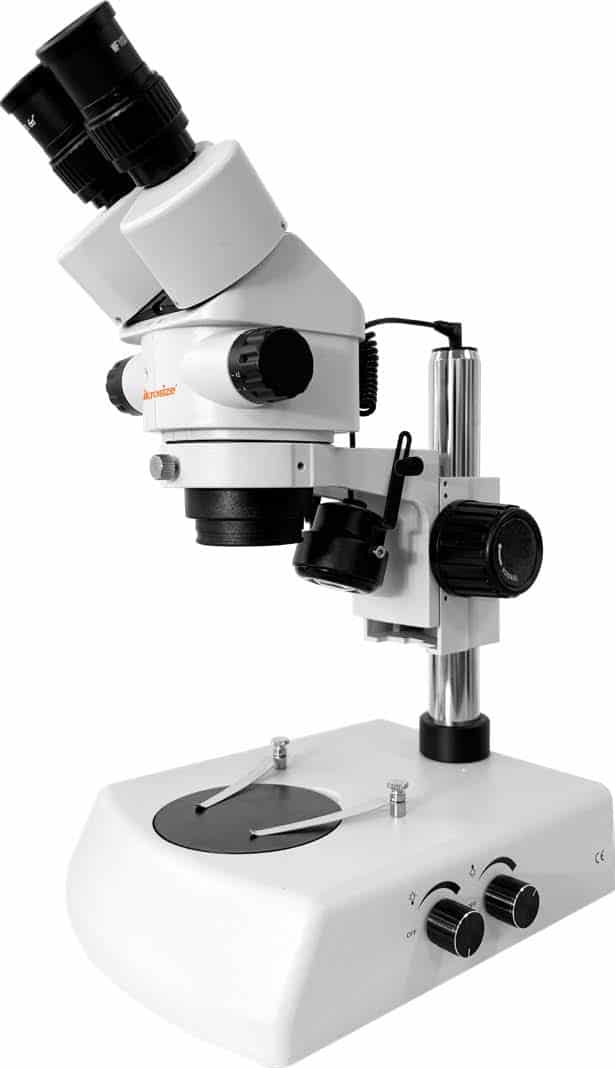

iStereo-0745 Stereo Microscope

Scan QR

×

Scan QR Code

https://mikrosize.com/product/istereo-0745-stereo-microscope/

Product Features：

• Premium optical components coated with special films deliver high-quality optical imaging.
• Generates erect images with flat focal planes and superior contrast across a wide field of view, delivering brighter, sharper image quality especially at peripheral fields.
• Equipped with a continuous zoom objective lens ranging from 0.7X to 4.5X (6.4:1 zoom ratio), paired with WF10X eyepieces to provide standard magnification of 7X–45X. Magnification can be extended to 2.1X–270X with optional auxiliary objective lenses.
• Features a standard effective working distance of 100 mm (3.94 in). Fitted with optional auxiliary objective lenses, the working distance ranges from 30 mm to 287 mm (1.18–11.30 in), offering ample operating space for various applications.
• 45°inclined observation head with adjustable diopter for binocular tubes, enabling users with different eyesight to obtain crisp, satisfying viewing images.
• Ergonomic structural design with optimal eye point height to prevent fatigue during long-hour observation.
• Zoom handwheels mounted horizontally (axially) on both sides for effortless, comfortable operation and high repeat zoom accuracy.

Product Applications：

• Ideal for microstructural observation and defect inspection of electronic components, precision mechanical parts, PCBs and new materials, and other related fields.
• Meets the demands of on-site real-time quality control and high-precision laboratory analysis, covering incoming material inspection, in-process monitoring, finished product acceptance, and other workflow stages.
• Enables precise dimensional measurement and data archiving, applicable to diverse scenarios including research institutes, factory quality inspection departments, and university laboratories.
• Supports comparative analysis between real-time images and stored snapshots to facilitate consistency verification and anomaly troubleshooting in batch production.
• Compatible with various material types such as metals, plastics and electronic components, and accommodates inspection requirements for both flat and three-dimensional structures.
