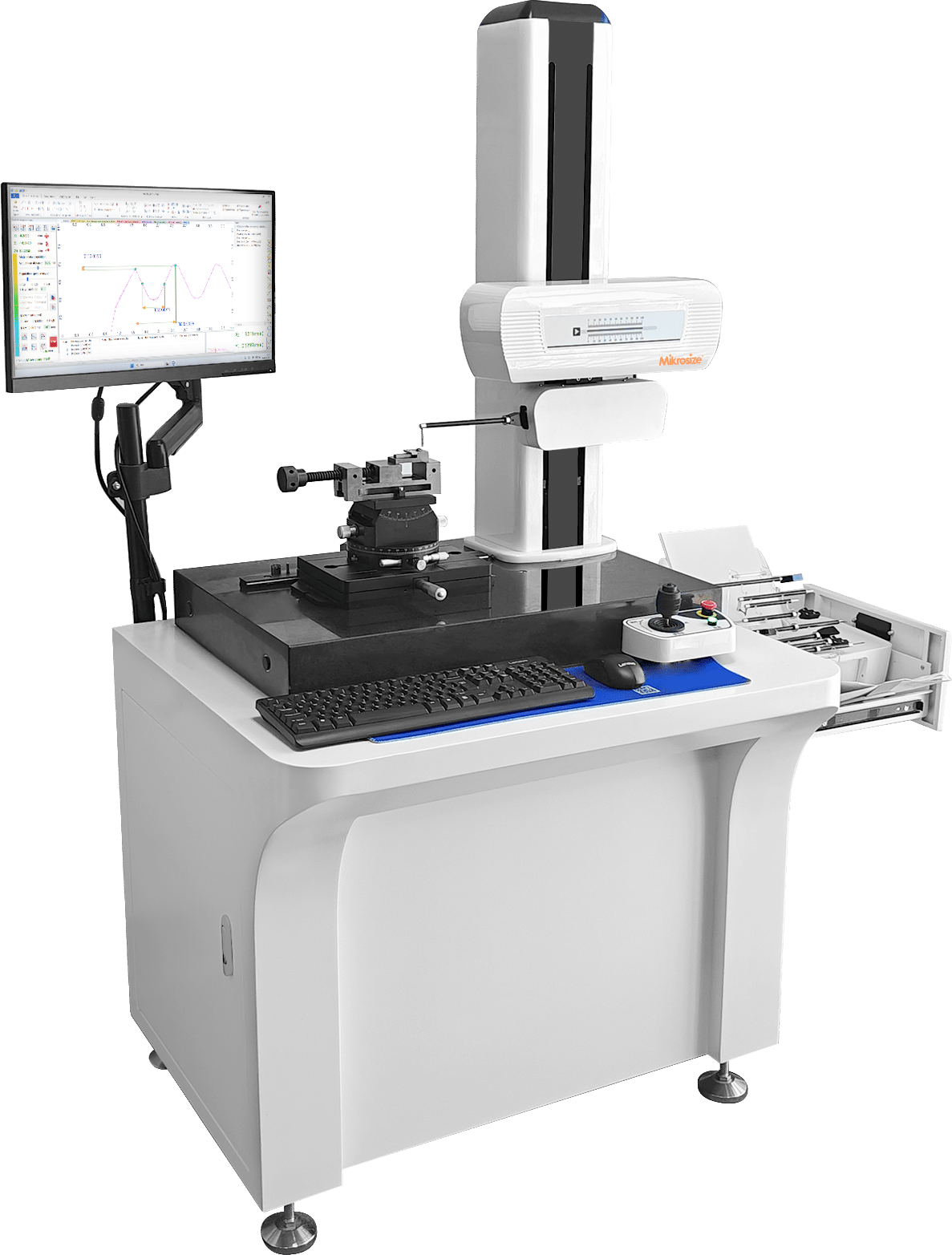

MRC-100-150-200 Roughness and Contour Measuring Instrument

Scan QR

×

Scan QR Code

https://mikrosize.com/product/mrc-100-roughness-and-contour-measuring-instrument/

Product Feature：

• Cartesian coordinate form measuring instrument
• Simultaneous measurement of roughness and profile without sensor replacement
• The mechanical part adopts precision linear guideway as the measurement reference, ensuring measurement accuracy and long service life
• Horizontal guideway offers air-bearing guideway and friction guideway options
• Precision digital sensors and precision grating displacement sensors measure displacements in X and Z directions, guaranteeing the accuracy of workpiece profile measurement
• High-precision grating sensor with a maximum range of 60 mm meets most measurement needs
• Resolution up to 0.001μm and minimum sampling interval of 0.01μm

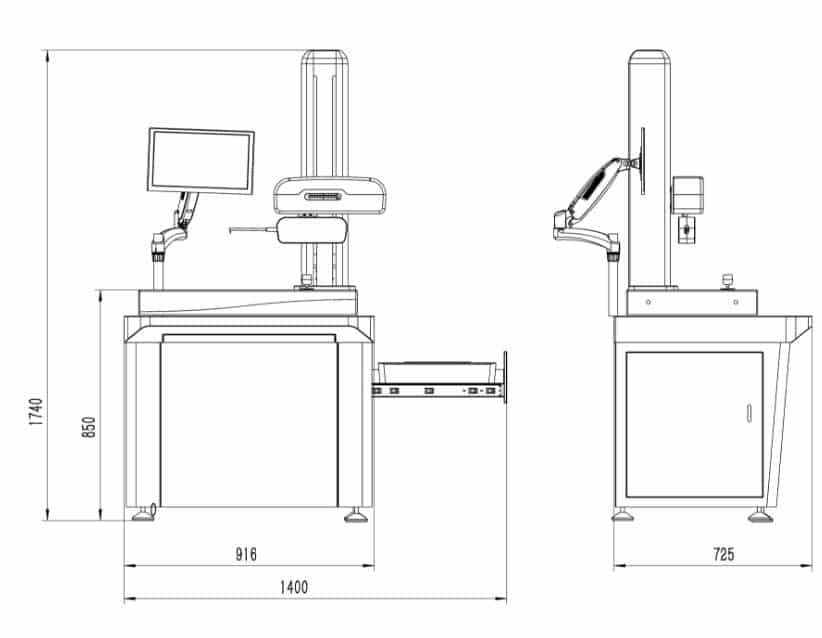

• Standard column stroke of 450/500 mm, with custom strokes available

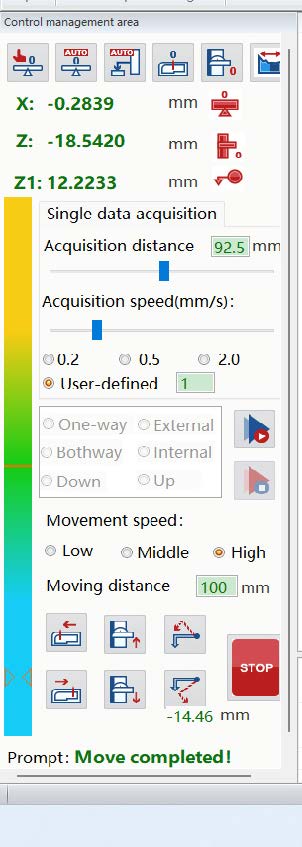

• Equipped with high-performance self-developed software, featuring user-friendliness and high measurement efficiency, with operation highly compatible with CAD drawing software
• The software can process various seal groove shapes (angles, chamfer R, groove depth, groove width); straightness and convexity of busbars for shaft workpieces; radius of curvature and center position of various arcs, etc.
• Supports continuous dimensioning, datum dimensioning, and arbitrary insertion points
• Enables free rotation of graphics and coordinates
• Automatic saving of raw data for convenient multiple dimensioning
• When the capture function is activated, automatically generates and captures feature points such as intersections, circle centers, line midpoints, endpoints, arc intersections, arc midpoints, and tangent points
• Software compatible with Windows XP, Windows 7, Windows 10, and Windows 11 operating systems
• One-click switch between Chinese and English for the software
• Automatic software calibration, supporting automatic measurement and dimensioning
• Features automatic probe contact, lifting, and retraction functions to prevent probe damage
• Built-in highly integrated circuit board with all interfaces integrated on a single board for easy maintenance
• Four-axis joystick control for convenient operation

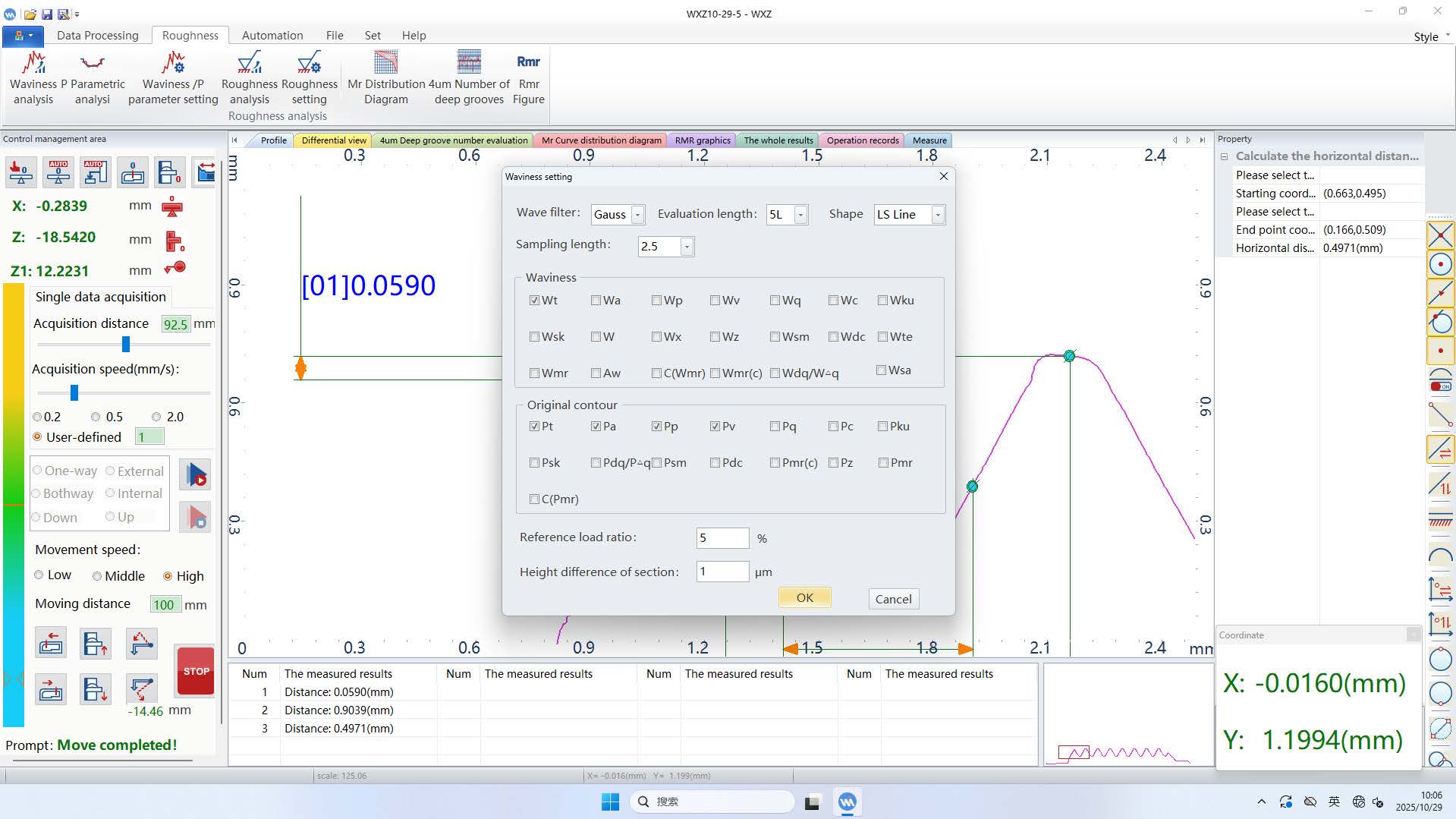

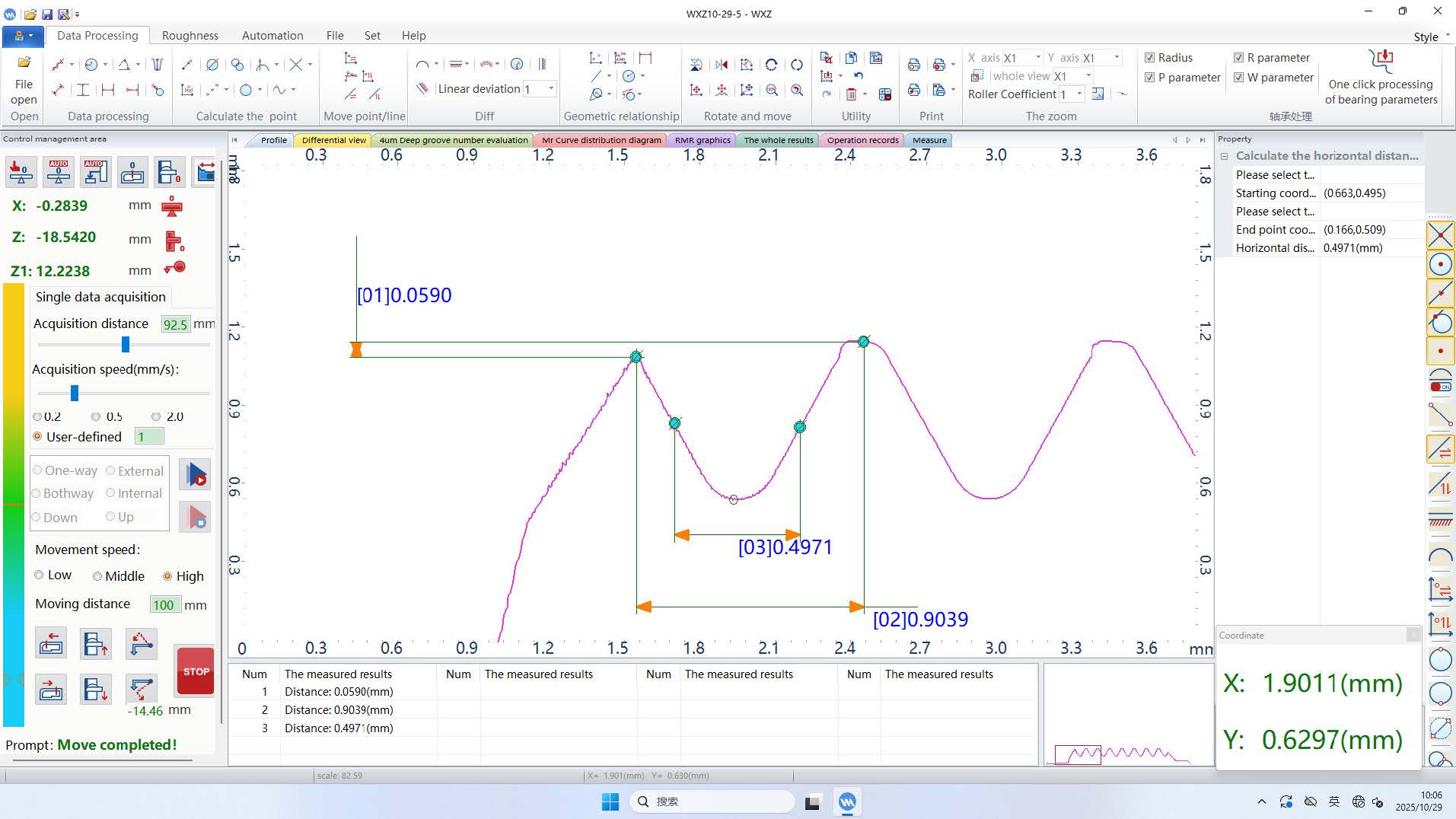

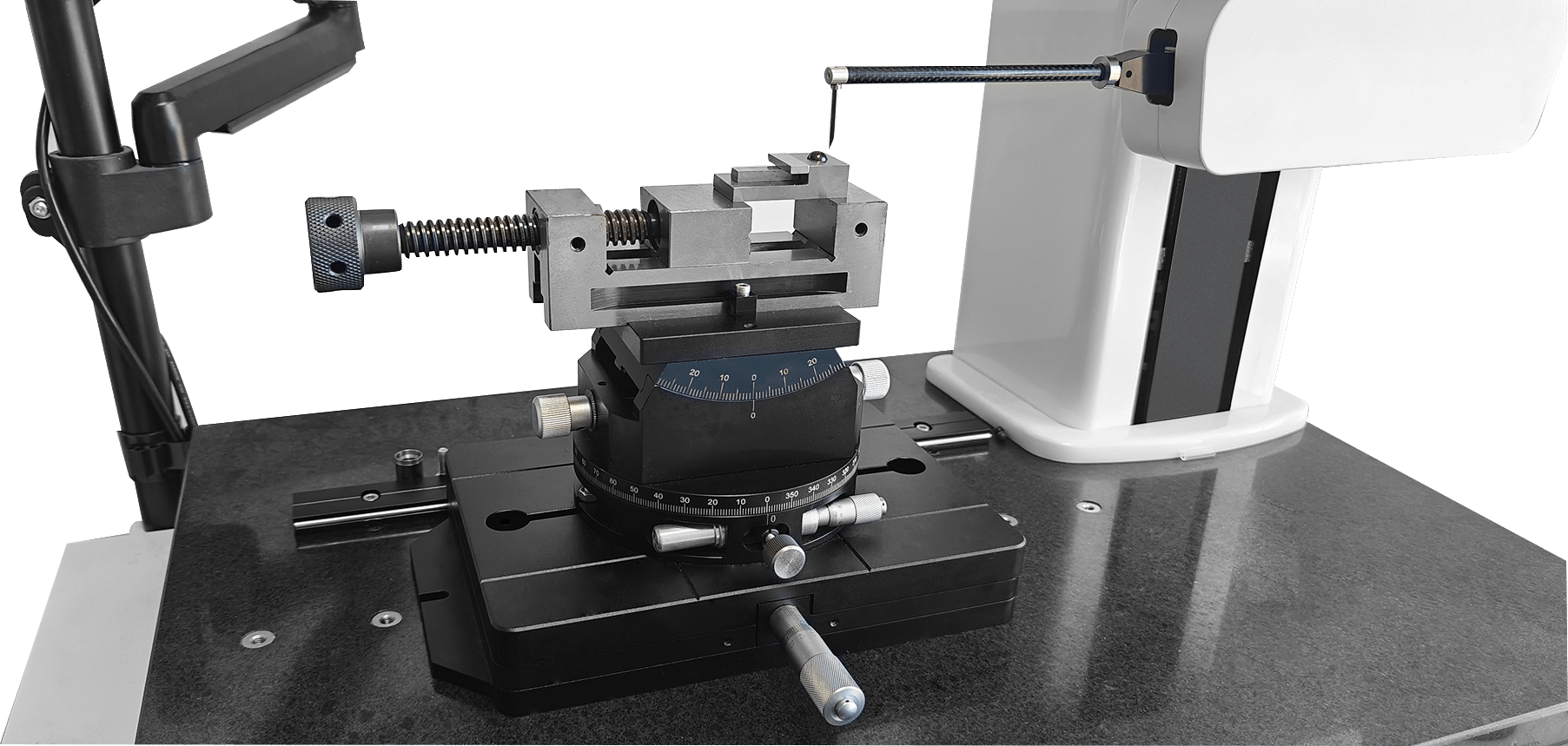

• Supports profile measurement, roughness measurement, raw profile measurement, and waviness measurement functions
• Equipped with USB interfaces
• Magnetic suction probe rod for quick and easy overall replacement
• Complies with industry standards such as JB/T 11271-2012, ISO 25178-601, ISO 21920, and UNI EN ISO 12179

Product Application：

• Bearing industry

Measure the seal groove shape (angle, chamfer R, groove depth, groove width, etc.) of inner and outer rings; convexity, angle, and logarithmic curve of the generatrix of rollers and rings of various roller bearings.

• Automobile, motorcycle, and refrigeration industry

Measure the generatrix parameters of pistons, piston pins, and valve lifters of automobiles, motorcycles, and compressors; and can measure parameters of various inclined parts.

Machinery processing, precision hardware, precision tools, cutting tools, molds, auto parts, motorcycle parts, compressors, electromechanical, motors, optical components and other industries.
