uFlash-100/2020/3020 Desktop Flash Measuring Instrument

Scan QR

×

Scan QR Code

https://mikrosize.com/product/uflash-100-2020-3020-desktop-flash-measuring-instrument/

Product Features：

• Measurement efficiency: with a large measuring field of view of 300mmx200mm, it supports high-speed and stable measurement, capable of inspecting up to 100 target objects and 300 positions simultaneously, greatly shortening detection working hours.

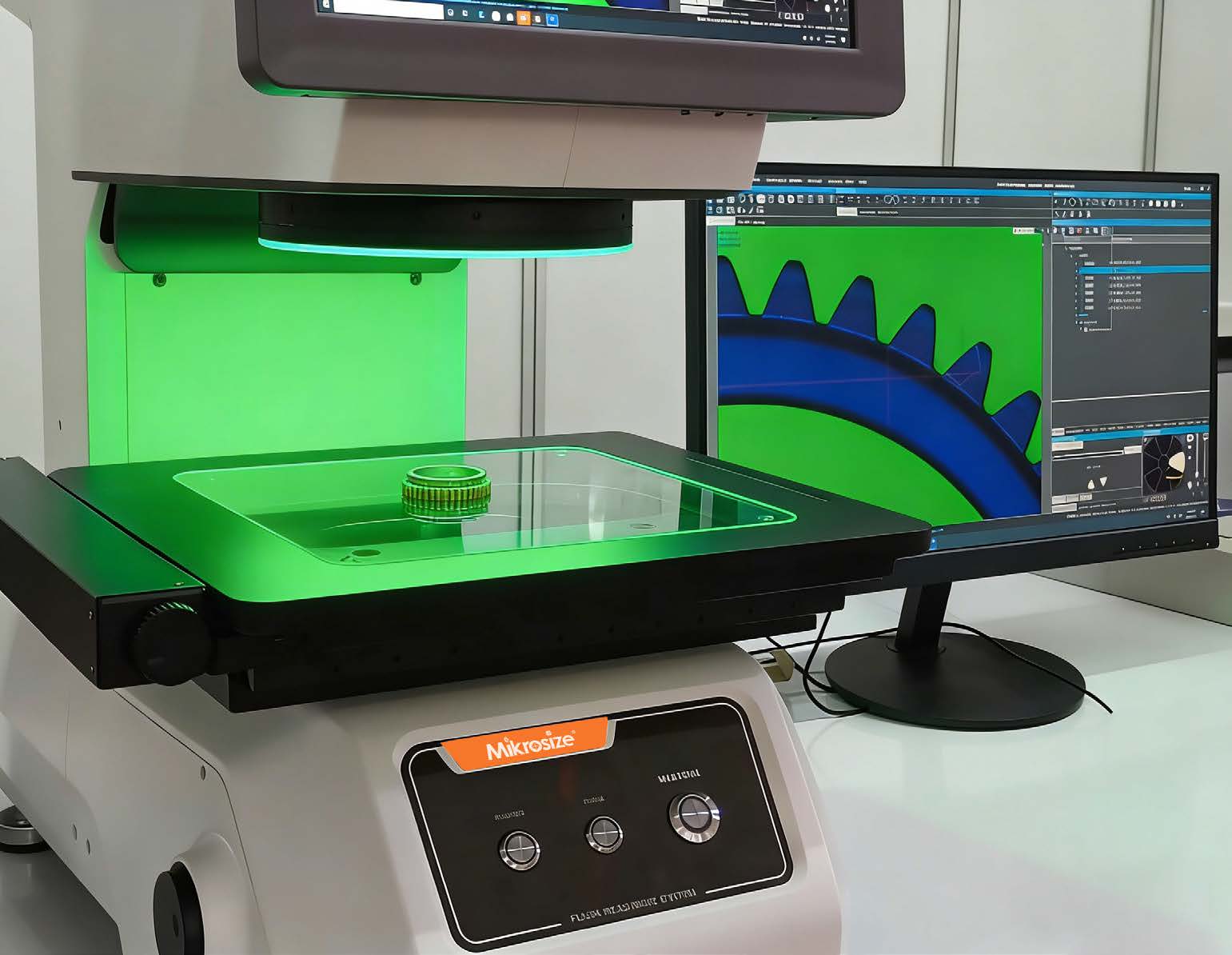

• Fitted with a large-aperture telecentric lens featuring low distortion and a large depth of field, it can handle uneven workpieces without strict positioning. The variable illumination system automatically adjusts light to capture edges accurately, solving imaging problems of complex surfaces.

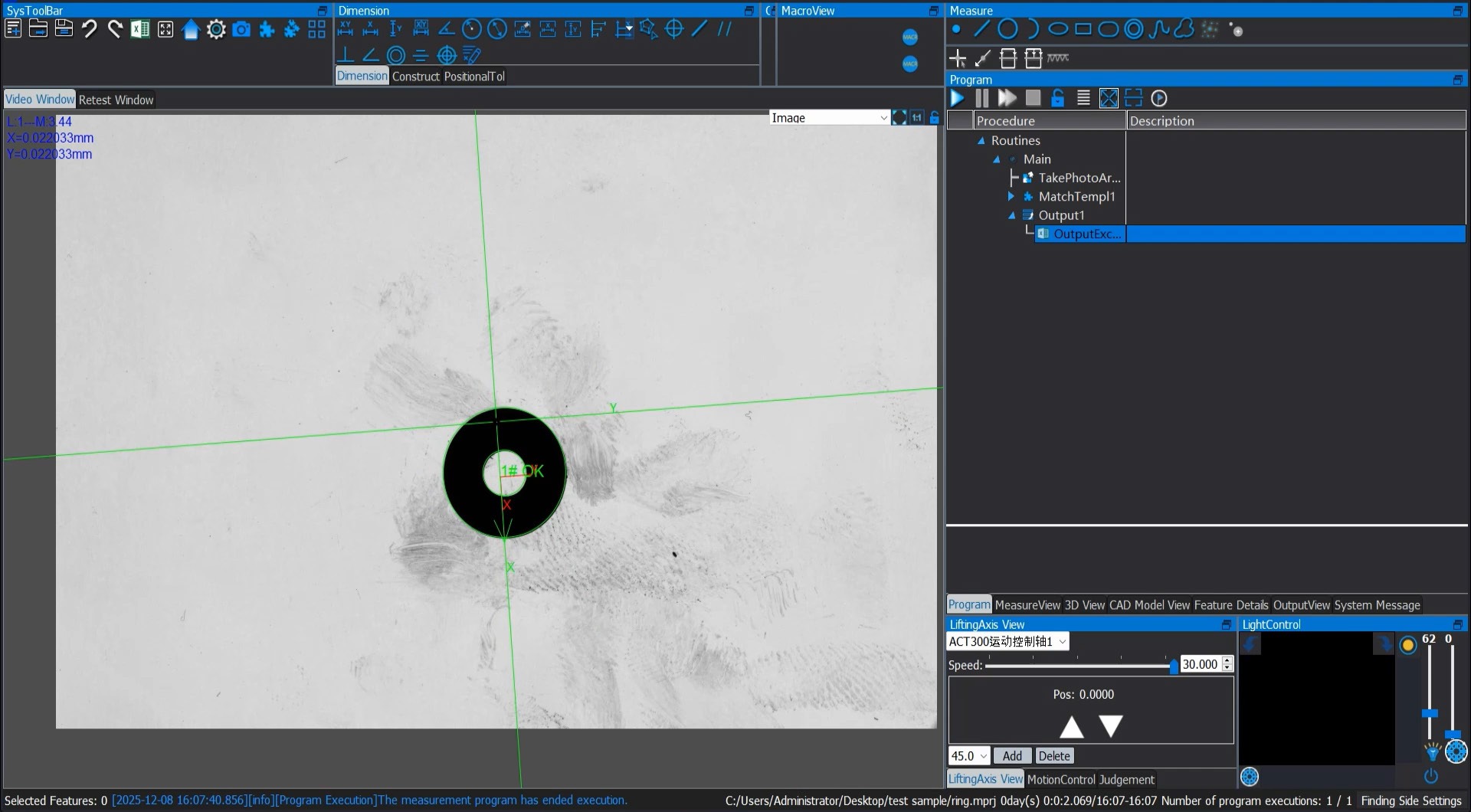

• Simple and intuitive operation: the one-click measurement function completes dimension detection in seconds. With a concise menu, it is easy to operate without professional training. Program templates are saved permanently after one-time setup and automatically matched for the same type of products.
• Equipped with a 12-megapixel black-and-white cmos sensor (8-megapixel color cmos for some models), it enables clearer edge detection. Supporting automatic focusing and lens distortion compensation, it has high repeatability and consistent, deviation-free results.
• High compatibility: suitable for measuring single processed products and small-batch multi-variety products without complex setup, meeting diverse production needs.

Product Applications：

• Manufacturing: Applicable to dimensional accuracy detection of mechanical components such as shaft parts and gears, ensuring production consistency.
• Electronics industry: Realizes precision measurement of semiconductors, mobile phone parts, printed circuit boards, etc., controlling the quality of electronic products.
• Mold and injection molding industry: Used for dimensional detection of molds and injection parts, helping improve product molding accuracy and production efficiency.
• Hardware and plastic industry: Accurately measures key dimensions of hardware and plastic products to meet industry testing standards.
• General manufacturing: Suitable for batch detection of various small and medium-sized workpieces, ensuring quality control in industrial manufacturing.
