UTM-E100/E200/E300 Computer Controlled Electronic Universal Testing Machine

Scan QR

×

Scan QR Code

https://mikrosize.com/product/utm-e100-e200-e300-computer-controlled-electronic-universal-testing-machine/

Product Features:

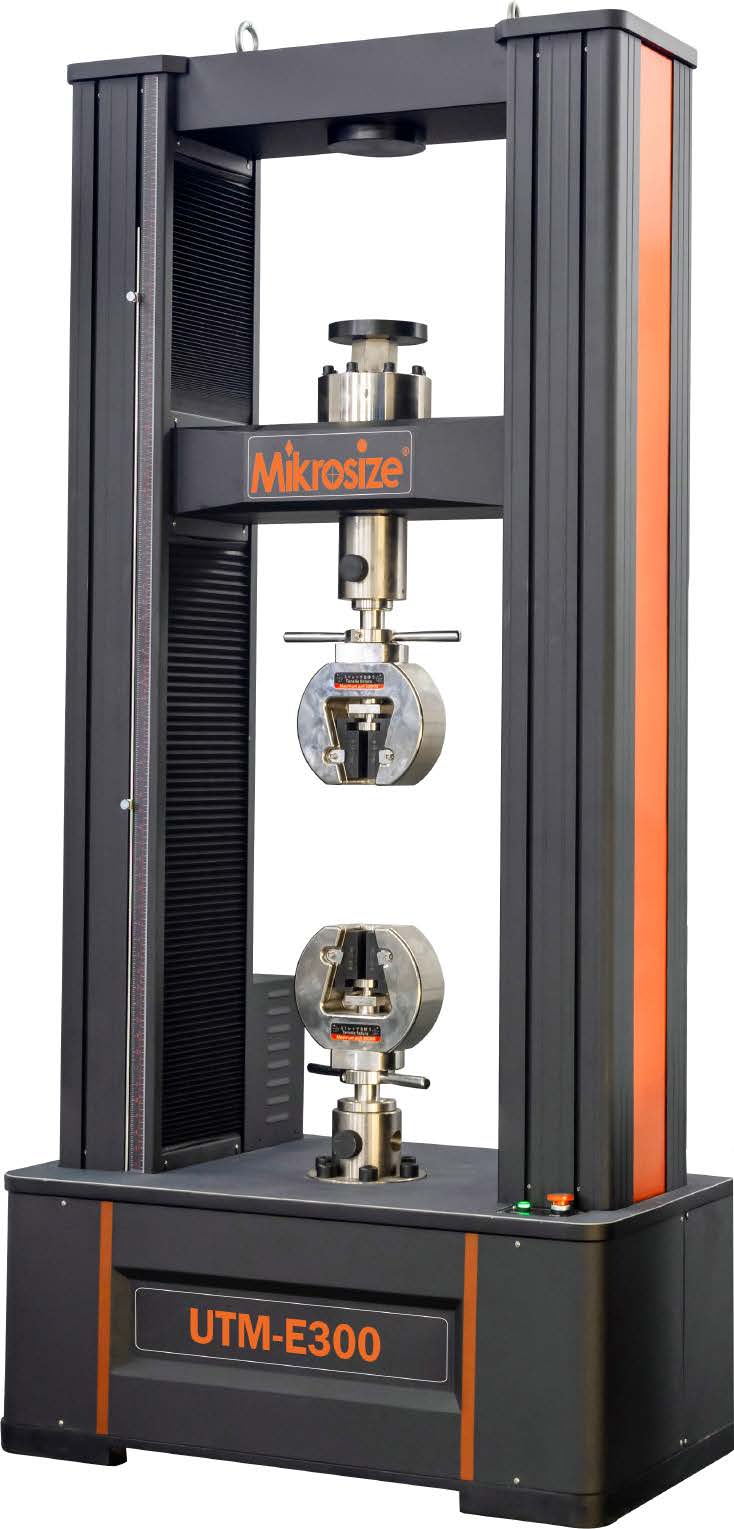

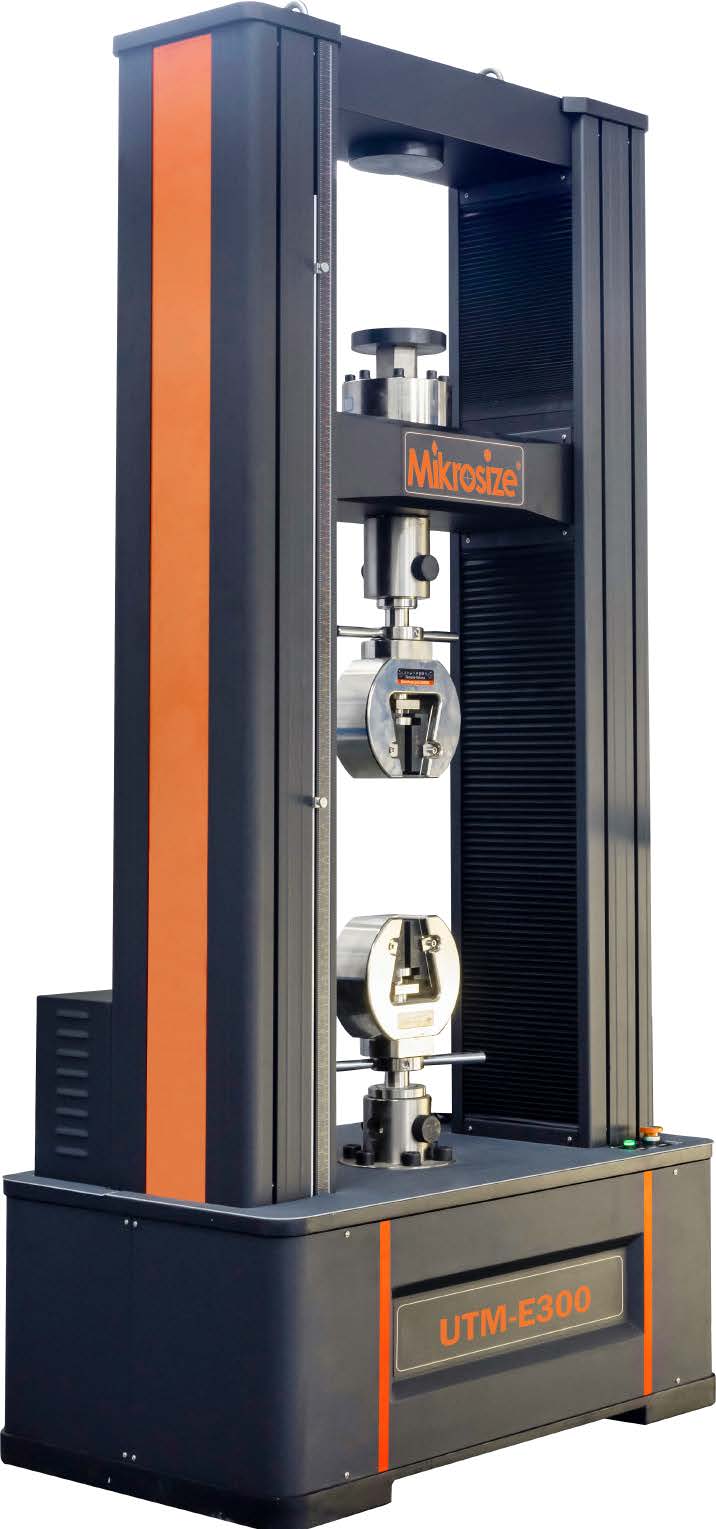

• The main machine adopts a rigid floor-standing gantry frame structure, which is composed of an upper crossbeam, a movable crossbeam and a workbench connected by columns and ball screws, ensuring stability and reliability.
• The movable crossbeam is processed from a single casting, which ensures it can bear sufficient force without deformation.
• It can conduct both tensile and compression tests simultaneously, with the upper part serving as the tensile test space and the lower part as the compression test space.
• Driven by a servo motor, it is equipped with a high-precision sensor, a dedicated independent controller and measurement and control software, enabling precise control of the equipment.
• Equipped with a magnetic handheld control box, facilitating users to operate the equipment from a distance.

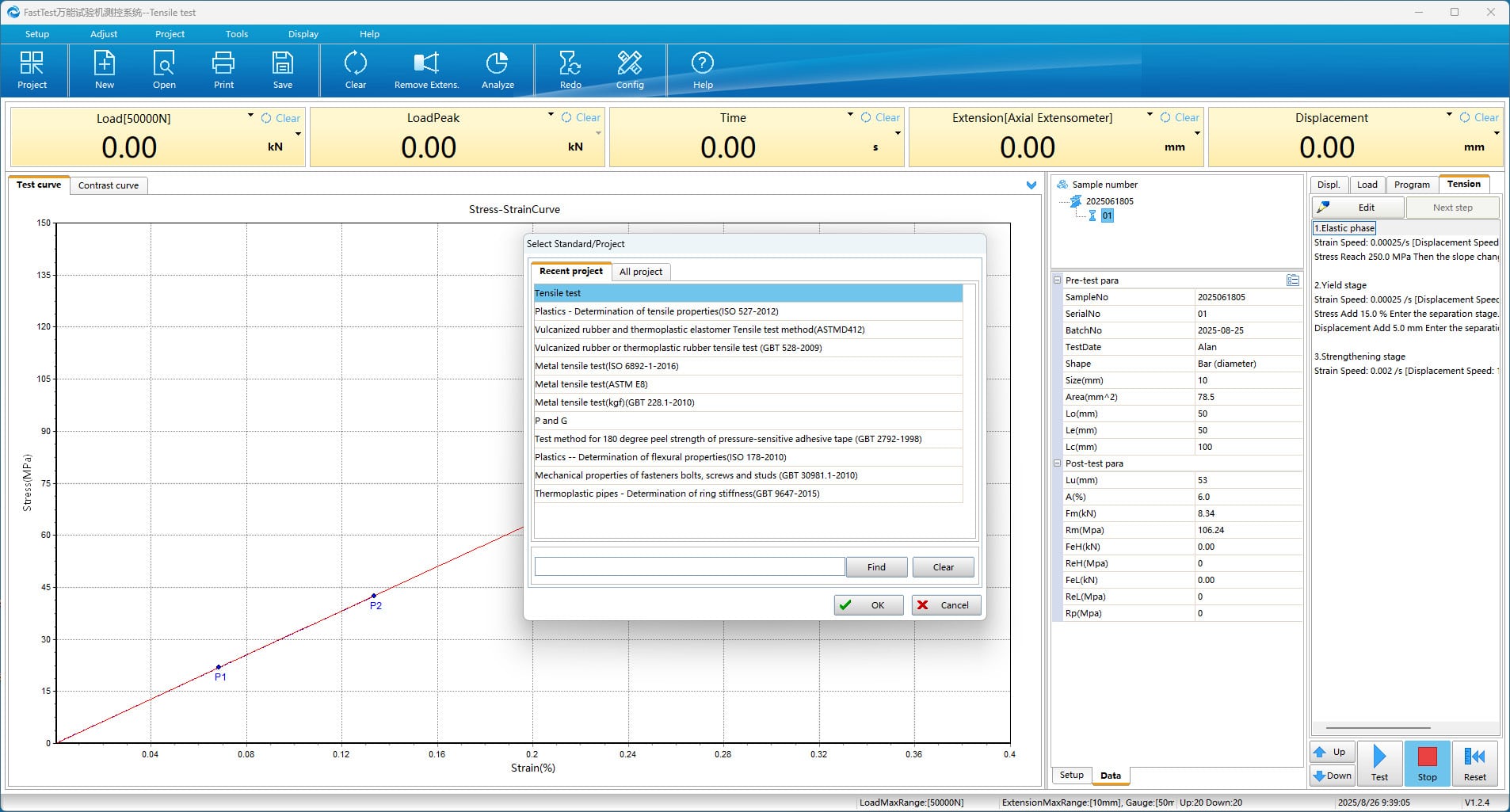

• The dedicated software has multiple functions to meet the needs of different users. It also features a modular and open design. In addition to providing common standards such as GB, ASTM, DIN, ISO and JIS, users can design calculation formulas according to their own requirements.

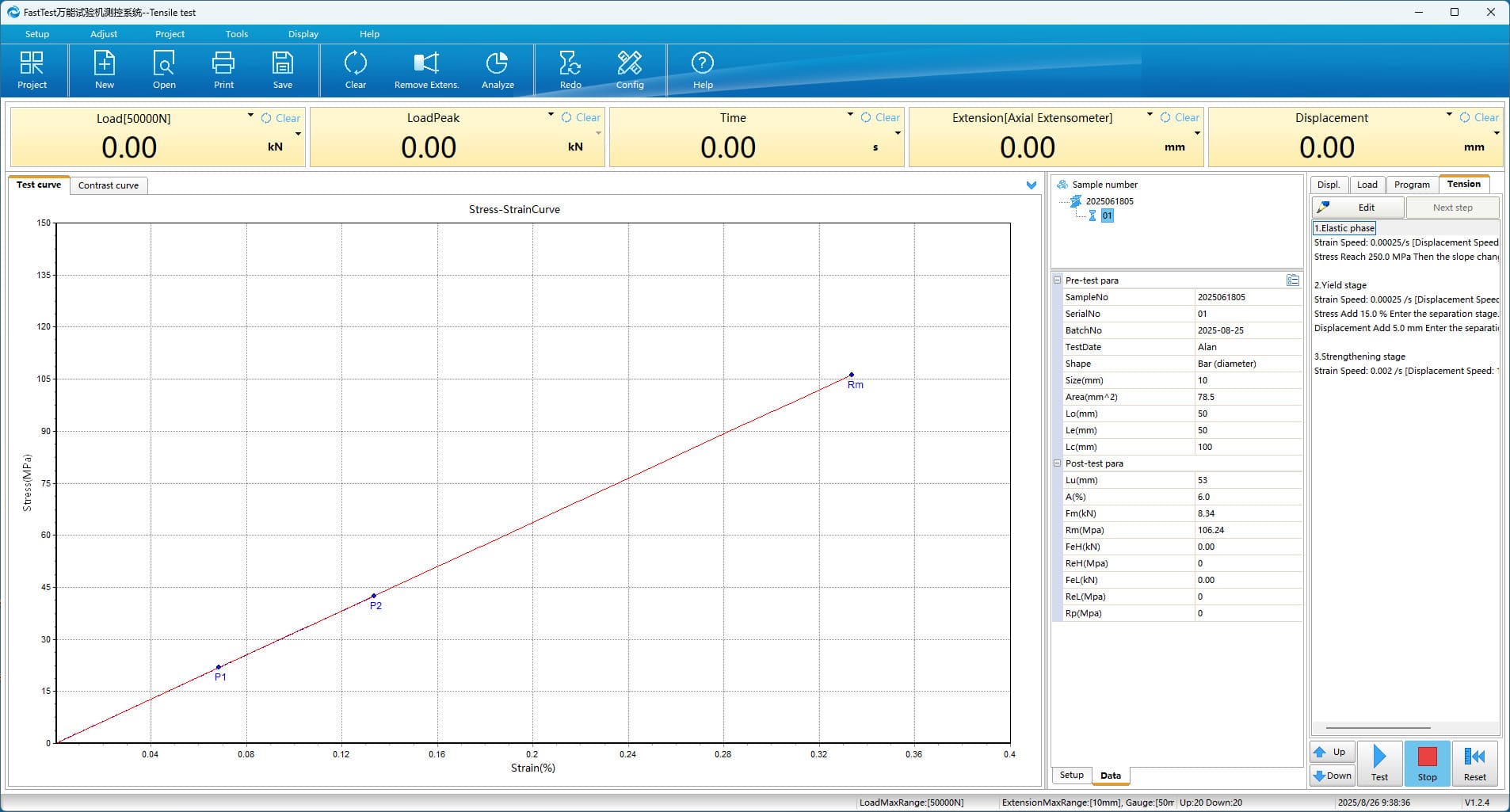

• The software can generate real-time curves in multiple modes, including force-time, stress-time, strain-time, displacement-time, etc.
• The software can automatically calculate parameters such as maximum force, average force, maximum deformation, tensile strength and yield strength.
• It provides customizable test report templates for users, supporting report export in multiple formats: Word, PDF and Excel.
• The software is compatible with multiple Windows operating systems: Windows 7, Windows 10 and Windows 11
• Maximum test force: 100kN
• Test speed range: 0.001 – 500mm/min
• Multiple units are available
• Force units：KN、N、kgf、lbf
• Displacement units：mm、cm、dm、m、in、ft、mil
• It can automatically return to the initial position after the test is completed.
• Equipped with multiple protection devices, including mechanical travel switches, emergency stop switches and overload protection.

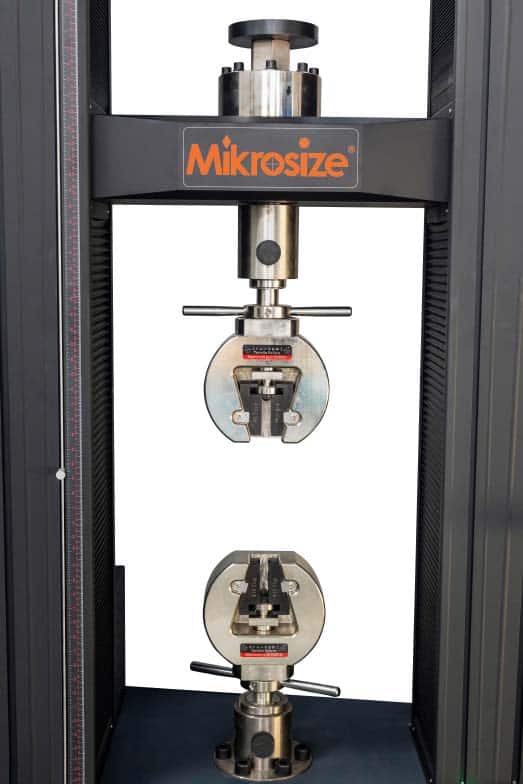

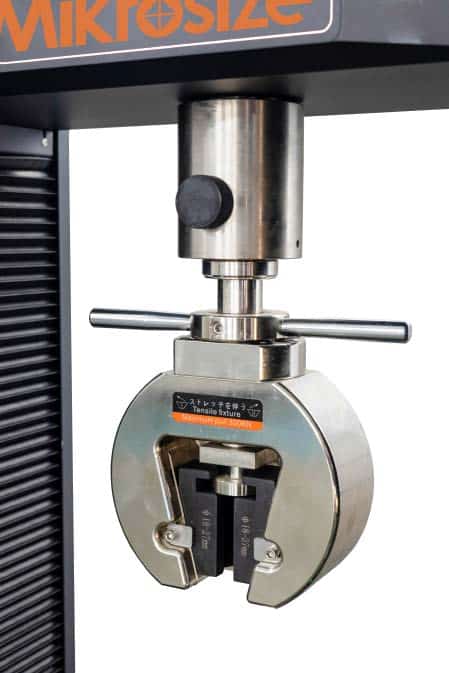

• Standard tensile and compression fixtures are provided, and custom fixtures can be made according to user needs.
• It complies with the following execution standards: GB/T 2611, GB/T 16491, GB/T 16825, GB/T 228, ISO 527, ASTM D3574, DIN 53357, JIS K6854, etc

Product Applications:

• Metal materials field
• Raw material quality control
• Processing technology verification
• Finished product performance testing
• Non-metallic materials field
• Testing of plastic and rubber products
• Testing of textiles and leather products
• Testing of paper and packaging materials
• Construction and building materials field
• Building materials testing
• Scientific research and education field
• Scientific research experiments
• Teaching demonstrations
