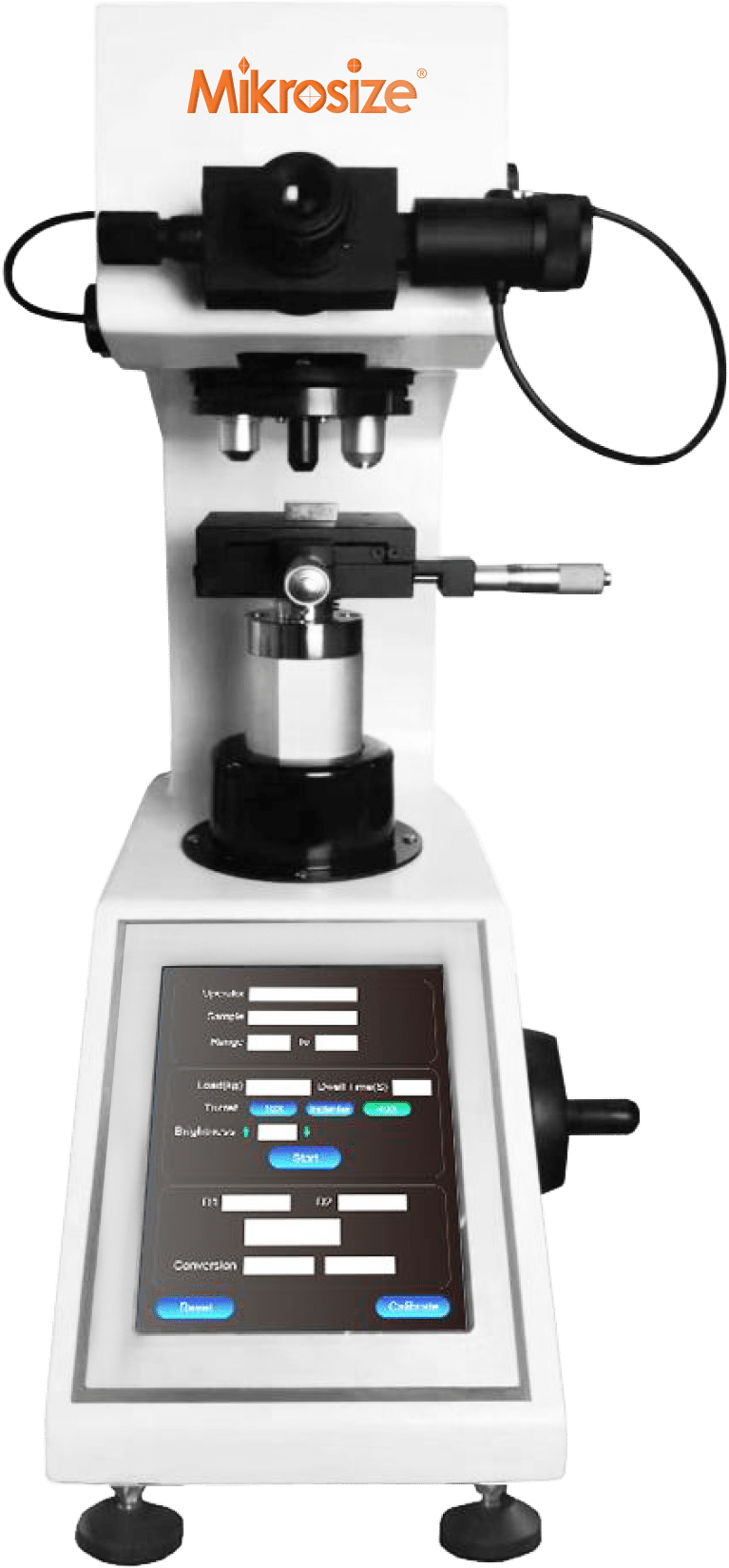

uVicky-1 Micro Vickers Hardness Tester

Scan QR

×

Scan QR Code

https://mikrosize.com/product/uvicky-1-micro-vickers-hardness-tester/

Product Features：

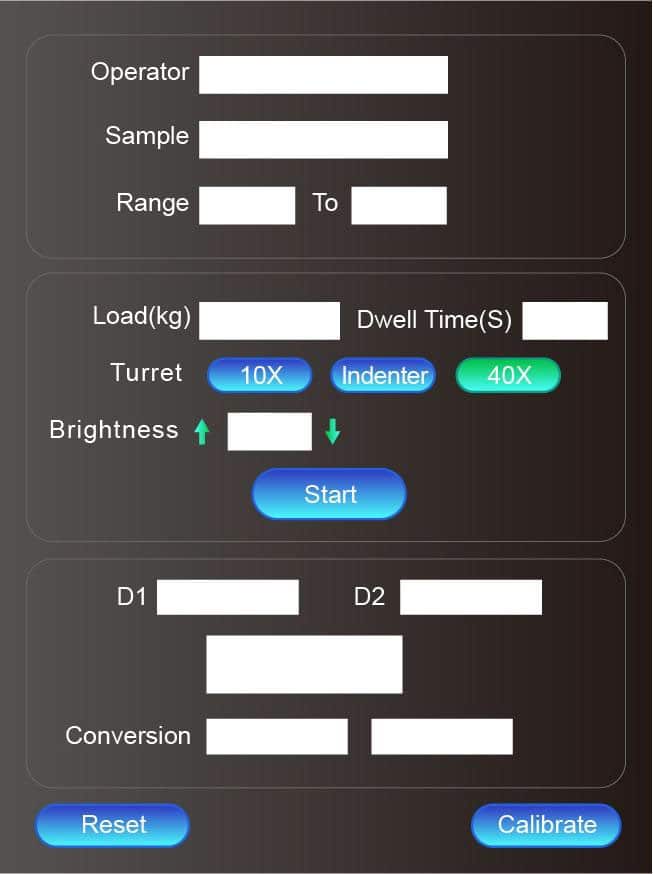

• 8’’Touch screen ,menu structure, and digital eye- piece with built-in encoder, by clicking encoder button, the diagonal length of indentation D1, D2 and hardness value automatically calculated.
• Optical cross guide rail guidance ensures guidance accuracy.
• High precision worm gear rod with high transmis- sion ratio ensure more precise force transmission and achieve stable continuous lifting.
• Rack and pinion force transmission realizes fast and stable force transmission.
• Equipped with dual optical path, one optical path for eyepiece system, another path for CCD camera, both path can working in same time.
• LED illumination for long service life and no need to replace the bulb. brightness of the light source can be adjusted infinitely.
• Test setting parameters is protected by password.

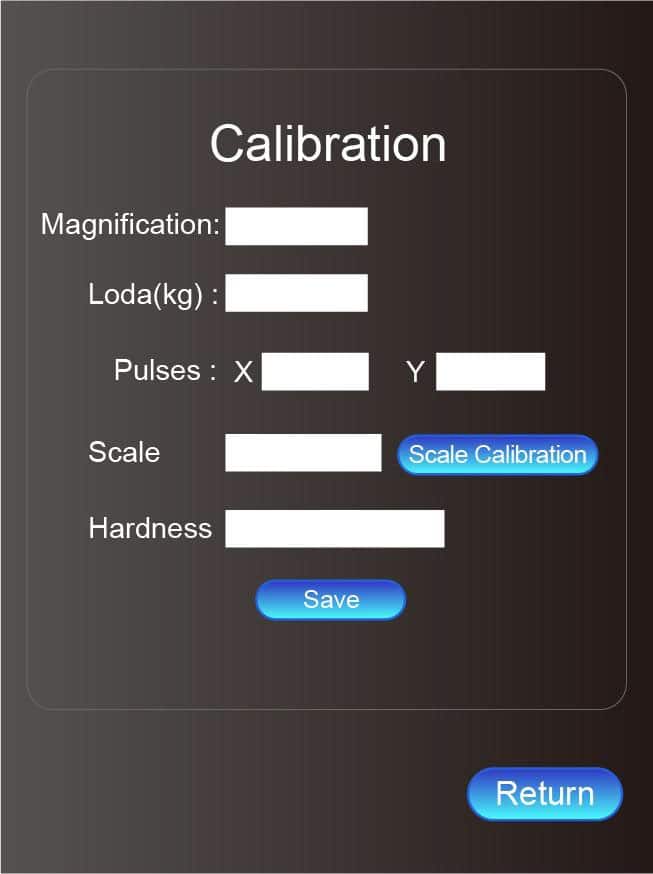

• It can be calibrated according to the standard hardness block or length scale to make hardness value more accurately.
• Eyepiece structure with digital encoder, and the touch screen directly displays the hardness value and D1 and D2 values.

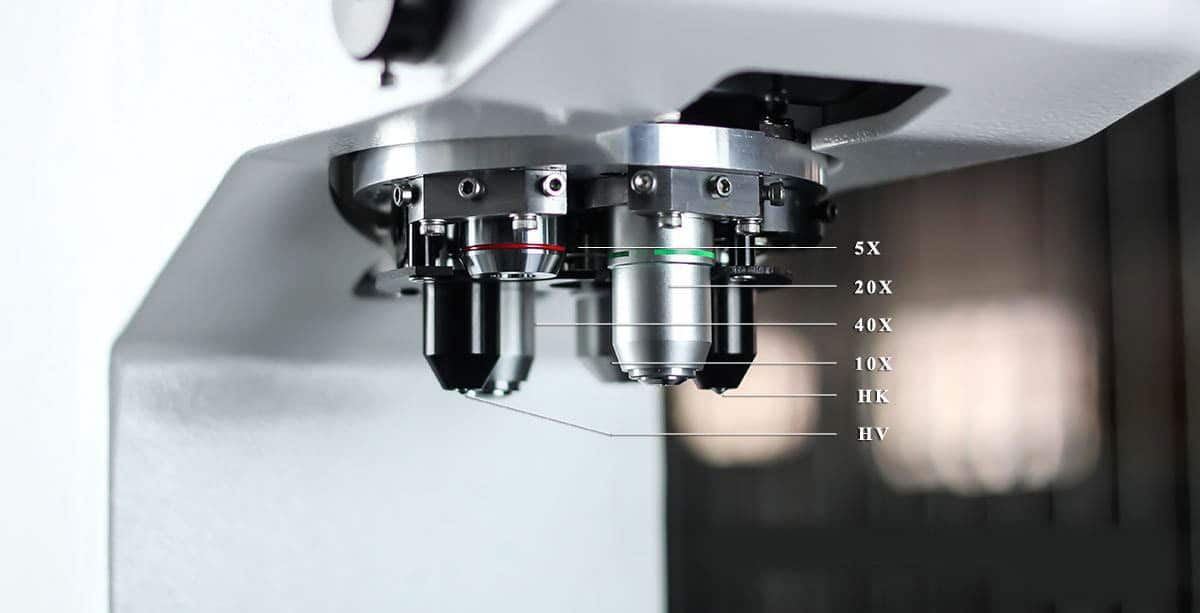

• Advanced machine with lens 5x/10x/20x/40x can used for measurement, suitable to test widely hard- ness range of materials from most soft to very hard.
• With hardness conversion function, from HV can convert to HRA, HRB, HRC, HBW, etc.
• With HV & HK Vickers and Knoop hardness testing capabilities.
• It can be equipped with a built-in camera (option- al)to make the image clearer.
• RS-232 interface connected to computer for data output, testing result can be saved in USB (optional) in EXCEL format. bulut-in mini-printer to print testing data.
• With micro vickers indentor smart cover to protect indenter collision by test sample or other parts.
• OK/NG judgement function.
• 1 micro vickers indentor,4 objective lens totally 5 position hardness testing machine is realized.
• English language operation as standard, other languages can be customized.
• Auto load selection by touch screen instead of manual loading selection which makes force change more smoothly.(optional)

Product Applications：

• Steel, nonferrous metals, tinsel, cemented carbide, sheet metal, metallographic struc- ture.Carburization, nitriding and decarburization layer, surface hardening layer, galva- nized coating, coating.Glass, chip and ceramic material.
