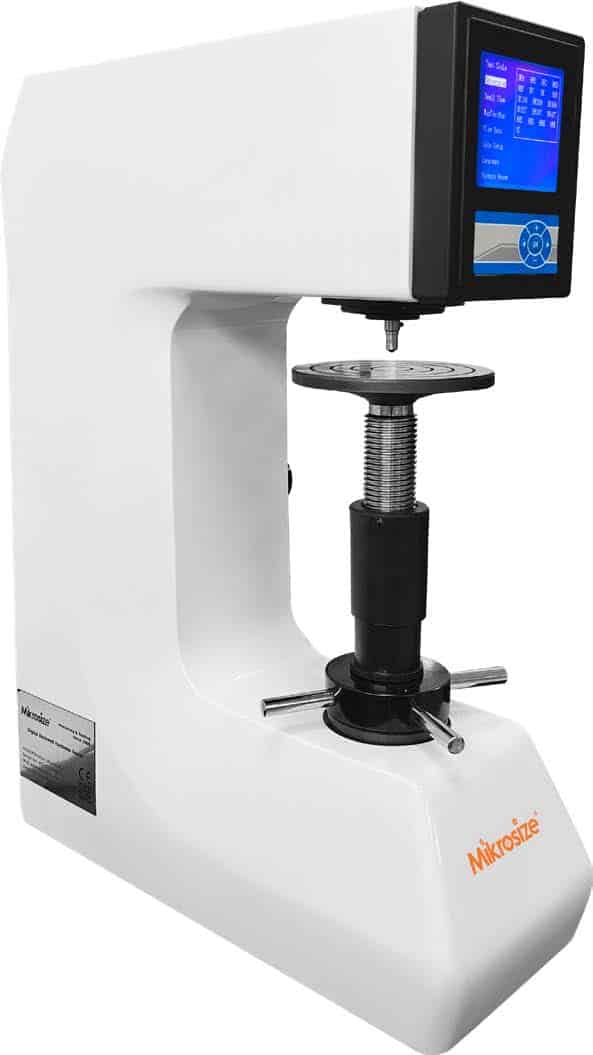

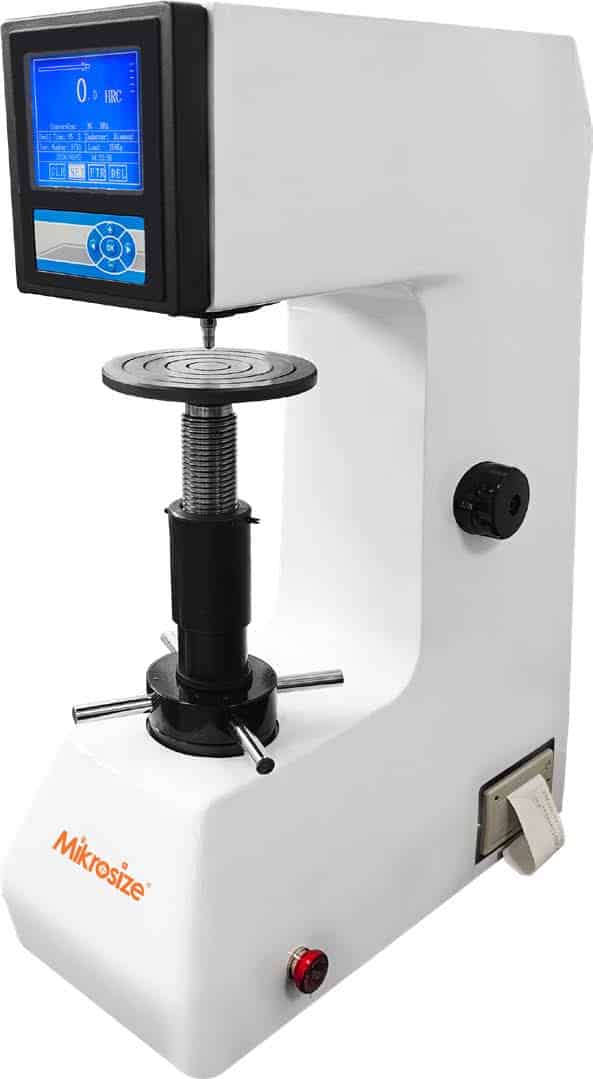

iRock-150WL Digital Rockwell Hardness Tester

Scan QR

×

Scan QR Code

https://mikrosize.com/product/irock-150wl-digital-rockwell-hardness-tester/

Product Features：

• Weighted force loading design ensures accurate test force
• Automatic test force loading, dwell & unloading

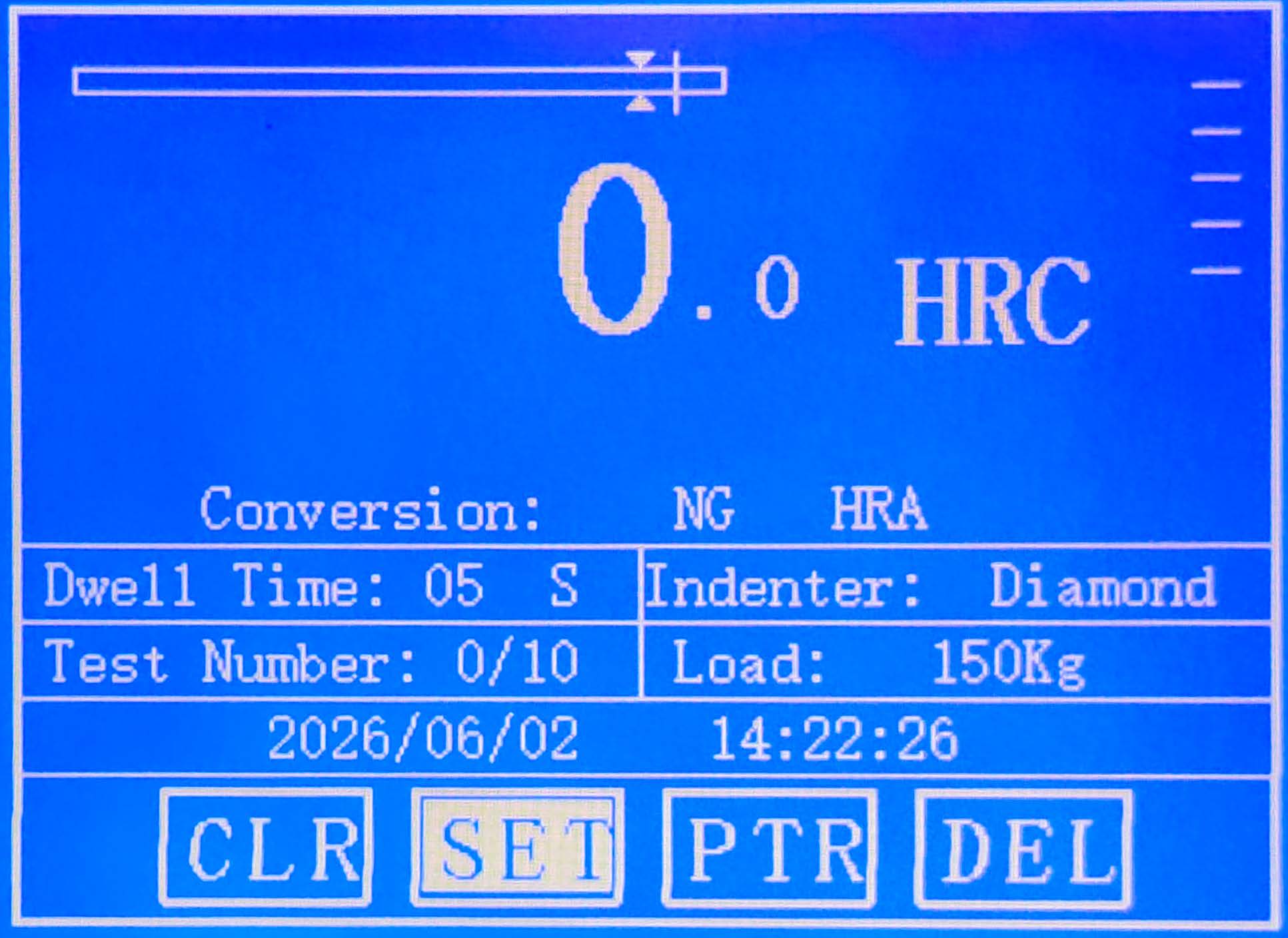

• Large digital display with key control

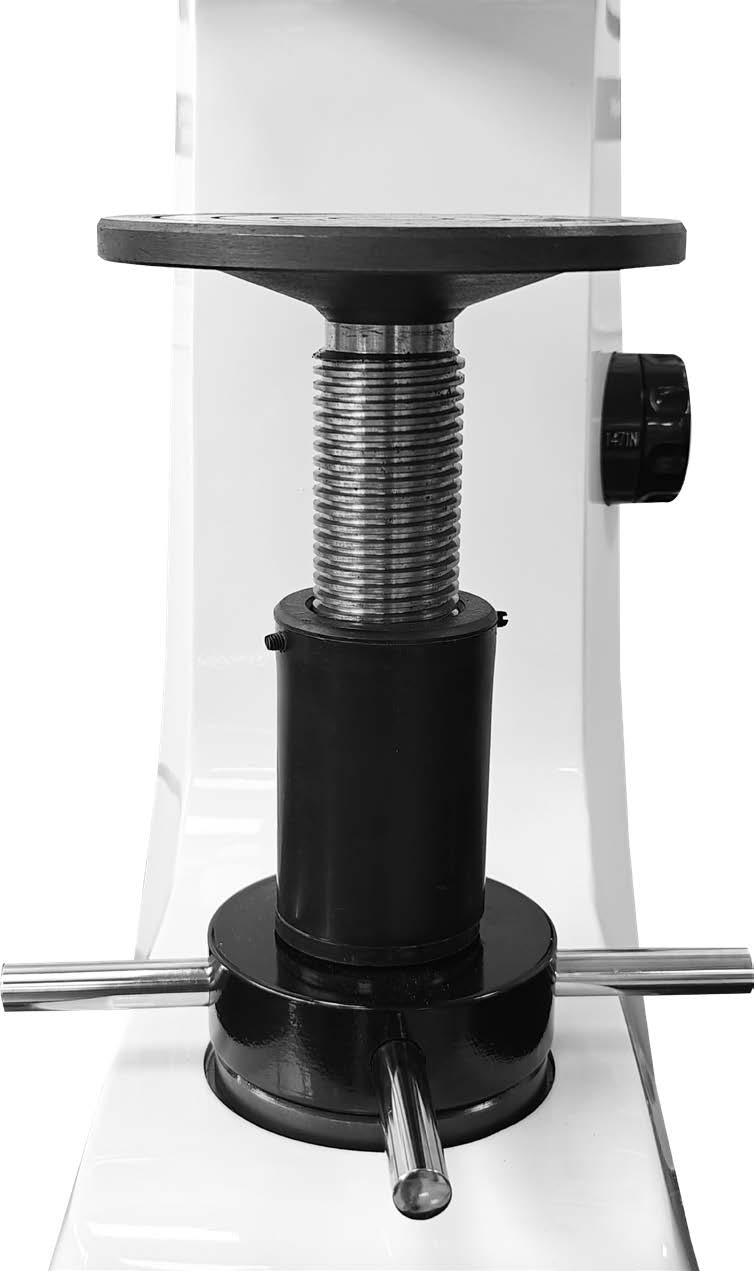

• The lifting column adopts a lead screw structure, delivering stable and smooth vertical travel.
• Built-in printer

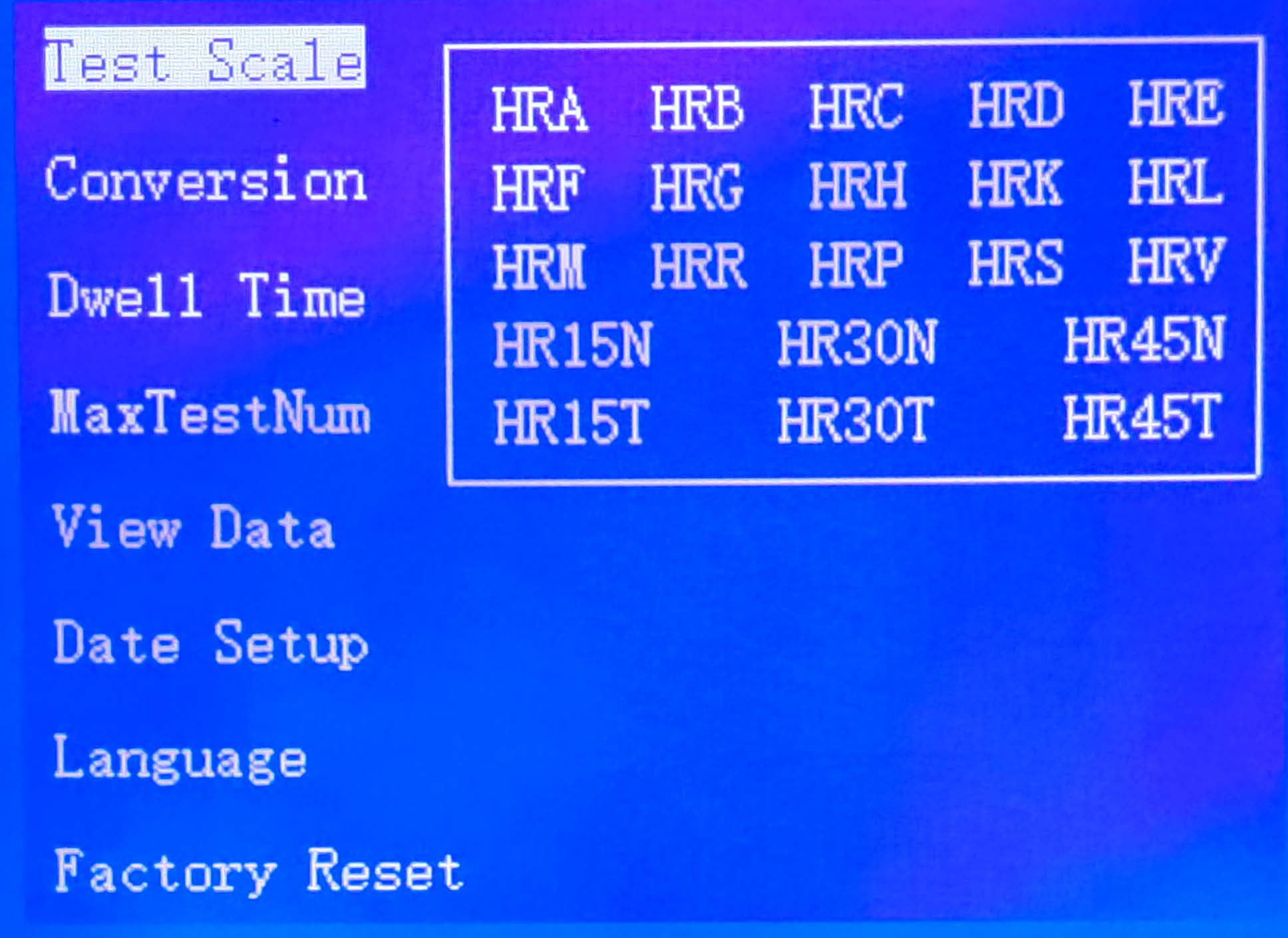

• Supports multiple Rockwell hardness scales with inter-scale conversion function

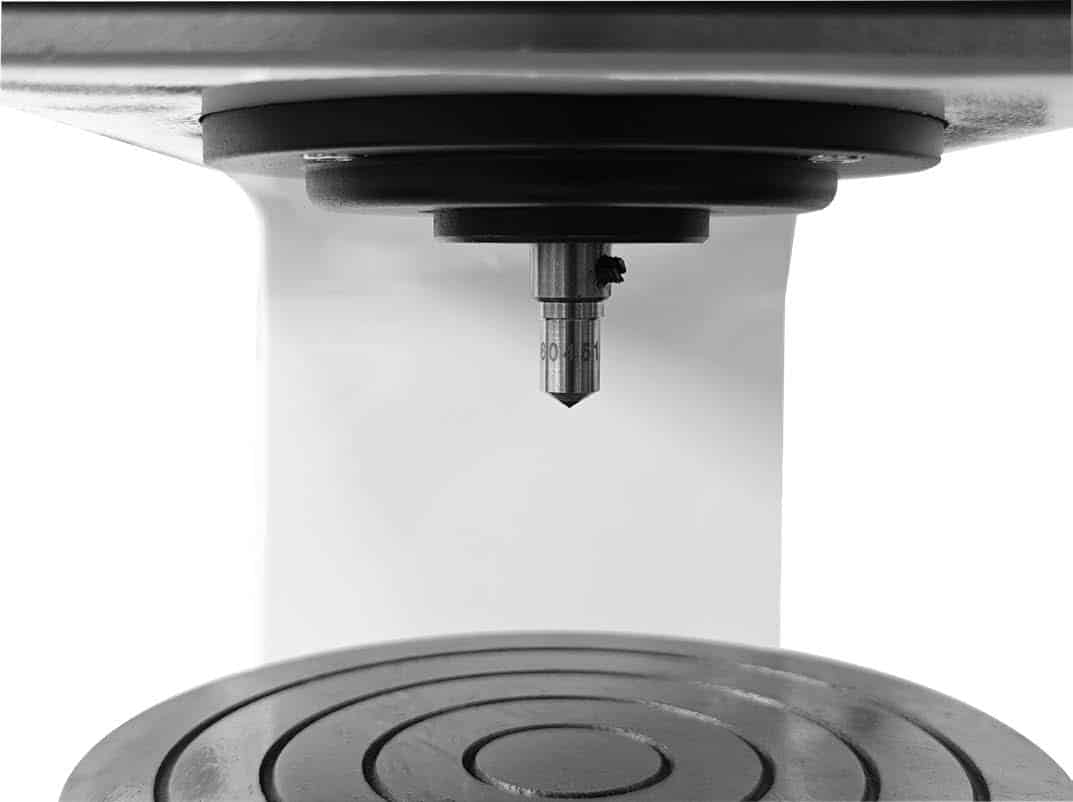

• Manual indenter replacement for easy disassembly
• Standard equipped with two indenters: Diamond Rockwell indenter & φ1.5875 mm ball indenter
• Hardness value resolution: 0.1 HR
• Adjustable dwell time ranging from 0 ~ 60 s
• Max specimen height: 210 mm; extended-height model available as option
• Distance from indenter center to machine frame wall: 165 mm
• Compliance Standards: ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2

Product Applications：

• Incoming inspection of metal materials

Used for hardness testing of raw materials including steel, cast iron, non-ferrous metals and alloys, to rapidly verify material compliance with production& procurement specifications.

• Quality control of heat-treated workpieces

Applicable to quenched, tempered, annealed, normalized and other heat-treated components; enables in-line hardness monitoring to guarantee workpieces meet strength and wear resistance requirements.

• Finished product delivery and sampling inspection

Conduct batch sampling and factory release testing on finished parts such as shafts, molds, gears, metal sheets and hardware components to guarantee consistent, qualified product performance.
