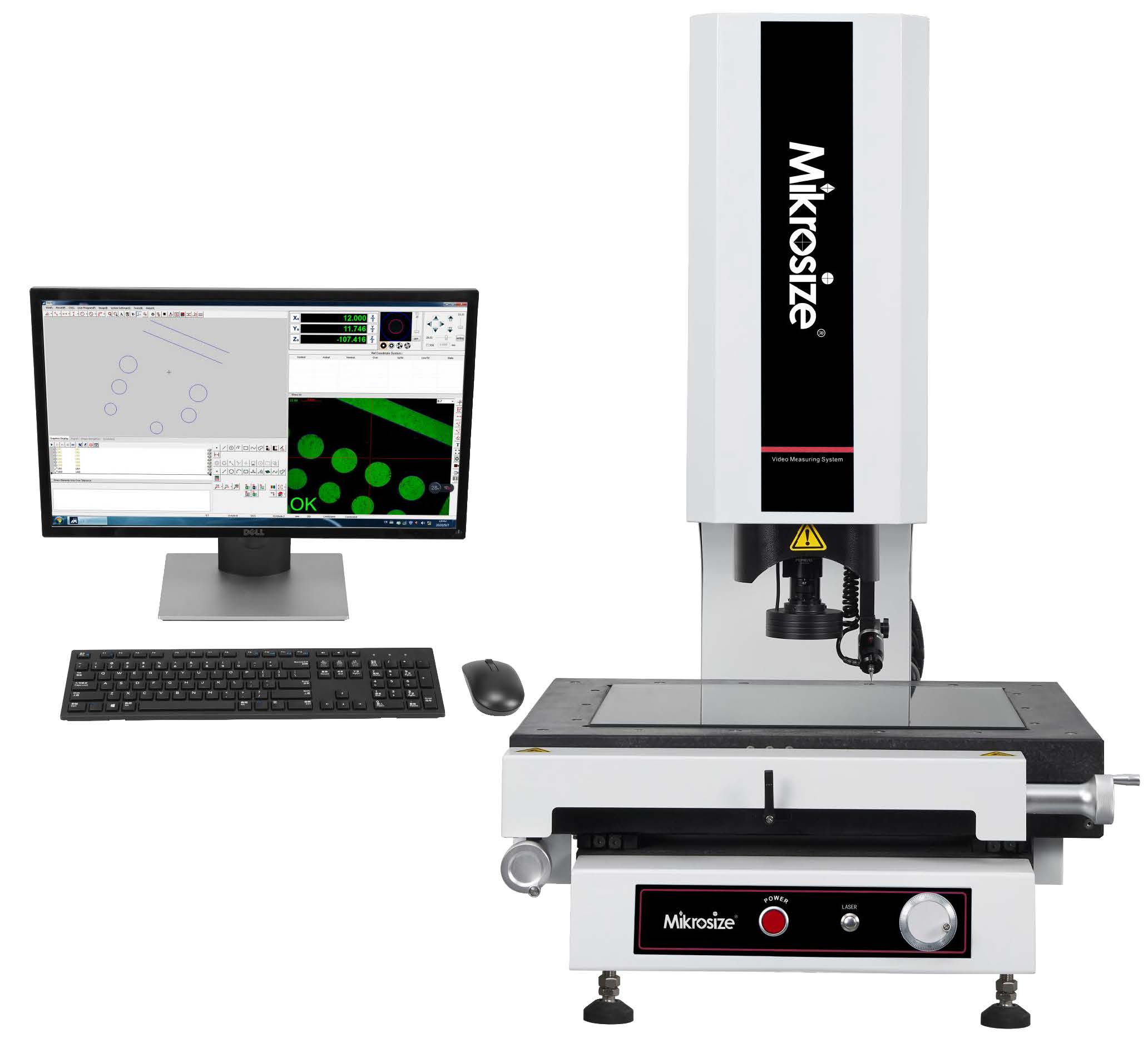

VMA-F Semi-Auto Video Measuring System
Scan QR
×
Scan QR Code
https://mikrosize.com/product/vma-f-semi-auto-video-measuring-system/

Video Demonstration

Product Features：

Z-axis Auto Focus.

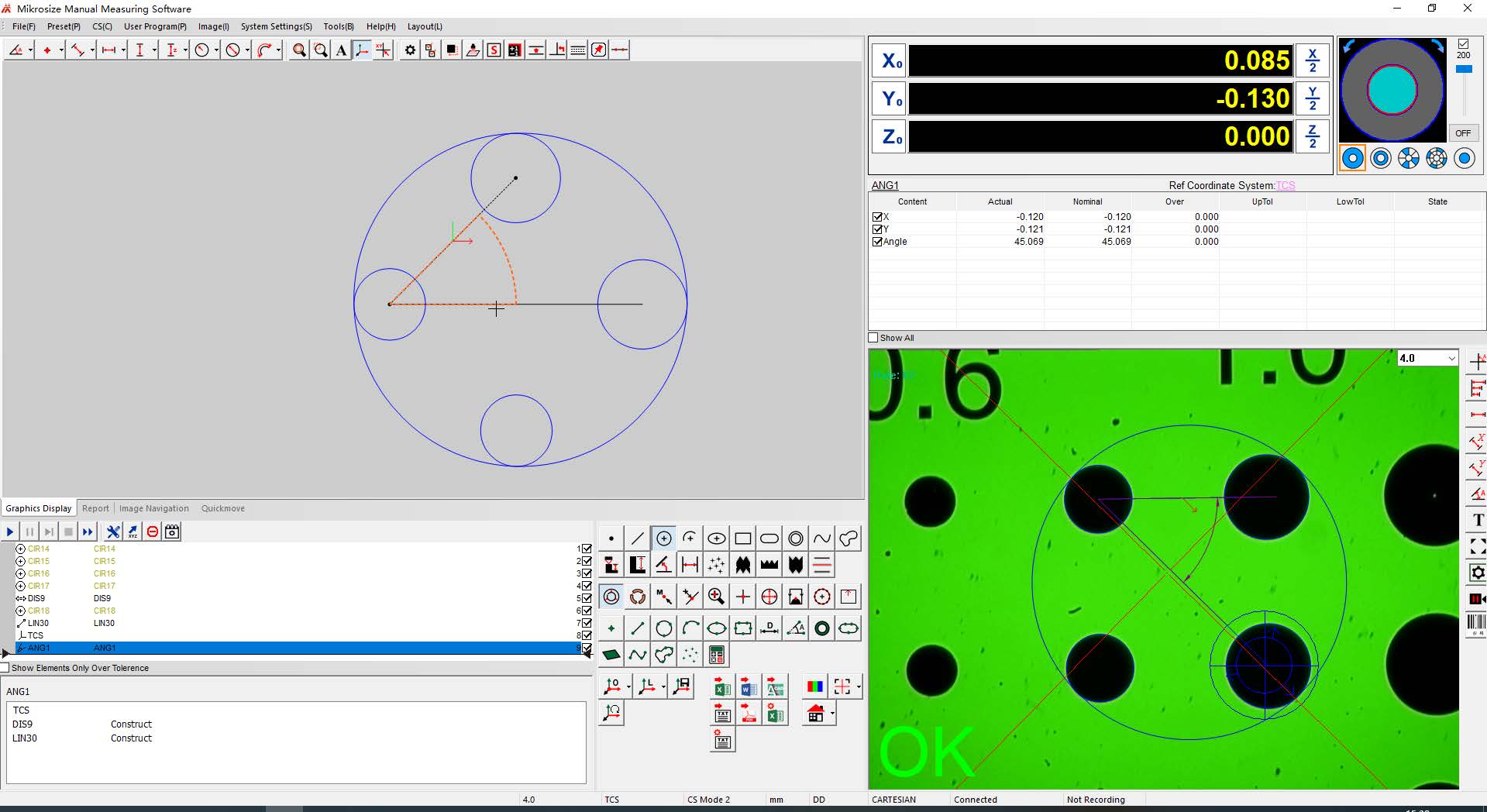

Powerful Measuring Software with auto tracing-edge function,multi-output report
Sub-pixel segmentation technology improves the ability of image boundary resolution.

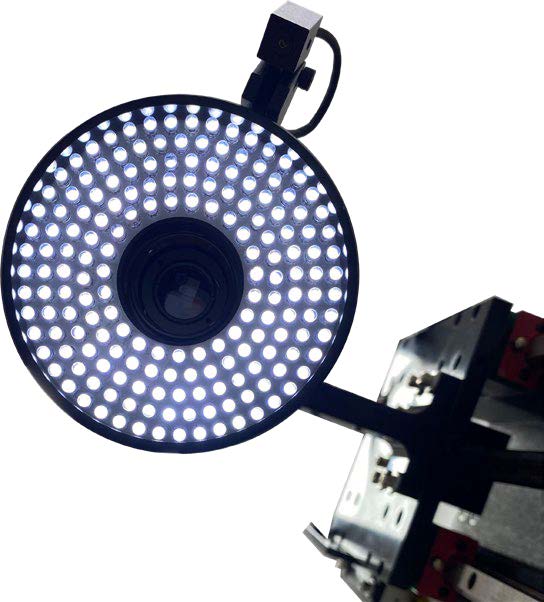

The surface cold light source can be used to measure the complex workpiece.

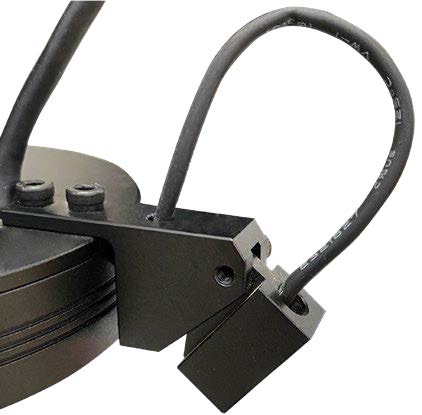

With laser pointer ,easy to find the specific location of the measured workpiece .
Stable Granite workbench with “00” Grade.
German Made High Precision Polish Rod and Bearing.
High Resolution Video System.

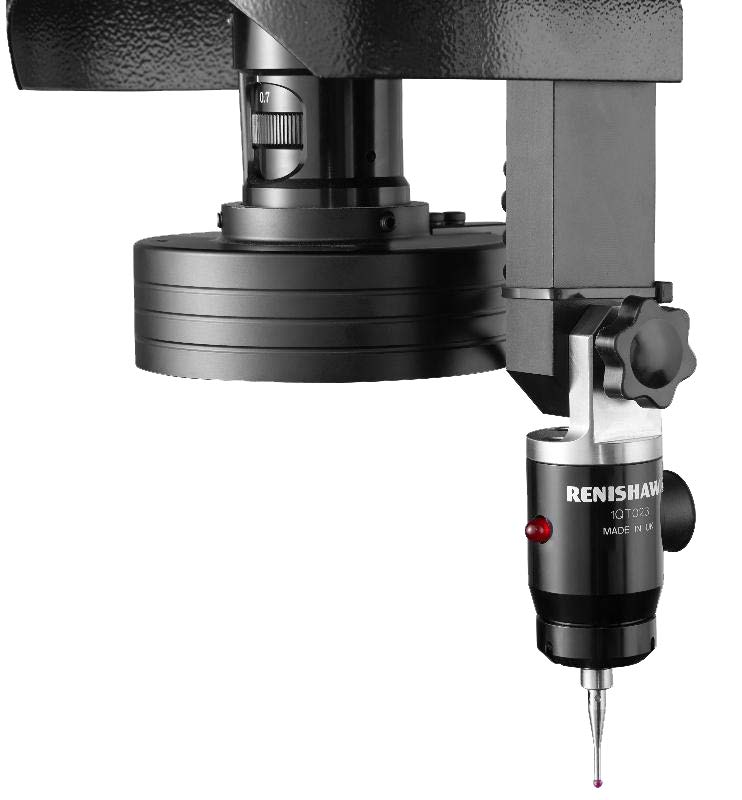

Renishaw Measuring Probe is optional for simple 3D purpose.

Product Applications：

It is widely used in machinery manufacturing, electronics, automobile, hardware, plastic, mold and other industries.
It can accurately measuring workpiece size,shape,position tolerance, so as to complete the tasks of components inspection, shape measurement, process control and so on.

Product Name	Manual Video Measuring System
2.5D Model	VMA-2010-F	VMA-3020-F	VMA-4030-F	VMA-5040-F
3D Model	VMA-2010-FP	VMA-3020-FP	VMA-4030-FP	VMA-5040-FP
X.Y-axis Travel Distance(mm)	200X100	300x200	400x300	500x400
Z-axis Travel Distance(mm)	200
Dimensions（mm）	600X500X920	750x520x980	1000x620x990	1100x950x1660
Net Weight(KG)	120	150	180	360
X,Y-axis Accuracy(µm)	2.5+L/100
Z-axis	Auto Focus
Loading Weight of Working Stage	25kg
Image Sensor	1/3’’Colorful CCD Camera
Objective Lens	Manual Position Zoom Lens
Video Total Magnification	Optic Zoom Lens:0.7~4.5x, Objective Lens:20~148x
Resolution	1µm
Working Distance(Standard)	92 mm
Object View	8.1mm～1.3mm
Movement System	X,Y-axis:Polish Rod, Z-axis:T-type Screw Rod
Data Processor	RS-100
Illumination	Surface:8-division LED Cold LightContour:Adjustable 256-grades LED Cold illumination
Measuring Software	Mikrosiz
Working Environment	Temperature: 20 ±2 , Temperature Variation<2 /hr, Humidity:30~80%Vibration<0.002g,15Hz
Power Source	AC 100~220V, 50/60HZ, 10A

Packing List

Mainframe/Dell PC System

RS-100 Data Processor

Linear Scale

Z axis High Precision Linear Guide Rail

Zoom Lens 0.7X—4.5X

1/3" CCD Camera

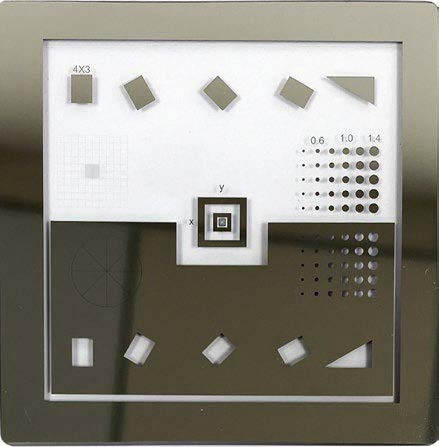

Calibration Block/Capture Card

100mm Length Block(3D)

LED Light Source

Microsize Measuring Software

Instruction Manual/Anti-dust Cover

Renihshaw Probe(3D)
