VMG CNC Automatic Video Measuring System

Scan QR

×

Scan QR Code

https://mikrosize.com/product/vmg-cnc-automatic-video-measuring-system/

Product Features：

• Moving gantry structure,measuring specimen fixed on stage.

• CNC fully auto close loop control, auto measurement.

• Precise “00” grade “JINANQING” marble base and pillar ensures corrosion resistant,and working stability.

• Automatic zoom lens with electronic position, easily to change magnification.

• CNC fully automatic precisely control X-Y-Z-axis movements.

• Linear scale, resolution is 0.5um, high accuracy, great stability.

• Precise linear guide, grinding ball screw and AC servo motor, ensure accuracy stability of system position.

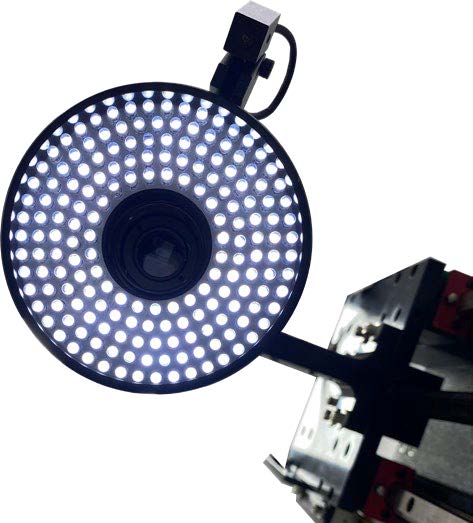

• Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumina- tion, can realize 256 grade brightness adjustment intelligently.

• Microsize measuring software, with fast focus, auto Edge finding, diverse reports output.

• SPC data analysis on line. Auto measuring can be set.

• High definition color industry camera, ensure clear observation and stable measurement requirement.

Product Applications：

• It is widely used in machinery manufacturing, electronics, automobile, hardware, plastic, mold and other industries.

• It can accurately measuring workpiece size,shape,position tolerance, so as to complete the tasks of components inspection, shape measurement, process control and so on.
