In modern microelectronic manufacturing and industrial quality control (QC), metallographic microscopes are essential tools for evaluating material microstructures and screening for micro-cracks and soldering defects. However, frontline technicians often face two major pain points in daily inspections: First, when switching to high-magnification objectives (such as 50X/100X) to observe micro-solder joints or multi-layer material interfaces, the optical throughput drops sharply, causing the image to turn dark and blurry. Constantly adjusting the light intensity manually is not only time-consuming but also causes visual fatigue and misjudgment due to sudden shifts between bright and dark fields. Second, frequent magnification changes and refocusing are cumbersome and lack automated parameter tracking, leading to low inspection efficiency across multiple batches.

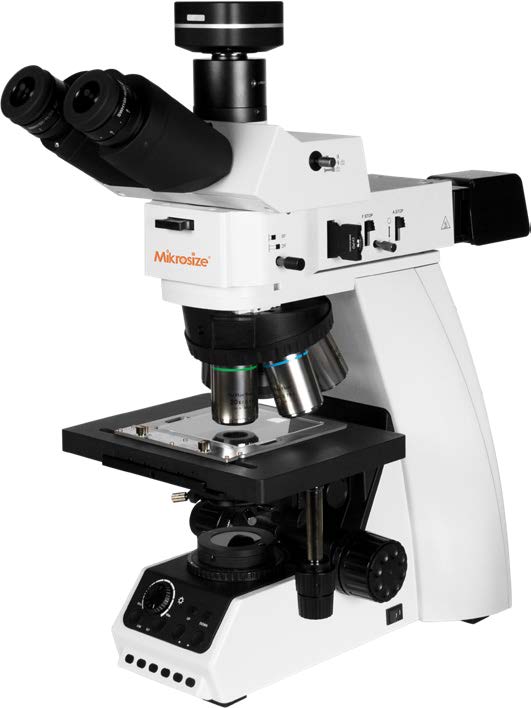

To address these pain points in industrial quality control and advanced R&D laboratories, Mikrosize has introduced the iMetal-850 R/TR Upright Metallographic Microscope. By deeply integrating intelligence with optical hardware and software, it delivers a breakthrough solution for precision industrial inspection.
1. Intelligent Light Intensity Management System: Overcoming Dim High-Magnification Fields and Repetitive Adjustments
In conventional metallographic microscope operations, when technicians switch from low magnification (e.g., 5X) to high magnification (e.g., 50X) to observe microscopic defects inside electronic components or metal grains, the optical throughput decreases geometrically, causing the screen image to darken instantly. Operators are forced to repeatedly adjust knobs to compensate for the light.
- Intelligent Light Intensity Adaptation: The Mikrosize iMetal-850 R/TR is equipped with an intelligent light intensity management system. When rotating the objective turret to change magnifications, the control circuit automatically recognizes and adjusts the light intensity to the optimal level in real time.
- High-Power 4500K LED Light Source: Powered by a high-power 4500K LED light source (CRI ≥95)—equivalent to a 100W halogen lamp—it features low heat generation and a 50,000-hour service life. It faithfully reproduces the true colors of metal structures and electronic packaging cross-sections under multi-scenario lighting, completely eliminating the “dark field” annoyance at high magnifications.
2. Encoded Objective Turret and Hardware-Software Integration: Eliminating Human Setup Errors
When dealing with large-batch, multi-batch inspections of internal structures and solder joint quality in electronic components, technicians need to record a massive amount of images and corresponding parameters across different magnifications. Traditional microscopes lack parameter linkage, making them highly susceptible to magnification recording errors, scale confusion, and other issues.

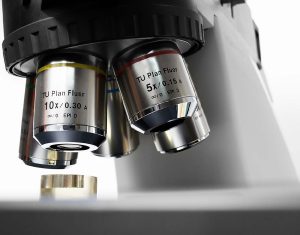

- 5-Hole Encoded Objective Turret (M32): The iMetal-850 R/TR features a hardware-and-software integrated encoded objective turret that automatically identifies the currently active objective magnification.
- Automatic Parameter Embedding into Images: The system directly records and synchronizes current core parameters—such as magnification—into captured image files. This not only significantly saves tedious manual recording time but also eliminates human setup and data entry errors from the source, ensuring high rigor and efficiency for industrial quality traceability and laboratory R&D reports.
3. High-Contrast Kohler Illumination and Beam-Splitting Prism Auxiliary Focusing (FA): Precisely Capturing Micron-Level Defects
Micro-defects on the surfaces of electronic components, high-reflectivity metallic materials, and polymer composites are often difficult to capture due to high reflectivity and low contrast.
- Beam-Splitting Prism Auxiliary Focusing (FA) & Inner Wall Anti-Reflective Coating: Utilizing a beam-splitting prism auxiliary focusing (FA) system paired with specialized internal light-absorbing coatings, the microscope effectively suppresses stray light and internal barrel reflections.

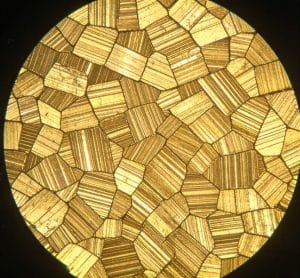

- Full-Field Kohler Illumination System: It supports multiple observation modes including brightfield, darkfield, and polarization. Paired with standard 5X–50X long-working-distance plan semi-apochromatic objectives (and an optional 100X dry objective delivering 390nm resolution), it delivers sharp-edged, high-contrast, and highly uniform metallographic images, even when inspecting highly reflective complex alloys or minute scratches and micro-cracks.
4. Robust Large-Travel Stage and Flexible Expansion: Accommodating Multi-Sized Industrial Samples
Industrial quality control is not limited to standard specimens; it frequently encounters components of varying sizes and irregular shapes.
- 100 × 100 mm Large-Travel Double-Layer Mechanical Stage: The iMetal-850 R/TR is equipped with a 4-inch (or 135 × 125 mm) double-layer mechanical stage with coaxial X and Y-axis adjustments for precise positioning.
- Transmitted/Reflected 2-in-1 Design: It not only satisfies reflection brightfield/darkfield metallographic analysis for metallic materials and electronic components, but also accommodates ore petrographic analysis, polymer micro-morphology research, and other multi-scenario requirements via an optional transmission system (featuring an Abbe condenser, NA=1.1), glass stage plate, and 360° rotatable polarizing device. This provides a robust platform compatibility for scientific research and industrial QC.
5.Conclusion
Addressing the industrial pain points of conventional equipment—such as dim high-magnification views, frequent light adjustments, error-prone parameters, and hard-to-detect micro-defects—the Mikrosize iMetal-850 R/TR Upright Metallographic Microscope achieves a leap from “tedious mechanical operation” to “efficient and precise intelligent inspection” through automatic light intensity adaptation, encoded parameter auto-recording, high-color-rendering 4500K LEDs, and a high-contrast optical system. It is the ideal choice for electronic packaging QC, metal material R&D, and industrial failure analysis laboratories seeking to enhance inspection throughput and accuracy.
