When running metallographic analysis, many lab technicians struggle with tricky metallographic specimen-preparation tasks. Small-dimension parts, irregular-shaped workpieces, ultra-thin foils, or edge-prone rough samples cannot go straight into grinding and polishing workflows — direct mechanical processing often destroys material microstructures and delivers misleading observation outcomes. This is exactly where a reliable metallographic mounting press becomes an indispensable piece of laboratory hardware.
By applying controlled heat and pressure, the mounting press fully encapsulates or embeds raw specimens inside resin media. It converts odd-size small components into standardized round or square sample blocks, simplifying downstream grinding, polishing and microscopic inspection. The value of metallographic mounting goes far beyond merely holding samples in place.
Core Working Principles of Metallographic Mounting
The primary purpose of metallographic mounting is specimen fixation and geometry standardization.
- Hot compression mounting: Suited for most metallic materials. Under designated thermal conditions, thermosetting resin melts and infiltrates micro-pores across specimen surfaces; after cooling, it forms one solid integrated block. Hot-mounted specimens deliver outstanding edge retention, without edge collapse or rounded corners induced during abrasive processing.
- Cold mounting: Reserved for thermally sensitive specimens, such as specific alloy grades, functional coatings and micro-electronic components that risk phase transformation under elevated temperatures. Room-temperature epoxy resin completes curing without heat input.
- Vacuum-assisted mounting: Optimized for porous workpieces and complex-geometry assemblies. Vacuum pumping drives full resin penetration into internal voids, eliminating air-bubble artefacts that distort microscopy findings.
In day-to-day laboratory operations, metallographic mounting presses resolve three major pain-points in sample handling: gripping difficulties for miniature specimens, uneven grinding caused by irregular contours, and edge damage that skews material evaluation results. For instance, a 5-mm-diameter gear fragment or a 0.5-mm-thick coating coupon cannot be clamped for grinding without prior encapsulation. For cast-aluminum parts containing internal porosity, unmounted grinding frequently collapses sample edges and creates false-defect illusions. Proper mounting eliminates such edge-related errors and guarantees authentic, repeatable analytical data.
How To Select a Suitable Metallographic Mounting Press
Your mounting-press selection must match specimen categories and lab testing objectives. Hot compression mounting equipment delivers fast cycle speeds and high throughput, making it a mainstream choice for batch testing of ordinary metallic samples in quality-control labs. Cold-mounting setups operate at lower processing speeds yet represent the only viable option for heat-sensitive materials; resin formulations need adjusting to match unique specimen properties. Vacuum-assisted mounting hardware carries higher price tags yet handles sophisticated parts including powder-metallurgy components and multi-phase ceramic composites. Premium programmable mounting units support custom set-points for temperature, pressure and dwell time, enhancing test-data reproducibility for high-requirement research scenarios.
Consumable resin selection also matters critically. Phenolic resin ranks as the most widely used option with low cost and balanced hardness for general-purpose metal testing. Epoxy resin offers superior transparency plus low shrinkage performance, ideal for cold mounting and precision specimens. Polypropylene-based mounting compounds apply to specialty polymer and rubber samples. Mismatched resin-specimen combinations trigger common troubles such as poor encapsulation adhesion, darkened specimen edges and resin interference during microstructure viewing.

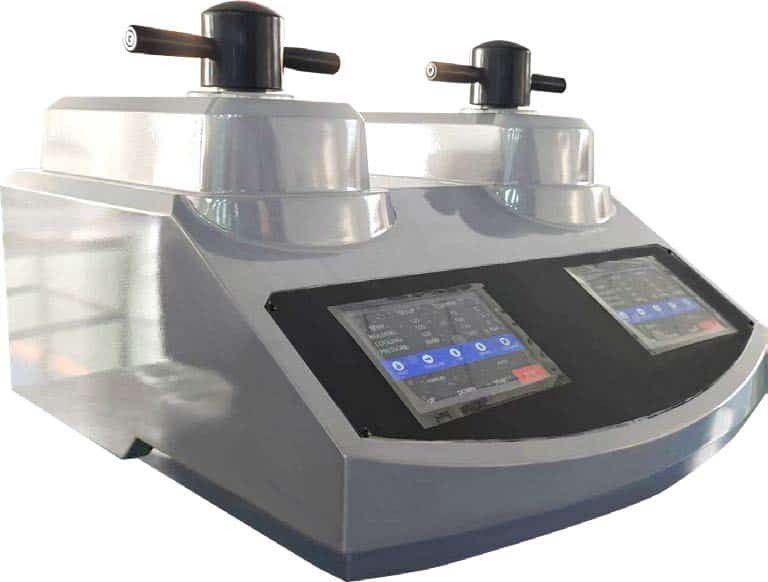

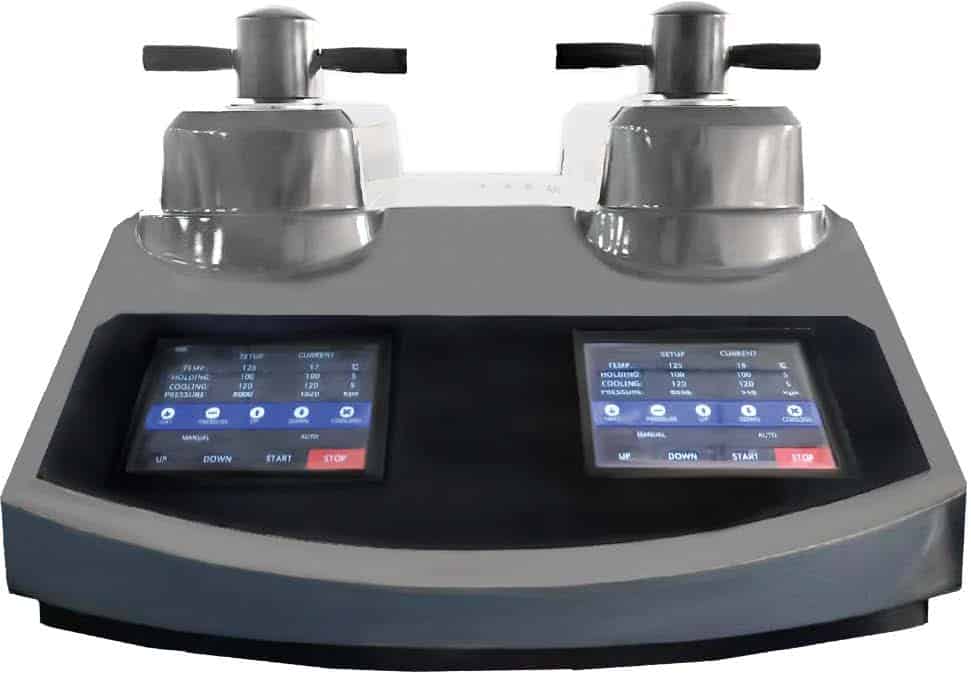

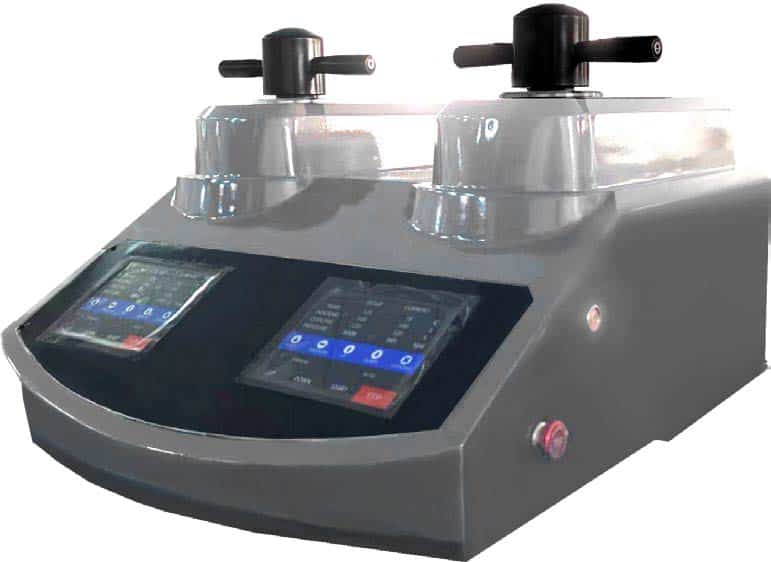

Product Spotlight: iPress-2HA/4HA Auto Metallographic Mounting Press (Hydraulic Pressure)
For laboratories seeking dependable multi-function mounting capacity, the iPress-2HA/4HA Auto Metallographic Mounting Press (Hydraulic Pressure) brings comprehensive automation for modern metallographic sample encapsulation.
- Multi-function mounting capability powered by hydraulic control. Specially engineered cylinder hardware realizes automatic heating, automatic pressurization, post-forming automatic cooling and auto-shutdown.
- User-friendly workflow: a full mounting cycle finishes within approximately 5 minutes (transparent acrylic resin excluded).
- Switchable Chinese-English operating interfaces for global-lab usability.

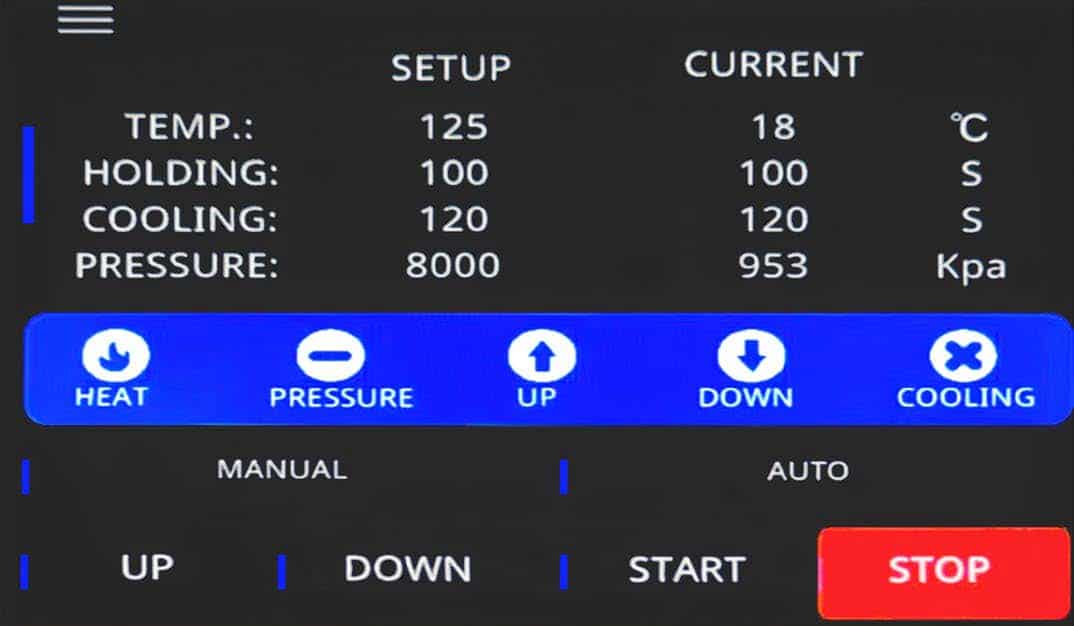

- Fully adjustable and real-time displayed working parameters.
- Built-in memory stores up to 10 groups of process recipes; live readouts show temperature, hold-time and pressure during full operation cycles.
- Water-cooling mechanism delivers stable thermal dissipation.
Typical Product Application Scenarios
- Material science: Raw material coupons get transformed into standard-dimension test blocks for mechanical-property measurement and microstructure observation experiments.
- Metallurgy industry: During metal-material manufacturing and performance assessment, metallic workpieces are made into microscopy-ready specimens to support metallographic analysis and SEM observation, enabling characterization of material microstructures and element distribution mapping.
- Geology and mineral resources: Mineral specimens are processed into observation-grade test blocks, supporting mineralogy studies and deposit investigation to identify and assess ores and minerals in mineral-exploration-and-development workflows.
Whether you run failure-analysis projects, incoming-material QC, university-lab research or mineral-sample characterization, picking the right automatic hydraulic metallographic mounting press directly lifts your entire specimen-preparation efficiency. If you are shopping for robust, repeatable metallographic sample-preparation instruments, explore professional lab-testing hardware solutions from Mikrosize, covering mounting, grinding-polishing and related metallography equipment to satisfy your complete material-analysis workflow demands.
