1.Introduction: Why Digital Microscopy is Revolutionizing Numismatics
For coin collectors, numismatists, and coin grading professionals, the difference between a common variety and a high-value rarity often lies at the micron level. Traditional magnifying glasses and standard stereo microscopes often fall short when capturing fine surface details, dealing with coin luster reflections, or documenting error coins for digital archives.

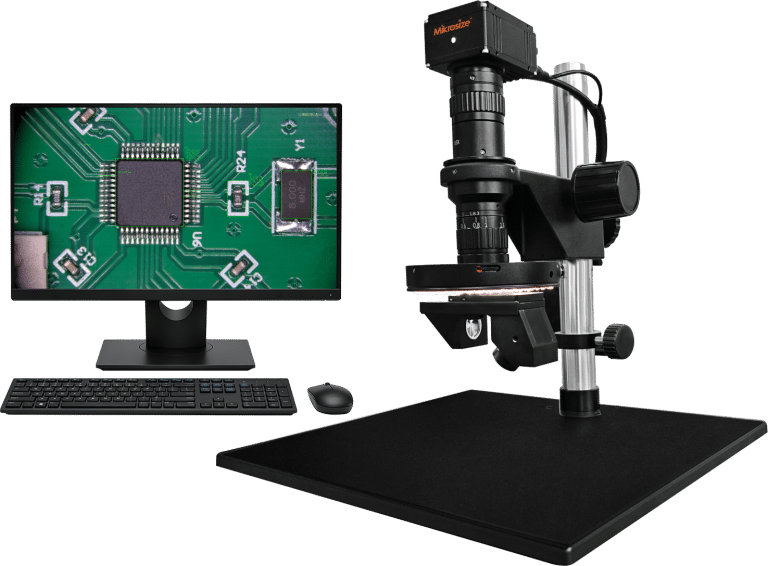

Engineered by Mikrosize, the iVideo-0325 3D Video Microscope bridges this gap. Combining ultra-sharp 4K resolution, innovative 360-degree 3D rotational viewing, and 0.01μm precision measurement tools, this advanced optical system is built specifically for high-accuracy numismatic analysis, authentication, and defect detection.
2.Key Technical Specifications of the iVideo-0325 by Mikrosize
To evaluate coin mint marks, strike errors, and wear grades accurately, your inspection equipment must deliver exceptional optical clarity and measurement precision. The Mikrosize iVideo-0325 features:
- Optical Zoom: 0.6–5.0X continuous zoom lens for seamless transitions from an overview of an entire coin to microscopic details.
- Observation Modes: One-click switching between 2D flat imaging and 3D rotational mode, allowing a 360° all-round perspective of coin rims, lettering, and relief structures.
- Imaging Performance: Equipped with a 4K Ultra HD camera (maximum resolution: $3840 \times 2160$), delivering crystal-clear, delicate imagery without motion lag.
- Lighting Control: Four-zone light source with an independent controller and adjustable brightness to eliminate glare on reflective metallic surfaces (gold, silver, copper) and minimize shadow interference.
- Precision Measurement: Integrates 18 measurement tools (length, angle, area, etc.) with a remarkable 0.01μm measurement accuracy for verifying dimensions on counterfeit detections or mint errors.
- Connectivity & Operation: Dual HDMI (direct-to-monitor) and USB3.0 (PC connection) outputs, supporting mouse operation, snapshot capture, video recording, and split-screen comparison.
- Stability: Large 330×300 mm (12.99×11.81 inches) base plate ensuring rock-solid stability during high-magnification inspections.
3.Applications in Coin Collecting and Numismatic Grading
- 360° All-Round Inspection of Coin Reliefs and Rims
Coins are three-dimensional objects. Traditional microscopes only offer a top-down (2D) view, making it difficult to inspect the steep edges of deep letters, mint marks, or edge lettering (reeding).
The Mikrosize Advantage: The system’s 3D mode with 360° rotation allows collectors to tilt and view the sides of design elements, making it effortless to spot altered dates, tool marks, and cast counterfeits without manually tilting the coin itself.
- Detecting Mint Errors, Die Cracks, and Doubled Dies
Valuable error coins—such as doubled die obverses, repunched mint marks (RPM), and die cracks—require high magnification and acute clarity.
The Mikrosize Advantage: The 4K resolution combined with flexible four-zone lighting reveals the microscopic metal flow lines of a genuine strike versus the flat, smooth surfaces typical of counterfeit casts or modern alterations.
- Surface Wear and Grade Verification (AU to Mint State)
Grading coins relies heavily on examining high points for wear, friction marks, and bag marks.
The Mikrosize Advantage: Adjustable multi-zone lighting allows you to play with angles of illumination, highlighting subtle breaks in original mint luster that naked eyes or basic magnifiers miss.
- Comparative Analysis and Documentation for Collections
Whether you run a coin shop, a certification service, or maintain a personal catalog, recording provenance and condition is vital.
The Mikrosize Advantage: Supports four-split screen comparisons and image overlapping. You can compare a client’s coin in real-time against a certified reference image from your database to verify authenticity and consistency instantly.
4.Summary: Elevating Numismatic Standards
For serious numismatists, coin shops, and grading laboratories, moving to a digital 4K platform transforms how coins are authenticated and archived. Backed by Mikrosize, the iVideo-0325 3D Video Microscope provides the precise optical tools, glare-reduction lighting, and 360-degree perspective necessary to master modern coin inspection.
