How to Choose the Right Automatic Metallographic Cutting Machine: 3 Classic Models for Different Lab Demands
In material testing and metallographic analysis, sample cutting is the initial and decisive procedure that directly determines whether microstructure observation, defect inspection and failure analysis can obtain accurate results. Unsuitable cutting equipment will cause thermal damage, uneven sections and inconsistent sampling, leading to invalid test data. Mikrosize has launched three mainstream metallographic cutting machines covering fully automatic precision processing, compact precision cutting and cost-effective manual cutting, matching laboratories of different scales, production volumes and testing requirements. This article sorts out core features, applicable scenarios and selection suggestions of each model to help users pick targeted equipment.

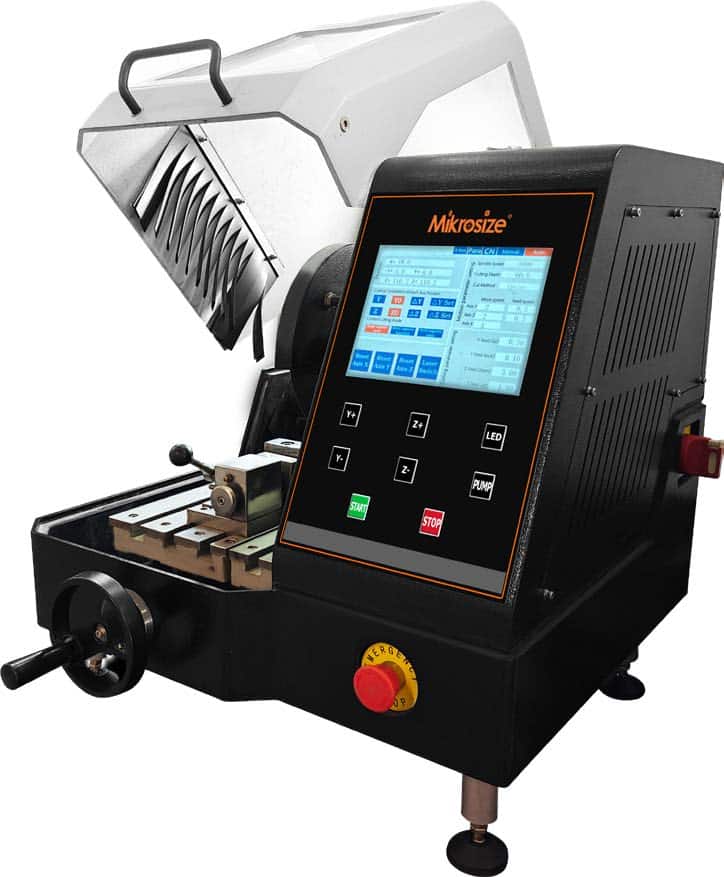

1.AutoCut-250 Auto/Manual Dual-Purpose Automatic Cutting Machine: All-Rounder for High-Volume Standard Labs
- Core Product Advantages
- As a high-power servo-driven automatic cutting model, AutoCut-250 supports both desktop and floor-standing installation to fit small labs and industrial mass inspection workshops.
Full-axis intelligent feeding: Y/Z axes auto feed, X axis optional manual/automatic operation; equipped with resistance sensing system, which automatically slows down feed speed when encountering hard materials and restores preset speed after resistance disappears to avoid sample burning and wheel abrasion. - Powerful adjustable power system: High-torque servo motor with 500–3000 rpm stepless spindle speed, compatible with 10-inch abrasive cutting wheels, maximum cutting diameter up to 90.5 mm; multiple cutting modes including vertical, horizontal and pulse feed for irregular castings, bars and pipes.
- Complete safety and auxiliary configuration: 8-inch HD touchscreen with physical buttons for easy parameter setting; Schneider low-voltage electrical control, electronic brake and door safety limit switch. Built-in LED lamp and large transparent observation window enable real-time monitoring. The whole machine adopts 304 stainless steel housing and cast aluminum base, equipped with bilateral quick-release stainless steel clamps, optional laser positioning to improve cutting dimensional accuracy.
- Independent circulating cooling system: Movable large-capacity water tank and separate high-pressure flushing nozzle continuously cool cutting surfaces and wash away metal chips, effectively eliminating heat-affected zones. It complies with ASTM E3-11, ISO 643 and GB/T 13298 global metallographic testing standards.
- Main Application Scenarios Suitable for comprehensive material testing in factories, universities and third-party laboratories. It completes sampling of steel profiles, weld cross-sections, battery parts and plating layers, supporting grain size measurement, internal defect detection and batch failure analysis of mechanical components.
2.iCut-40P Precision Metallographic Cutting Machine: Compact High-Precision Equipment for Fine Processing
- Core Product Advantages
- This compact precision model focuses on high dimensional consistency and easy operation, designed for labs with small sample sizes and strict precision standards.
- Stable precision cutting performance: High positioning accuracy and wide adjustable spindle speed, preset fixed feed speed to ensure uniform cutting flatness of all samples; built-in circulating cooling system avoids thermal deformation of tiny specimens.

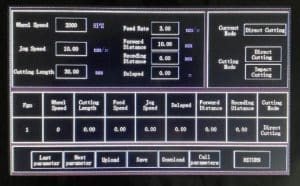

- Simple human-machine interaction: Integrated touch control display realizes one-click parameter setting; fully enclosed cutting bin with large transparent protective cover and safety interlock switch to prevent splashing debris and coolant leakage.
- Main Application Scenarios
- It breaks the single metal testing limitation of traditional metallographic cutters and expands to multi-industry fine processing. In manufacturing, it cuts flat mechanical parts with strict dimensional tolerance; in architectural model production, it realizes precise proportional cutting of model raw materials; in the medical industry, it processes blanks of delicate surgical instruments requiring flawless cutting surfaces.

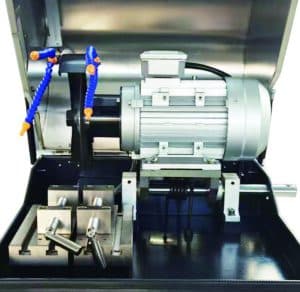

3.iCut-80M & iCut-100M Manual Abrasive Cutting Machine: Cost-Effective Basic Equipment for Routine Quality Control
- Core Product Advantages Economical manual cutting equipment, ideal for small factories and workshops with low daily sampling volume.
- Durable and easy maintenance: All stainless steel shell with internal LED lighting and large observation window, every corner of the cutting chamber is clearly visible during operation.
- Optimized cutting and cooling design: Wear-resistant abrasive cutting discs deliver neat cutting edges; multi-angle adjustable cooling nozzles fully cover the cutting contact point to reduce high-temperature damage. Double-sided quick clamps firmly fix round pipes, sheets and irregular metal samples without offset during cutting.
- Main Application Scenarios Mainly used for routine cutting of iron pipes, aluminum alloys and various metal raw materials in metal processing workshops. It supports daily metallographic sample preparation for mechanical part quality inspection, and can accurately intercept fracture source sections for product failure analysis, providing reliable samples for engineers to optimize material formulas and product structures.
4.How to Select Suitable Metallographic Cutting Machine?
- Choose AutoCut-250 if you have large batch testing, diverse sample sizes, need automatic programming and unified national/international standard testing.
- Choose iCut-40P if you focus on tiny precision parts, cross-industry processing and limited laboratory space.
- Choose iCut-80M/iCut-100M if you only conduct small-volume routine metal inspection and pursue cost control.
5.Conclusion
Sample cutting is the foundation of credible metallographic testing. Mikrosize’s three cutting machines cover full demands from high-end automatic batch processing, multi-industry precision fine cutting to basic manual daily inspection. Matching equipment based on sample size, material hardness, daily output and testing industry can effectively avoid thermal damage, uneven cutting and inconsistent sampling, laying a solid foundation for subsequent grinding, polishing and microscopic microstructure analysis.
