AutoCut-250 Auto/Manual Metallographic Cutting Machine

Scan QR

×

Scan QR Code

https://mikrosize.com/product/autocut-250-auto-manual-metallographic-cutting-machine/

Product Features：

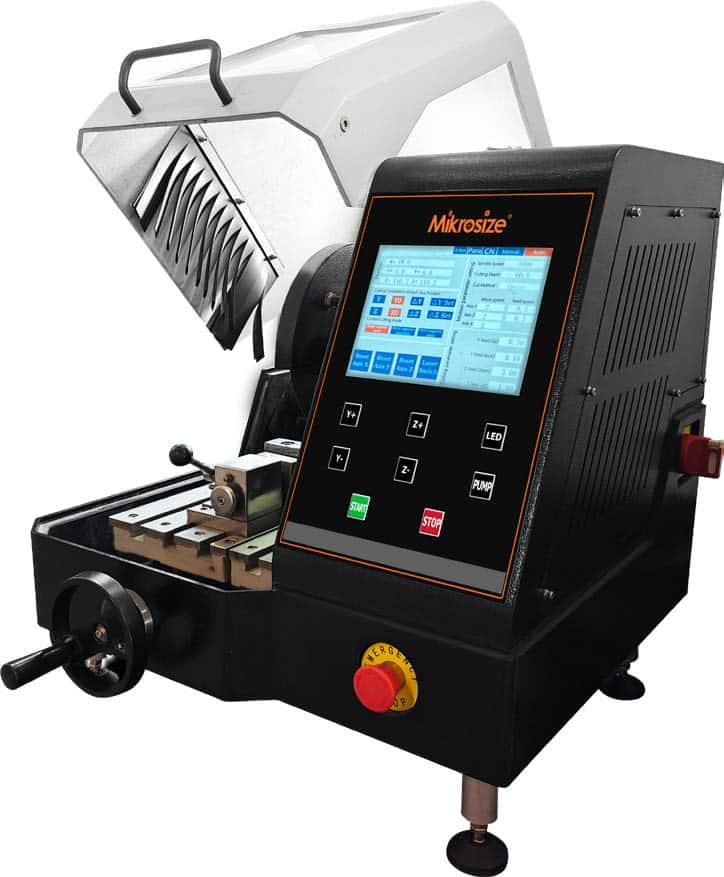

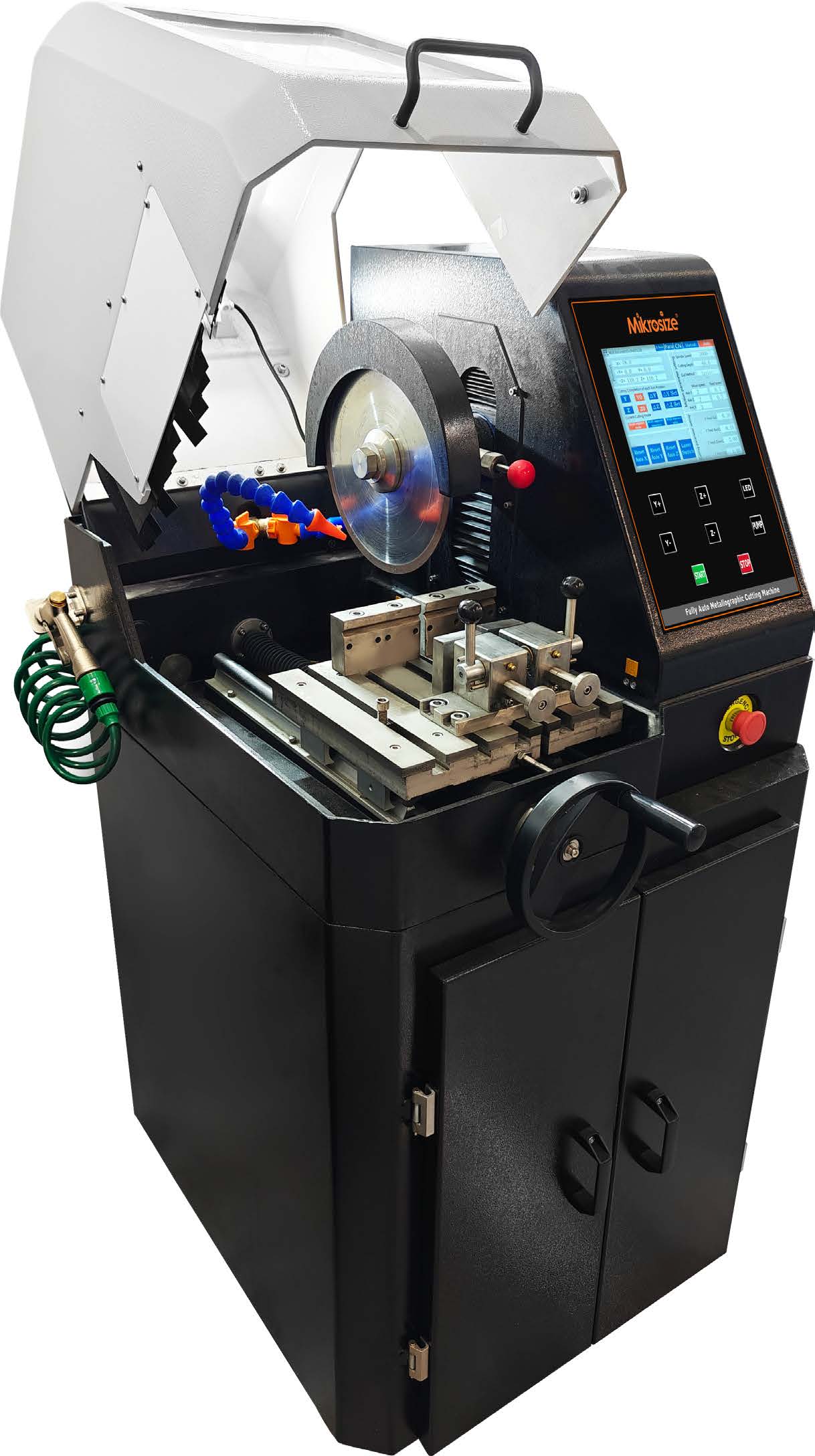

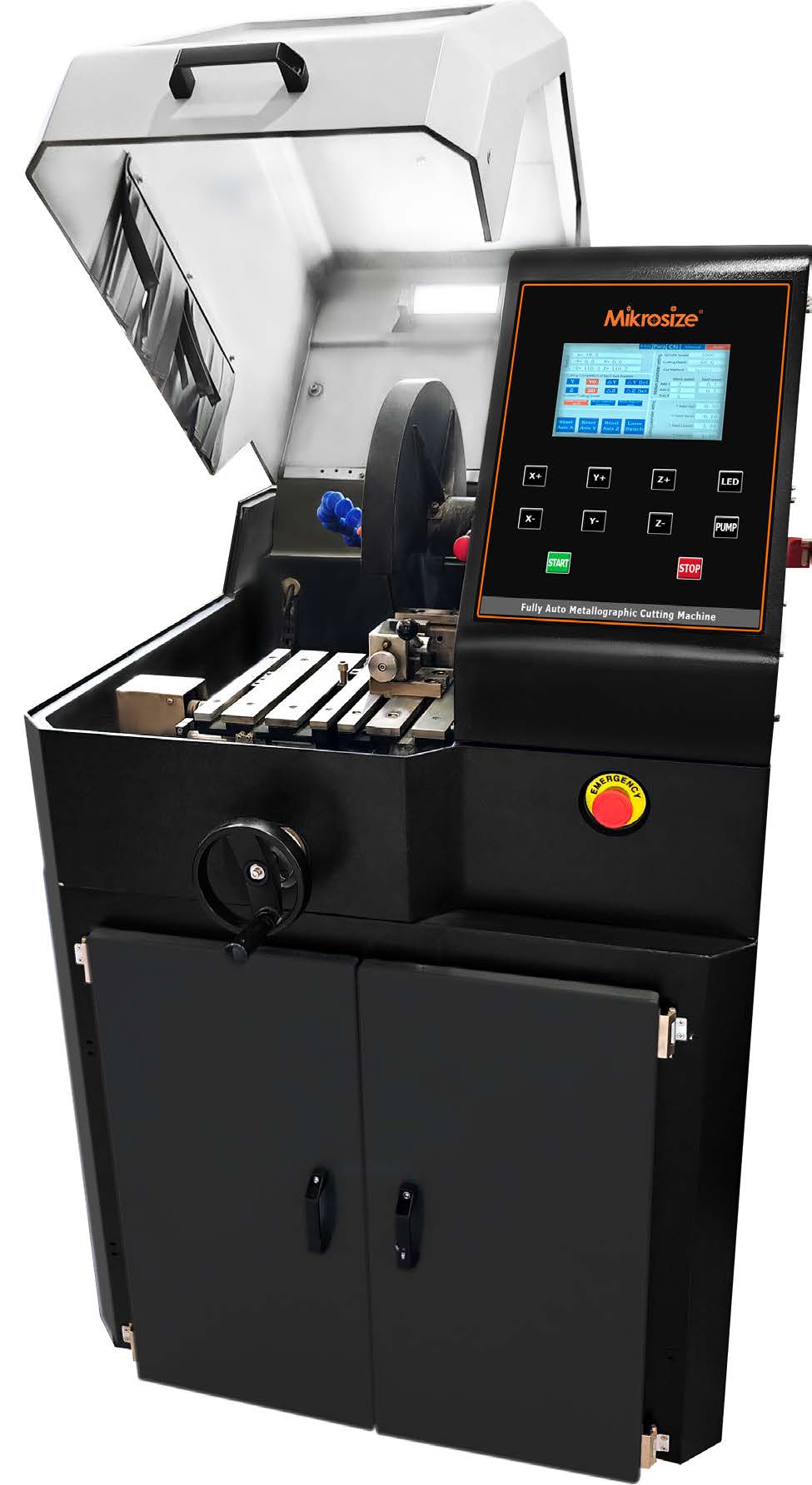

• Desktop and floor-standing Model
• Y/Z-axis auto feeding, X-axis manual or auto feeding
• Equipped with a high-torque, high-power servo motor and a continuously variable speed system, delivering strong power and high efficiency.
• Intelligent feeding: Automatically monitors cutting force; reduces feed speed upon encountering resistance, and automatically resumes the set speed once the resistance is cleared.
• Various cutting modes are available, such as manual, vertical, horizontal, linear, and pulse feed

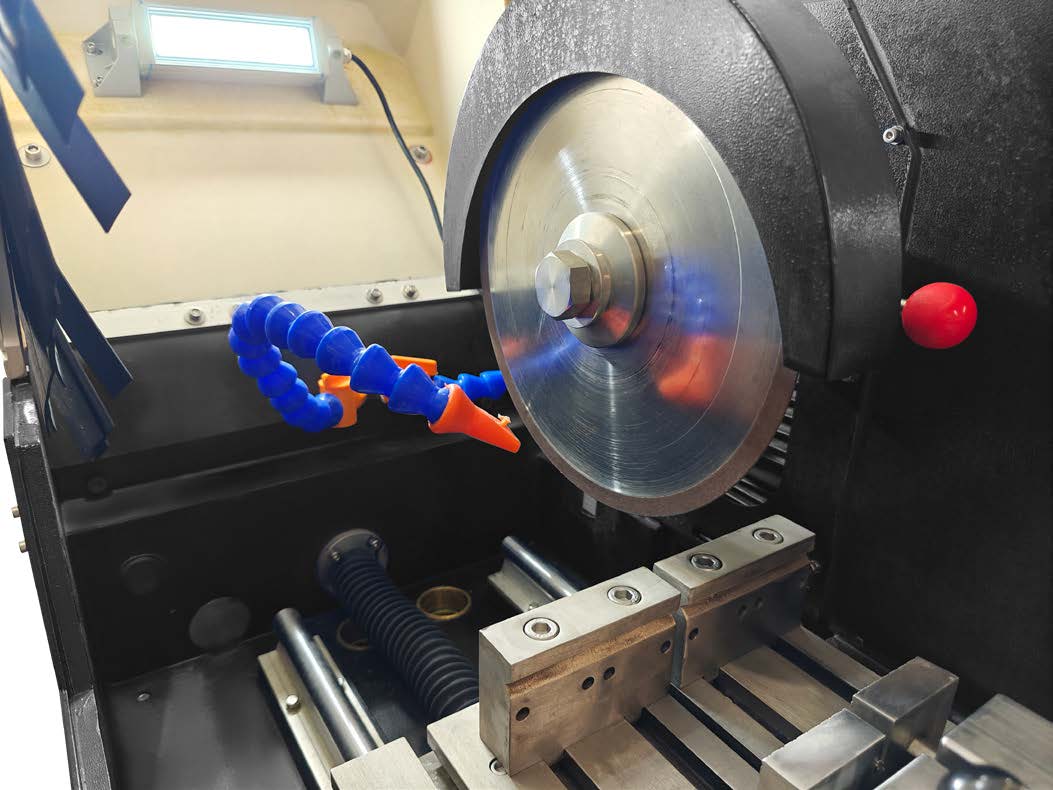

• Maximum cutting diameter of 90.5 mm; uses a 250 × 32 × 5 mm (10-inch) aluminum oxide resin cut-off wheel.
• Spindle speed: 500–3000 rpm
• 8-inch high-definition color touchscreen combined withkey buttons; intuitive operation and easy to use.
• Large transparent window for easy observation of the cutting chamber
• Schneider Electric: Low-voltage control,safe and reliable.
• Electronic brake
• Built-in high-brightness LED illumination,long lifespan, facilitating the observation of sample conditions.
• Electrostatic-sprayed, high-strength cast aluminum alloy base; stable, rust-proof, and durable.

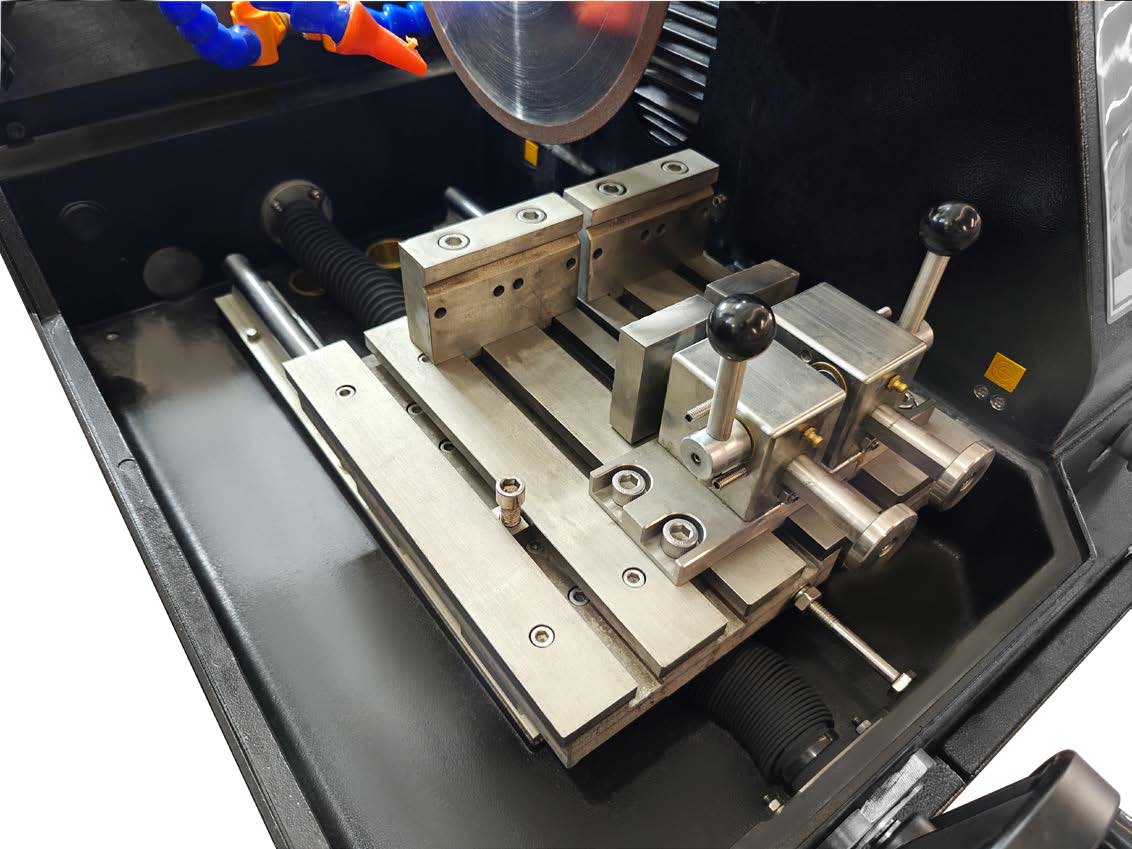

• 304 stainless steel and aluminum alloy T-slot worktable; corrosion-resistant and allows for easy clamp

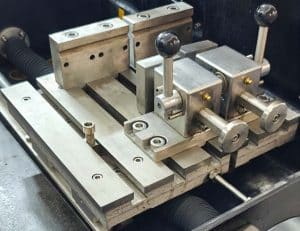

• Comes standard with a quick-release clamp made of 304 stainless steel; easy to operate and durable. Vertical clamps or other types of clamps are available as options.
• 304 stainless steel housing with electrostatic coating; corrosion-resistant and wear-resistant.
• High-strength, integrally molded composite cutting chamber; rust-resistant and easy to clean.
• Mobile, large-capacity plastic circulating water tank
• Independent high-pressure flushing system for easy cleaning of the cutting chamber.
• Optional laser positioning function
• Executive Standards:ASTM E3-11；ISO 643；GB/T 13298

Product Applications：

• Used for sampling and inspection of steel and profile materials, detecting microstructure, defects, and grain size.
• Performs quality and failure analysis on cross-sections of parts and welds.
• Inspects cross-sections of battery components, connectors, and plating layers.
• Prepares standard metallographic samples for microstructure, defect, plating/hardening layer.
