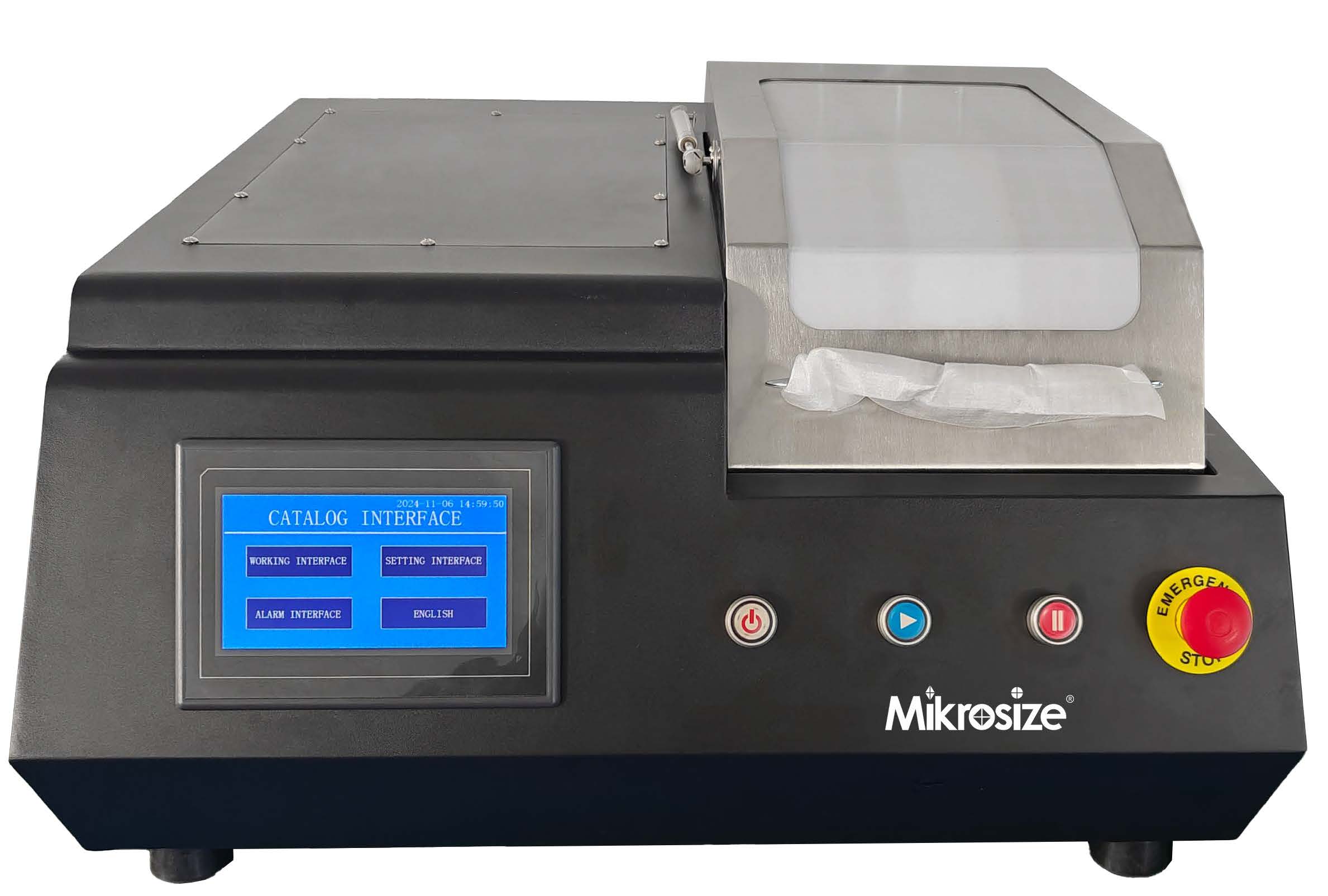

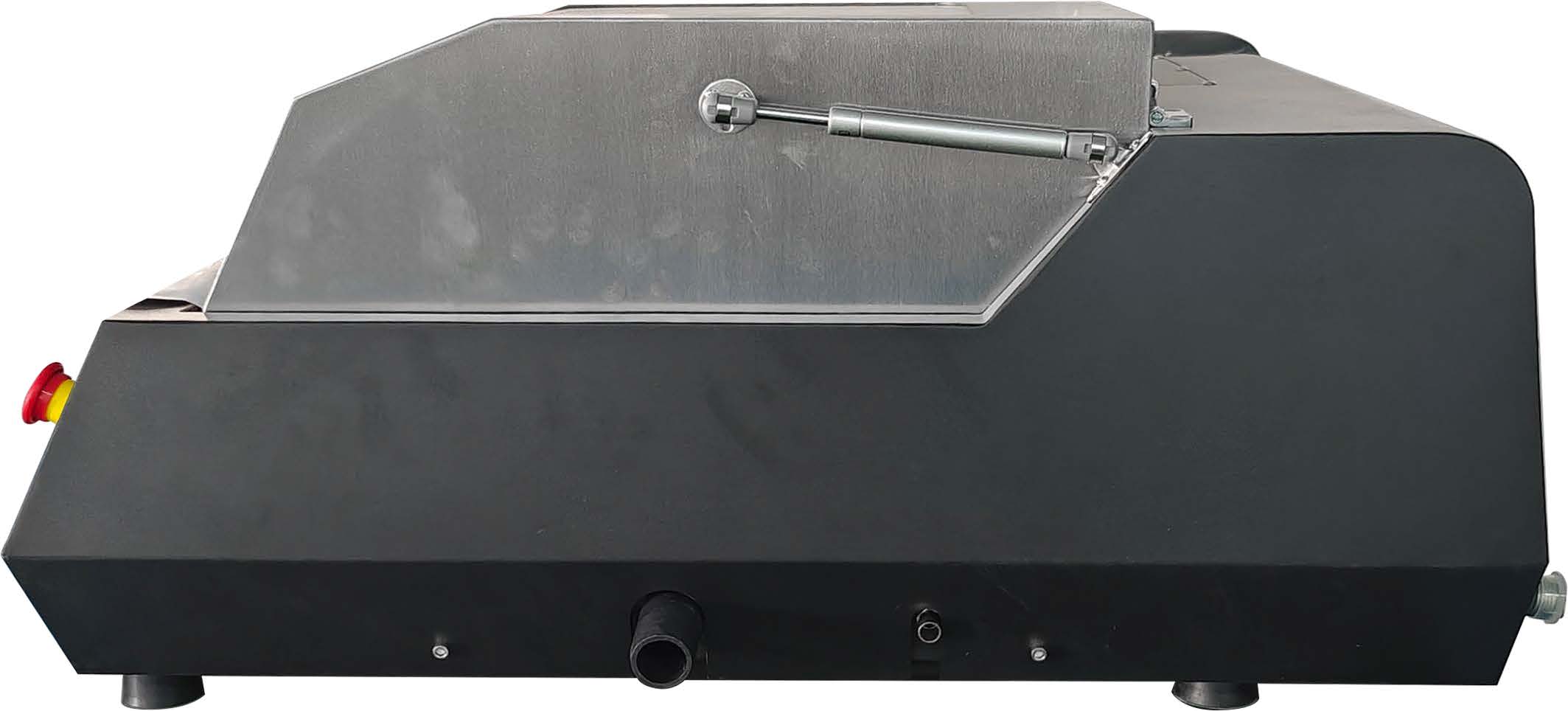

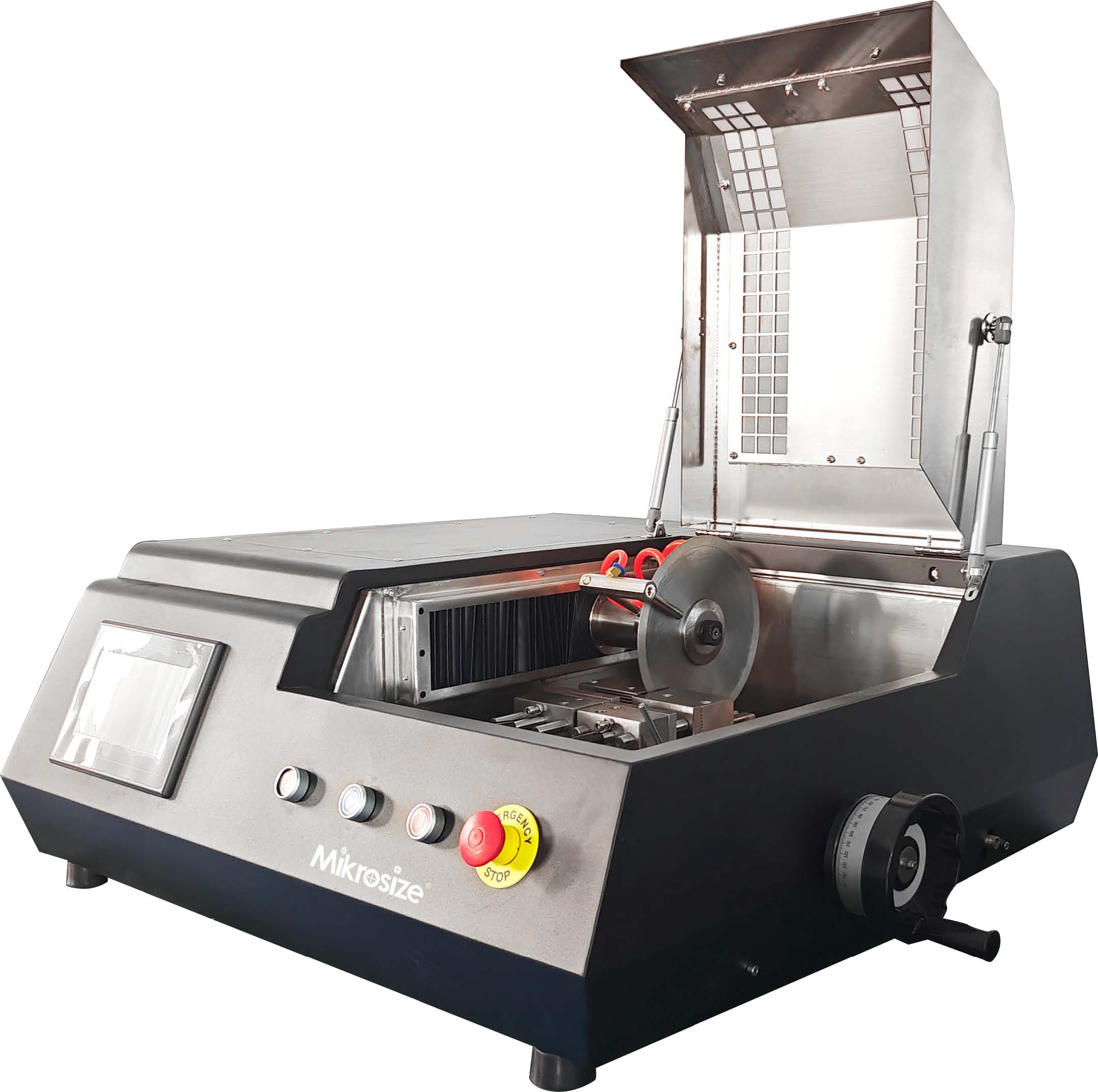

iCut-60P High Speed Precision Cutting Machine
Scan QR

ICut 60P1
ICut 60P2
ICut 60P3
ICut 60P4
ICut 60P5
ICut 60P6
ICut 60P7
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
Thumbnail 6
Thumbnail 7

Product Features & Applications

Product Features:

  • High positioning accuracy.
  • Wide speed range.
  • Strong cutting capacity.
  • Strong circulation cooling system.

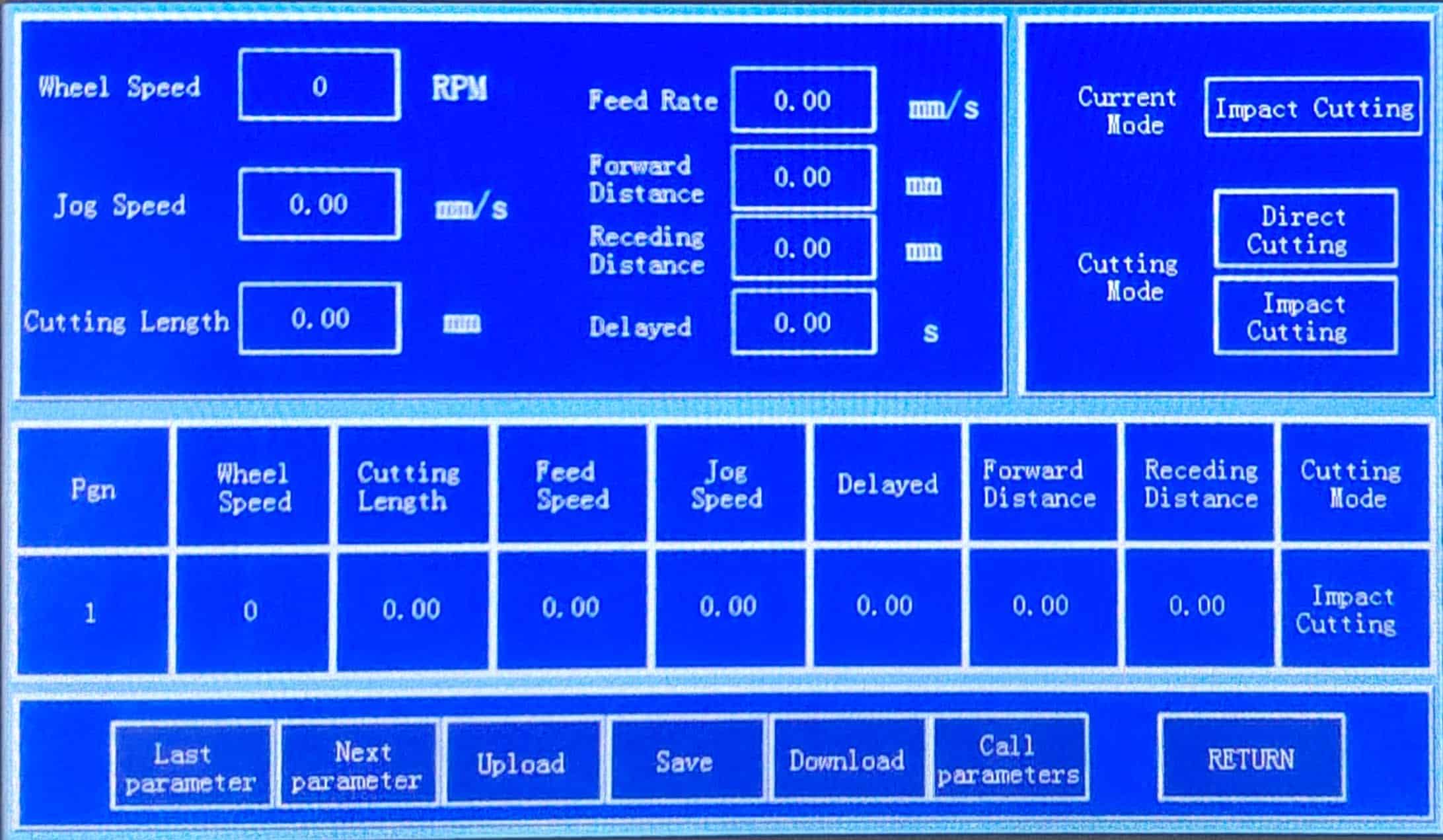

  • Touch screen control display, easy to operate and control.
  • Preset feed speed.
  • Automatic cutting can reduce operator fatigue and ensure consistency of sample production.

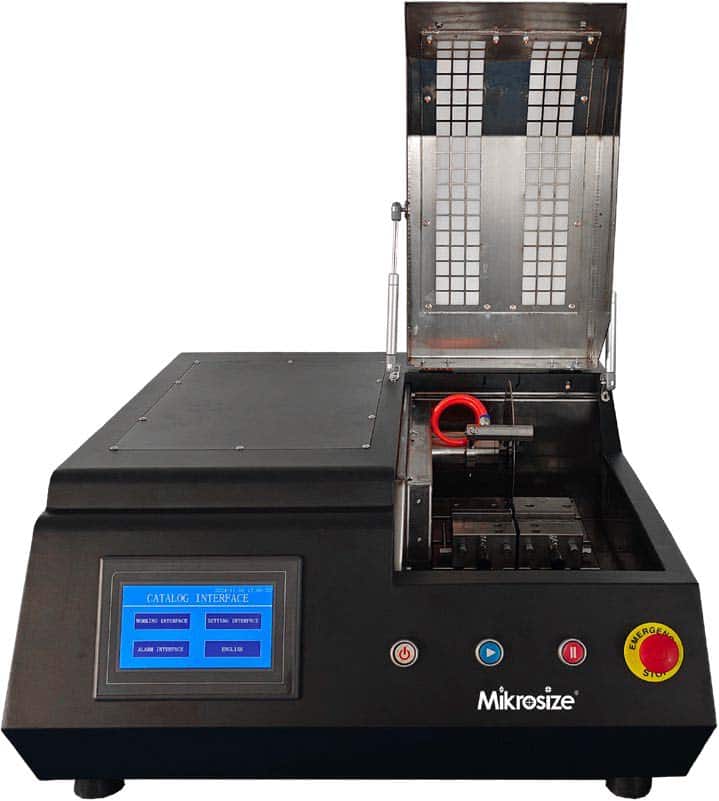

  • Large and bright cutting room with safety switch.

Product Applications:

  • High-speed precision cutting machines can accurately cut various metal materials;
  • High-speed precision cutting machines are very suitable for processing carbide materials due to their high hardness and high wear resistance;
  • High-speed precision cutting machines can achieve crack-free cutting of ceramic materials by optimizing cutting parameters;
  • High-speed precision cutting machines can be used to cut and prepare mineral samples in geological exploration and mineral processing;
  • For difficult-to-process materials such as nickel-based high-temperature alloys, titanium alloys, and high-strength structural steels, high-speed precision cutting machines can effectively reduce tool wear and improve the surface quality of parts.

Technical Specifications

Name Specification
Model iCut-60P
Product Name High Speed Precision Cutting Machine
Cutting Disc Standard Dimension Φ200xΦ32x0.9mm
Rotation Speed 500-5000rpm
Feed Speed 0.01-5mm/s
Manual Feed Speed 0-30mm/s
Impact Cutting Distance 0.1-2mm
Y-axis Movement 200mm
Cutting Capability 60mm
Max Length of Table Clamping 150mm
Max Width of Table Clamping 200mm
Servo Motor 750w
Total Power 1000W
Data Storage 10 sets
Power Supply AC220V 50HZ
Machine Dimension 750x860x430mm
Net Weight 97KG
Gross Weight 126KG

Standard Configuration

Name Specification Qty
Machine Mainframe iCut-60P 1 set
Cutting Disc Φ200xΦ32x0.9mm 1 pc
Outlet Pipe iCut-60P 1 pc
Inlet Pipe iCut-60P 1 pc
 Wrench 17-19mm 1 pc
Hex Wrench M3、M5 1 pc ea.
Adjustable Wrench 200mm 1 pc
Water Tank (including pump) iCut-60P 1 pc
Instruction Manual iCut-60P 1 copy
Warranty Card iCut-60P 1 copy
Product Certificate iCut-60P 1 copy
×
