iSurfa-310 Roughness Waviness Tester

Scan QR

×
Scan QR Code

https://mikrosize.com/product/isurfa-310-roughness-waviness-tester/

Product Features & Applications

Product Features:

High-precision large-stroke guide rail with a length of up to 50mm.
Sensor measurement range: ±100μm.
Pad serves as the operating device, portable and ergonomic for operation.
Wireless WiFi communication enables remote operation and convenient usage.

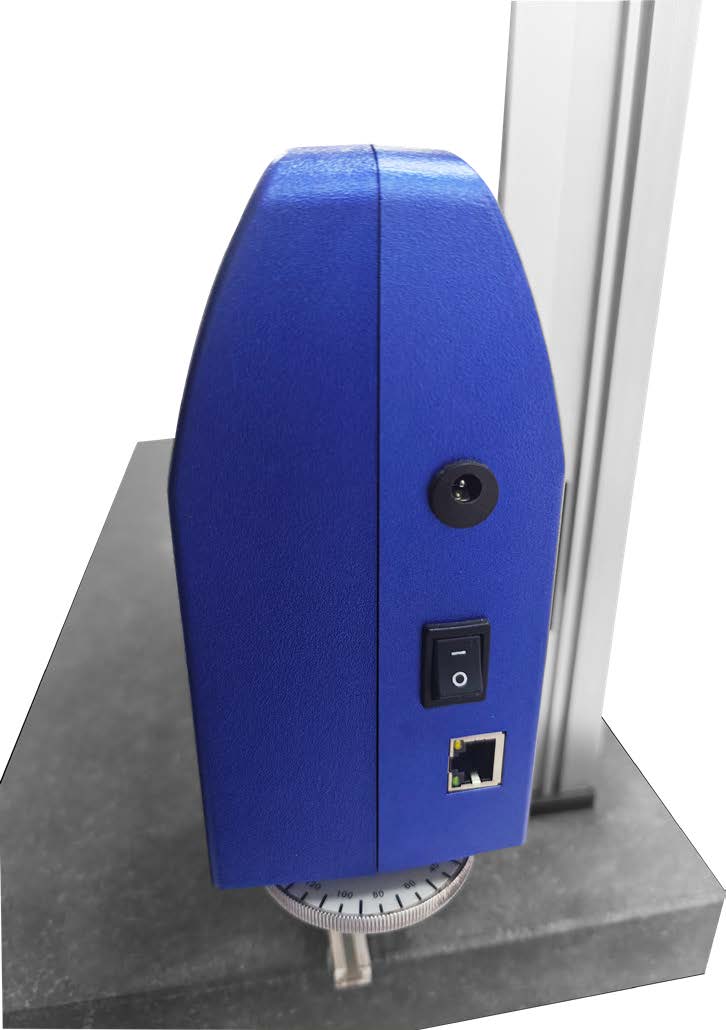

Ethernet cable connection for communication, with automatic switching capability with WiFi, facilitating faster data transmission in workshops where wireless devices are inconvenient to use.
Comprehensive parameters, including 5 measurement types and multiple national standards.
Stylus can be directly replaced, with convenient replacement operation, enabling measurements in different scenarios.
Sensor can be freely switched between vertical and coaxial positions relative to the guide rail, allowing depth groove measurement from the side without being restricted by the depth of the stylus and groove.

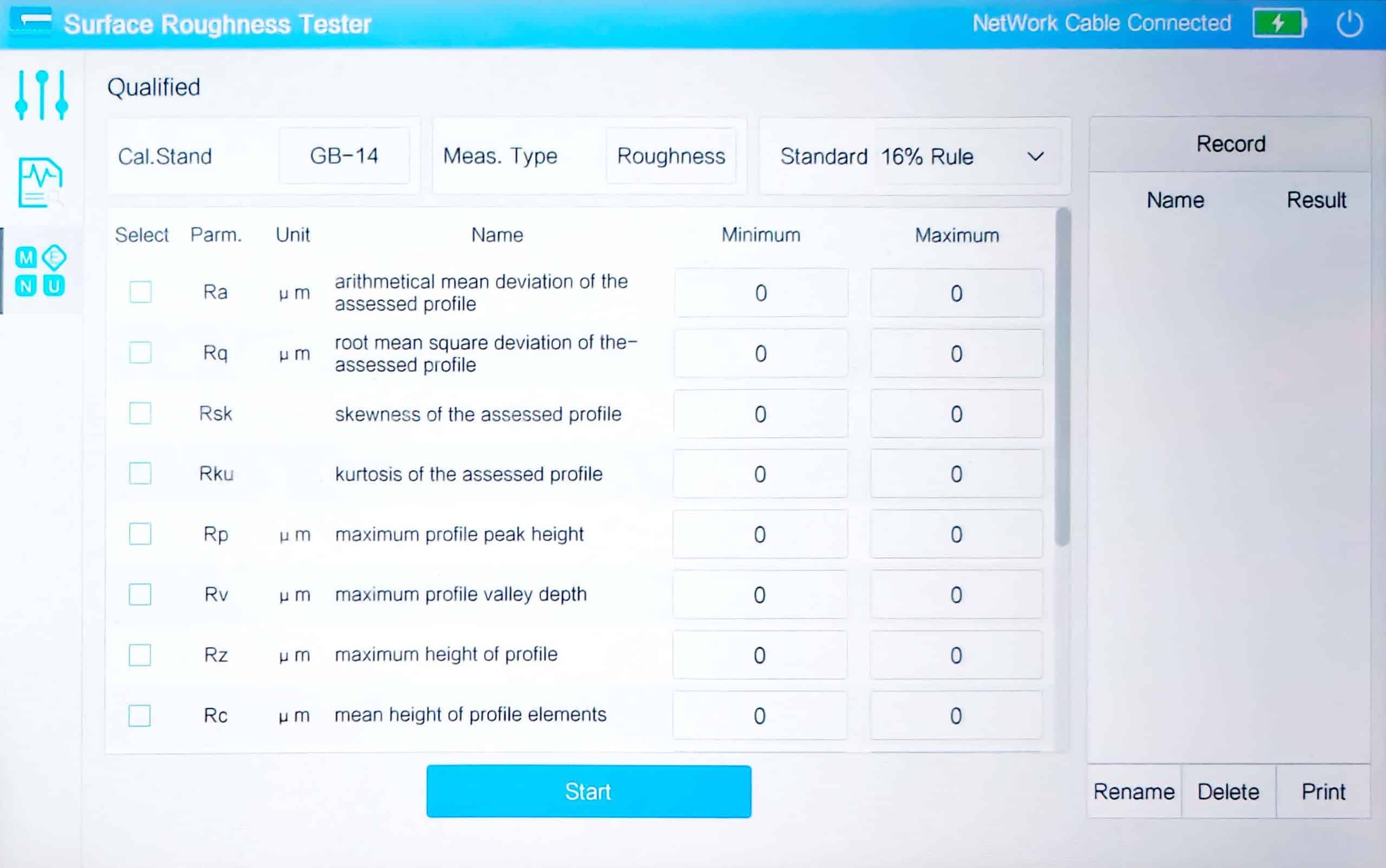

Supports switching between metric and imperial units on the operating interface and result parameters.
Supports switching between Chinese and English interfaces.
Convenient data storage, allowing direct change of storage path to a USB flash drive or SD card inserted into the Pad. CSV data format facilitates easier data use with no upper limit on data storage.
Includes multiple filtering methods and analysis algorithms that can be freely combined to meet requirements.
Supports automatic multiple calibrations of standard blocks, significantly reducing calibration errors.

Product Applications:

Precision Machining: Used to detect the surface roughness and waviness of machined parts, ensuring product quality meets high-precision requirements.
Wafer Surface Inspection: In the semiconductor manufacturing process, measures the roughness and waviness of wafer surfaces to ensure chip quality and production efficiency.

Technical Specifications

Model	iSurfa-310
Range	X direction			50mm
	Z direction			±1000μm
Sensor resolution	X direction			0.0016μm/±50μm ~ 0.016μm/±500μm
Driver	Straightness			1μm/50mm
Analysis algorithm	Corresponding Standard			JIS-82, JIS-87, JIS-94, JIS-01, JIS- 13, ISO-84, ISO-97, DIN-90 , ASME-95 , GB-14
	Parameters	Roughness profile		Ra75, Rq , Rp, Rv, Rc , Rt , S, R3z , PPI , Ra , Rsk , Rku, Ry, Sm , RΔa , RΔq , Rz , Pc , Rλa , Rλq , lr , RSm, Rz94, RPc , RS , Rz.I , Rpm , HSC
		Waviness profile		WCA, WCC-q , WCC-p , WCC-v , WCC-m , WCC-Sm, WCA , WC-q , WC-p , WC-v , WCM , WC-Sm, WC-t, Wa , Wq, Wsk , Wku , Wp , Wv , Wz , Wc , Wt, WSm, WΔq , WPc
		Primary profile		Rsk, Rku , Rmax , Sm , Δa , Δq , Rz , λa , λq , lr , TILT A, AVH , Hmax , Hmin , AREA , Rz.J , Pa , Pq, Psk, Pku, Pp , Pv , Pc.I , Pt , PSm , PΔq , PPc, Pc
		Abbott curve		Rk, Rpk, Rvk, Mr1, Mr2, V0, K, A1, A2
		Motif		NCRX , AR, R, Rx , NR, CPM , SR, SAR, AW , W, Wx, Wte , NW , SW , SAW, Rke , Rpke , Rvke , Mr1, Mr2, V0, K
	Evaluation curve			Roughness profile, Waviness profile, Primary profile, Abbott curve, Motif
	Characteristic curve			Abbott curve(Rmr(c) , Rmr2(c) , Rδc(c) , tp(c), tp2(c), Htp(c)) , Amplitude frequency analysis curve, amplitude distribution curve
	Form remove			global, first half, second half, center, 2 points, curve
	Filter type			Gaussian, FFT , PC , DP, 2RC
	Filter wave length		λs	0 , 2.5 , 8 , 25μm
			λc	0.08 , 0.25 , 0.8 , 2.5 , 8mm
			λf	0.8 , 2.5 , 8 , 25m
Evaluation length				Sampling length × number of samples (sampling length has standard mode and custom mode)
Measurement speed	0.05mm/s , 0. 10mm/s , 0.50mm/s , 1.00mm/s , 2.00mm/
Return speed	0.05mm/s , 0. 10mm/s , 0.50mm/s , 1.00mm/s , 2.00mm/
Sensor	Mode			Standard universal type
	Sensor mode			Differential inductance
	Range			±1000μm
	Stylus			5μmR diamond 90°
	Contact Force of the Stylus			Adjustable from 0.4 to 0.75mN
Operator	Display part			10-inch color IPS touch screen
	Data output			TF card/U disk/WIFI printing
	Corresponding language			Chinese/English
Dimensions and Weight	Power supply			AC220V±10% Built-in Rechargeable Battery (Charged via AC Transformer) Charging Time: 8 Hours
	Power consumption			About 30VA (Capable of 800 measurements after being fully charged)
	Quality			N.W 4Kg G.W 8Kg
	Dimensions			Actuator 80 (W) ×392 (L) × 180 (H) Operator 245 (W) × 162 (D) ×68 (H)

Standard Configuration

Name	Qty	Photo

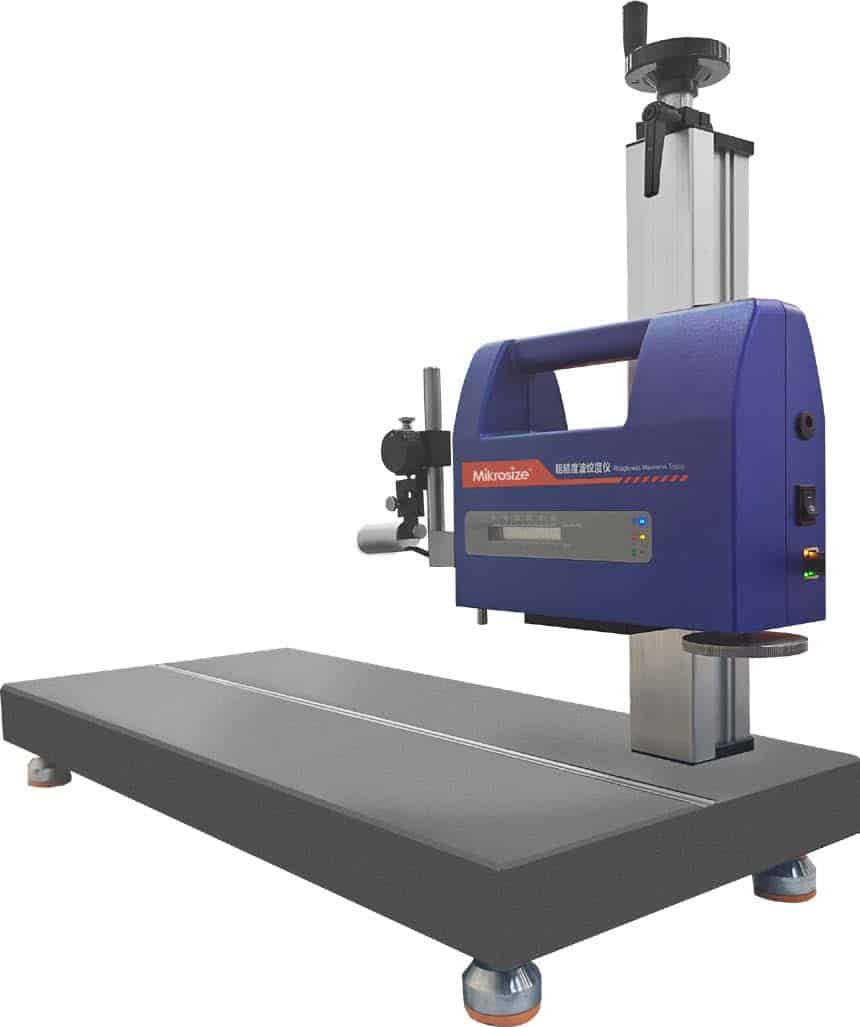

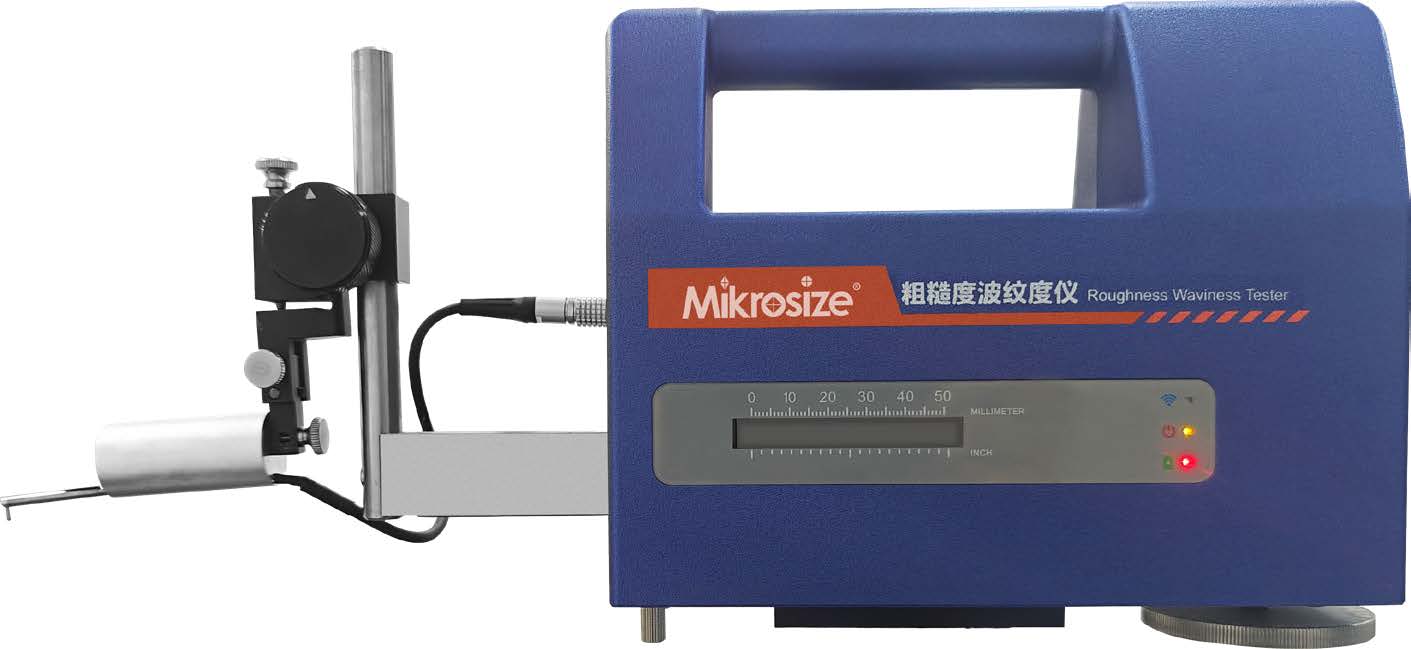

Host Actuator	1 Unit
Sensor	1 PC

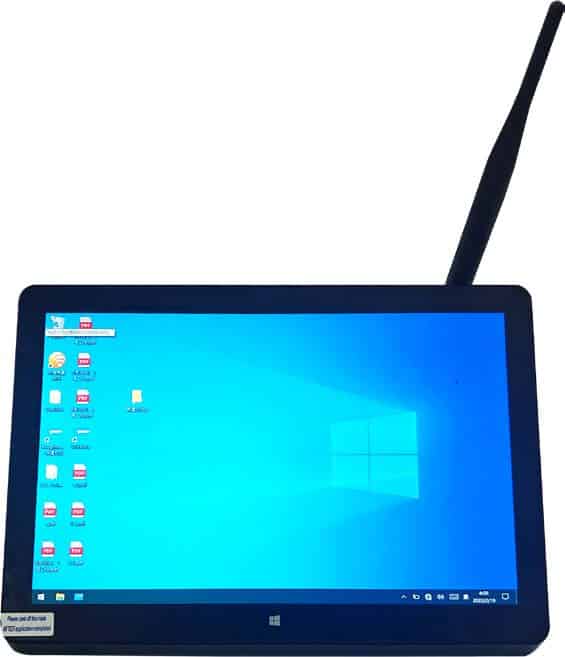

10-inch Pad Operator	1 Unit
Host charger	1 PC	/
Pad charger	1 PC	/
Standard stylus	1 PC
Roughness standard test block	1 PC
Data communication line	1 PC	/
Host waterproof case	1 PC	/
Random tools	Allen wrench (1.5mm and 2.5mm)	/
Product certificate	1 Copy
Product manual	1 Copy
Warranty card	1 Copy
