iVision Toolmakers Microscope
Scan QR
Scan QR

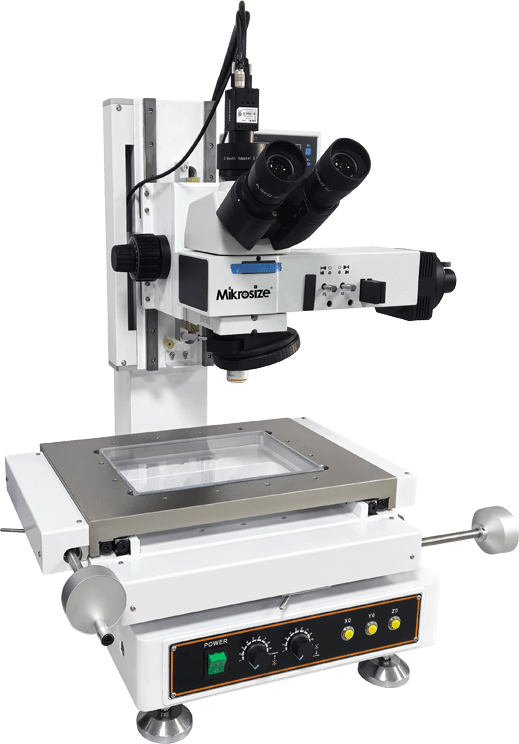

IVision Toolmakers Microscope scaled
Product Features & Applications
Product Feature：
- iVision Toolmakers Microscope has significant advantages and wide applications.
- Its Z-axis coarse and fine adjustment focusing is stable, the software automatically finds the edge and the operation is simple.
- The sub-pixel subdivision technology improves the image resolution, and the light source adjustment is convenient and accurate.
- The workbench made of aviation aluminum and cast iron has stable performance and is not easy to deform.
Product Application：
- This measuring instrument is widely used in many industries such as hardware, electronics, and molds.
- It can conduct precise detection of the size, shape, and position tolerance of workpieces, meeting the needs of part inspection, profile measurement, and process control.
Technical Specifications
| Model | iVision-2010 | iViision-3020 | iVision-4030 |
| X*Y Motion Range(mm) | 200*100 | 300*200 | 400*300 |
| Z-axis Motion Range (mm) | 150 | 150 | 150 |
| External Dimensions(mm) | 700*820*850 | 750×520×1180 | 950*650*1050 |
| Net Weight(kg) | 120 | 180 | 240 |
| Workbench Load-bearing Capacity(kg) | 30 | ||
| Image Sensor | Optional | ||
| Metallographic Lens | Optional | ||
| Accuracy(um) | X/Y:2.0+L/200µm | ||
| Minimum Display unit(mm) | 0.0001 | ||
| Light Source | Surface light:LED coaxial light source
Bottom light source:LED parallel light source |
||
| Software | Mikromea-M 2.5D Manual Measuring Software | ||
| Working Environment | Temperature:22℃±2℃
Humidity:30~80% Vibration:<0.002mm/s,<15Hz |
||
| Power | 220V/50Hz | ||
Standard Configuration
| Number | Name | Specification | QTY |
| 1 | Mainframe | Cast Iron Workbench | 1pc |
| 2 | Data Box | Customized | 1pc |
| 3 | Grating Scale | 0.1um Metal-Patch Grating Scale | 3pcs |
| 4 | Guide Rail | HIWIN Linear Guide Rails from Taiwan | 1pc |
| 5 | Transmission System | X and Y lead screws with fine adjustment | 2pcs |
| 6 | Z-axis Transmission System | Z-axis adopts both coarse and fine adjustment | 1pc |
| 11 | Instrument Operation Manual | Mikrosize | 1 copy |
| 12 | Certificate of Conformity,
Warranty Card |
Mikrosize | Each 1copy |
